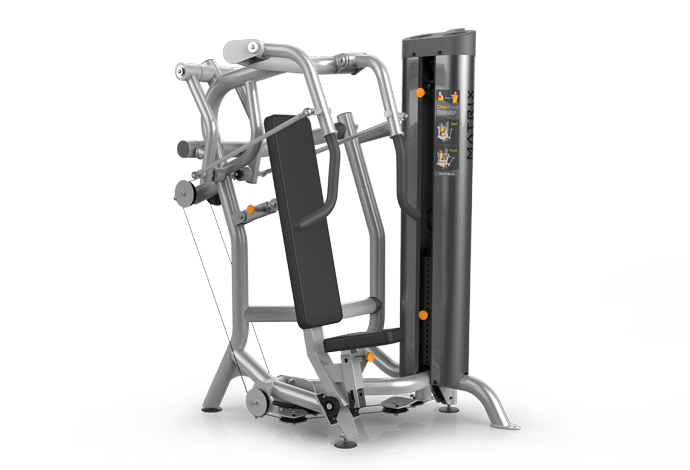

Matrix Commercial - VY-6222IC-02 - 2013

Repair Parts for Matrix Commercial VY-6222IC-02 VYGM356

Brand: Matrix Commercial

Category: Single Station

Type: Strength Systems

Model Name: VY-6222IC-02

Version: 2013

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
713801 1000308375 B35 1" PILLOW BLOCK No Model Compatibility List $62.04 / Each

1
713802 1000308395 Right Arm 3 FLANGE BEARING - 1" No Model Compatibility List $21.89 / Each

8
Z 713805 1000308416 Z56 1" Ext. SNAP RING No Model Compatibility List $2.37 / Each

2
B 713806 1000308417 B26 2" x 2" END CAP No Model Compatibility List $5.46 / Each

9
L 713810 1000308421 Link Arm Right 4 HALF-ROUND RUBBER BUMPER No Model Compatibility List $16.41 / Each

1
B 713811 1000308424 B11 SPRING PIN ASSEMBLY No Model Compatibility List $45.60 / Each

2,3,12,13,14
Z 713814 1000308428 Z51 3/8" NUT No Model Compatibility List $1.43 / Each

2
713816 1000308434 Z28 1 1/64"ID MACHINE BUSHING No Model Compatibility List $1.43 / Each

8,4,5,6
Z 713818 1000308436 Z60 WASHER;FLT;USS;Diam.0.344XDiam.0.875X.06 No Model Compatibility List $1.43 / Each

2
Z 713819 1000308437 Z44 SCREW;HH;.375-16 x 1.50;ZN; No Model Compatibility List $2.37 / Each

2
713824 1000308442 Link Arm R 8 SCREW;SET; .3125-18 X 1.00;SS No Model Compatibility List $1.43 / Each

2
Z 713826 1000308444 Z53 WASHER;FLT;USS;Diam.0.406XDiam.1.000X.06 No Model Compatibility List $1.43 / Each

2
Z 713828 1000308446 Z52 WASHER;FLT;USS;Diam.0.281XDiam.0.734X.06 No Model Compatibility List $1.43 / Each

2
713835 1000308453 Z7 1 9/16"OD x 7/16"ID WASHER No Model Compatibility List $3.28 / Each

2
V 713842 1000308473 V72 Lable, hand pinch No Model Compatibility List $3.02 / Each

12,13,14
B 713937 1000309841 B25 2" X 3" END CAP No Model Compatibility List $7.28 / Each

9
P 713939 1000309846 Pulley 7 1/2" JAM NUT No Model Compatibility List $1.43 / Each

2
Z 713940 1000309847 Z63 WASHER, .50 OD X .38 ID X .05 No Model Compatibility List $1.43 / Each

2
713941 1000309848 Z46 SCREW;HH;.500-13 x 3.50;ZN; No Model Compatibility List $5.04 / Each

2
713943 1000309851 Z40 SCREW;HH;.375-16 x 2.25;ZN; No Model Compatibility List $2.18 / Each

2
713945 1000309853 Z43 SCREW;HH;.250-20 x 1.75;ZN; No Model Compatibility List $2.44 / Each

2
Z 713946 1000309854 Z36 NUT;NLK;.250-20;ZN; No Model Compatibility List $1.43 / Each

2
713948 1000309856 Right Arm 2 1" CRR - 5 1/8" No Model Compatibility List $79.40 / Each

1
R 713949 1000309857 Right Arm 6 BHSCS 3/8 x 3/4" No Model Compatibility List $3.02 / Each

1
Z 713950 1000309858 Z59 3/4" FLAT WASHER No Model Compatibility List $1.33 / Each

2
713953 1000309871 Z45 SCREW;HH;.375-16 x 2.00;ZN; No Model Compatibility List $2.18 / Each

2
713963 1000309947 Z62 1/2" 20 Zinc Jam Nut No Model Compatibility List $2.55 / Each

2
713964 1000309948 B24 Ball Joint (Male half) No Model Compatibility List $0.00 / Each
Out Of Stock 		1
713966 1000309950 Z82 1/2" 20 Left Hand Thread Jam Nut No Model Compatibility List $6.73 / Each

7,2,12,13,14
N 713975 1000310008 Not Shown ROUND LEVELER BOOT No Model Compatibility List $5.04 / Each

3
L 713986 1000310083 Link Arm Right 7 2" ROUND END CAP No Model Compatibility List $5.04 / Each

9
Z 713991 1000310088 Z64 Washer, Curved, 1/2" No Model Compatibility List $3.02 / Each

2
713996 1000310095 B21 1/2" OD x 1/4" ID Plastic Spacer - 1" No Model Compatibility List $1.33 / Each

2,9,3,4,5,6
713997 1000310096 Z8 1/4" SPLIT LOCK WASHER No Model Compatibility List $1.33 / Each

2
713998 1000310097 Z41 SCREW;HH;.250-20 x 2.00;ZN; No Model Compatibility List $1.33 / Each

2
713999 1000310101 B9 1/4" x 1 1/2" F.S. - 2 1/4" No Model Compatibility List $0.00 / Each
Out Of Stock 		1
714012 1000310207 Z42 SCREW;HH;.375-16 x 2.50;ZN; No Model Compatibility List $3.02 / Each

2
714015 1000310213 Z55 SHCS - 1/4"-20 x 1/2" No Model Compatibility List $0.00 / Each
Out Of Stock 		1
714017 1000310270 B19 1"OD x 5/8"ID NYLON PIPE - 3 1/2" No Model Compatibility List $21.94 / Each

1
B 714018 1000310273 B30 4" FOOT (SHORT) No Model Compatibility List $20.05 / Each

9,3
714021 1000310285 Z37 SCREW;HH;.375-16 x 2.75;ZN; No Model Compatibility List $0.00 / Each
Out Of Stock 		2
714024 1000310289 B32 3" Connector Joint No Model Compatibility List $10.11 / Each

1
714025 1000310301 Z48 SCREW;HH;.500-13 x 4.50;ZN; No Model Compatibility List $5.04 / Each

2
714026 1000310302 B29 6" CABLE PULLEY w/ NARROW BUSHING No Model Compatibility List $36.48 / Each

8,4,5,6
Z 714031 1000310307 Z38 SCREW;HH;.375-16 x 1.00;ZN;SAE 5 No Model Compatibility List $2.37 / Each

2
Z 714033 1000310313 Z57 1/4" BLACK FLAT WASHER No Model Compatibility List $1.43 / Each

2,4,5,6
Z 714034 1000310314 Z58 BHSCS - 5 1/6-18 x 3/4" No Model Compatibility List $2.37 / Each

1
714037 1000310330 B71 FOOT; PLASTIC No Model Compatibility List $16.87 / Each

9,3
714038 1000310334 Weight Stack 1 6000 TOP PLATE No Model Compatibility List $78.47 / Each

3
B 714040 1000310339 B81 ROUND WEIGHT STACK BUMPER No Model Compatibility List $5.90 / Each

3,4,5,6
714041 1000310343 Weight Stack 2 Orange SELECTOR PIN w/ 6 1/2" CORD No Model Compatibility List $25.53 / Each

4,5,6,12,13,14
714043 1000310345 V75 LABLE; SELECTORIZED No Model Compatibility List $5.04 / Each

1
714044 1000310346 V74 DECAL,SERIAL NUMBER NON-EN No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3
714091 1000312057 Z50 SCREW;HH;.250-20 x 1.25;ZN;SAE 5 No Model Compatibility List $1.33 / Each

2
P 714105 1000312091 Pulley 5 SCREW;HH;.500-13 x 1.75;ZN; No Model Compatibility List $3.28 / Each

2
714107 1000312095 Z47 SCREW;HH;.500-13 x 3.25;ZN; No Model Compatibility List $5.04 / Each

2
W 714118 1000312127 Weight Stack 4 BHS 5/16" - 1" No Model Compatibility List $5.46 / Each

1
714126 1000312159 Pulley 9 1/2 - 13 NUT No Model Compatibility List $1.33 / Each

2
Z 714127 1000312161 Z61 NUT;NLK;.500-13;ZN;TALL; No Model Compatibility List $1.43 / Each

2
B 714153 1000312233 B31 3" ROUND END CAP No Model Compatibility List $6.73 / Each

9
714240 1000312817 Weight Stack 3 5/16" SPLIT LOCK WASHER No Model Compatibility List $1.33 / Each

2
714246 1000312876 Z39 SCREW;HH;.375-16 x 3.25;ZN; No Model Compatibility List $3.74 / Each

2
714247 1000312877 B33 6000 Top Plastic No Model Compatibility List $170.66 / Each

9
714249 1000312880 Weight Stack 8 CAST IRON No Model Compatibility List $104.75 / Each

1
714302 1000313470 V76 Decal, ROM No Model Compatibility List $5.04 / Each

7,3
714449 1000314816 B12 WELDMENT; BRACK, ADD-A-WEIGHT No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
714450 1000314824 B6 WELDMENT, BACK POST No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6,12,13,14
714452 1000314839 B13 3/4"OD x 7/16"ID PIPE - 28 3/8" No Model Compatibility List $0.00 / Each
Out Of Stock 		1
714453 1000314844 B14 1 3/4" x 1 3/4" TUBE - 9" No Model Compatibility List $0.00 / Each
Out Of Stock 		3
714454 1000314879 B17 6000 GUARD - 59 5/16" No Model Compatibility List $0.00 / Each
Out Of Stock 		9,3
714455 1000314901 Right Arm 1 Foam Grip;1.25" ID x 17" No Model Compatibility List $0.00 / Each
Out Of Stock 		11
714456 1000314903 Z49 SCREW;HH;.250-20 x 3.25;ZN; No Model Compatibility List $0.00 / Each
Out Of Stock 		2
714465 1000315136 V82 6000 STACK DECALS, MEDIUM No Model Compatibility List $30.39 / Each

7,3,4,5,6
714504 1000315479 B68 5/8" Guide Rod - 58.25" No Model Compatibility List $197.70 / Each

3
714538 1000315894 V73 DECAL MATRIX 11X1 - Black for Blue Moon, Iced Silver, Blood Red, White, Sunburst Orange, Fence Green, or Yellow frame No Model Compatibility List $6.73 / Each

7,3,4,5,6
714840 1000318646 AB7 Weldment;Cable Pivot;Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock 		8,3,4,5,6
714902 1000319574 V75 DECAL,WARNING:SINGLE STATION/SELECTORIZE No Model Compatibility List $6.73 / Each

7,3
715255 1000321580 V77 Instructional Labe;;;;;;;JHTNA-M No Model Compatibility List $21.94 / Each

1
715329 1000324057 Z66 SHCS - 1/4"-20 x 1" No Model Compatibility List $1.33 / Each

1
715538 1000325823 B70 Add A Weight Assy No Model Compatibility List $0.00 / Each
Out Of Stock 		3
715553 1000326100 Weight Stack Set WEIGHT STACK PULLEY 20+1 12# SINGLE PULLEY No Model Compatibility List $0.00 / Each
Out Of Stock 		8,3,4,5,6
715554 1000326101 Weight Stack 7 WELDMENT, 21" CENTER STICK No Model Compatibility List $0.00 / Each
Out Of Stock 		3
715989 1000330488 B80 Ball Joint (Female Half)(Threaded Left H No Model Compatibility List $69.26 / Each

7,12,13,14
716115 1000332787 B16 10ga PLASMA PULLEY PLATE No Model Compatibility List $0.00 / Each
Out Of Stock 		8,3
716122 1000333075 B20 ASSEMBLY; CABLE No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
716429 1000336680 AB1 WELDMENT, PAD FRAME;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3,12,13,14
716430 1000336681 AB1 WELDMENT, PAD FRAME;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6,12,13,14
716431 1000336682 AB1 WELDMENT, PAD FRAME;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6,12,13,14
716432 1000336693 AB2 WELDMENT, WEIGHT STACK SUPPORT;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
716433 1000336694 AB2 WELDMENT, WEIGHT STACK SUPPORT;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
716434 1000336695 AB2 WELDMENT, WEIGHT STACK SUPPORT;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
716435 1000336706 AB3 WELDMENT, MAIN FRAME;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
716436 1000336707 AB3 WELDMENT, MAIN FRAME;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
716437 1000336708 AB3 WELDMENT, MAIN FRAME;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
716438 1000336726 V77 6222 IC PLACARD;French No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
716439 1000336733 Right Arm Set ARM 6222 RIGHT ASSEMBLY;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
716440 1000336734 Right Arm Set ARM 6222 RIGHT ASSEMBLY;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
716441 1000336735 Right Arm Set ARM 6222 RIGHT ASSEMBLY;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
716442 1000336746 Left Arm Set ARM 6222 LEFT ASSEMBLY;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
716443 1000336747 Left Arm Set ARM 6222 LEFT ASSEMBLY;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
716444 1000336748 Left Arm Set ARM 6222 LEFT ASSEMBLY;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
716445 1000336759 Link Arm Set Right ARM 6222 RIGHT LINKAGE ASSEMBLY;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
716446 1000336760 Link Arm Set Right ARM 6222 RIGHT LINKAGE ASSEMBLY;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
716447 1000336761 Link Arm Set Right ARM 6222 RIGHT LINKAGE ASSEMBLY;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
716448 1000336772 Link Arm Set Left ARM 6222 LEFT LINKAGE ASSEMBLY;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
716449 1000336773 Link Arm Set Left ARM 6222 LEFT LINKAGE ASSEMBLY;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
716450 1000336774 Link Arm Set Left ARM 6222 LEFT LINKAGE ASSEMBLY;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
717377 1000344562 V73 Decal;Matrix;Grey for Black Matte, Black Ridge, Black Glossy, Moss Green, or Blue Streak frame No Model Compatibility List $15.18 / Each

7,3,4,5,6
717500 1000345600 B22 5/8# Single Split Collar No Model Compatibility List $10.92 / Each

1
717650 1000346601 B78 Stabilizer Foot;Black Ridge No Model Compatibility List $45.60 / Each

9,3,4,5,6
717779 1000347532 B34 4.5" Pulley for Rope / Cable No Model Compatibility List $18.56 / Each

8,4,5,6
717955 1000349022 B18 1/8" Plasma Cable Keeper;Ice Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
717956 1000349023 B18 1/8" Plasma Cable Keeper;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
717957 1000349024 B18 1/8" Plasma Cable Keeper;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
718303 1000350407 Pulley Set Weldment;Pulley Top;4";Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock 		8,3,4,5,6
719079 1000355656 AB15 ADJUSTMENT POST - CHROMED; No Model Compatibility List $0.00 / Each
Out Of Stock 		7,12,13,14
719302 1000359445 AB10 CABLE CLIP ASSEMBLY;Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock 		2,3,4,5,6
719467 1000361808 V83 6000 Stack Decal;Heavy No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3,4,5,6
721552 1000384006 Not Shown Serial Number Label;4" x 1.5";3M; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
729045 Order Left Arm Set Left Arm 7 Left Arm No Model Compatibility List $0.00 / Each
Out Of Stock 		3
729047 Order Left Link Arm Link Arm Left 1 WELDMENT, LH LINKAGE ARM No Model Compatibility List $0.00 / Each
Out Of Stock 		3
729059 Order Right Arm Set Right Arm 7 Right Arm No Model Compatibility List $0.00 / Each
Out Of Stock 		3
729061 Order Right Link Arm Link Arm Right 1 WELDMENT, RH LINKAGE ARM No Model Compatibility List $0.00 / Each
Out Of Stock 		3
729261 See Pad Matrix J67 Elbow Pad;;PU;Black;;FW213-KM; No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6,12,13,14
View Drawing

general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

Hydra Fitness Exchange © 2024. All Rights Reserved.

Payment options
