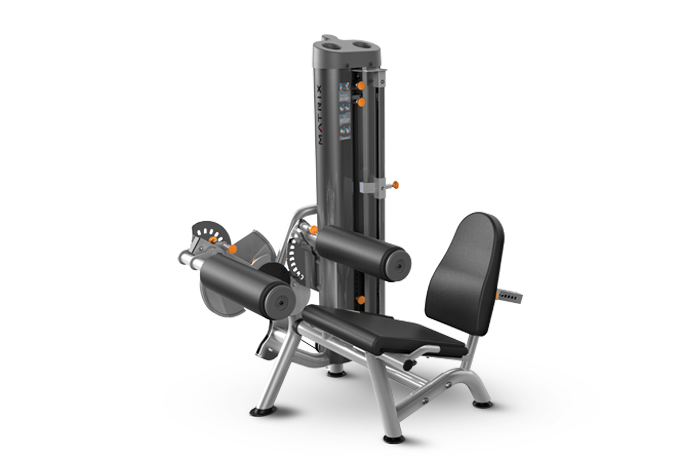

Matrix Commercial - VY-6240M - 2013

Repair Parts for Matrix Commercial VY-6240M VYPGM36,VYGM361

Brand: Matrix Commercial

Category: Single Station

Type: Strength Systems

Model Name: VY-6240M

Version: 2013

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
713802 1000308395 B14 FLANGE BEARING - 1" No Model Compatibility List $21.89 / Each

8
B 713806 1000308417 B45 2" x 2" END CAP No Model Compatibility List $5.46 / Each

9
B 713807 1000308418 B34 1 1/2" x 3" END CAP No Model Compatibility List $5.46 / Each

9
B 713810 1000308421 B85 HALF-ROUND RUBBER BUMPER No Model Compatibility List $16.41 / Each

1
B 713811 1000308424 B19 SPRING PIN ASSEMBLY No Model Compatibility List $45.60 / Each

2,3,12,13,14
713816 1000308434 Z15 1 1/64"ID MACHINE BUSHING No Model Compatibility List $1.43 / Each

8,4,5,6
Z 713818 1000308436 Z61 WASHER;FLT;USS;Diam.0.344XDiam.0.875X.06 No Model Compatibility List $1.43 / Each

2
713821 1000308439 Z64 NUT;NLK;.375-16;ZN; No Model Compatibility List $1.43 / Each

2
713822 1000308440 B20 8" CRR - 3 1/4" No Model Compatibility List $152.10 / Each

1
713823 1000308441 Z57 SCREW;FH;.500-13 x 1.00;ZN; No Model Compatibility List $0.00 / Each
Out Of Stock 		2
713824 1000308442 Z87 SCREW;SET; .3125-18 X 1.00;SS No Model Compatibility List $1.43 / Each

2
Z 713826 1000308444 Z68 WASHER;FLT;USS;Diam.0.406XDiam.1.000X.06 No Model Compatibility List $1.43 / Each

2
Z 713828 1000308446 Z60 WASHER;FLT;USS;Diam.0.281XDiam.0.734X.06 No Model Compatibility List $1.43 / Each

2
713835 1000308453 Z16 1 9/16"OD x 7/16"ID WASHER No Model Compatibility List $3.28 / Each

2
V 713842 1000308473 V75 Lable, hand pinch No Model Compatibility List $3.02 / Each

12,13,14
713943 1000309851 Z50 SCREW;HH;.375-16 x 2.25;ZN; No Model Compatibility List $2.18 / Each

2
Z 713946 1000309854 Z63 NUT;NLK;.250-20;ZN; No Model Compatibility List $1.43 / Each

2
713948 1000309856 B38 1" CRR - 5 1/8" No Model Compatibility List $79.40 / Each

1
713953 1000309871 Z51 SCREW;HH;.375-16 x 2.00;ZN; No Model Compatibility List $2.18 / Each

2
713960 1000309943 B29 ROLLER END CAP w/ 5/16" HOLE No Model Compatibility List $0.00 / Each
Out Of Stock 		8,9
713985 1000310020 Z58 SCREW;FH;.313-18 x 1.25;ZN; No Model Compatibility List $3.35 / Each

2
Z 713986 1000310083 Z31 2" ROUND END CAP No Model Compatibility List $5.04 / Each

9
713987 1000310084 B12 BEARING - 1 1/8" No Model Compatibility List $15.18 / Each

8
713989 1000310086 B13 Machine Bushing 1 5/8" OD x 1.135 ID 14ga Zinc No Model Compatibility List $3.02 / Each

8,4,5,6
713990 1000310087 B35 1 1/8" SPLIT COLLAR No Model Compatibility List $13.49 / Each

1
Z 713991 1000310088 Z69 Washer, Curved, 1/2" No Model Compatibility List $3.02 / Each

2
Z 713992 1000310089 Z53 SCREW;HH;.500-13 x 4.00;ZN; No Model Compatibility List $5.04 / Each

2
713998 1000310097 Z48 SCREW;HH;.250-20 x 2.00;ZN; No Model Compatibility List $1.33 / Each

2
714017 1000310270 B22 1"OD x 5/8"ID NYLON PIPE - 3 1/2" No Model Compatibility List $21.94 / Each

1
B 714018 1000310273 B30 4" FOOT (SHORT) No Model Compatibility List $20.05 / Each

9,3
714022 1000310286 B17 STOP No Model Compatibility List $0.00 / Each
Out Of Stock 		1
714024 1000310289 B27 3" Connector Joint No Model Compatibility List $10.11 / Each

1
714026 1000310302 B41 6" CABLE PULLEY w/ NARROW BUSHING No Model Compatibility List $36.48 / Each

8,4,5,6
714028 1000310304 B37 1/4" x 1/4" x 3/4" KEY No Model Compatibility List $36.48 / Each

9
714030 1000310306 B36 1 5/8" ID Vinyl Cap No Model Compatibility List $5.04 / Each

9
Z 714031 1000310307 Z49 SCREW;HH;.375-16 x 1.00;ZN;SAE 5 No Model Compatibility List $2.37 / Each

2
Z 714034 1000310314 Z67 BHSCS - 5 1/6-18 x 3/4" No Model Compatibility List $2.37 / Each

1
714037 1000310330 B28 FOOT; PLASTIC No Model Compatibility List $16.87 / Each

9,3
B 714040 1000310339 B10 ROUND WEIGHT STACK BUMPER No Model Compatibility List $5.90 / Each

3,4,5,6
714041 1000310343 Weight Stack 2 Orange SELECTOR PIN w/ 6 1/2" CORD No Model Compatibility List $25.53 / Each

4,5,6,12,13,14
Z 714094 1000312064 Z54 5/16" x 1" BOLT No Model Compatibility List $1.33 / Each

2
714097 1000312070 Z52 SCREW;HH;.313-18 x 2.50;ZN; No Model Compatibility List $2.18 / Each

2
W 714118 1000312127 Weight Stack 4 BHS 5/16" - 1" No Model Compatibility List $5.46 / Each

1
Z 714127 1000312161 Z65 NUT;NLK;.500-13;ZN;TALL; No Model Compatibility List $1.43 / Each

2
Z 714178 1000312302 Z42 3/8" FLANGE BUSHING - 3/8" No Model Compatibility List $3.28 / Each

8
Z 714236 1000312711 Z56 1/4" x 1/2" BUTTON HEAD No Model Compatibility List $1.46 / Each

1
714240 1000312817 Weight Stack 3 5/16" SPLIT LOCK WASHER No Model Compatibility List $1.33 / Each

2
714247 1000312877 B40 6000 Top Plastic No Model Compatibility List $170.66 / Each

9
714249 1000312880 Weight Stack 8 CAST IRON No Model Compatibility List $104.75 / Each

1
714302 1000313470 V76 Decal, ROM No Model Compatibility List $5.04 / Each

7,3
714463 1000315105 Weight Stack Set WEIGHT STACK 6000 CRIMP CABLE 222# No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
714465 1000315136 V77 6000 STACK DECALS, MEDIUM No Model Compatibility List $30.39 / Each

7,3,4,5,6
714478 1000315296 Z66 WASHER;FLT;USS;Diam.0.344XDiam.0.875X.06 No Model Compatibility List $3.35 / Each

2
714479 1000315298 Z70 DECAL; PIVOT POINT No Model Compatibility List $5.04 / Each

7,8,3
714504 1000315479 B21 5/8" Guide Rod - 58.25" No Model Compatibility List $197.70 / Each

3
714523 1000315610 B47 RANGE LIMITER COVER No Model Compatibility List $54.05 / Each

9
714538 1000315894 V72 DECAL MATRIX 11X1 - Black for Blue Moon, Iced Silver, Blood Red, White, Sunburst Orange, Fence Green, or Yellow frame No Model Compatibility List $6.73 / Each

7,3,4,5,6
716200 1000334616 AB33 2040 CAM ASSEMBLY;New Maroon;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
716220 1000334702 B7 WELDMENT; AXLE/ROM PLATE;Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock 		8,3,4,5,6
716354 1000335640 B46 Cable Assembly, 6001 No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
716383 1000336245 B44 1/4" PLASMA - 48.1 SQ IN No Model Compatibility List $0.00 / Each
Out Of Stock 		1
716395 1000336430 Z59 SCREW;FH;.375-16 x 2.50;ZN; No Model Compatibility List $0.00 / Each
Out Of Stock 		2
716406 1000336510 B11 1.127ID x 1.377OD x 1" BRASS BUSHING No Model Compatibility List $18.23 / Each

8
716425 1000336557 V74 6240 PLACARD;English No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
717106 1000341600 AB80 Weldment, Upper Post limiter;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3,12,13,14
717107 1000341601 AB80 Weldment, Upper Post limiter;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6,12,13,14
717108 1000341602 AB80 Weldment, Upper Post limiter;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6,12,13,14
717149 1000342015 V74 6240 PLACARD;French No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
717377 1000344562 V72 Decal;Matrix;Grey for Black Matte, Black Ridge, Black Glossy, Moss Green, or Blue Streak frame No Model Compatibility List $15.18 / Each

7,3,4,5,6
717395 1000344757 V90 Decal;Lower ROM;2040 No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3
717396 1000344758 V88 Label, ROM 6240 No Model Compatibility List $0.00 / Each
Out Of Stock 		1
717455 1000345268 Z55 BHSCS 3/8-16 x 1"; No Model Compatibility List $3.02 / Each

1
717650 1000346601 B43 Stabilizer Foot;Black Ridge No Model Compatibility List $45.60 / Each

9,3,4,5,6
717779 1000347532 B39 4.5" Pulley for Rope / Cable No Model Compatibility List $18.56 / Each

8,4,5,6
717958 1000349035 V90 Decal;Mid ROM;2040 No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3
718562 1000351473 V89 DECAL, ROM 11 HOLE No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3
718928 1000354327 B32 Foam Grip;1.25" ID x 9" No Model Compatibility List $0.00 / Each
Out Of Stock 		11
719128 1000356181 Weight Stack 7 WELDMENT; CENTER STICK No Model Compatibility List $0.00 / Each
Out Of Stock 		3
719322 1000359722 Weight Stack 6 Cable Clip Top Half Assembly No Model Compatibility List $0.00 / Each
Out Of Stock 		2,3,4,5,6
719682 1000363760 V71 Warning Label;Frame;;;PC;;English; No Model Compatibility List $0.00 / Each
Out Of Stock 		3
719683 1000363766 V71 Warning Label;Frame;;;PC;;French;GM40 No Model Compatibility List $5.04 / Each

3
720423 1000372410 AB3 WELDMENT; MAIN SWING ARM;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
720424 1000372411 AB3 WELDMENT; MAIN SWING ARM;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
720425 1000372412 AB3 WELDMENT; MAIN SWING ARM;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
720588 1000373778 AB23 CHROMED SEAT POST; No Model Compatibility List $0.00 / Each
Out Of Stock 		7,12,13,14
720993 1000379407 B88 Spring Pin Assy;Body Spring Pin; No Model Compatibility List $35.46 / Each

2,12,13,14
721139 1000380940 AB4 6240 ROLLER;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		8
721140 1000380941 AB4 6240 ROLLER;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		8,4,5,6
721141 1000380942 AB4 6240 ROLLER;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		8,4,5,6
721552 1000384006 V73 Serial Number Label;4" x 1.5";3M; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
722025 1000387203 B9 6000 GUARD - 59 5/16";Charcoal No Model Compatibility List $0.00 / Each
Out Of Stock 		9,3
722112 1000387735 AB6 6027 ROLLER - KNEE HOLD DOWN;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		8
722113 1000387736 AB6 6027 ROLLER - KNEE HOLD DOWN;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		8,4,5,6
722114 1000387737 AB6 6027 ROLLER - KNEE HOLD DOWN;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		8,4,5,6
722327 1000390992 B18 7ga PLASMA (31.5 sq.in.) No Model Compatibility List $0.00 / Each
Out Of Stock 		1
722660 1000397397 AB2 WELDMENT; USER FRAME;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
722661 1000397398 AB2 WELDMENT; USER FRAME;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
722662 1000397399 AB2 WELDMENT; USER FRAME;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
722663 1000397411 B5 1/4" PLASMA - (76.5 sq. in.) No Model Compatibility List $0.00 / Each
Out Of Stock 		1
722664 1000397413 AB78 WELDMENT; MOUNTING BRACKET RANGE LIMITER;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		2,3,4,5,6
722665 1000397414 AB78 WELDMENT; MOUNTING BRACKET RANGE LIMITER;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		2,3,4,5,6
722666 1000397415 AB78 WELDMENT; MOUNTING BRACKET RANGE LIMITER;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		2,3,4,5,6
722667 1000397428 B83 WELDMENT; DROP DOWN BRACKET No Model Compatibility List $0.00 / Each
Out Of Stock 		2,3,4,5,6
722668 1000397430 AB84 Weldment, Rom Limiter;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
722669 1000397431 AB84 Weldment, Rom Limiter;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
722670 1000397432 AB84 Weldment, Rom Limiter;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
722671 1000397445 AB33 2040 CAM ASSEMBLY;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
722672 1000397446 AB33 2040 CAM ASSEMBLY;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
722673 1000397447 AB33 2040 CAM ASSEMBLY;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
722674 1000397459 B82 Drop Down Plate Assy;4lb;Bottom;Black Ri No Model Compatibility List $544.15 / Each

3,4,5,6
722675 1000397460 B81 Drop Down Plate Assy;4lb;Top;Black Ridge No Model Compatibility List $542.46 / Each

3,4,5,6
722676 1000397461 B79 1 1/2" x 1 1/2" TUBE - 53 3/4" No Model Compatibility List $0.00 / Each
Out Of Stock 		3
722677 1000397462 B86 1/4" PLASMA - 6.2 SQ IN;Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
722678 1000397464 AB1 WELDMENT; STACK FRAME;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
722679 1000397465 AB1 WELDMENT; STACK FRAME;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
722680 1000397466 AB1 WELDMENT; STACK FRAME;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
723732 1000412431 Weight Stack 1 Top Plate;Drilled for 6240M; No Model Compatibility List $119.57 / Each

3
729261 See Pad Matrix J26 Elbow Pad;;PU;Black;;FW213-KM; No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6,12,13,14
View Drawing

general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

Hydra Fitness Exchange © 2024. All Rights Reserved.

Payment options
