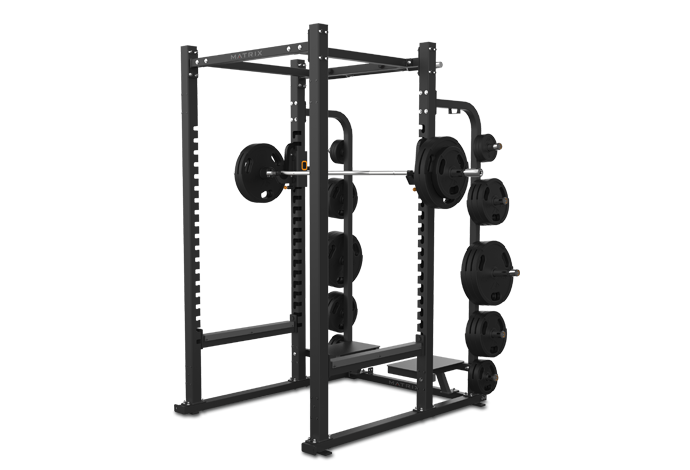

Matrix Commercial - VY-D47-04 - 2014

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry used@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Plastic Parts
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
1000308428 713814 1000308428 Z34 3/8" NUT No Model Compatibility List $1.10 / Each

2
1000308444 713826 1000308444 Z22 WASHER;FLT;USS;Diam.0.406XDiam.1.000X.06 No Model Compatibility List $1.10 / Each

2
713838 1000308466 B23 Flat Bumper - Weight Horn No Model Compatibility List $2.32 / Each

3
1000309773 713935 1000309773 Z1 Screw Set;M6x1.0Px5L;BP;POT No Model Compatibility List $2.52 / Each

2
1000309841 713937 1000309841 B17 2" X 3" END CAP No Model Compatibility List $5.60 / Each

9
1000309842 713938 1000309842 Spotter Stand 3 1 1/2" X 2" END CAP No Model Compatibility List $3.88 / Each

9
713976 1000310009 K2 CAP, END TUBE, 31.8MM No Model Compatibility List $5.60 / Each

9,3
713977 1000310010 K1 COLLAR, TUBE, 31.8MM No Model Compatibility List $11.68 / Each

3
1000310115 714008 1000310115 Safety Bar 2 FHSCS 1/4"-20 X 1/2" No Model Compatibility List $1.02 / Each

1
714021 1000310285 Z12 SCREW;HH;.375-16 x 2.75;ZN; No Model Compatibility List $0.00 / Each
Out Of Stock
2
1000310313 714033 1000310313 J Hook Z3 1/4" BLACK FLAT WASHER No Model Compatibility List $1.10 / Each

2,4,5,6
1000312084 714101 1000312084 Z13 3/8" x 4" BOLT No Model Compatibility List $2.32 / Each

2
714102 1000312086 Z14 SCREW;HH;.375-16 x 4.25;ZN; No Model Compatibility List $0.00 / Each
Out Of Stock
2
1000312231 714152 1000312231 Pull Up Bar B3 1 1/2" Round End Cap No Model Compatibility List $1.68 / Each

9
714160 1000312247 K4 End cap - weight horn 2.5lbs No Model Compatibility List $3.88 / Each

9,3
714161 1000312249 K5 End cap - weight horn 5lbs No Model Compatibility List $3.88 / Each

9,3
714162 1000312250 K8 End cap - weight horn 10lbs No Model Compatibility List $3.88 / Each

9,3
714163 1000312253 K7 End cap - weight horn 25lbs No Model Compatibility List $3.88 / Each

9,3
714164 1000312254 K6 End cap - weight horn 45lbs No Model Compatibility List $3.88 / Each

9,3
1000312711 714236 1000312711 Safety Bar 3 1/4" x 1/2" BUTTON HEAD No Model Compatibility List $1.12 / Each

1
1000313142 714279 1000313142 J Hook B8 1/4" ABS No Model Compatibility List $12.98 / Each

1
714280 1000313143 Safety Bar 4 1/4" ABS No Model Compatibility List $10.38 / Each

1
714283 1000313151 J Hook B7 1/4" ABS No Model Compatibility List $16.88 / Each

1
714284 1000313155 J Hook Z4 1/4"-20 UNC X 20 No Model Compatibility List $1.68 / Each

1
714285 1000313156 J Hook Z5 NUT;NLK;.250-20;BLACK;TALL; No Model Compatibility List $1.68 / Each

2,4,5,6
714310 1000313551 Safety Bar 5 2" TUBING EXTRUSION No Model Compatibility List $0.00 / Each
Out Of Stock
1
714326 1000313658 Safety Bar 1 WELDMENT, SAFETY BAR No Model Compatibility List $0.00 / Each
Out Of Stock
9,3
714327 1000313680 Spotter Stand 6 SCREW;HH;.375-16 x 5.50;ZN; No Model Compatibility List $3.88 / Each

2
714538 1000315894 V35 DECAL MATRIX 11X1 - Black for Blue Moon, Iced Silver, Blood Red, White, Sunburst Orange, Fence Green, or Yellow frame No Model Compatibility List $5.18 / Each

7,3,4,5,6
714644 1000316674 AB1 WELDMENT, REAR BASE;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock
3
714645 1000316675 AB1 WELDMENT, REAR BASE;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock
3,4,5,6
714646 1000316676 AB1 WELDMENT, REAR BASE;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock
3,4,5,6
714647 1000316724 J Hook B6 ROUND KNOB-SPRING PIN ASSEMBLY No Model Compatibility List $0.00 / Each
Out Of Stock
2,3,12,13,14
714650 1000316747 AB2 WELDMENT, LH BASE;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock
3
714651 1000316748 AB2 WELDMENT, LH BASE;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock
3,4,5,6
714652 1000316749 AB2 WELDMENT, LH BASE;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock
3,4,5,6
1000318109 714766 1000318109 Kit 1 HAND GRIP 1.25 DIA 0-12"LONG No Model Compatibility List $37.68 / Each

11
714771 1000318165 Kit 2 WEIGHT HORN SET No Model Compatibility List $14.28 / Each

3
717231 1000343278 Spot Stand L Se Spotter Stand Set;Left;Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock
4,5,6
717232 1000343279 Spot Stand R Se Spotter Stand Set;Right;Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock
4,5,6
717323 1000344063 B19 End Cap;Plastic;3" x 3"; No Model Compatibility List $5.18 / Each

9
717336 1000344132 Pull Up Bar AB1A WELDMENT; PULL-UP BAR; PWR RACK FULL No Model Compatibility List $0.00 / Each
Out Of Stock
3,4,5,6
717377 1000344562 V35 Decal;Matrix;Grey for Black Matte, Black Ridge, Black Glossy, Moss Green, or Blue Streak frame No Model Compatibility List $11.68 / Each

7,3,4,5,6
717444 1000345210 B34 7/16" HOLE PLUG; NYLON No Model Compatibility List $1.02 / Each

1
717763 1000347398 Pull Up Bar Set WELDMENT, STRAIGHT CHIN UP BAR;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock
3
717764 1000347399 Pull Up Bar Set WELDMENT, STRAIGHT CHIN UP BAR;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock
3,4,5,6
717765 1000347400 Pull Up Bar Set WELDMENT, STRAIGHT CHIN UP BAR;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock
3,4,5,6
717914 1000348617 V37 Decal, D47 lower No Model Compatibility List $0.00 / Each
Out Of Stock
7,3
717915 1000348618 V36 Decal, Varsity PR No Model Compatibility List $0.00 / Each
Out Of Stock
7,3
717931 1000348681 J Hook B11 1" Grip;3.25" Long;Closed End No Model Compatibility List $0.00 / Each
Out Of Stock
9,11
719408 1000361089 AB11 WELDMENT, SUPPORT;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock
3
719409 1000361090 AB11 WELDMENT, SUPPORT;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock
3,4,5,6
719410 1000361091 AB11 WELDMENT, SUPPORT;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock
3,4,5,6
719575 1000362634 AB8 WELDMENT, SUPPORT;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock
3
719576 1000362635 AB8 WELDMENT, SUPPORT;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock
3,4,5,6
719577 1000362636 AB8 WELDMENT, SUPPORT;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock
3,4,5,6
719680 1000363753 V34 Warning Label;Plate Loaded; No Model Compatibility List $0.00 / Each
Out Of Stock
3
719681 1000363756 V34 Warning Label;Plate Loaded;French No Model Compatibility List $0.00 / Each
Out Of Stock
3
719740 1000364870 Safety Bar Set Safety Bar Set;Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock
9,4,5,6
720877 1000377714 Safety Bar 6 Matrix Decal;Safeties;11.5 x 1.4; No Model Compatibility List $0.00 / Each
Out Of Stock
7,2,3
720937 1000378581 AB3 WELDMENT, RH BASE;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock
3
720938 1000378582 AB3 WELDMENT, RH BASE;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock
3,4,5,6
720939 1000378583 AB3 WELDMENT, RH BASE;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock
3,4,5,6
720940 1000378596 AB4 Weldment; Upright;Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock
3,4,5,6
720941 1000378598 AB5 Weldment; Upright;Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock
3,4,5,6
720942 1000378600 AB6 WELDMENT, LH WEIGHT STORAGE;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock
3
720943 1000378601 AB6 WELDMENT, LH WEIGHT STORAGE;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock
3,4,5,6
720944 1000378602 AB6 WELDMENT, LH WEIGHT STORAGE;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock
3,4,5,6
720945 1000378615 AB7 WELDMENT, RH WEIGHT STORAGE;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock
3
720946 1000378616 AB7 WELDMENT, RH WEIGHT STORAGE;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock
3,4,5,6
720947 1000378617 AB7 WELDMENT, RH WEIGHT STORAGE;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock
3,4,5,6
720948 1000378629 J Hook Set L J Hook Set;Left;Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock
4,5,6
720949 1000378630 J Hook Set R J Hook Set;Right;Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock
4,5,6
721552 1000384006 V33 Serial Number Label;4" x 1.5";3M; No Model Compatibility List $0.00 / Each
Out Of Stock
1
722596 1000395247 J Hook B2 HDPE Insert;J Hook No Model Compatibility List $0.00 / Each
Out Of Stock
1
729008 Order J Hook Set J Hook AB1 Weldment;J Hook No Model Compatibility List $0.00 / Each
Out Of Stock
3
729066 Order Spotter Stand Set Spotter Stand 2 Weldment;Spotter Stand No Model Compatibility List $0.00 / Each
Out Of Stock
3
