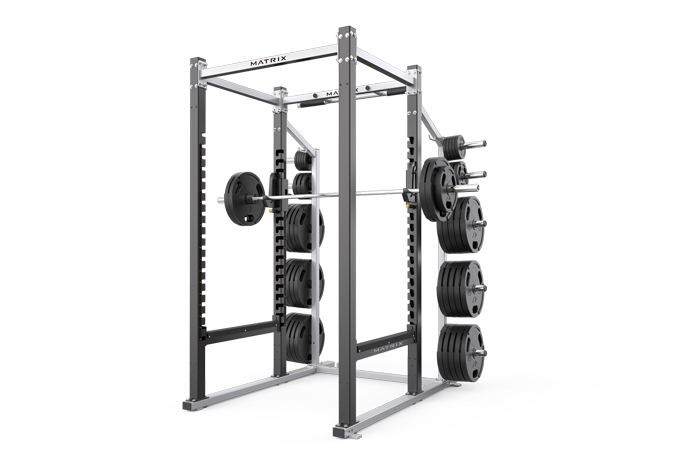

Matrix Commercial - VY-D47-05 - 2015

Repair Parts for Matrix Commercial VY-D47-05 VYPR90

Brand: Matrix Commercial

Category: Racks & Platforms

Type: Strength Systems

Model Name: VY-D47-05

Version: 2015

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Plastic Parts
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
W 713806 1000308417 Weight Horn B4 2" x 2" END CAP No Model Compatibility List $5.46 / Each

9
Z 713814 1000308428 Z25 3/8" NUT No Model Compatibility List $1.43 / Each

2
713820 1000308438 Weight Horn Z6 SCREW;HH;.375-16 x 3.00;ZN; No Model Compatibility List $3.02 / Each

2
Z 713826 1000308444 Z14 WASHER;FLT;USS;Diam.0.406XDiam.1.000X.06 No Model Compatibility List $1.43 / Each

2
713838 1000308466 Weight Horn B3 Flat Bumper - Weight Horn No Model Compatibility List $3.02 / Each

3
713839 1000308467 Weight Horn B2 End cap - weight horn No Model Compatibility List $5.90 / Each

9,3
Z 713935 1000309773 Z1 Screw Set;M6x1.0Px5L;BP;POT No Model Compatibility List $3.28 / Each

2
B 713937 1000309841 B9 2" X 3" END CAP No Model Compatibility List $7.28 / Each

9
W 713950 1000309858 Weight Horn Z10 3/4" FLAT WASHER No Model Compatibility List $1.33 / Each

2
713976 1000310009 K2 CAP, END TUBE, 31.8MM No Model Compatibility List $7.28 / Each

9,3
713977 1000310010 K1 COLLAR, TUBE, 31.8MM No Model Compatibility List $15.18 / Each

3
S 714008 1000310115 Safety Bar 3 FHSCS 1/4"-20 X 1/2" No Model Compatibility List $1.33 / Each

1
714021 1000310285 Z13 SCREW;HH;.375-16 x 2.75;ZN; No Model Compatibility List $0.00 / Each
Out Of Stock 		2
J 714033 1000310313 J Hook Z3 1/4" BLACK FLAT WASHER No Model Compatibility List $1.43 / Each

2,4,5,6
Z 714101 1000312084 Z12 3/8" x 4" BOLT No Model Compatibility List $3.02 / Each

2
714102 1000312086 Z11 SCREW;HH;.375-16 x 4.25;ZN; No Model Compatibility List $0.00 / Each
Out Of Stock 		2
714103 1000312087 Weight Horn Z8 SCREW;HH;.375-16 x 4.50;ZN; No Model Compatibility List $0.00 / Each
Out Of Stock 		2
714124 1000312155 Weight Horn Z11 NUT;HX;.375-16;ZN; No Model Compatibility List $0.00 / Each
Out Of Stock 		2
P 714152 1000312231 Pull Up B3 1 1/2" Round End Cap No Model Compatibility List $2.18 / Each

9
S 714236 1000312711 Safety Bar 2 1/4" x 1/2" BUTTON HEAD No Model Compatibility List $1.46 / Each

1
J 714279 1000313142 J Hook B8 1/4" ABS No Model Compatibility List $16.87 / Each

1
714280 1000313143 Safety Bar 4 1/4" ABS No Model Compatibility List $13.49 / Each

1
714283 1000313151 J Hook B7 1/4" ABS No Model Compatibility List $21.94 / Each

1
714284 1000313155 J Hook Z4 1/4"-20 UNC X 20 No Model Compatibility List $2.18 / Each

1
714285 1000313156 J Hook Z5 NUT;NLK;.250-20;BLACK;TALL; No Model Compatibility List $2.18 / Each

2,4,5,6
714286 1000313161 J Hook V10 LABEL, J-HOOK SELECTOR No Model Compatibility List $3.25 / Each

1
714310 1000313551 Safety Bar 5 2" TUBING EXTRUSION No Model Compatibility List $0.00 / Each
Out Of Stock 		1
714326 1000313658 Safety Bar 1 WELDMENT, SAFETY BAR No Model Compatibility List $0.00 / Each
Out Of Stock 		9,3
714538 1000315894 V17 DECAL MATRIX 11X1 - Black for Blue Moon, Iced Silver, Blood Red, White, Sunburst Orange, Fence Green, or Yellow frame No Model Compatibility List $6.73 / Each

7,3,4,5,6
714647 1000316724 J Hook B6 ROUND KNOB-SPRING PIN ASSEMBLY No Model Compatibility List $0.00 / Each
Out Of Stock 		2,3,12,13,14
P 714766 1000318109 Pull Up Kit 1 HAND GRIP 1.25 DIA 0-12"LONG No Model Compatibility List $48.98 / Each

11
717323 1000344063 B10 End Cap;Plastic;3" x 3"; No Model Compatibility List $6.73 / Each

9
717337 1000344140 Pull Up AB1A WELDMENT; PULL-UP BAR No Model Compatibility List $0.00 / Each
Out Of Stock 		3
717377 1000344562 V17 Decal;Matrix;Grey for Black Matte, Black Ridge, Black Glossy, Moss Green, or Blue Streak frame No Model Compatibility List $15.18 / Each

7,3,4,5,6
717444 1000345210 Weight Horn B11 7/16" HOLE PLUG; NYLON No Model Compatibility List $1.33 / Each

1
717763 1000347398 Pull Up Bar Set WELDMENT, STRAIGHT CHIN UP BAR;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
717764 1000347399 Pull Up Bar Set WELDMENT, STRAIGHT CHIN UP BAR;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
717765 1000347400 Pull Up Bar Set WELDMENT, STRAIGHT CHIN UP BAR;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
717914 1000348617 V21 Decal, D47 lower No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3
717915 1000348618 V20 Decal, Varsity PR No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3
717931 1000348681 J Hook B11 1" Grip;3.25" Long;Closed End No Model Compatibility List $0.00 / Each
Out Of Stock 		9,11
718749 1000353136 K3 1.25" Grip;Order by 1" increments; No Model Compatibility List $0.00 / Each
Out Of Stock 		11
718939 1000354629 B28 5/16" HOLE PLUG; NYLON No Model Compatibility List $0.00 / Each
Out Of Stock 		1
719408 1000361089 AB23 WELDMENT, SUPPORT;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
719409 1000361090 AB23 WELDMENT, SUPPORT;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
719410 1000361091 AB23 WELDMENT, SUPPORT;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
719575 1000362634 AB24 WELDMENT, SUPPORT;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
719576 1000362635 AB24 WELDMENT, SUPPORT;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
719577 1000362636 AB24 WELDMENT, SUPPORT;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
719680 1000363753 V18 Warning Label;Plate Loaded; No Model Compatibility List $0.00 / Each
Out Of Stock 		3
719681 1000363756 V18 Warning Label;Plate Loaded;French No Model Compatibility List $0.00 / Each
Out Of Stock 		3
719701 1000363994 V29 Decal;Warning;Sled;English No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3
719702 1000363997 V29 Decal;Warning;Sled;French No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3
719740 1000364870 Safety Bar Set Safety Bar Set;Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock 		9,4,5,6
719769 1000365315 Weight Horn B9 JA/JD Series Band Hook No Model Compatibility List $0.00 / Each
Out Of Stock 		1
719776 1000365386 W Horn R AB1 Weldment, Pro Weight Storage-RIGHT No Model Compatibility List $0.00 / Each
Out Of Stock 		3
719777 1000365387 W Horn L AB1 Weldment, Pro Weight Storage-RIGHT No Model Compatibility List $0.00 / Each
Out Of Stock 		3
719957 1000367387 J Hook L AB1 WELDMENT, JHOOK LH 4x3 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
719958 1000367388 J Hook R AB1 WELDMENT, JHOOK RH 4x3 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
720877 1000377714 Safety Bar 6 Matrix Decal;Safeties;11.5 x 1.4; No Model Compatibility List $0.00 / Each
Out Of Stock 		7,2,3
721090 1000380539 W Horn R Set Magnum Weight Horn Rack;Right;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721091 1000380540 W Horn R Set Magnum Weight Horn Rack;Right;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721092 1000380541 W Horn R Set Magnum Weight Horn Rack;Right;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721093 1000380554 W Horn L Set Magnum Weight Horn Rack;Left;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721094 1000380555 W Horn L Set Magnum Weight Horn Rack;Left;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721095 1000380556 W Horn L Set Magnum Weight Horn Rack;Left;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721127 1000380785 AB1 Weldment;Rear Base;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
721128 1000380786 AB1 weldment;Rear Base;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721129 1000380787 AB1 Weldment;Rear Base;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721142 1000380959 J Hook R B2 1" PC Hook No Model Compatibility List $54.05 / Each

1
721148 1000381043 AB3 Weldment;RH Base;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
721149 1000381044 AB3 Weldment;RH Base;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721150 1000381045 AB3 Weldment;RH Base;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721151 1000381058 AB2 Weldment;LH Base;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
721152 1000381059 AB2 Weldment;LH Base;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721153 1000381060 AB2 Weldment;LH Base;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721154 1000381074 AB4 Weldment; Upright;Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721155 1000381076 AB5 Weldment; Upright;Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721552 1000384006 V16 Serial Number Label;4" x 1.5";3M; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
721830 1000385738 Not Shown Hardware Kit;Complete;D47-05; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
722596 1000395247 J Hook B2 HDPE Insert;J Hook No Model Compatibility List $0.00 / Each
Out Of Stock 		1
722688 1000397694 J Hook R Set J Hook Set;Left;Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
722712 1000397973 J Hook L Set J Hook Set;Left;Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
