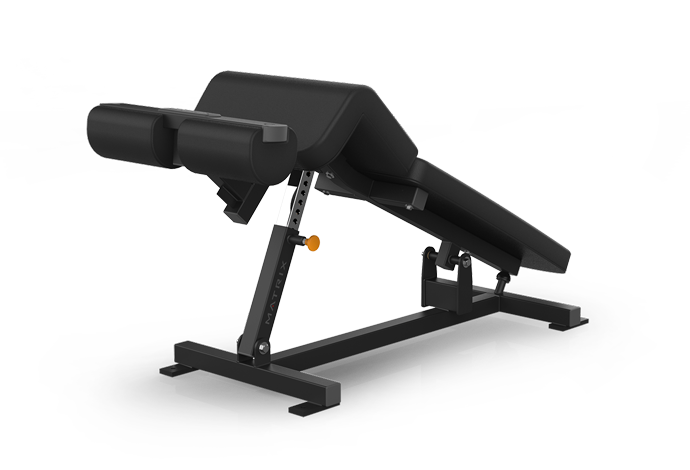

Matrix Commercial - VY-D61-02 - 2013

Repair Parts for Matrix Commercial VY-D61-02 VYFW238

Brand: Matrix Commercial

Category: Freeweight

Type: Strength Systems

Model Name: VY-D61-02

Version: 2013

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
B 713806 1000308417 B11 2" x 2" END CAP No Model Compatibility List $5.46 / Each

9
B 713807 1000308418 B23 1 1/2" x 3" END CAP No Model Compatibility List $5.46 / Each

9
B 713810 1000308421 B6 HALF-ROUND RUBBER BUMPER No Model Compatibility List $16.41 / Each

1
B 713811 1000308424 B4 SPRING PIN ASSEMBLY No Model Compatibility List $45.60 / Each

2,3,12,13,14
Z 713818 1000308436 Z17 WASHER;FLT;USS;Diam.0.344XDiam.0.875X.06 No Model Compatibility List $1.43 / Each

2
713824 1000308442 Z8 SCREW;SET; .3125-18 X 1.00;SS No Model Compatibility List $1.43 / Each

2
713827 1000308445 Z21 5/16" - 3" BOLT No Model Compatibility List $2.18 / Each

2
B 713833 1000308451 B31 5" RUBBER FOOT No Model Compatibility List $14.59 / Each

9,3
V 713842 1000308473 V28 Lable, hand pinch No Model Compatibility List $3.02 / Each

12,13,14
B 713938 1000309842 B12 1 1/2" X 2" END CAP No Model Compatibility List $5.04 / Each

9
713941 1000309848 Z20 SCREW;HH;.500-13 x 3.50;ZN; No Model Compatibility List $5.04 / Each

2
714108 1000312097 Z19 SCREW;HH;.500-13 x 3.75;ZN; No Model Compatibility List $5.04 / Each

2
714112 1000312105 Z18 SCREW;HH;.500-13 x 6.50;ZN; No Model Compatibility List $6.73 / Each

2
Z 714127 1000312161 Z22 NUT;NLK;.500-13;ZN;TALL; No Model Compatibility List $1.43 / Each

2
714165 1000312256 B24 BADGE No Model Compatibility List $5.04 / Each

1
B 714175 1000312296 B7 Flange Bushing - 3/4"OD x 1/2"ID No Model Compatibility List $10.92 / Each

8
714216 1000312424 J13 ASSY, SHIN PAD, A80 No Model Compatibility List $0.00 / Each
Out Of Stock 		12,13,14
Z 714235 1000312700 Z16 7/16" FLAT WASHER No Model Compatibility List $2.44 / Each

2
714438 1000314743 J9 Pad, Back Assembly,A80-61 No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6,12,13,14
714439 1000314744 J10 Pad, Leg Assembly,A80-61 No Model Compatibility List $0.00 / Each
Out Of Stock 		3,12,13,14
714589 1000316282 V30 DECAL,MATRIX LOGO 6.5 X .56(166MM) No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3
716396 1000336432 Z15 BUTTON HEAD BOLT No Model Compatibility List $3.02 / Each

2
718656 1000352733 AB2 Seat Frame;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3,12,13,14
718657 1000352734 AB2 Seat Frame;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6,12,13,14
718658 1000352735 AB2 Seat Frame;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6,12,13,14
720070 1000368439 V29 Warning Label;Plate Loaded; No Model Compatibility List $0.00 / Each
Out Of Stock 		3
720071 1000368441 V29 Warning Label;Plate Loaded;French No Model Compatibility List $0.00 / Each
Out Of Stock 		3
721552 1000384006 V27 Serial Number Label;4" x 1.5";3M; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
721693 1000385152 AB1 Main Frame;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
721694 1000385153 AB1 Main Frame;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721695 1000385154 AB1 Main Frame;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721696 1000385167 AB3 Slide;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		1
721697 1000385168 AB3 Slide;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
721698 1000385169 AB3 Slide;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
721699 1000385181 B5 Chrome Tube - 13 7/8" (.125 wall) No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3,12,13,14
