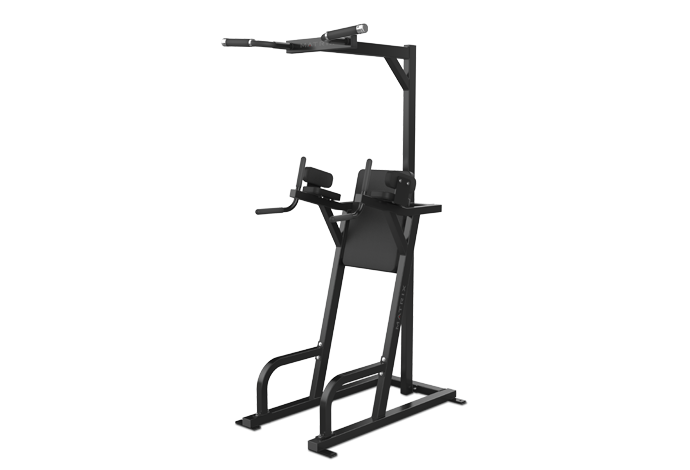

Matrix Commercial - VY-D63C-02 - 2013

Repair Parts for Matrix Commercial VY-D63C-02 VYFW240

Brand: Matrix Commercial

Category: Freeweight

Type: Strength Systems

Model Name: VY-D63C-02

Version: 2013

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Plastic Parts
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
B 713806 1000308417 B5 2" x 2" END CAP No Model Compatibility List $5.46 / Each

9
Z 713814 1000308428 Z10 3/8" NUT No Model Compatibility List $1.43 / Each

2
Z 713818 1000308436 Z15 WASHER;FLT;USS;Diam.0.344XDiam.0.875X.06 No Model Compatibility List $1.43 / Each

2
713820 1000308438 Z12 SCREW;HH;.375-16 x 3.00;ZN; No Model Compatibility List $3.02 / Each

2
Z 713826 1000308444 Z14 WASHER;FLT;USS;Diam.0.406XDiam.1.000X.06 No Model Compatibility List $1.43 / Each

2
B 713834 1000308452 B21 7" RUBBER FOOT No Model Compatibility List $14.59 / Each

9,3
Z 713935 1000309773 Z1 Screw Set;M6x1.0Px5L;BP;POT No Model Compatibility List $3.28 / Each

2
B 713937 1000309841 B6 2" X 3" END CAP No Model Compatibility List $7.28 / Each

9
Z 713967 1000309953 Z13 SCREW;HH;.313-18 x 1.25;ZN; No Model Compatibility List $2.37 / Each

2
713976 1000310009 K2 CAP, END TUBE, 31.8MM No Model Compatibility List $7.28 / Each

9,3
713977 1000310010 K1 COLLAR, TUBE, 31.8MM No Model Compatibility List $15.18 / Each

3
714102 1000312086 Z11 SCREW;HH;.375-16 x 4.25;ZN; No Model Compatibility List $0.00 / Each
Out Of Stock 		2
B 714152 1000312231 B4 1 1/2" Round End Cap No Model Compatibility List $2.18 / Each

9
714193 1000312342 V18 DECAL,WARNING: BOLT DOWN;English No Model Compatibility List $0.00 / Each
Out Of Stock 		7,2,3
714226 1000312455 J9 BACK PAD ASSEMBLY No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6,12,13,14
714538 1000315894 V20 DECAL MATRIX 11X1 - Black for Blue Moon, Iced Silver, Blood Red, White, Sunburst Orange, Fence Green, or Yellow frame No Model Compatibility List $6.73 / Each

7,3,4,5,6
K 714766 1000318109 Kit 1 HAND GRIP 1.25 DIA 0-12"LONG No Model Compatibility List $48.98 / Each

11
714915 1000319630 V18 DECAL,WARNING: BOLT DOWN;French No Model Compatibility List $0.00 / Each
Out Of Stock 		7,2,3
715279 1000323074 AB2 Sub-Weldment;Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
716043 1000331358 B16 1.25 Grip;6" Long;Closed End No Model Compatibility List $0.00 / Each
Out Of Stock 		9,11
717377 1000344562 V20 Decal;Matrix;Grey for Black Matte, Black Ridge, Black Glossy, Moss Green, or Blue Streak frame No Model Compatibility List $15.18 / Each

7,3,4,5,6
718749 1000353136 K3 1.25" Grip;Order by 1" increments; No Model Compatibility List $0.00 / Each
Out Of Stock 		11
719680 1000363753 V17 Warning Label;Plate Loaded; No Model Compatibility List $0.00 / Each
Out Of Stock 		3
719681 1000363756 V17 Warning Label;Plate Loaded;French No Model Compatibility List $0.00 / Each
Out Of Stock 		3
721552 1000384006 V19 Serial Number Label;4" x 1.5";3M; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
721905 1000386317 AB3 Weldment, upper Frame;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
721906 1000386318 AB3 Weldment, upper Frame;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721907 1000386319 AB3 Weldment, upper Frame;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721908 1000386332 AB1 Weldment, Lower Frame;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
721909 1000386333 AB1 Weldment, Lower Frame;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721910 1000386334 AB1 Weldment, Lower Frame;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
729261 See Pad Matrix J8 Elbow Pad;;PU;Black;;FW213-KM; No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6,12,13,14
