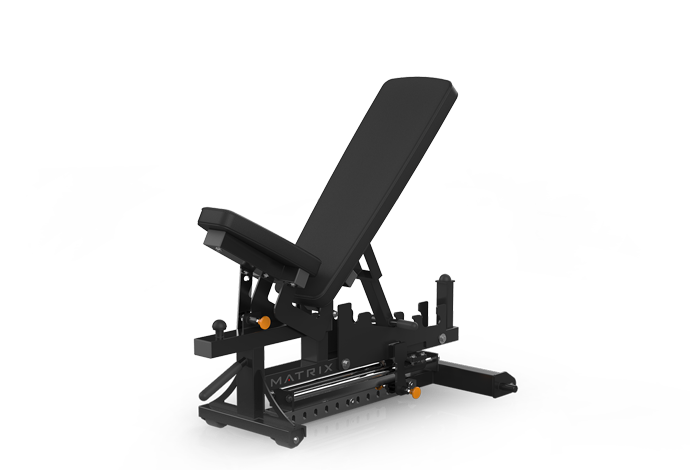

Matrix Commercial - VY-D695-02 - 2013

Repair Parts for Matrix Commercial VY-D695-02 VYFW244

Brand: Matrix Commercial

Category: Freeweight

Type: Strength Systems

Model Name: VY-D695-02

Version: 2013

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
B 713806 1000308417 B41 2" x 2" END CAP No Model Compatibility List $5.46 / Each

9
B 713810 1000308421 B12 HALF-ROUND RUBBER BUMPER No Model Compatibility List $16.41 / Each

1
B 713811 1000308424 B7 SPRING PIN ASSEMBLY No Model Compatibility List $45.60 / Each

2,3,12,13,14
Z 713814 1000308428 Z34 3/8" NUT No Model Compatibility List $1.43 / Each

2
Z 713818 1000308436 Z19 WASHER;FLT;USS;Diam.0.344XDiam.0.875X.06 No Model Compatibility List $1.43 / Each

2
713824 1000308442 B11 SCREW;SET; .3125-18 X 1.00;SS No Model Compatibility List $1.43 / Each

2
713827 1000308445 Z24 5/16" - 3" BOLT No Model Compatibility List $2.18 / Each

2
Z 713828 1000308446 Z23 WASHER;FLT;USS;Diam.0.281XDiam.0.734X.06 No Model Compatibility List $1.43 / Each

2
713829 1000308447 B27 HCS 5/16" - 18 x 3 1/2" No Model Compatibility List $2.18 / Each

1
713831 1000308449 Z32 NUT;NLK;.313-18;ZN; No Model Compatibility List $1.33 / Each

2
713832 1000308450 B39 1" Round Finishing Cap No Model Compatibility List $3.35 / Each

9
V 713842 1000308473 V48 Lable, hand pinch No Model Compatibility List $3.02 / Each

12,13,14
B 713937 1000309841 B42 2" X 3" END CAP No Model Compatibility List $7.28 / Each

9
B 713938 1000309842 B40 1 1/2" X 2" END CAP No Model Compatibility List $5.04 / Each

9
Z 713946 1000309854 Z35 NUT;NLK;.250-20;ZN; No Model Compatibility List $1.43 / Each

2
714025 1000310301 Z30 SCREW;HH;.500-13 x 4.50;ZN; No Model Compatibility List $5.04 / Each

2
714071 1000310863 B10 3/8" PLASMA - 2" x 26" (CHROMED) No Model Compatibility List $224.74 / Each

7,12,13,14
714076 1000311768 B45 10ga Plasma - Rubber Coated No Model Compatibility List $13.49 / Each

1
714077 1000311770 B44 10ga Plasma - Rubber Coated No Model Compatibility List $15.18 / Each

1
714079 1000311963 Z26 Screw;HH;.375-16x1.25;Zinc No Model Compatibility List $0.00 / Each
Out Of Stock 		2
714082 1000312024 B13 1" Grip;6.75" Long;Closed End No Model Compatibility List $0.00 / Each
Out Of Stock 		9,11
714093 1000312062 Z25 5/16" x 3/4" BOLT No Model Compatibility List $1.33 / Each

2
714096 1000312068 Z31 SCREW;HH;.313-18 x 2.25;ZN; No Model Compatibility List $2.18 / Each

2
Z 714104 1000312089 Z39 SCREW;HH;.500-13 x 1.50;ZN; No Model Compatibility List $3.02 / Each

2
714111 1000312103 Z28 SCREW;HH;.500-13 x 5.50;ZN; No Model Compatibility List $6.73 / Each

2
714117 1000312123 Z36 SCREW;FH;.500-13 x 4.00;ZN; No Model Compatibility List $0.00 / Each
Out Of Stock 		2
Z 714127 1000312161 Z33 NUT;NLK;.500-13;ZN;TALL; No Model Compatibility List $1.43 / Each

2
714131 1000312171 Z18 1 9/16" Internal Snap Ring No Model Compatibility List $3.02 / Each

2
B 714170 1000312280 B43 2.5" WHEEL No Model Compatibility List $7.28 / Each

8
B 714174 1000312294 B17 1" LINEAR SHAFT BEARING No Model Compatibility List $62.04 / Each

8,3
Z 714176 1000312298 Z15 1/2" BRASS BUSHING No Model Compatibility List $5.04 / Each

8
Z 714235 1000312700 Z22 7/16" FLAT WASHER No Model Compatibility List $2.44 / Each

2
Z 714236 1000312711 Z37 1/4" x 1/2" BUTTON HEAD No Model Compatibility List $1.46 / Each

1
714538 1000315894 V47 DECAL MATRIX 11X1 - Black for Blue Moon, Iced Silver, Blood Red, White, Sunburst Orange, Fence Green, or Yellow frame No Model Compatibility List $6.73 / Each

7,3,4,5,6
717377 1000344562 V47 Decal;Matrix;Grey for Black Matte, Black Ridge, Black Glossy, Moss Green, or Blue Streak frame No Model Compatibility List $15.18 / Each

7,3,4,5,6
717587 1000346147 B9 2 1/2" X 1 1/4" PERFORMA WHEEL No Model Compatibility List $42.22 / Each

8
717667 1000346693 B48 1 1/4"OD x 1"ID PLASTIC TUBE - 1.25" No Model Compatibility List $0.00 / Each
Out Of Stock 		9,3
717688 1000346828 B16 INA Linear Shaft Class 1" X 29; Drill an No Model Compatibility List $187.56 / Each

3
717931 1000348681 B14 1" Grip;3.25" Long;Closed End No Model Compatibility List $0.00 / Each
Out Of Stock 		9,11
719202 1000357140 AB3 Front Seat Weldment;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3,12,13,14
719203 1000357141 AB3 Front Seat Weldment;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6,12,13,14
719204 1000357142 AB3 Front Seat Weldment;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6,12,13,14
719675 1000363636 AB1 BASE FRAME;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
719676 1000363637 AB1 BASE FRAME;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
719677 1000363638 AB1 BASE FRAME;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
720070 1000368439 V44 Warning Label;Plate Loaded; No Model Compatibility List $0.00 / Each
Out Of Stock 		3
720071 1000368441 V44 Warning Label;Plate Loaded;French No Model Compatibility List $0.00 / Each
Out Of Stock 		3
720621 1000374158 AB6 Linear Bearing Mount;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		2,8
720622 1000374159 AB6 Linear Bearing Mount;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		2,8,4,5,6
720623 1000374160 AB6 Linear Bearing Mount;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		2,8,4,5,6
720993 1000379407 B50 Spring Pin Assy;Body Spring Pin; No Model Compatibility List $35.46 / Each

2,12,13,14
721552 1000384006 V46 Serial Number Label;4" x 1.5";3M; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
721731 1000385255 AB2 Main Frame;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
721732 1000385256 AB2 Main Frame;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721733 1000385257 AB2 Main Frame;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721734 1000385269 B8 1/4" PLASMA;Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
721735 1000385271 AB5 Back Pad Support Assy;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6,12,13,14
721736 1000385272 AB5 Back Pad Support Assy;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6,12,13,14
721737 1000385273 AB5 Back Pad Support Assy;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6,12,13,14
721738 1000385286 AB4 Back Pad Weldment;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6,12,13,14
721739 1000385287 AB4 Back Pad Weldment;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6,12,13,14
721740 1000385288 AB4 Back Pad Weldment;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6,12,13,14
729261 See Pad Matrix J38 Elbow Pad;;PU;Black;;FW213-KM; No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6,12,13,14
