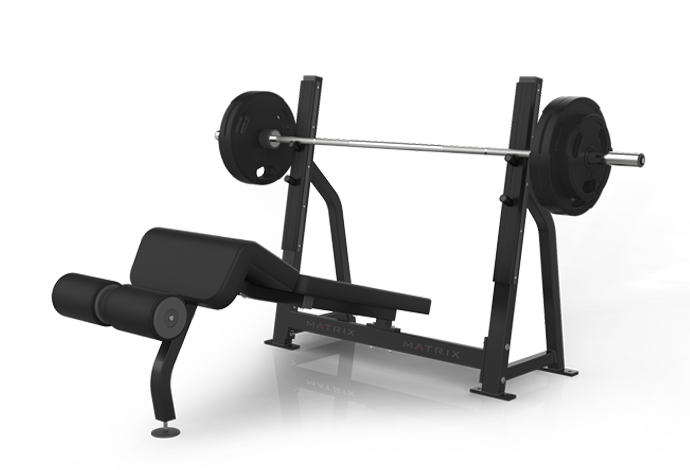

Matrix Commercial - VY-D80-02 - N/A

Repair Parts for Matrix Commercial VY-D80-02 VYFW250,VYFW25

Brand: Matrix Commercial

Category: Freeweight

Type: Strength Systems

Model Name: VY-D80-02

Version: N/A

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
B 713806 1000308417 B9 2" x 2" END CAP No Model Compatibility List $5.46 / Each

9
1 1/2 713807 1000308418 B4 1 1/2" x 3" END CAP No Model Compatibility List $5.46 / Each

9
HALF-ROUND RUBBER BUMPER 713810 1000308421 B12 HALF-ROUND RUBBER BUMPER No Model Compatibility List $16.41 / Each

1
SPRING PIN ASSEMBLY 713811 1000308424 B7 SPRING PIN ASSEMBLY No Model Compatibility List $45.60 / Each

2,3,12,13,14
Z 713814 1000308428 Z18 3/8" NUT No Model Compatibility List $1.43 / Each

2
713817 1000308435 Z29 1 21/64" O.D. x 1 1/64" I.D. 14GA No Model Compatibility List $2.37 / Each

1
B 713818 1000308436 B14 WASHER;FLT;USS;Diam.0.344XDiam.0.875X.06 No Model Compatibility List $1.43 / Each

2
713824 1000308442 B11 SCREW;SET; .3125-18 X 1.00;SS No Model Compatibility List $1.43 / Each

2
Z 713826 1000308444 Z13 WASHER;FLT;USS;Diam.0.406XDiam.1.000X.06 No Model Compatibility List $1.43 / Each

2
713827 1000308445 B15 5/16" - 3" BOLT No Model Compatibility List $2.18 / Each

2
WASHER;FLT;USS;Diam.0.281XDiam.0.734X.06 713828 1000308446 Z23 WASHER;FLT;USS;Diam.0.281XDiam.0.734X.06 No Model Compatibility List $1.43 / Each

2
713832 1000308450 B39 1" Round Finishing Cap No Model Compatibility List $3.35 / Each

9
5 713833 1000308451 B11 5" RUBBER FOOT No Model Compatibility List $14.59 / Each

9,3
B 713834 1000308452 B24 7" RUBBER FOOT No Model Compatibility List $14.59 / Each

9,3
713835 1000308453 Z23 1 9/16"OD x 7/16"ID WASHER No Model Compatibility List $3.28 / Each

2
Lable, hand pinch 713842 1000308473 V45 Lable, hand pinch No Model Compatibility List $3.02 / Each

12,13,14
B 713937 1000309841 B8 2" X 3" END CAP No Model Compatibility List $7.28 / Each

9
1 1/2 713938 1000309842 B40 1 1/2" X 2" END CAP No Model Compatibility List $5.04 / Each

9
WASHER, .50 OD X .38 ID X .05 713940 1000309847 Z66 WASHER, .50 OD X .38 ID X .05 No Model Compatibility List $1.43 / Each

2
713941 1000309848 Z12 SCREW;HH;.500-13 x 3.50;ZN; No Model Compatibility List $5.04 / Each

2
NUT;NLK;.250-20;ZN; 713946 1000309854 Z35 NUT;NLK;.250-20;ZN; No Model Compatibility List $1.43 / Each

2
713959 1000309942 B10 ROLLER END CAP w/ 2" HOLE No Model Compatibility List $0.00 / Each
Out Of Stock 		8,9
713960 1000309943 B11 ROLLER END CAP w/ 5/16" HOLE No Model Compatibility List $0.00 / Each
Out Of Stock 		8,9
Z 713967 1000309953 Z17 SCREW;HH;.313-18 x 1.25;ZN; No Model Compatibility List $2.37 / Each

2
N 713975 1000310008 Not Shown ROUND LEVELER BOOT No Model Compatibility List $5.04 / Each

3
STAR HANDLE 714004 1000310106 B6 STAR HANDLE No Model Compatibility List $60.22 / Each

11
16 714006 1000310108 B30 16" 1" ID Grip - 13.52" Long No Model Compatibility List $18.56 / Each

11
B 714018 1000310273 B4 4" FOOT (SHORT) No Model Compatibility List $20.05 / Each

9,3
714025 1000310301 Z30 SCREW;HH;.500-13 x 4.50;ZN; No Model Compatibility List $5.04 / Each

2
714064 1000310670 B6 3/4" CRR - 11 1/8" No Model Compatibility List $0.00 / Each
Out Of Stock 		1
714082 1000312024 B13 1" Grip;6.75" Long;Closed End No Model Compatibility List $0.00 / Each
Out Of Stock 		9,11
714088 1000312042 B2 1.25" Grip;7.75" Long;Closed End No Model Compatibility List $0.00 / Each
Out Of Stock 		9,11
714092 1000312060 Z19 SCREW;HH;.250-20 x 2.50;ZN; No Model Compatibility List $0.00 / Each
Out Of Stock 		2
5/16 714094 1000312064 Z16 5/16" x 1" BOLT No Model Compatibility List $1.33 / Each

2
SCREW;HH;.313-18 x 2.00;ZN; 714095 1000312066 Z14 SCREW;HH;.313-18 x 2.00;ZN; No Model Compatibility List $2.18 / Each

2
714102 1000312086 Z16 SCREW;HH;.375-16 x 4.25;ZN; No Model Compatibility List $0.00 / Each
Out Of Stock 		2
714111 1000312103 Z28 SCREW;HH;.500-13 x 5.50;ZN; No Model Compatibility List $6.73 / Each

2
NUT;NLK;.500-13;ZN;TALL; 714127 1000312161 Z33 NUT;NLK;.500-13;ZN;TALL; No Model Compatibility List $1.43 / Each

2
714147 1000312217 B11 1 X 1 END CAP No Model Compatibility List $0.00 / Each
Out Of Stock 		9
1 1/2 714152 1000312231 B24 1 1/2" Round End Cap No Model Compatibility List $2.18 / Each

9
714165 1000312256 B6 BADGE No Model Compatibility List $5.04 / Each

1
2.5 714170 1000312280 B43 2.5" WHEEL No Model Compatibility List $7.28 / Each

8
1/2 714176 1000312298 Z15 1/2" BRASS BUSHING No Model Compatibility List $5.04 / Each

8
714229 1000312475 J4 A93 PAD No Model Compatibility List $0.00 / Each
Out Of Stock 		12,13,14
714232 1000312684 Z82 Washer;Thrust;.50 x 1";BRZ; No Model Compatibility List $0.00 / Each
Out Of Stock 		7,2,12,13,14
7/16 714235 1000312700 Z22 7/16" FLAT WASHER No Model Compatibility List $2.44 / Each

2
Z 714236 1000312711 Z12 1/4" x 1/2" BUTTON HEAD No Model Compatibility List $1.46 / Each

1
714252 1000312890 B5 1" Grip;8" Long;Closed End No Model Compatibility List $0.00 / Each
Out Of Stock 		9,11
SHCS - 1/4-20 x 1 1/4 714254 1000312901 Z33 SHCS - 1/4-20 x 1 1/4" No Model Compatibility List $2.24 / Each

1
714302 1000313470 V31 Decal, ROM No Model Compatibility List $5.04 / Each

7,3
714435 1000314738 B19 Extrusion, UHMW 19.75 No Model Compatibility List $0.00 / Each
Out Of Stock 		1
714438 1000314743 J5 Pad, Back Assembly,A80-61 No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6,12,13,14
714439 1000314744 J23 Pad, Leg Assembly,A80-61 No Model Compatibility List $0.00 / Each
Out Of Stock 		3,12,13,14
714441 1000314752 J6 9" FOAM ROLLER No Model Compatibility List $0.00 / Each
Out Of Stock 		8
714537 1000315813 V30 DECAL, WARNING: MOVING HAZARD;French No Model Compatibility List $5.04 / Each

7,3
714538 1000315894 V22 DECAL MATRIX 11X1 - Black for Blue Moon, Iced Silver, Blood Red, White, Sunburst Orange, Fence Green, or Yellow frame No Model Compatibility List $6.73 / Each

7,3,4,5,6
714589 1000316282 V14 DECAL,MATRIX LOGO 6.5 X .56(166MM) No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3
714672 1000316932 B11 1" Grip;Order by 1" increments No Model Compatibility List $0.00 / Each
Out Of Stock 		11
715253 1000321578 V30 DECAL, WARNING: MOVING HAZARD;English No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3
715295 1000323459 J13 PAD SEAT No Model Compatibility List $0.00 / Each
Out Of Stock 		12,13,14
715296 1000323460 J14 PAD BENCH No Model Compatibility List $0.00 / Each
Out Of Stock 		12,13,14
715297 1000323521 AB1 Main Frame;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
715298 1000323522 AB1 Main Frame;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
715299 1000323523 AB1 Main Frame;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
715300 1000323531 J6 PAD SEAT No Model Compatibility List $0.00 / Each
Out Of Stock 		12,13,14
715301 1000323532 J10 Back Pad No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6,12,13,14
717316 1000343914 B29 1 1/2" x 1 1/2" END CAP No Model Compatibility List $3.02 / Each

9
717377 1000344562 V22 Decal;Matrix;Grey for Black Matte, Black Ridge, Black Glossy, Moss Green, or Blue Streak frame No Model Compatibility List $15.18 / Each

7,3,4,5,6
717422 1000344984 B56 End Cap;1 3/4 x 1 3/4 No Model Compatibility List $0.00 / Each
Out Of Stock 		9
717530 1000345923 AB1 Base Frame;D93;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
717531 1000345924 AB1 Base Frame;D93;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
717532 1000345925 AB1 Base Frame;D93;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
717667 1000346693 B48 1 1/4"OD x 1"ID PLASTIC TUBE - 1.25" No Model Compatibility List $0.00 / Each
Out Of Stock 		9,3
717668 1000346694 B8 1" Grip;3.25" Long;Closed End No Model Compatibility List $0.00 / Each
Out Of Stock 		9,11
718267 1000349733 AB1 D Series Cross Support Assy;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
718268 1000349734 AB1 D Series Cross Support Assy;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
718269 1000349735 AB1 D Series Cross Support Assy;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
718575 1000351807 B5 DIAMOND PLATE - 9" x 14";Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
719132 1000356197 AB2 Adjustment Slide;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		1
719133 1000356198 AB2 Adjustment Slide;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
719134 1000356199 AB2 Adjustment Slide;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
719135 1000356210 B6 Chrome Tube w/ Decal;D96 No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3,12,13,14
719680 1000363753 V20 Warning Label;Plate Loaded; No Model Compatibility List $0.00 / Each
Out Of Stock 		3
719681 1000363756 V20 Warning Label;Plate Loaded;French No Model Compatibility List $0.00 / Each
Out Of Stock 		3
719737 1000364849 AB1 Main Frame;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
719738 1000364850 AB1 Main Frame;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
719739 1000364851 AB1 Main Frame;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
720070 1000368439 V44 Warning Label;Plate Loaded; No Model Compatibility List $0.00 / Each
Out Of Stock 		3
720071 1000368441 V44 Warning Label;Plate Loaded;French No Model Compatibility List $0.00 / Each
Out Of Stock 		3
720298 1000371230 Z30 Screw;HH;.375-16 x 3;ZN No Model Compatibility List $0.00 / Each
Out Of Stock 		2
720725 1000375388 B7 1 1/4"OD x 1"ID PLASTIC TUBE - 3.375" 15deg No Model Compatibility List $0.00 / Each
Out Of Stock 		9,3
721051 1000380091 Z24 SCREW;HH;.500-13 x 8.50;ZN; No Model Compatibility List $0.00 / Each
Out Of Stock 		2
721519 1000383599 B33 1" CRR;3/4"; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
721551 10003840006 V25 Serial Number Label;4" x 1.5";3M; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
721552 1000384006 V21 Serial Number Label;4" x 1.5";3M; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
721800 1000385653 AB2 Frame Right;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
721801 1000385654 AB2 Frame Right;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721802 1000385655 AB2 Frame Right;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721803 1000385668 AB3 WELDMENT, FRAME;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
721804 1000385669 AB3 WELDMENT, FRAME;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721805 1000385670 AB3 WELDMENT, FRAME;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721848 1000385871 B7 1/4" PLASMA;Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
721849 1000385873 B6 1/4" PLASMA;Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
721850 1000385875 AB5 Adjustment Assy;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		1
721851 1000385876 AB5 Adjustment Assy;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
721852 1000385877 AB5 Adjustment Assy;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
721853 1000385890 AB4 Adjustment Assy;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		1
721854 1000385891 AB4 Adjustment Assy;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
721855 1000385892 AB4 Adjustment Assy;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
721856 1000385905 AB2 Back Pad Mouning Weldment;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6,12,13,14
721857 1000385906 AB2 Back Pad Mouning Weldment;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6,12,13,14
721858 1000385907 AB2 Back Pad Mouning Weldment;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6,12,13,14
721859 1000385920 AB3 Bottom Pad Weldment;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3,12,13,14
721860 1000385921 AB3 Bottom Pad Weldment;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6,12,13,14
721861 1000385922 AB3 Bottom Pad Weldment;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6,12,13,14
721862 1000385935 AB2 WELDMENT D86 BENCH SUPPORT;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
721863 1000385936 AB2 WELDMENT D86 BENCH SUPPORT;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721864 1000385948 AB2 WELDMENT D86 BENCH SUPPORT;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721865 1000385950 AB3 Bottom Seat Frame;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3,12,13,14
721866 1000385951 AB3 Bottom Seat Frame;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6,12,13,14
721867 1000385952 AB3 Bottom Seat Frame;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6,12,13,14
721868 1000385965 AB4 Slider Weldment;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
721869 1000385966 AB4 Slider Weldment;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721870 1000385967 AB4 Slider Weldment;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721871 1000385979 B5 1 3/4" x 1 3/4" TUBE - 40 3/8" No Model Compatibility List $0.00 / Each
Out Of Stock 		3
721872 1000385981 AB1 WELDMENT D86 BASE;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
721873 1000385982 AB1 WELDMENT D86 BASE;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721874 1000385983 AB1 WELDMENT D86 BASE;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721875 1000385998 AB3 Foot Plate;Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock 		9,3,4,5,6
721876 1000386000 AB2 PAD SLIDE ASSEMBLY;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3,12,13,14
721877 1000386001 AB2 PAD SLIDE ASSEMBLY;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6,12,13,14
721878 1000386002 AB2 PAD SLIDE ASSEMBLY;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6,12,13,14
721888 1000386133 AB1 Main Frame;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
721889 1000386134 AB1 Main Frame;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721890 1000386135 AB1 Main Frame;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721891 1000386149 AB3 Pad weldment;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3,12,13,14
721892 1000386150 AB3 Pad weldment;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6,12,13,14
721893 1000386151 AB3 Pad weldment;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6,12,13,14
722577 1000394201 B52 Oilube Flange Bushing;3/4 ID x Reamed .7 No Model Compatibility List $37.15 / Each

8,15
729261 See Pad Matrix J01 Elbow Pad;;PU;Black;;FW213-KM; No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6,12,13,14
View Drawing

general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

Hydra Fitness Exchange © 2024. All Rights Reserved.

Payment options
