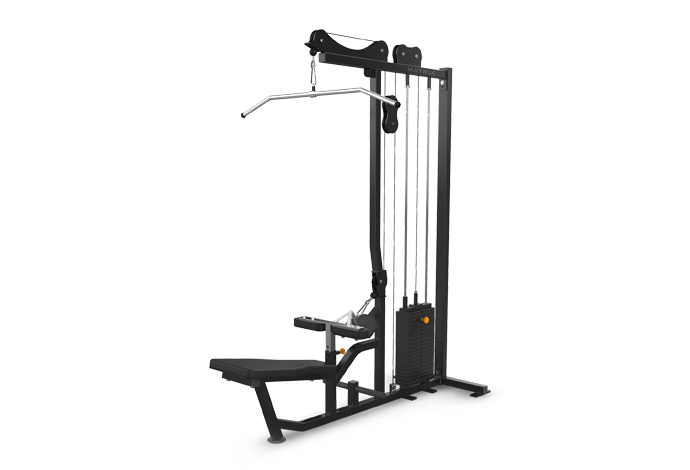

Matrix Commercial - VY-D846-02 - 2013

Repair Parts for Matrix Commercial VY-D846-02 VYTS23

Brand: Matrix Commercial

Category: Multi Station

Type: Strength Systems

Model Name: VY-D846-02

Version: 2013

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
B 713806 1000308417 B4 2" x 2" END CAP No Model Compatibility List $5.46 / Each

9
B 713811 1000308424 B2 SPRING PIN ASSEMBLY No Model Compatibility List $45.60 / Each

2,3,12,13,14
Z 713814 1000308428 Z25 3/8" NUT No Model Compatibility List $1.43 / Each

2
V 713818 1000308436 V31 WASHER;FLT;USS;Diam.0.344XDiam.0.875X.06 No Model Compatibility List $1.43 / Each

2
Z 713826 1000308444 Z23 WASHER;FLT;USS;Diam.0.406XDiam.1.000X.06 No Model Compatibility List $1.43 / Each

2
713830 1000308448 V30 5/16" X 1 1/2" BOLT No Model Compatibility List $1.43 / Each

2
B 713834 1000308452 B43 7" RUBBER FOOT No Model Compatibility List $14.59 / Each

9,3
713841 1000308472 V38 Lable, Olympic Bench No Model Compatibility List $6.73 / Each

1
V 713842 1000308473 V42 Lable, hand pinch No Model Compatibility List $3.02 / Each

12,13,14
B 713938 1000309842 B6 1 1/2" X 2" END CAP No Model Compatibility List $5.04 / Each

9
713943 1000309851 Z21 SCREW;HH;.375-16 x 2.25;ZN; No Model Compatibility List $2.18 / Each

2
Z 713950 1000309858 Z26 3/4" FLAT WASHER No Model Compatibility List $1.33 / Each

2
N 713975 1000310008 Not Shown ROUND LEVELER BOOT No Model Compatibility List $5.04 / Each

3
713997 1000310096 Z27 1/4" SPLIT LOCK WASHER No Model Compatibility List $1.33 / Each

2
Z 714016 1000310219 Z28 SCREW;HH;.250-20 x 0.75;ZN; No Model Compatibility List $1.33 / Each

2
714017 1000310270 B9 1"OD x 5/8"ID NYLON PIPE - 3 1/2" No Model Compatibility List $21.94 / Each

1
B 714018 1000310273 B8 4" FOOT (SHORT) No Model Compatibility List $20.05 / Each

9,3
714038 1000310334 Weight Stack 1 6000 TOP PLATE No Model Compatibility List $78.47 / Each

3
B 714040 1000310339 B36 ROUND WEIGHT STACK BUMPER No Model Compatibility List $5.90 / Each

3,4,5,6
714041 1000310343 Weight Stack 2 Orange SELECTOR PIN w/ 6 1/2" CORD No Model Compatibility List $25.53 / Each

4,5,6,12,13,14
714107 1000312095 Z19 SCREW;HH;.500-13 x 3.25;ZN; No Model Compatibility List $5.04 / Each

2
W 714118 1000312127 Weight Stack 4 BHS 5/16" - 1" No Model Compatibility List $5.46 / Each

1
Z 714127 1000312161 Z24 NUT;NLK;.500-13;ZN;TALL; No Model Compatibility List $1.43 / Each

2
714193 1000312342 V40 DECAL,WARNING: BOLT DOWN;English No Model Compatibility List $0.00 / Each
Out Of Stock 		7,2,3
Z 714235 1000312700 Z22 7/16" FLAT WASHER No Model Compatibility List $2.44 / Each

2
714240 1000312817 Weight Stack 3 5/16" SPLIT LOCK WASHER No Model Compatibility List $1.33 / Each

2
714249 1000312880 Weight Stack 8 CAST IRON No Model Compatibility List $104.75 / Each

1
714253 1000312893 B12 3/8" SAFETY CLIP No Model Compatibility List $16.82 / Each

2,9
714333 1000313747 B35 5/8" CRR - 81 1/2" No Model Compatibility List $0.00 / Each
Out Of Stock 		1
B 714334 1000313766 B10 HARD CHROME 48" LAT BAR No Model Compatibility List $339.66 / Each

7,12,13,14
714341 1000313851 B11 HANDLE DOUBLE TRIANGLE ROW No Model Compatibility List $0.00 / Each
Out Of Stock 		11
714345 1000313888 B13 CABLE#2 ASSEMBLY,D846 No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6

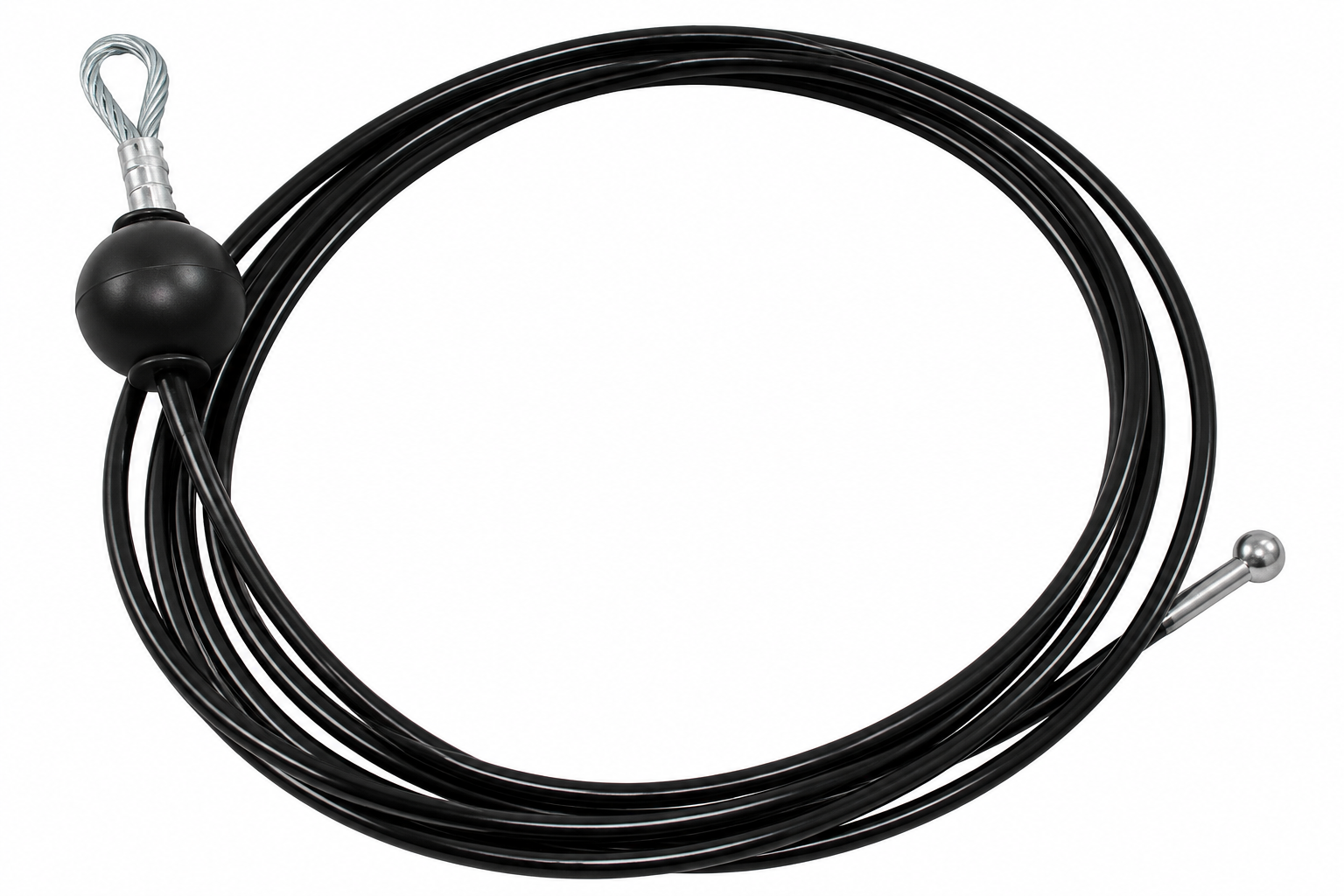

714346 1000313889 B14 Cable#1,D846 M No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
714347 1000313915 B17 1/4" PLASTIC PAD, D846 No Model Compatibility List $0.00 / Each
Out Of Stock 		9,12,13,14
714348 1000313916 Z20 SCREW;HH;.500-13 x 2.50;ZN; No Model Compatibility List $3.80 / Each

2
714465 1000315136 V33 6000 STACK DECALS, MEDIUM No Model Compatibility List $30.39 / Each

7,3,4,5,6
714484 1000315356 V34 6000 STACK DECALS, HEAVY No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3,4,5,6
714538 1000315894 V39 DECAL MATRIX 11X1 - Black for Blue Moon, Iced Silver, Blood Red, White, Sunburst Orange, Fence Green, or Yellow frame No Model Compatibility List $6.73 / Each

7,3,4,5,6
714592 1000316304 V38 DECAL OLY BENCH;French No Model Compatibility List $8.42 / Each

7,3
714915 1000319630 V40 DECAL,WARNING: BOLT DOWN;French No Model Compatibility List $0.00 / Each
Out Of Stock 		7,2,3
716240 1000334806 AB1 WELDMENT D846;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
716241 1000334807 AB1 WELDMENT D846;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
716242 1000334808 AB1 WELDMENT D846;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
716243 1000334819 AB29 WELDMENT LEG;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
716244 1000334820 AB29 WELDMENT LEG;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
716245 1000334821 AB29 WELDMENT LEG;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
716313 1000335318 B16 CLAMP - COVER No Model Compatibility List $0.00 / Each
Out Of Stock 		9,4,5,6
717377 1000344562 V39 Decal;Matrix;Grey for Black Matte, Black Ridge, Black Glossy, Moss Green, or Blue Streak frame No Model Compatibility List $15.18 / Each

7,3,4,5,6
717500 1000345600 B3 5/8# Single Split Collar No Model Compatibility List $10.92 / Each

1
717779 1000347532 B18 4.5" Pulley for Rope / Cable No Model Compatibility List $18.56 / Each

8,4,5,6
718928 1000354327 B5 Foam Grip;1.25" ID x 9" No Model Compatibility List $0.00 / Each
Out Of Stock 		11
719322 1000359722 Weight Stack 6 Cable Clip Top Half Assembly No Model Compatibility List $0.00 / Each
Out Of Stock 		2,3,4,5,6
719820 1000366049 B15 1/4" Plasma;Black Ridge; No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
719873 1000366540 Weight Stack 7 Center stick No Model Compatibility List $0.00 / Each
Out Of Stock 		1
719882 1000366575 Weight Stack Set WEIGHT STACK 190# 20+1 CRIMP CABLE No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721552 1000384006 V41 Serial Number Label;4" x 1.5";3M; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
729261 See Pad Matrix J7 Elbow Pad;;PU;Black;;FW213-KM; No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6,12,13,14
