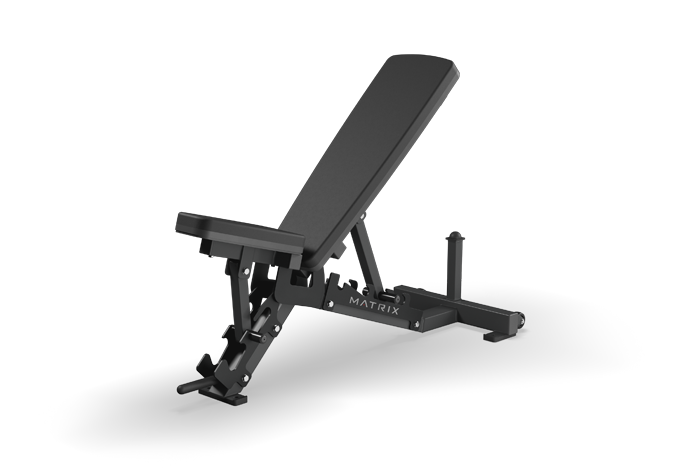

Matrix Commercial - VY-D85A-02 - 2013

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry used@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
1000308417 713806 1000308417 B27 2" x 2" END CAP No Model Compatibility List $4.20 / Each

9
1000308421 713810 1000308421 B11 HALF-ROUND RUBBER BUMPER No Model Compatibility List $12.62 / Each

1
1000308436 713818 1000308436 Z15 WASHER;FLT;USS;Diam.0.344XDiam.0.875X.06 No Model Compatibility List $1.10 / Each

2
713824 1000308442 B12 SCREW;SET; .3125-18 X 1.00;SS No Model Compatibility List $1.10 / Each

2
713827 1000308445 Z18 5/16" - 3" BOLT No Model Compatibility List $1.68 / Each

2
1000308446 713828 1000308446 Z16 WASHER;FLT;USS;Diam.0.281XDiam.0.734X.06 No Model Compatibility List $1.10 / Each

2
713832 1000308450 B28 1" Round Finishing Cap No Model Compatibility List $2.58 / Each

9
1000308451 713833 1000308451 B36 5" RUBBER FOOT No Model Compatibility List $11.22 / Each

9,3
1000308452 713834 1000308452 B35 7" RUBBER FOOT No Model Compatibility List $11.22 / Each

9,3
1000308473 713842 1000308473 V34 Lable, hand pinch No Model Compatibility List $2.32 / Each

12,13,14
1000309841 713937 1000309841 B26 2" X 3" END CAP No Model Compatibility List $5.60 / Each

9
1000309847 713940 1000309847 Z38 WASHER, .50 OD X .38 ID X .05 No Model Compatibility List $1.10 / Each

2
713941 1000309848 Z21 SCREW;HH;.500-13 x 3.50;ZN; No Model Compatibility List $3.88 / Each

2
1000309854 713946 1000309854 Z23 NUT;NLK;.250-20;ZN; No Model Compatibility List $1.10 / Each

2
714025 1000310301 Z20 SCREW;HH;.500-13 x 4.50;ZN; No Model Compatibility List $3.88 / Each

2
714082 1000312024 B9 1" Grip;6.75" Long;Closed End No Model Compatibility List $0.00 / Each
Out Of Stock
9,11

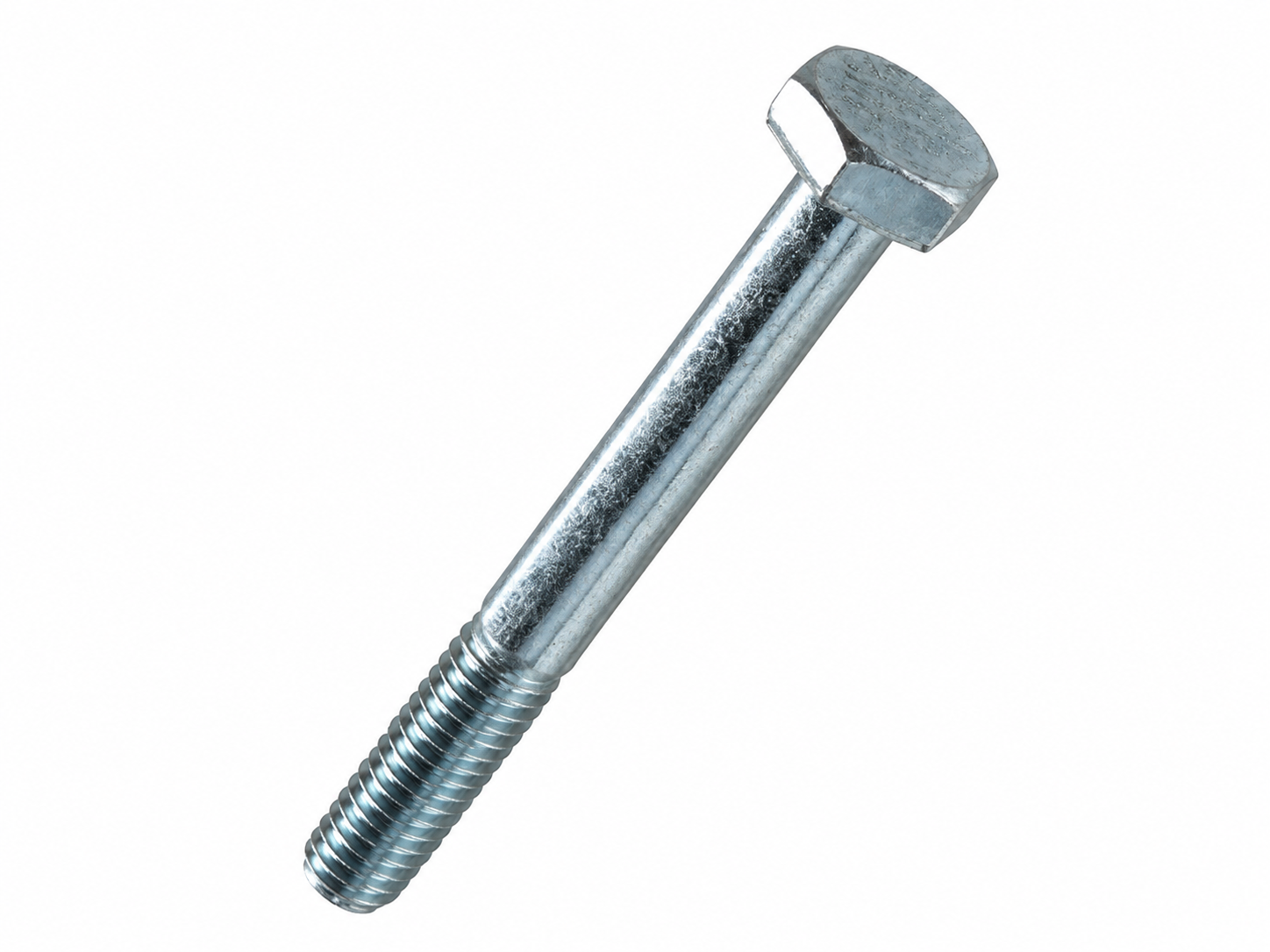

714092 1000312060 Z19 SCREW;HH;.250-20 x 2.50;ZN; No Model Compatibility List $0.00 / Each
Out Of Stock
2
714111 1000312103 Z22 SCREW;HH;.500-13 x 5.50;ZN; No Model Compatibility List $5.18 / Each

2
1000312161 714127 1000312161 Z24 NUT;NLK;.500-13;ZN;TALL; No Model Compatibility List $1.10 / Each

2
1000312280 714170 1000312280 B10 2.5" WHEEL No Model Compatibility List $5.60 / Each

8
1000312298 714176 1000312298 B25 1/2" BRASS BUSHING No Model Compatibility List $3.88 / Each

8
714232 1000312684 Z39 Washer;Thrust;.50 x 1";BRZ; No Model Compatibility List $0.00 / Each
Out Of Stock
7,2,12,13,14
714537 1000315813 V30 DECAL, WARNING: MOVING HAZARD;French No Model Compatibility List $3.88 / Each

7,3
714538 1000315894 V32 DECAL MATRIX 11X1 - Black for Blue Moon, Iced Silver, Blood Red, White, Sunburst Orange, Fence Green, or Yellow frame No Model Compatibility List $5.18 / Each

7,3,4,5,6
715253 1000321578 V30 DECAL, WARNING: MOVING HAZARD;English No Model Compatibility List $0.00 / Each
Out Of Stock
7,3
715295 1000323459 J13 PAD SEAT No Model Compatibility List $0.00 / Each
Out Of Stock
12,13,14
715296 1000323460 J14 PAD BENCH No Model Compatibility List $0.00 / Each
Out Of Stock
12,13,14
717316 1000343914 B29 1 1/2" x 1 1/2" END CAP No Model Compatibility List $2.32 / Each

9
717377 1000344562 V32 Decal;Matrix;Grey for Black Matte, Black Ridge, Black Glossy, Moss Green, or Blue Streak frame No Model Compatibility List $11.68 / Each

7,3,4,5,6
717667 1000346693 B37 1 1/4"OD x 1"ID PLASTIC TUBE - 1.25" No Model Compatibility List $0.00 / Each
Out Of Stock
9,3
717668 1000346694 B8 1" Grip;3.25" Long;Closed End No Model Compatibility List $0.00 / Each
Out Of Stock
9,11
719737 1000364849 AB1 Main Frame;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock
3
719738 1000364850 AB1 Main Frame;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock
3,4,5,6
719739 1000364851 AB1 Main Frame;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock
3,4,5,6
720070 1000368439 V33 Warning Label;Plate Loaded; No Model Compatibility List $0.00 / Each
Out Of Stock
3
720071 1000368441 V33 Warning Label;Plate Loaded;French No Model Compatibility List $0.00 / Each
Out Of Stock
3
721552 1000384006 V31 Serial Number Label;4" x 1.5";3M; No Model Compatibility List $0.00 / Each
Out Of Stock
1
721848 1000385871 B7 1/4" PLASMA;Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock
4,5,6
721849 1000385873 B6 1/4" PLASMA;Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock
4,5,6
721850 1000385875 AB5 Adjustment Assy;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock
1
721851 1000385876 AB5 Adjustment Assy;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock
4,5,6
721852 1000385877 AB5 Adjustment Assy;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock
4,5,6
721853 1000385890 AB4 Adjustment Assy;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock
1
721854 1000385891 AB4 Adjustment Assy;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock
4,5,6
721855 1000385892 AB4 Adjustment Assy;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock
4,5,6
721856 1000385905 AB2 Back Pad Mouning Weldment;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock
3,4,5,6,12,13,14
721857 1000385906 AB2 Back Pad Mouning Weldment;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock
3,4,5,6,12,13,14
721858 1000385907 AB2 Back Pad Mouning Weldment;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock
3,4,5,6,12,13,14
721859 1000385920 AB3 Bottom Pad Weldment;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock
3,12,13,14
721860 1000385921 AB3 Bottom Pad Weldment;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock
3,4,5,6,12,13,14
721861 1000385922 AB3 Bottom Pad Weldment;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock
3,4,5,6,12,13,14
