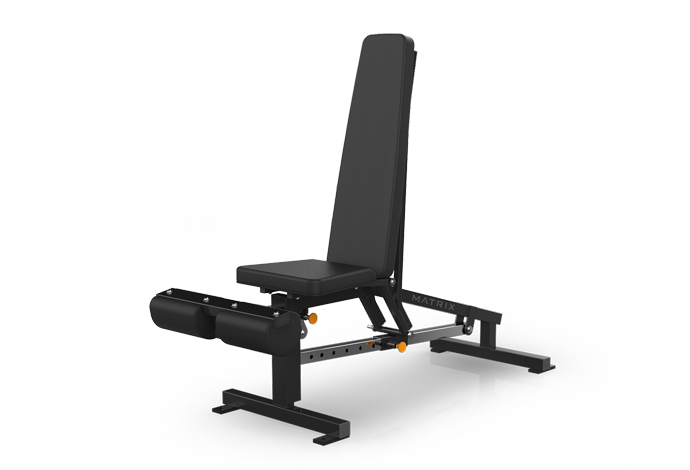

Matrix Commercial - VY-D86-02 - 2013

Repair Parts for Matrix Commercial VY-D86-02 VYFW252

Brand: Matrix Commercial

Category: Freeweight

Type: Strength Systems

Model Name: VY-D86-02

Version: 2013

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
B 713806 1000308417 B10 2" x 2" END CAP No Model Compatibility List $5.46 / Each

9
B 713807 1000308418 B9 1 1/2" x 3" END CAP No Model Compatibility List $5.46 / Each

9
B 713811 1000308424 B15 SPRING PIN ASSEMBLY No Model Compatibility List $45.60 / Each

2,3,12,13,14
713817 1000308435 Z34 1 21/64" O.D. x 1 1/64" I.D. 14GA No Model Compatibility List $2.37 / Each

1
Z 713818 1000308436 Z22 WASHER;FLT;USS;Diam.0.344XDiam.0.875X.06 No Model Compatibility List $1.43 / Each

2
713827 1000308445 Z26 5/16" - 3" BOLT No Model Compatibility List $2.18 / Each

2
Z 713828 1000308446 Z32 WASHER;FLT;USS;Diam.0.281XDiam.0.734X.06 No Model Compatibility List $1.43 / Each

2
B 713833 1000308451 B33 5" RUBBER FOOT No Model Compatibility List $14.59 / Each

9,3
V 713842 1000308473 V33 Lable, hand pinch No Model Compatibility List $3.02 / Each

12,13,14
Z 713940 1000309847 Z33 WASHER, .50 OD X .38 ID X .05 No Model Compatibility List $1.43 / Each

2
713941 1000309848 Z25 SCREW;HH;.500-13 x 3.50;ZN; No Model Compatibility List $5.04 / Each

2
Z 713967 1000309953 Z28 SCREW;HH;.313-18 x 1.25;ZN; No Model Compatibility List $2.37 / Each

2
714064 1000310670 B6 3/4" CRR - 11 1/8" No Model Compatibility List $0.00 / Each
Out Of Stock 		1
Z 714094 1000312064 Z29 5/16" x 1" BOLT No Model Compatibility List $1.33 / Each

2
Z 714095 1000312066 Z27 SCREW;HH;.313-18 x 2.00;ZN; No Model Compatibility List $2.18 / Each

2
Z 714127 1000312161 Z23 NUT;NLK;.500-13;ZN;TALL; No Model Compatibility List $1.43 / Each

2
714147 1000312217 B11 1 X 1 END CAP No Model Compatibility List $0.00 / Each
Out Of Stock 		9
714165 1000312256 B7 BADGE No Model Compatibility List $5.04 / Each

1
B 714176 1000312298 B13 1/2" BRASS BUSHING No Model Compatibility List $5.04 / Each

8
Z 714235 1000312700 Z21 7/16" FLAT WASHER No Model Compatibility List $2.44 / Each

2
714538 1000315894 V31 DECAL MATRIX 11X1 - Black for Blue Moon, Iced Silver, Blood Red, White, Sunburst Orange, Fence Green, or Yellow frame No Model Compatibility List $6.73 / Each

7,3,4,5,6
717377 1000344562 V31 Decal;Matrix;Grey for Black Matte, Black Ridge, Black Glossy, Moss Green, or Blue Streak frame No Model Compatibility List $15.18 / Each

7,3,4,5,6
717422 1000344984 B12 End Cap;1 3/4 x 1 3/4 No Model Compatibility List $0.00 / Each
Out Of Stock 		9
720070 1000368439 V32 Warning Label;Plate Loaded; No Model Compatibility List $0.00 / Each
Out Of Stock 		3
720071 1000368441 V32 Warning Label;Plate Loaded;French No Model Compatibility List $0.00 / Each
Out Of Stock 		3
721051 1000380091 Z24 SCREW;HH;.500-13 x 8.50;ZN; No Model Compatibility List $0.00 / Each
Out Of Stock 		2
721552 1000384006 V30 Serial Number Label;4" x 1.5";3M; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
721862 1000385935 AB2 WELDMENT D86 BENCH SUPPORT;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
721863 1000385936 AB2 WELDMENT D86 BENCH SUPPORT;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721864 1000385948 AB2 WELDMENT D86 BENCH SUPPORT;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721865 1000385950 AB3 Bottom Seat Frame;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3,12,13,14
721866 1000385951 AB3 Bottom Seat Frame;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6,12,13,14
721867 1000385952 AB3 Bottom Seat Frame;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6,12,13,14
721868 1000385965 AB4 Slider Weldment;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
721869 1000385966 AB4 Slider Weldment;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721870 1000385967 AB4 Slider Weldment;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721871 1000385979 B5 1 3/4" x 1 3/4" TUBE - 40 3/8" No Model Compatibility List $0.00 / Each
Out Of Stock 		3
721872 1000385981 AB1 WELDMENT D86 BASE;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
721873 1000385982 AB1 WELDMENT D86 BASE;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721874 1000385983 AB1 WELDMENT D86 BASE;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
722577 1000394201 B14 Oilube Flange Bushing;3/4 ID x Reamed .7 No Model Compatibility List $37.15 / Each

8,15
729261 See Pad Matrix J18 Elbow Pad;;PU;Black;;FW213-KM; No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6,12,13,14
