VY-D87-02

Matrix Commercial - VY-D87-02 - VYFW253 - 2013

Repair Parts for Matrix Commercial VY-D87-02 VYFW253

Brand	Matrix Commercial
Type	Strength Systems
Category	Freeweight
Model Number	VYFW253
Model Name	VY-D87-02
Version	2013

Model Numbers: VYFW253

Parts Diagram

Replacement Parts (16 parts found)

Image	Catalog #	MPN	List Key	Qty	Part Description	Used	Compat.	New Price
	715297	1000323521	AB1		Main Frame, Iced Silver	No	Compatibility List	Out Of Stock	3
	715298	1000323522	AB1		Main Frame, Black Glossy	No	Compatibility List	Out Of Stock	3,4,5,6
	715299	1000323523	AB1		Main Frame, Lace White	No	Compatibility List	Out Of Stock	3,4,5,6
	714088	1000312042	B2		1.25" Grip, 7.75" Long, Closed End	No	Compatibility List	$36.77 / Each	9,11
	713806	1000308417	B3		2" x 2" END CAP	No	Compatibility List	$5.46 / Each
	713938	1000309842	B11		1 1/2" X 2" END CAP	No	Compatibility List	$5.04 / Each
	713833	1000308451	B12		5" RUBBER FOOT	No	Compatibility List	$14.59 / Each
	715300	1000323531	J6		PAD SEAT	No	Compatibility List	$448.47 / Each	12,13,14
	715301	1000323532	J10		Back Pad	No	Compatibility List	$448.47 / Each	4,5,6,12,13,14
	720070	1000368439	V7		Warning Label, Plate Loaded	No	Compatibility List	$5.18 / Each	3
	720071	1000368441	V7		Warning Label, Plate Loaded, French	No	Compatibility List	Out Of Stock	3
	721552	1000384006	V8		Serial Number Label, 4" x 1.5", 3M	No	Compatibility List	$0.79 / Each
	714538	1000315894	V9		DECAL MATRIX 11X1 Black for Blue Moon, Iced Silver, Blood Red, White, Sunburst Orange, Fence Green, or Yellow frame	No	Compatibility List	$6.73 / Each
	717377	1000344562	V9		Decal, Matrix, Grey for Black Matte, Black Ridge, Black Glossy, Moss Green, or Blue Streak frame	No	Compatibility List	$15.18 / Each
	713818	1000308436	Z4		WASHER, FLT, USS, Diam.0.344XDiam.0.875X.06	No	Compatibility List	$5.99 / Each
	713827	1000308445	Z5		5/16" 3" BOLT	No	Compatibility List	$2.18 / Each

Catalog #: 715297

MPN: 1000323521

Main Frame, Iced Silver

Out Of Stock

Catalog #: 715298

MPN: 1000323522

Main Frame, Black Glossy

Out Of Stock

Catalog #: 715299

MPN: 1000323523

Main Frame, Lace White

Out Of Stock

Catalog #: 714088

MPN: 1000312042

1.25" Grip, 7.75" Long, Closed End

$36.77 / each

2" x 2" END CAP

Catalog #: 713806

MPN: 1000308417

2" x 2" END CAP

$5.46 / each

1 1/2" X 2" END CAP

Catalog #: 713938

MPN: 1000309842

1 1/2" X 2" END CAP

$5.04 / each

5" RUBBER FOOT

Catalog #: 713833

MPN: 1000308451

$14.59 / each

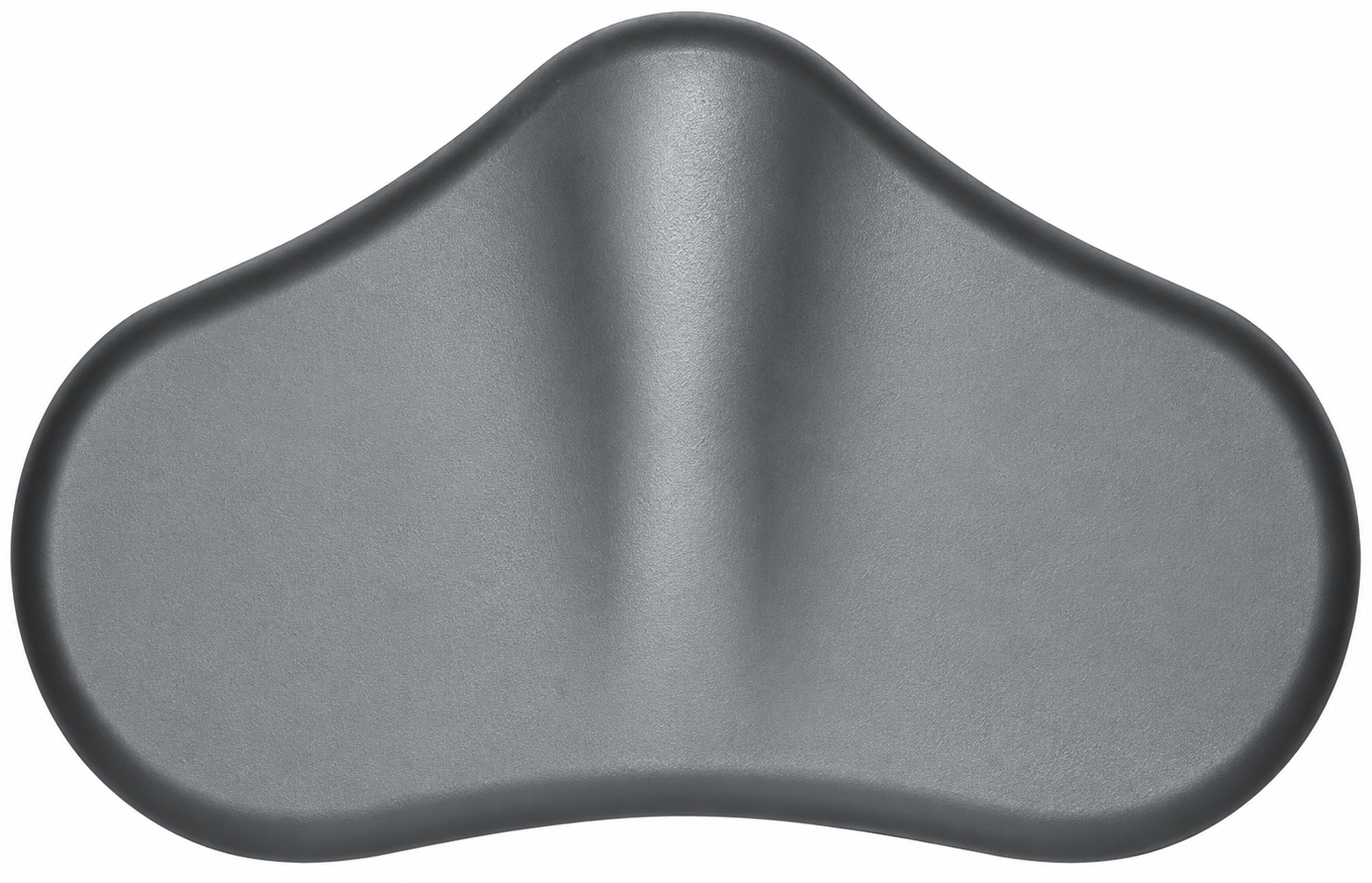

PAD SEAT

Catalog #: 715300

MPN: 1000323531

$448.47 / each

Catalog #: 715301

MPN: 1000323532

$448.47 / each

Warning Label, Plate Loaded

Catalog #: 720070

MPN: 1000368439

Warning Label, Plate Loaded

$5.18 / each

Warning Label, Plate Loaded, French

Catalog #: 720071

MPN: 1000368441

Warning Label, Plate Loaded, French

Out Of Stock

Serial Number Label, 4" x 1.5", 3M

Catalog #: 721552

MPN: 1000384006

Serial Number Label, 4" x 1.5", 3M

$0.79 / each

DECAL MATRIX 11X1 - Black for Blue Moon, Iced Silver, Blood Red, White, Sunburst Orange, Fence Green, or Yellow frame

Catalog #: 714538

MPN: 1000315894

DECAL MATRIX 11X1 Black for Blue Moon, Iced Silver, Blood Red, White, Sunburst Orange, Fence Green, or Yellow frame

$6.73 / each

Decal, Matrix, Grey for Black Matte, Black Ridge, Black Glossy, Moss Green, or Blue Streak frame

Catalog #: 717377

MPN: 1000344562

Decal, Matrix, Grey for Black Matte, Black Ridge, Black Glossy, Moss Green, or Blue Streak frame

$15.18 / each

WASHER, FLT, USS, Diam.0.344XDiam.0.875X.06

Catalog #: 713818

MPN: 1000308436

WASHER, FLT, USS, Diam.0.344XDiam.0.875X.06

$5.99 / each

5/16" - 3" BOLT

Catalog #: 713827

MPN: 1000308445

$2.18 / each
