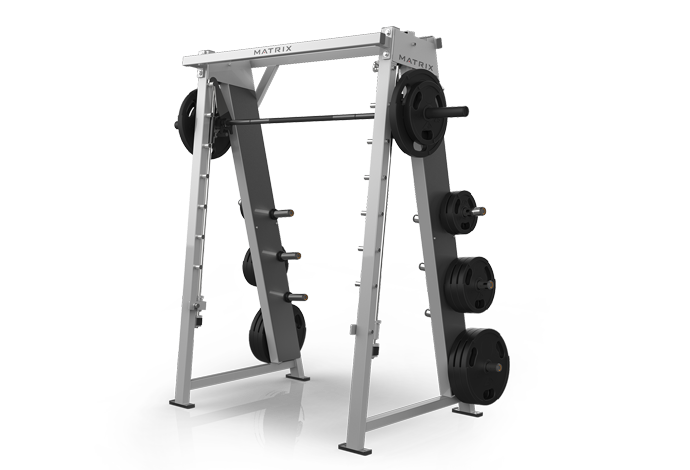

Matrix Commercial - VY-M49-02 - 2013

Repair Parts for Matrix Commercial VY-M49-02 VYPL81

Brand: Matrix Commercial

Category: Plate Loaded

Type: Strength Systems

Model Name: VY-M49-02

Version: 2013

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
P 713814 1000308428 Power Bar Z7 3/8" NUT No Model Compatibility List $1.43 / Each

2
Z 713818 1000308436 Z33 WASHER;FLT;USS;Diam.0.344XDiam.0.875X.06 No Model Compatibility List $1.43 / Each

2
713821 1000308439 Z34 NUT;NLK;.375-16;ZN; No Model Compatibility List $1.43 / Each

2
Z 713826 1000308444 Z22 WASHER;FLT;USS;Diam.0.406XDiam.1.000X.06 No Model Compatibility List $1.43 / Each

2
B 713834 1000308452 B46 7" RUBBER FOOT No Model Compatibility List $14.59 / Each

9,3
713838 1000308466 B15 Flat Bumper - Weight Horn No Model Compatibility List $3.02 / Each

3
V 713842 1000308473 V52 Lable, hand pinch No Model Compatibility List $3.02 / Each

12,13,14
B 713937 1000309841 B8 2" X 3" END CAP No Model Compatibility List $7.28 / Each

9
B 713938 1000309842 B9 1 1/2" X 2" END CAP No Model Compatibility List $5.04 / Each

9
Z 713939 1000309846 Z37 1/2" JAM NUT No Model Compatibility List $1.43 / Each

2
B 713988 1000310085 B13 1"ID x 1 1/4"OD" FLANGED BUSHING No Model Compatibility List $10.92 / Each

8
713997 1000310096 Z56 1/4" SPLIT LOCK WASHER No Model Compatibility List $1.33 / Each

2
714002 1000310104 Z18 SCREW;HH;.500-13 x 1.00;ZN; No Model Compatibility List $2.18 / Each

2
714003 1000310105 B24 1 3/4" x 1 3/4" F.S. - 1 3/4" No Model Compatibility List $65.88 / Each

1
714009 1000310116 Power Bar Z15 Take-up Bolt Slotted HHCS 1_2-13 x 3 No Model Compatibility List $0.00 / Each
Out Of Stock 		2

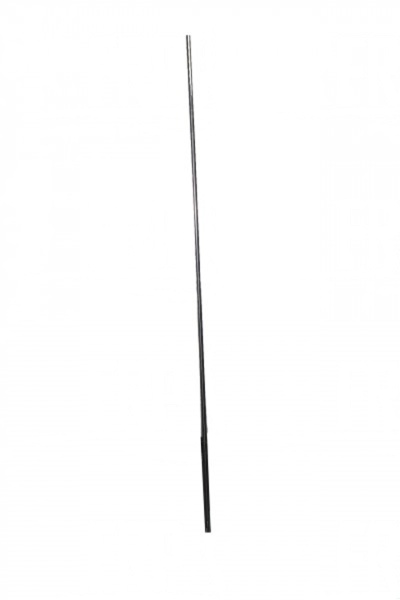

714061 1000310662 B6 5/8" GUIDE ROD - 67" No Model Compatibility List $0.00 / Each
Out Of Stock 		3
714074 1000310894 B4 Chrome Peg No Model Compatibility List $0.00 / Each
Out Of Stock 		7,12,13,14
714084 1000312032 B10 1/8" ABS No Model Compatibility List $0.00 / Each
Out Of Stock 		1
714085 1000312034 B11 1/8" ABS No Model Compatibility List $0.00 / Each
Out Of Stock 		1
Z 714101 1000312084 Z20 3/8" x 4" BOLT No Model Compatibility List $3.02 / Each

2
714107 1000312095 Z19 SCREW;HH;.500-13 x 3.25;ZN; No Model Compatibility List $5.04 / Each

2
714122 1000312149 Power Bar Z13 3/8-16 x 1" SSS No Model Compatibility List $2.18 / Each

1
714126 1000312159 Power Bar Z14 1/2 - 13 NUT No Model Compatibility List $1.33 / Each

2
Z 714127 1000312161 Z57 NUT;NLK;.500-13;ZN;TALL; No Model Compatibility List $1.43 / Each

2
714131 1000312171 Power Bar B17 1 9/16" Internal Snap Ring No Model Compatibility List $3.02 / Each

2
714160 1000312247 K4 End cap - weight horn 2.5lbs No Model Compatibility List $5.04 / Each

9,3
714161 1000312249 K5 End cap - weight horn 5lbs No Model Compatibility List $5.04 / Each

9,3
714162 1000312250 K8 End cap - weight horn 10lbs No Model Compatibility List $5.04 / Each

9,3
714163 1000312253 K7 End cap - weight horn 25lbs No Model Compatibility List $5.04 / Each

9,3
714164 1000312254 K6 End cap - weight horn 45lbs No Model Compatibility List $5.04 / Each

9,3
714180 1000312306 B7 5/8" SET COLLAR No Model Compatibility List $5.46 / Each

1
714191 1000312336 V49 DECAL,WARNING: ADJ STOP 1;English No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3
714192 1000312338 V50 DECAL,WARNING: ADJ STOP 2;English No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3
714200 1000312372 B36 Plastic Spacer No Model Compatibility List $0.00 / Each
Out Of Stock 		2,9,3,4,5,6

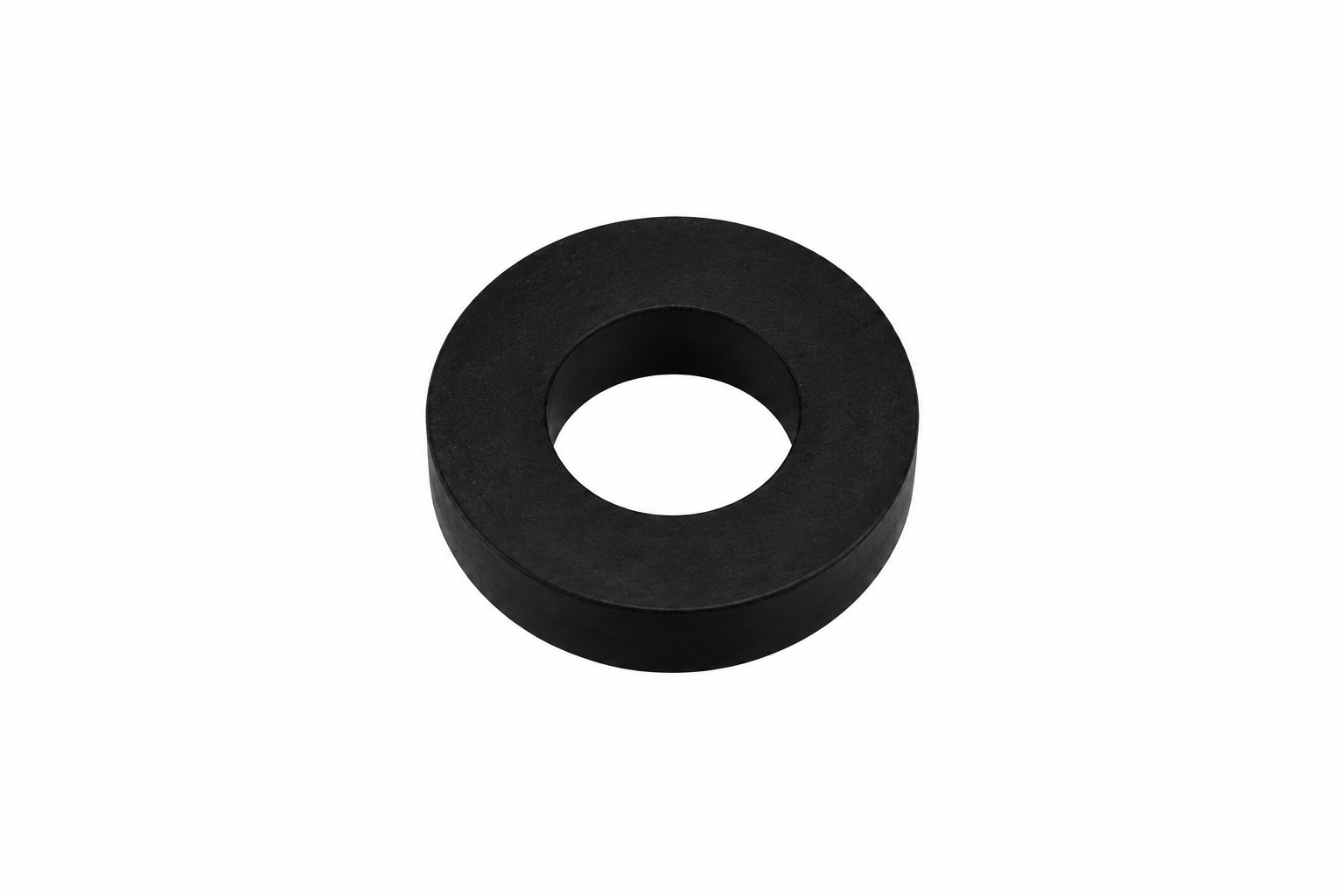

714201 1000312374 B23 1 1/4" x 1 1/2" x 1/2" Rubber Donut No Model Compatibility List $0.00 / Each
Out Of Stock 		2
714203 1000312378 Power Bar B16 2 1/2"OD x 1 7/8"ID RUBBER BUMPER - 1/2" No Model Compatibility List $0.00 / Each
Out Of Stock 		1
714233 1000312686 Power Bar Z8 1/4"-20 x 1" BOLT No Model Compatibility List $2.11 / Each

2
Z 714235 1000312700 Z21 7/16" FLAT WASHER No Model Compatibility List $2.44 / Each

2
Z 714236 1000312711 Z39 1/4" x 1/2" BUTTON HEAD No Model Compatibility List $1.46 / Each

1

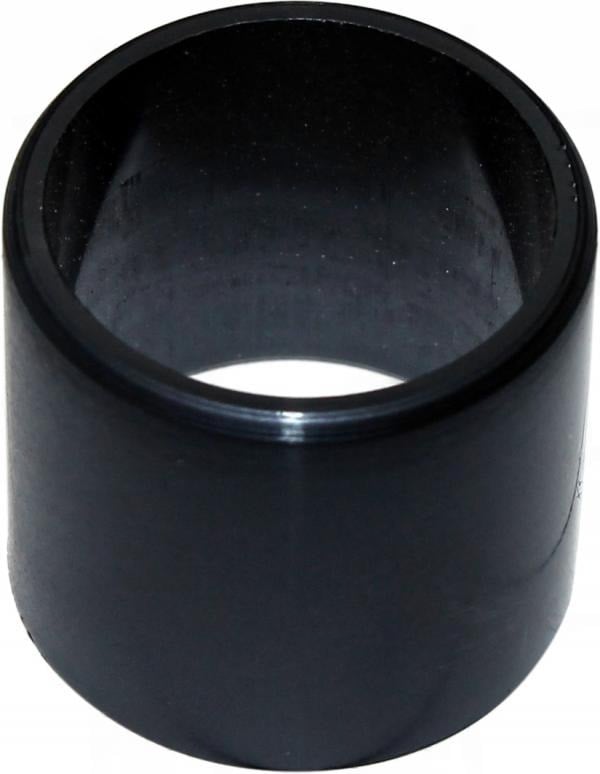

714251 1000312883 B32 7/8"OD x .640"ID x 3/4" Bushing No Model Compatibility List $0.00 / Each
Out Of Stock 		8
714401 1000314396 Z58 SCREW;HH;.500-13 x 2.75;ZN; No Model Compatibility List $3.02 / Each

2
P 714515 1000315566 Power Bar B18 1" LINEAR SHAFT BEARING (Plastic)(Blue Housing) No Model Compatibility List $109.49 / Each

8,9,3
714538 1000315894 V48 DECAL MATRIX 11X1 - Black for Blue Moon, Iced Silver, Blood Red, White, Sunburst Orange, Fence Green, or Yellow frame No Model Compatibility List $6.73 / Each

7,3,4,5,6
714771 1000318165 1 WEIGHT HORN SET No Model Compatibility List $18.56 / Each

3
715329 1000324057 Z55 SHCS - 1/4"-20 x 1" No Model Compatibility List $1.33 / Each

1
715752 1000327950 AB1 Main Frame - Right Side;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
715753 1000327951 AB1 Main Frame - Right Side;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
715754 1000327952 AB1 Main Frame - Right Side;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
715755 1000327963 AB2 Main Frame - Left Side;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
715756 1000327964 AB2 Main Frame - Left Side;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
715757 1000327965 AB2 Main Frame - Left Side;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
715758 1000327976 AB3 Counter Weight;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
715759 1000327977 AB3 Counter Weight;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
715760 1000327978 AB3 Counter Weight;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
715761 1000328015 AB28 Top Support - Front;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
715762 1000328016 AB28 Top Support - Front;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
715763 1000328017 AB28 Top Support - Front;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
715764 1000328028 AB29 Top Support - Rear;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
715765 1000328029 AB29 Top Support - Rear;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
715766 1000328030 AB29 Top Support - Rear;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
715767 1000328041 B5 GUIDE ROD No Model Compatibility List $0.00 / Each
Out Of Stock 		3
715768 1000328042 B38 Cable M49 No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
715769 1000328043 V49 DECAL,WARNING: ADJ STOP 1;French No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3
715770 1000328048 V50 DECAL,WARNING: ADJ STOP 2;French No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3
715771 1000328053 V53 DECAL; M49 Smith Starting Res No Model Compatibility List $5.04 / Each

7,3
715772 1000328054 Power Bar Set POWER BAR M49 COUNTER BALANCED No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
715773 1000328055 Power Bar AB6 WELDMENT POWER BAR CABLE No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
716313 1000335318 B14 CLAMP - COVER No Model Compatibility List $0.00 / Each
Out Of Stock 		9,4,5,6
716408 1000336512 Power Bar B11 1 1/4" ID SPLIT COLLAR No Model Compatibility List $20.28 / Each

1
717312 1000343814 AB26 Safety Stop;Right;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		9
717320 1000344018 AB27 Safety Stop;Left;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		9
717327 1000344079 Power Bar Z10 1/4"-28X3/4 SCHS Black Aly No Model Compatibility List $2.18 / Each

4,5,6
717328 1000344081 AB26 Safety Stop;Right;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		9,4,5,6
717329 1000344082 AB26 Safety Stop;Right;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		9,4,5,6
717330 1000344093 AB27 Safety Stop;Left;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		9,4,5,6
717331 1000344094 AB27 Safety Stop;Left;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		9,4,5,6
717359 1000344362 Power Bar AB1 WEIGHT BAR No Model Compatibility List $0.00 / Each
Out Of Stock 		3
717377 1000344562 V48 Decal;Matrix;Grey for Black Matte, Black Ridge, Black Glossy, Moss Green, or Blue Streak frame No Model Compatibility List $15.18 / Each

7,3,4,5,6
717779 1000347532 B12 4.5" Pulley for Rope / Cable No Model Compatibility List $18.56 / Each

8,4,5,6
717938 1000348719 Power Bar AB3 Hook;A48/A49/M49 No Model Compatibility List $192.63 / Each

1
717939 1000348720 Power Bar AB2 Hook with Stop;M49; No Model Compatibility List $192.63 / Each

1
717959 1000349090 B31 Top Shaft Holder;Black Ridge No Model Compatibility List $60.81 / Each

3,4,5,6
718555 1000351404 Power Bar B9 Nylon Tube;1";Black No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
719235 1000358171 B35 10 ga PLASMA - 2";Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
719681 1000363756 V47 Warning Label;Plate Loaded;French No Model Compatibility List $0.00 / Each
Out Of Stock 		3
719701 1000363994 V47 Decal;Warning;Sled;English No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3
721552 1000384006 V51 Serial Number Label;4" x 1.5";3M; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
722535 1000393859 Power Bar AB4 Bar Slide with Stop Assy;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		1
722536 1000393862 Power Bar AB5 Linear Shaft Slide;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
722537 1000393863 Power Bar AB5 Linear Shaft Slide;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
722538 1000393864 Power Bar AB5 Linear Shaft Slide;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
723220 1000405528 Power Bar B19 Snap Ring for 806-929 No Model Compatibility List $10.11 / Each

2
723221 1000405529 Power Bar B20 Bar End Name Plate for 806-929 No Model Compatibility List $23.63 / Each

9,3
723867 1000412930 Power Bar AB4 Bar Slide with Stop Assy;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
723868 1000412931 Power Bar AB4 Bar Slide with Stop Assy;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
