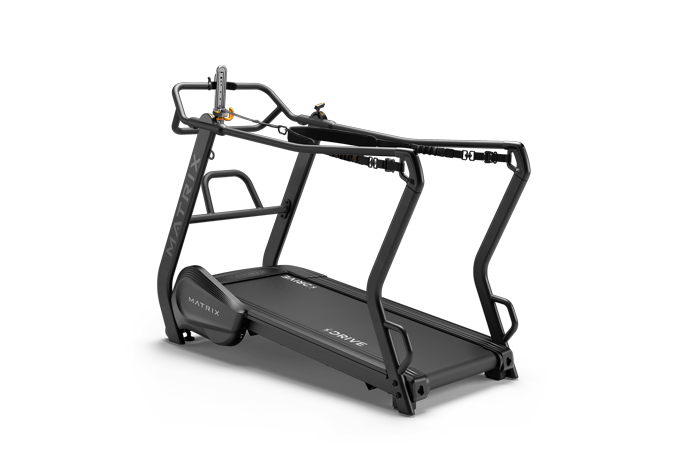

Repair Parts for Matrix Fitness S-DRIVEC - TM533 - 2019 TM533
| Brand | Matrix Fitness |
|---|---|
| Type | Non Folding Treadmills |
| Category | Non Folding |
| Model Number | TM533 |
| Model Name | S-DRIVEC - TM533 - 2019 |
| Version | 2019-2022 |
| Serial | TM533 |
Model Numbers: TM533
| Image | Catalog # | MPN | List Key | Qty | Part Description | Used | Compat. | New Price |
|---|---|---|---|---|---|---|---|---|
|
731542 | 1000436627 | 01 | Front Seat belt, TM533 | No |
Compatibility List |
Out Of Stock |
|
|
731543 | 1000436628 | 02 | Rear Seat belt, TM533 | No |
Compatibility List |
Out Of Stock |
|
|
731544 | 1000436626 | 5 | Seat belt Set, Elastic, TM533 | No |
Compatibility List |
Out Of Stock |
|
|
731493 | 1000412959 | 6 | Protection kits, Inner, TM533 | No |
Compatibility List |
$54.58 / Each
|
|
|
719384 | 1000360921 | 10 | shield set, Frame, TM529 | No |
Compatibility List |
$96.30 / Each
|
|
|
731489 | 1000417021 | 11 | Support tube group, handlebar, left, TM533 | No |
Compatibility List |
$292.48 / Each
|
|
|
719706 | 1000364026 | 12 | Support Tube Set, right, Armrest, TM529 | No |
Compatibility List |
$844.97 / Each
|
|
|
719709 | 1000364029 | 13 | Support Tube Set, back, Armrest, TM529, T | No |
Compatibility List |
Out Of Stock |
|
|
730941 | 0000091092 | 14 | Elastomer Set, Running Deck, Back, T1x F | No |
Compatibility List |
$14.28 / Each
|
|
|
733013 | 1000413050 | 14 | Console Base Set, Semi Assy, TM533 US/KM | No |
Compatibility List |
$302.88 / Each
|
|
|
719832 | 1000366311 | 20 | Side Rail Set, right, TM529 | No |
Compatibility List |
$202.77 / Each
|
|
|
731545 | 1000412958 | AB2 | Frame Set, painting, Black Matte, TM533 | No |
Compatibility List |
Out Of Stock |
|
|
717209 | 1000342909 | AB9 | Guide Tape Axle Set, TM526 | No |
Compatibility List |
$45.60 / Each
|
|
|
731049 | 0000095663 | AB29 | Elastomer Set, Semi Assy, Nai Li, TM501 1 | No |
Compatibility List |
$10.38 / Each
|
|
|
733015 | 1000413052 | AC11 Cnsl Base | Console Base Set, TM533 | No |
Compatibility List |
Out Of Stock |
|
|
731547 | 1000404129 | AC11 Handlebar | Seat belt Slide Set, TM531 US/KM, T DPT | No |
Compatibility List |
Out Of Stock |
|
|
731548 | 1000417022 | AC12 | Support Tube Welding Set, Arm Rest, L, pain | No |
Compatibility List |
Out Of Stock |
|
|
731549 | 1000360865 | AC14 | Support Tube Welding Set, Arm Rest, R, pain | No |
Compatibility List |
Out Of Stock |
|
|
731550 | 1000360871 | AG8 | Arm Rest, Rear, painting, Black Matte, TM5 | No |
Compatibility List |
Out Of Stock |
|
|
731494 | 1000412967 | AG9 | Arm Rest Set Exreawork, Dipping PVC, TM | No |
Compatibility List |
$1,246.68 / Each
|
|
|
|
719383 | 1000360915 | AG10 | Arm Rest Set Exreawork, down, Dipping, PVC | No |
Compatibility List |
Out Of Stock |
|
|
731495 | 1000412927 | AQ12 | cover Extrawork, Print, TM533, Flywheel | No |
Compatibility List |
$41.58 / Each
|
|
|
719385 | 1000360932 | AR2 | Roller Set, front, TM529 | No |
Compatibility List |
$506.97 / Each
|
|
|
731496 | 1000412996 | AR3 | Fly Wheel Set, TM533 | No |
Compatibility List |
$153.38 / Each
|
|
|
731497 | 1000412995 | AR4 | flywheel set, TM533 | No |
Compatibility List |
$395.18 / Each
|
|
|
731498 | 1000386203 | AR6 | Roller Set, back, Diam.89.7, TM529 | No |
Compatibility List |
$253.48 / Each
|
|
|
731499 | 1000419266 | AR7 | Treadmill Belt, 554X3330X2.3T, FORBO, N | No |
Compatibility List |
$782.58 / Each
|
|
|
731503 | 1000413001 | AS2 | ECB Set, TM533 | No |
Compatibility List |
$105.28 / Each
|
|
|
731504 | 1000412998 | AS3 | ECB Set, TM533 | No |
Compatibility List |
$74.08 / Each
|
|
|
731501 | 1000435513 | AS10 | Temsion knob set, TM533 | No |
Compatibility List |
$99.00 / Each
|
|
|
731502 | 1000435514 | AS11 | Temsion knob set, TM533 | No |
Compatibility List |
$99.00 / Each
|
|
|
723106 | 1000403761 | B12 | Cleaning cover, TM529 | No |
Compatibility List |
$20.25 / Each
|
|
|
723105 | 1000403760 | B13 | Buckle, TM529 | No |
Compatibility List |
$20.25 / Each
|
|
|
731551 | 1000412960 | B19 | Protected Sleeve, painting, Black Matte | No |
Compatibility List |
Out Of Stock |
|
|
731079 | 0000084526 | B23 | Bracket, Side Rail, SPHC, 2.0t, TM501 | No |
Compatibility List |
$2.32 / Each
|
|
|
|
719703 | 1000364022 | B33 | Axle, central, Wheel, SS41, White Zinc, TM5 | No |
Compatibility List |
Out Of Stock |
|
|
701469 | 004519-AD | B35 | Screw, Socket Head, M10x1.5Px80 30L, Hex S | No |
Compatibility List |
$6.73 / Each
|
|
|
730960 | 0000089165 | B38 | Clip Nut, Attached Plate, Elastomer, SPCC, 1.6t, Zn Pl | No |
Compatibility List |
$3.88 / Each
|
|
|
|
702330 | 006204-A | B40 | DECAL, APERTURE, SAFETY KEY, TM91 2KM(F24) | No |
Compatibility List |
Out Of Stock |
|
|
730961 | 0000095437 | B41 | Nut, Nlk, M8X1.25Px6t, BZN | No |
Compatibility List |
$1.68 / Each
|
|
|
731508 | 0000081207 | B41 | Foot Pad, Rubber | No |
Compatibility List |
$15.58 / Each
|
|
|
719902 | 1000366837 | B42 | Foot Pad, back, NBR, BL/Black C, TM529 | No |
Compatibility List |
$42.22 / Each
|
|
|
701943 | 004978-00 | B44 | Insert Nut, Hex, NHS 1015 4.0(M10x1.5P) | No |
Compatibility List |
$1.66 / Each
|
|
|
724288 | 1000417246 | B44 | Finished treadmill deck, Timber, 616X1340X | No |
Compatibility List |
$214.60 / Each
|
|
|
1000412624 | 1000412624 | B46 | 2 | Deck Spring Black | No |
Compatibility List |
$14.28 / Each
|
|
730962 | 0000084584 | B51 | Screw, BH, M8X1.25PX20L, HS, BAN | No |
Compatibility List |
$1.68 / Each
|
|
|
1035593 | 0000089153 | B53 | 1 | SCREW, SH, M6X1.0PX110L, HS, BAN, (Used) | No |
Compatibility List |
$3.59 / Each
|
|
701531 | 004562-AB | B61 | Screw, Hex Socket, Sink, Stainess, M8x1.25Px35L | No |
Compatibility List |
$1.68 / Each
|
|
|
704187 | 020455-00 | B61 | WASHER, FLT, Diam.6.2XDiam.20.0X1.0T, BZN | No |
Compatibility List |
$3.88 / Each
|
|
|
701948 | 004984-A | B68 | Insert Nut, Hex, NKHS 580 2.5(M5x0.8P) | No |
Compatibility List |
$1.66 / Each
|
|
|
731509 | 1000419240 | B87 | Clamp, Push Tie, CCMK 1, Black | No |
Compatibility List |
$1.68 / Each
|
|
|
731511 | 1000402052 | C03 | Handle Bar, painting, Yellow, TM531, Gold | No |
Compatibility List |
$37.68 / Each
|
|
|
731512 | 1000395511 | C04 | Cover, Arm Rest, BL/Black C, TPR 10%PP, TM | No |
Compatibility List |
$5.18 / Each
|
|
|
731513 | 1000395512 | C05 | Rubber Pad, Consoel Mast, SBR, BL/Black C | No |
Compatibility List |
$3.88 / Each
|
|
|
731555 | 1000395532 | C06 | Fixing Plate, Bolt, Stainless Steel, 4.0T | No |
Compatibility List |
Out Of Stock |
|
|
731556 | 1000395533 | C07 | Fixing Plate, Guide Rail2, SS41(bright) | No |
Compatibility List |
Out Of Stock |
|
|
731557 | 1000395531 | C08 | Elliptical Track, 73.9x310.0L, AL 6061 T | No |
Compatibility List |
Out Of Stock |
|
|
731558 | 1000423170 | C09 | Seat Silde Set, painting, Bright silver | No |
Compatibility List |
Out Of Stock |
|
|
731514 | 1000395525 | C10 | Drylin, IGS, JUMO 01 16, IGS | No |
Compatibility List |
$9.08 / Each
|
|
|
733014 | 1000419534 | C11 | End Cap, Slider Set, painting, TM533, Sil | No |
Compatibility List |
$18.18 / Each
|
|
|
731515 | 1000395515 | C15 | Pin, Pin, Stainless, TM531 | No |
Compatibility List |
$12.98 / Each
|
|
|
731517 | 1000402711 | C22 | Screw, Button Head, M5x1.0Px56.5L, Hex Soc | No |
Compatibility List |
$5.18 / Each
|
|
|
731518 | 1000395519 | C23 | Spring, Compression, Pin, SWPB, Prevent rust | No |
Compatibility List |
$5.18 / Each
|
|
|
731519 | 1000395520 | C24 | Screw, M6x1.0Px15.5L, Hex Socket, Stainle | No |
Compatibility List |
$2.32 / Each
|
|
|
731521 | 018625-AB | C32 | Screw, Hex Socket, Sink, Stainless, M5x0.8Px10L | No |
Compatibility List |
$7.78 / Each
|
|
|
731522 | 1000402134 | C35 | Screw, Socket Head, M6x1.0Px12L, Hex Socke | No |
Compatibility List |
$1.02 / Each
|
|
|
731523 | 1000402135 | C36 | Screw, Socket Head, M6x1.0Px20L, Hex Socke | No |
Compatibility List |
$1.02 / Each
|
|
|
701946 | 004982-A | C52 | Insert Nut, Hex, NHS 610 3.0(M6X1.0P) | No |
Compatibility List |
$1.68 / Each
|
|
|
701401 | 004454-00 | D23 | Screw, Round, Hex Socket, M5X0.8PX15L | No |
Compatibility List |
$3.88 / Each
|
|
|
702237 | 005362-00 | F17 | C Clip, External, S 16 | No |
Compatibility List |
$1.59 / Each
|
|
|
704154 | 020351-A | G27 | Screw, Phillip, Sink, Tapped, 3x12L | No |
Compatibility List |
$2.00 / Each
|
|
|
702004 | 005042-00 | H06 | Washer, Flat, 8.2X30.0X2.0T, Black Zinc | No |
Compatibility List |
$0.62 / Each
|
|
|
701408 | 004462-00 | H07 | Screw, Round, Hex Socket, M6x1.0Px15L, Chromed | Yes |
Compatibility List |
$3.88 / Each
|
|
|
718892 | 1000354060 | H08 | Rubber Plate, Stopper, NBR, Q520 7 3 MATTE | No |
Compatibility List |
$5.18 / Each
|
|
|
700390 | 001193-00 | H13 | End Cap, Seat Pad, 20x40x1.6t, RB06 | No |
Compatibility List |
$1.51 / Each
|
|
|
704202 | 020477-A | H13 | Washer, Flat, 12.5x23.0x2.0T, Black Zinc | No |
Compatibility List |
$1.60 / Each
|
|
|
702116 | 005144-A | H14 | Washer, Flat, 10.2x35.0x2.0T | No |
Compatibility List |
$2.00 / Each
|
|
|
701955 | 004991-00 | I12 | Key, Round, Dual End, 6X6X20L | No |
Compatibility List |
$2.37 / Each
|
|
|
702037 | 005067-00 | J04 | Washer, Flat, 10.2X15.0X1.5T, Black Zinc | No |
Compatibility List |
$3.88 / Each
|
|
|
700024 | 000041-AA | J19 | Transport Wheel | Yes |
Compatibility List |
$3.88 / Each
|
|
|
714874 | 1000319375 | J21 | Cap, PVC, BL/Black C | No |
Compatibility List |
$1.02 / Each
|
|
|
701912 | 004941-00 | L08 | Nut, Nylon, M10x1.5P | Yes |
Compatibility List |
$3.88 / Each
|
|
|
701888 | 004918-00 | L51 | Nut, Cap, M8x1.25P, BP | No |
Compatibility List |
$0.34 / Each
|
|
|
731562 | 004921-00 | L51 | Nut, Cap, M8x1.25P, BED | No |
Compatibility List |
Out Of Stock |
|
|
701426 | 004475-00 | M11 | SCREW, SH, M8X1.25PX15L, HS, BZN | No |
Compatibility List |
$3.88 / Each
|
|
|
730984 | 0000095368 | M14 | Screw, SH, M10X1.5PX25L, HS, BZN | Yes |
Compatibility List |
$1.68 / Each
|
|
|
731529 | 1000424132 | Not Shown | Hardware Set, For Service, TM533 | No |
Compatibility List |
$25.98 / Each
|
|
|
731530 | 1000421490 | Not Shown | Manual, English, TM533 | No |
Compatibility List |
$6.48 / Each
|
|
|
731561 | 1000360923 | Q01 | Cover, Frame, BL/Black C, PA746H, TM529 | No |
Compatibility List |
Out Of Stock |
|
|
731533 | 1000413086 | Q03 | Side Rail Set, left, TM533 | No |
Compatibility List |
$139.08 / Each
|
|
|
719813 | 1000365848 | Q05 | End Cap, Left Rear, painting, Black Matte | No |
Compatibility List |
$101.37 / Each
|
|
|
719814 | 1000365849 | Q06 | End Cap, Right Rear, painting, Black Matt | No |
Compatibility List |
$101.37 / Each
|
|
|
719704 | 1000364023 | Q07 | Tube Cap, front, PA746, BL/Black C, TM529 | No |
Compatibility List |
$3.35 / Each
|
|
|
719710 | 1000364030 | Q08 | Tube Cap, back, PA746, BL/Black C, TM529 | No |
Compatibility List |
$3.35 / Each
|
|
|
713519 | 1000304478 | Q10 | Screw, Button Head, M5x0.8Px12L, , Phillip | No |
Compatibility List |
$3.88 / Each
|
|
|
719792 | 1000365682 | Q10 | Cap, BL/Black C, TPR, TM529 | No |
Compatibility List |
$2.18 / Each
|
|
|
731563 | 001540-B | Q11 | Velcro, Both Sides, 50x50mm, TM65 | No |
Compatibility List |
Out Of Stock |
|
|
701441 | 004484-00 | R05 | Screw, Socket Head, M8X1.25PX50L 30L, Hex | No |
Compatibility List |
$1.85 / Each
|
|
|
711260 | 1000218699 | R15 | Belt, Poly V, FLEXONIC BELT, 948J8 | No |
Compatibility List |
$91.23 / Each
|
|
![Screw, Hex Socket, Round, M12 x 1.75P x 30L [MS40,51,80]](https://www.hydrafitnessexchange.com/uploads/product_image/1778609917_c9fb45f62d8f4807966fd84224c9e7f8.png)
|
704032 | 020120-A | R21 | Screw, Hex Socket, Round, M12 x 1.75P x 30L [MS40,51,80] | No |
Compatibility List |
$1.22 / Each
|
|
|
701507 | 004542-00 | R32 | SCREW, SH, M10X1.5PX110L, HS, CRMO, F T | No |
Compatibility List |
$5.18 / Each
|
|
|
704199 | 020473-A | S16 | Washer, Flat, 5.0X10.0X2.0T | No |
Compatibility List |
$1.66 / Each
|
|
|
731537 | 1000382906 | V08 | Decal, Safety, Green, PVC, TM529 | No |
Compatibility List |
$2.32 / Each
|
|
|
731538 | 1000422614 | V12 | Warning Label, Fly Wheel Cover, PVC, TM | No |
Compatibility List |
$2.32 / Each
|
|
|
705468 | 049261-A | Z01 | Screw, Socket Head, M10X1.5PX135 15L, Hex | No |
Compatibility List |
$3.35 / Each
|
|
|
702122 | 005146-AB | Z02 | Washer, Flat, 10.5x20.0x2.0T, Black Zinc | No |
Compatibility List |
$1.79 / Each
|
|
|
701415 | 004465-00 | Z05 | Screw, Hex Socket, Round, M6x1.0Px12L, Zn B | No |
Compatibility List |
$1.02 / Each
|
|
|
701961 | 005004-00 | Z06 | Washer, Spring, Lock, SW6 6.1x12.2x1.5t | No |
Compatibility List |
$2.00 / Each
|
|
|
720624 | 1000374174 | Z21 | Screw, Socket Head, M10x1.5Px25L, Hex Sock | No |
Compatibility List |
$3.35 / Each
|
|
|
701515 | 004549-AC | Z31 | Screw, Hex Socket, M10x1.5Px55L | No |
Compatibility List |
$9.10 / Each
|
|
|
730175 | 1000395521 | Z33 | Screw, Round Head, M6x1.0Px25.5L, Hex Sock | No |
Compatibility List |
$2.58 / Each
|
|
|
719793 | 1000365683 | Z41 | Washer, Flat, Diam.10.5XDiam.20.0X2.0T, Sta | No |
Compatibility List |
$1.66 / Each
|
|
|
719715 | 1000364046 | Z42 | Screw, Socket Head, M10X1.5PX100 35L, Hex | No |
Compatibility List |
$5.90 / Each
|
|
|
731540 | 1000402109 | Z43 | Screw, Socket Head, M8x1.25Px20L, Hex Sock | No |
Compatibility List |
$1.68 / Each
|
|
|
731541 | 1000403214 | Z44 | Screw, Button Head, M5X0.8PX20L, Phillip, S | No |
Compatibility List |
$1.02 / Each
|
|
|
723817 | 1000412624 | Deck Cushion 30X37 (New) | Yes |
Compatibility List |
$24.99 / Each
|
Catalog #: 730960
MPN: 0000089165
Clip Nut, Attached Plate, Elastomer, SPCC, 1.6t, Zn Pl
$3.88 / each
Catalog #: 704032
MPN: 020120-A
Screw, Hex Socket, Round, M12 x 1.75P x 30L [MS40,51,80]
$1.22 / each
6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818
© 2026. All Rights Reserved.
