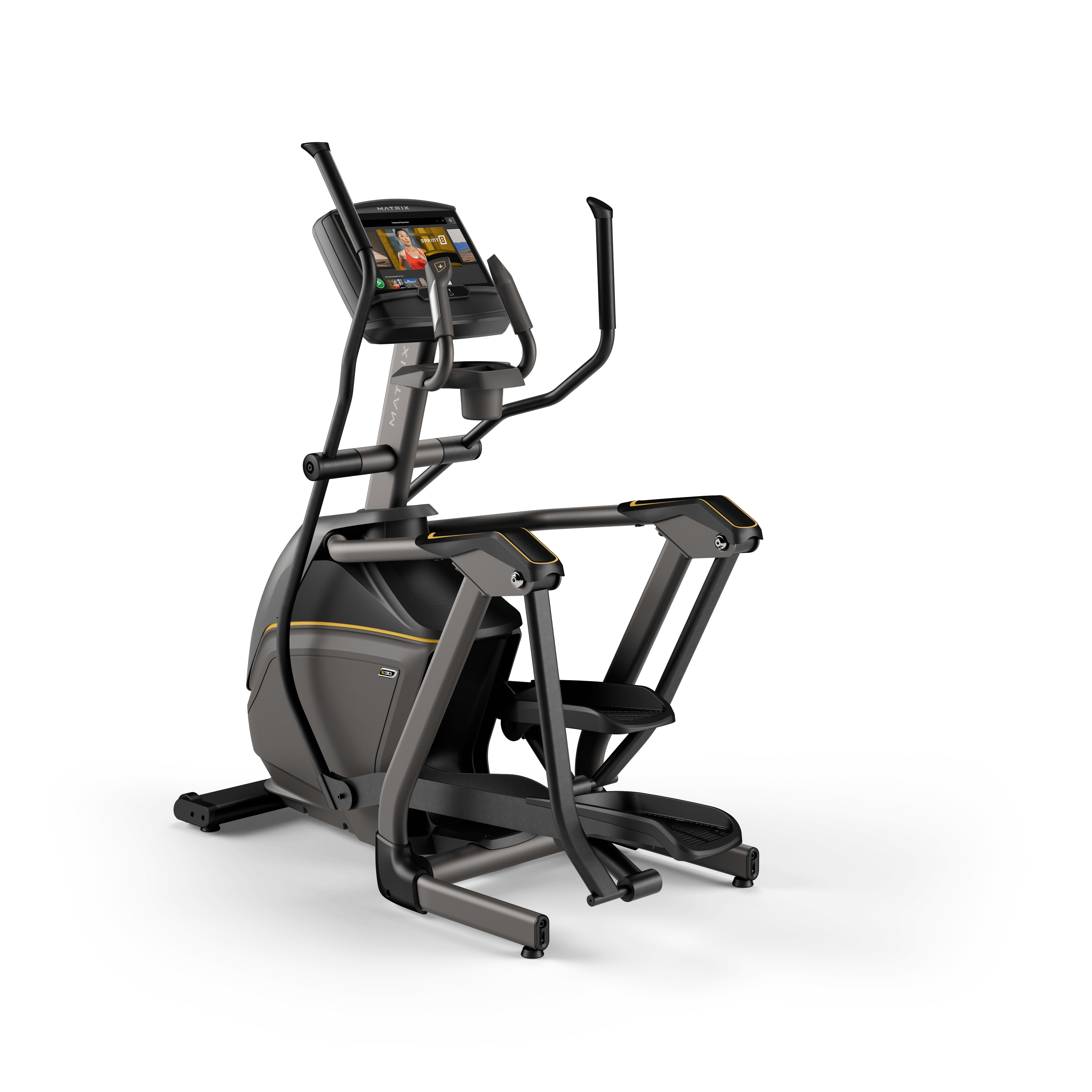

Repair Parts for Matrix Retail E30-02 - EP730 - EP299 - 2020 EP730
| Brand | Matrix Retail |
|---|---|
| Type | Elliptical |
| Category | Suspension |
| Model Number | EP730 |
| Model Name | E30-02 - EP730 - EP299 - 2020 |
| Version | 2020-2025 |
| Serial | EP730, EP299 |
Model Numbers: EP730, EP299
| Image | Catalog # | MPN | List Key | Qty | Part Description | Used | Compat. | New Price |
|---|---|---|---|---|---|---|---|---|
|
1001766 | 1000231159 | 0 | 1 | Adapter DC | No |
Compatibility List |
$81.99 / Each
|
|
733952 | 1000459411 | 2 | Handgrip Set, left, Quick button, EP728 | No |
Compatibility List |
$54.96 / Each
|
|
|
733953 | 1000459412 | 3 | Handgrip Set, right, Quick button, EP728 | No |
Compatibility List |
$54.96 / Each
|
|
|
720835 | 1000377284 | AB5 | Support Frame, Cover, painting, EP598, DM | No |
Compatibility List |
Out Of Stock |
|
|
733954 | 1000454853 | AC11 | Console Mast Set Exreawork, Screen prin | No |
Compatibility List |
$205.04 / Each
|
|
|
733970 | 1000459409 | AD3 | Handgrip Set, left up, EP728, SBOM | No |
Compatibility List |
Out Of Stock |
|
|
733971 | 1000459410 | AD4 | Handgrip Set, right up, EP728, SBOM | No |
Compatibility List |
Out Of Stock |
|
|
734098 | 1000459205 | AG11 | Handlebar Fabricate, Semi Assy, left, EP | No |
Compatibility List |
$130.02 / Each
|
|
|
734099 | 1000459206 | AG12 | Handlebar Fabricate, Semi Assy, right, E | No |
Compatibility List |
$130.02 / Each
|
|
|
733957 | 1000454852 | AH05 | Swing Arm Set, Semi Assy, EP728 | No |
Compatibility List |
$296.18 / Each
|
|
|
733958 | 1000454856 | AH11 | CON TUBE SET, L, painting, EP728, MXR DM3 | No |
Compatibility List |
$113.80 / Each
|
|
|
733959 | 1000454857 | AH21 | CON TUBE SET, R, painting, EP728, MXR DM3 | No |
Compatibility List |
$113.80 / Each
|
|
|
722336 | 1000391059 | AJ1 | Crank set, Semi Assy, EP598, SBOM | No |
Compatibility List |
$159.69 / Each
|
|
|
723066 | 1000403194 | AQ1 | Side Cover Set, Semi Assy, left, EP597 | No |
Compatibility List |
$77.71 / Each
|
|
|
723067 | 1000403195 | AQ2 | Side Cover Set, Semi Assy, right, EP597 | No |
Compatibility List |
$77.71 / Each
|
|
|
733960 | 1000432811 | AR1 | Transmission set Tools, EP598 | No |
Compatibility List |
$225.48 / Each
|
|
|
701998 | 005036-00 | B16 | Washer, Flat, Diam.X8.5xDiam.X25.0x1.5T, B | No |
Compatibility List |
$1.66 / Each
|
|
|
704979 | 028275-AA | B21 | Adjustable Leveler | Yes |
Compatibility List |
$7.00 / Each
|
|
|
717150 | 1000342040 | B21 | End Cap, Frame, Left Front, ABS PA757S, BL/B | No |
Compatibility List |
$6.68 / Each
|
|
|
717125 | 1000341757 | B22 | End Cap, Frame, Right Front, ABS/PA757, BL/B | No |
Compatibility List |
$6.19 / Each
|
|
|
701599 | 004623-00 | B30 | Screw, Phillip, BH, Tapped, 4x12L, BED, Gap | No |
Compatibility List |
$3.88 / Each
|
|
|
703997 | 020082-00 | B33 | Screw, Hex Socket, M10X1.5X20, Zn BL | No |
Compatibility List |
$1.79 / Each
|
|
|
728346 | 094112 | B35 | Cover, Lower Vertical Handlebar Rotating Axle | Yes |
Compatibility List |
$7.99 / Each
|
|
|
701301 | 004364-AC | B37 | Screw, BH, M5X0.8PX12L, CT, PH, BAN, HEAD 9 | No |
Compatibility List |
$1.85 / Each
|
|
|
734101 | 1000366836 | B38 | Fixing Base, Generator1, SPHC, 5.0T, EP597 | No |
Compatibility List |
Out Of Stock |
|
|
706954 | 067544-A | B43 | Screw, Phillip, M4X0.7PX12L | No |
Compatibility List |
$2.00 / Each
|
|
|
714290 | 1000313182 | B46 | Screw, Socket Head, M10X1.5PX25L, Hex Sock | No |
Compatibility List |
$3.69 / Each
|
|
|
733961 | 0000083793 | B47 | Washer, Flat, 10.2x18.0x2.0t, Zn BL | No |
Compatibility List |
$1.38 / Each
|
|
|
701513 | 004549-00 | B59 | Screw, Hex Socket, Round, M10x1.5Px55L, Cr | No |
Compatibility List |
$8.40 / Each
|
|
|
701435 | 004482-00 | B60 | Screw, Round, Hex Socket, SH, M8X1.25PX20L | No |
Compatibility List |
$1.79 / Each
|
|
|
730093 | 0000086127 | B88 | Nut, HEX, M10X1.5P, 10 | No |
Compatibility List |
$2.32 / Each
|
|
|
701309 | 004369-AD | C08 | Screw, BH, M5X0.8PX15L, PH, BZN | No |
Compatibility List |
$3.88 / Each
|
|
|
725869 | 077441 | C10 | Sticker, Warning, Console set, 38x54, EP197 | No |
Compatibility List |
$1.77 / Each
|
|
|
702087 | 005119-00 | C18 | Washer, Flat, 8.2x16.0x1.5T | No |
Compatibility List |
$0.48 / Each
|
|
|
701965 | 005005-AC | C52 | Washer, Split, 8.2X15.4X2.0T, BZN | No |
Compatibility List |
$1.79 / Each
|
|
|
701401 | 004454-00 | D23 | Screw, Round, Hex Socket, M5X0.8PX15L | No |
Compatibility List |
$3.88 / Each
|
|
|
704189 | 020459-00 | D27 | Washer, Flat, 10.2X28.5X3.0T | No |
Compatibility List |
$1.85 / Each
|
|
|
701688 | 004718-AC | D50 | Screw, BH, M8X1.25PX10L, HS, BZN, BP | No |
Compatibility List |
$3.88 / Each
|
|
|
731358 | 1000341896 | D78 | Cover, Hand Pulse, left down, ABS PA757S, BL | No |
Compatibility List |
Out Of Stock |
|
|
731359 | 1000341898 | D82 | Cover, Hand Pulse, right down, ABS PA757S, B | No |
Compatibility List |
Out Of Stock |
|
|
701091 | 003713-00 | D85 | Screw, RND, M4x20L, , PH, , WZN, , , ROHS | No |
Compatibility List |
$1.79 / Each
|
|
|
701261 | 004321-AB | D98 | Screw, RND, M4x10L, , PH, , CHM, , | No |
Compatibility List |
$2.00 / Each
|
|
|
702005 | 005043-00 | E12 | Washer, Flat, 8.2x20x1.5T, Black Zinc | Yes |
Compatibility List |
$5.00 / Each
|
|
|
702046 | 005075-00 | E18 | Washer, Flat, 6.2X16X2.0T, Black Zinc | No |
Compatibility List |
$3.88 / Each
|
|
|
701772 | 004793-00 | F02 | Screw, Button Head, M10X1.5PX15L, Hex Sock | No |
Compatibility List |
$2.32 / Each
|
|
|
704028 | 020115-AF | F45 | Screw, Hex Socket, Round, M10x1.5Px95L | No |
Compatibility List |
$9.02 / Each
|
|
|
734100 | 1000390874 | G08 | Foam, Arm Rest, STR, HZ BL, 31.8x3.0tx280L | No |
Compatibility List |
$3.88 / Each
|
|
|
708152 | 1000100593 | G16 | Cap, PVC, BL, PAHs, EP140 | No |
Compatibility List |
$3.17 / Each
|
|
|
717144 | 1000341889 | G16 | Kettle Rack, ABS/PA757, Black 7C, EP589 | No |
Compatibility List |
$19.14 / Each
|
|
|
722518 | 1000393342 | G30 | Cap, Handlebar, PP, BL/Black C, Diam.31.8x3 | No |
Compatibility List |
$3.02 / Each
|
|
|
701408 | 004462-00 | H07 | Screw, Round, Hex Socket, M6x1.0Px15L, Chromed | Yes |
Compatibility List |
$3.88 / Each
|
|
|
711208 | 1000217718 | H09 | SCREW, FH, M5X0.8PX10L, CT, PH, G8.8, BAN, BP | No |
Compatibility List |
$1.85 / Each
|
|
|
705016 | 029432-00 | H29 | WASHER, FLT, Diam.5.0XDiam.15.0X1.0T | No |
Compatibility List |
$3.88 / Each
|
|
|
719863 | 1000366458 | H32 | Connect Hub, Link Arm, 45#, EP598 | No |
Compatibility List |
$7.64 / Each
|
|
|
714292 | 1000313184 | H62 | Screw, Socket Head, M10X1.5PX110L(30L), He | No |
Compatibility List |
$2.32 / Each
|
|
|
710385 | 1000209856 | H65 | Nut, CUSTOM, M10X1.5P, S45C, CHM | Yes |
Compatibility List |
$9.10 / Each
|
|
|
710998 | 1000215738 | H66 | Cap, Nut, S45C, EP304 | Yes |
Compatibility List |
$9.10 / Each
|
|
|
701307 | 004368-00 | J06 | Screw, Phillip, BH, M5x0.8Px20L | No |
Compatibility List |
$1.79 / Each
|
|
|
700024 | 000041-AA | J19 | Transport Wheel | Yes |
Compatibility List |
$3.88 / Each
|
|
|
704203 | 020478-00 | L09 | Washer, Flat, 10.2x20.0x2.0T, Black Zinc | No |
Compatibility List |
$3.88 / Each
|
|
|
726621 | 083556 | M06 | Steel Rope, 400L 66L | Yes |
Compatibility List |
$17.99 / Each
|
|
|
723697 | 1000412073 | M40 | LCB, ECB Small Motor, HBPB, V2.002, digita | No |
Compatibility List |
$84.47 / Each
|
|
|
708040 | 1000098175 | N34 | Screw, BH, Diam.X4x10L, SM, PH, , BZN, POT, , B | No |
Compatibility List |
$1.85 / Each
|
|
|
706854 | 066277-A | N39 | Screw, BH, 5X15L, SM, PH, BZN, POT | No |
Compatibility List |
$2.00 / Each
|
|
|
701312 | 004370-00 | N93 | Screw, Phillip, BH, M5x0.8Px10L, Zn BL | No |
Compatibility List |
$0.48 / Each
|
|
|
708252 | 1000101533 | Not Shown | Power Wire, DC, 600mm | Yes |
Compatibility List |
$14.00 / Each
Out Of Stock |
|
|
722289 | 1000390665 | Not Shown | Hardware Set, EP597 | No |
Compatibility List |
$60.22 / Each
|
|
|
722525 | 1000393378 | Not Shown | Others set, Semi Assy, Belt, assembly, EP | No |
Compatibility List |
$72.75 / Each
Out Of Stock |
|
|
717836 | 1000347982 | P03 | Sensor, 24AWG, 450L, UL 2468, OKI CKM254 | Yes |
Compatibility List |
$9.57 / Each
Out Of Stock |
|
|
715316 | 1000323653 | P07 | Console Wire, 1500, ckm254301 8P Mole | No |
Compatibility List |
$52.00 / Each
|
|
|
712874 | 1000231159 | P12 | ADAPTER, US, 100 240V/50 60HZ, 12V/2A, 2.0M | No |
Compatibility List |
$80.29 / Each
|
|
|
728448 | 094924 | P13 | KSS HC 0R | No |
Compatibility List |
$3.88 / Each
|
|
|
717481 | 1000345435 | P14 | Quick Key Connect Wire, 60mm, CWB SM | No |
Compatibility List |
$12.40 / Each
|
|
|
719837 | 1000366363 | Q03 | Cover, Frame, Front Up, ABS/PA757 | No |
Compatibility List |
$24.83 / Each
|
|
|
719838 | 1000366364 | Q04 | Cover, Frame, Rear Up, ABS/PA757, BL/Black C | No |
Compatibility List |
$23.06 / Each
|
|
|
719839 | 1000366365 | Q05 | Cover, Frame, back, ABS/PA757, BL/Black C, E | No |
Compatibility List |
$15.96 / Each
|
|
|
719840 | 1000366367 | Q06 | Rubber Sleeve, Connect Tube, left, NBR, BL/B | No |
Compatibility List |
$17.73 / Each
|
|
|
719841 | 1000366369 | Q07 | Rubber Sleeve, Connect Tube, right, NBR, BL/ | No |
Compatibility List |
$17.73 / Each
|
|
|
719842 | 1000366374 | Q08 | Cover, Main Tube, back, ABS/PA757, BL/Black | No |
Compatibility List |
$6.68 / Each
|
|
|
719843 | 1000366375 | Q09 | Cover, Supt Tube, Left Outer, ABS/PA757, BL/ | No |
Compatibility List |
$3.82 / Each
|
|
|
719844 | 1000366381 | Q10 | Cover, Supt Tube, Left Inner, ABS/PA757, BL/ | No |
Compatibility List |
$3.82 / Each
|
|
|
719845 | 1000366384 | Q11 | Cover, Supt Tube, Right Outer, ABS/PA757, BL | No |
Compatibility List |
$3.82 / Each
|
|
|
719846 | 1000366385 | Q12 | Cover, Supt Tube, Right Inner, ABS/PA757, BL | No |
Compatibility List |
$3.82 / Each
|
|
|
716101 | 1000332723 | Q14 | Decal Plate, Side Cover, left, ABS/PA757K | No |
Compatibility List |
$6.48 / Each
|
|
|
716102 | 1000332724 | Q15 | Decal Plate, Side Cover, right, ABS/PA757K | No |
Compatibility List |
$8.42 / Each
|
|
|
719847 | 1000366393 | Q15 | Cover, Connect Tube, Rear Up, ABS/PA757, BL/ | No |
Compatibility List |
$17.73 / Each
|
|
|
719852 | 1000366406 | Q16 | Pedal, left, PP, BL/Black C, EP597 | No |
Compatibility List |
$11.49 / Each
|
|
|
716699 | 1000338924 | Q17 | Pedal, right, PP, BL/Black C, EP597 | No |
Compatibility List |
$10.63 / Each
|
|
|
720628 | 1000374350 | Q20 | Decorate Cover, Frame Cover, Front Up, ABS/ | No |
Compatibility List |
$2.29 / Each
|
|
|
720627 | 1000374346 | Q21 | Cap, Elliptical, ABS/PA757, Black, 40x80, EP | No |
Compatibility List |
$1.77 / Each
|
|
|
700319 | 000945-AA | Q22 | End Cap, Handlebar, O31.8, Black | No |
Compatibility List |
$1.90 / Each
|
|
|
704270 | 022147-A | Q23 | PLATE CONNECTING | No |
Compatibility List |
$1.90 / Each
|
|
|
722517 | 1000393341 | R02 | Belt, POLY V, Flexonic, 1250 J13, HUTCHINSO | No |
Compatibility List |
$88.71 / Each
|
|
|
701929 | 004966-00 | R08 | NUT, HXF, M12X1.25P, SS41, BAN | No |
Compatibility List |
$1.66 / Each
|
|
|
719900 | 1000366827 | R09 | ECB Controller, Internal, 10.5kg, EP597 | No |
Compatibility List |
$230.67 / Each
|
|
|
702242 | 005367-00 | R11 | C Clip, External, S 30 | No |
Compatibility List |
$4.00 / Each
|
|
|
701318 | 004374-00 | S03 | Screw, Phillip, BH, M5x0.8Px10L, Gap, Zn BL | No |
Compatibility List |
$3.88 / Each
|
|
|
701167 | 004083-00 | U05 | Ball Bearing 6206ZZ | No |
Compatibility List |
Out Of Stock |
|
|
701473 | 004522-AB | Z01 | Screw, Round, Hex Socket, M10X1.5PX25L | No |
Compatibility List |
$1.02 / Each
|
|
|
701692 | 004720-00 | Z04 | Screw, BH, M8X1.25PX20L, HS, BZN | Yes |
Compatibility List |
$1.54 / Each
|
|
|
701749 | 004773-00 | Z04 | Screw, Hex Socket, BH, M8x1.25Px35L | No |
Compatibility List |
$1.59 / Each
|
|
|
701348 | 004394-00 | Z05 | Screw, Phillip, BH, M6x1.0Px15L, Zn BL | No |
Compatibility List |
$1.79 / Each
|
|
|
701291 | 004357-00 | Z06 | Screw, Phillip, BH, M4x0.7Px15L | No |
Compatibility List |
$3.88 / Each
|
|
|
701995 | 005033-Z | Z10 | Washer, Flat, ?8.6x?26.0x2.0t | No |
Compatibility List |
$2.57 / Each
|
|
|
708663 | 1000104692 | Z10 | Screw, RND, M10x1.5Px45L, HS, CHM, BP, G12.9 | No |
Compatibility List |
$7.78 / Each
|
|
|
733969 | 0000085887 | Z10 | Nut, Nylock, M8x1.25Px6.5T, Black Annodize | No |
Compatibility List |
$4.90 / Each
|
|
|
701967 | 005006-00 | Z12 | Washer, Spring, SW10 10.2x18.4x2.5t | No |
Compatibility List |
$0.48 / Each
|
|
|
941989 | 004370-00 | Screw (New) | No |
Compatibility List |
$12.00 / Each
|
||
|
986204 | 004374-00 | Button Head Phillip Screw (New) | No |
Compatibility List |
$12.99 / Each
|
Catalog #: 722525
MPN: 1000393378
Others set, Semi Assy, Belt, assembly, EP
$72.75 / each
Catalog #: 717836
MPN: 1000347982
Sensor, 24AWG, 450L, UL 2468, OKI CKM254
$9.57 / each
6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818
© 2026. All Rights Reserved.
