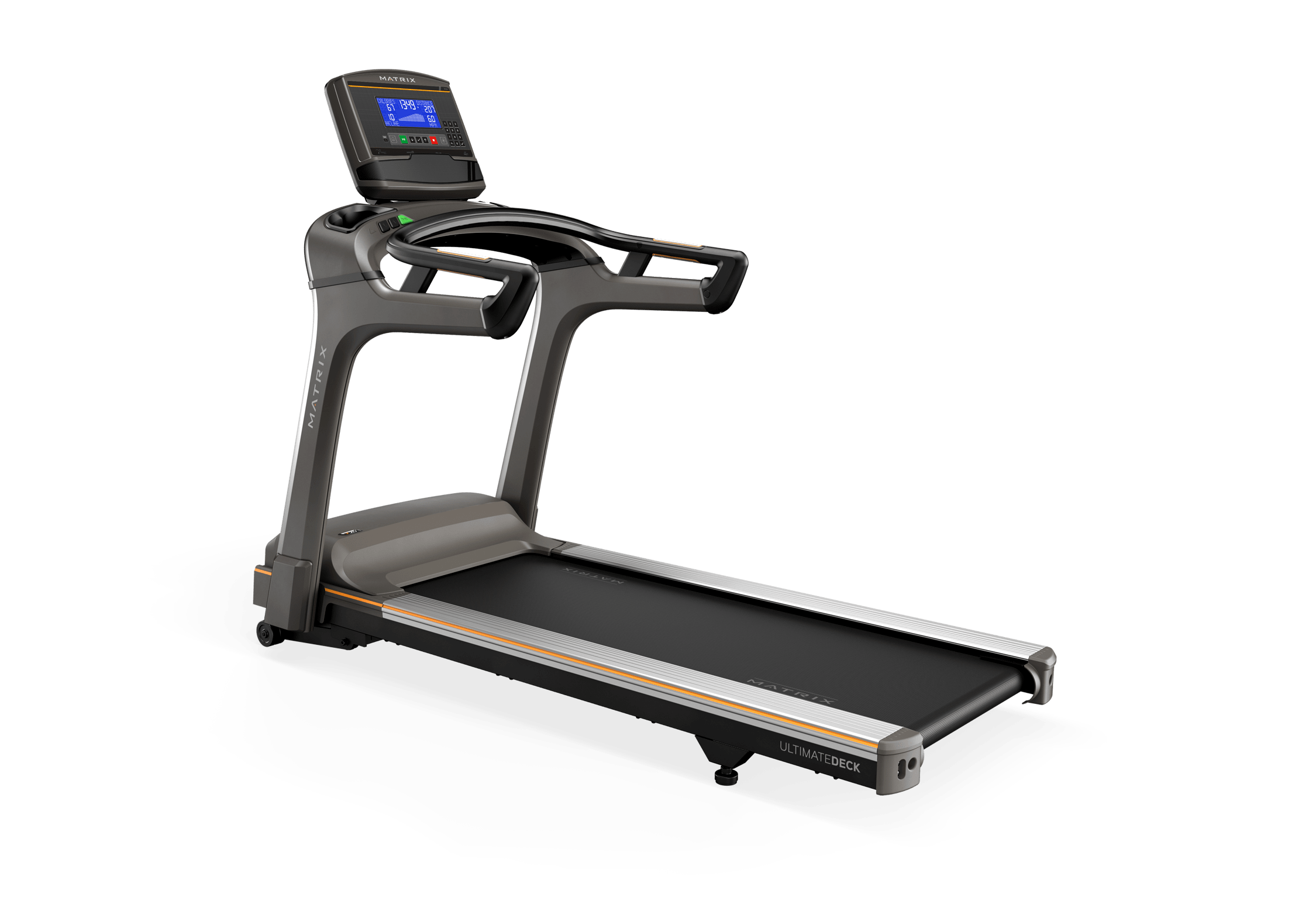

Repair Parts for Matrix Retail T70 XR TM703
| Brand | Matrix Retail |
|---|---|
| Type | Non Folding Treadmills |
| Category | Non Folding |
| Model Number | TM703 |
| Model Name | T70 XR |
| Version | 2016 |
Model Numbers: TM703, CTM697
| Image | Catalog # | MPN | List Key | Qty | Part Description | Used | Compat. | New Price |
|---|---|---|---|---|---|---|---|---|
|
1032499 | 002127-A | 0 | 1 | BS WIRE, 60L, 12AWG, BLACK, TM86, (Used) | No |
Compatibility List |
$1.79 / Each
Out Of Stock |
|
1035846 | 1000323655 | 0 | 1 | Console Wire Set, Down, 1800mm, Molex:7 (Used) | No |
Compatibility List |
$15.00 / Each
|
|
722231 | 1000389378 | 6 | Arm Rest Set, Semi Assy, TM694, service | No |
Compatibility List |
$718.88 / Each
|
|
|
713087 | 1000233007 | 9 | MCB SET, SEMI ASS, TM445 1US | No |
Compatibility List |
$1,669.18 / Each
|
|
|
1035845 | 1000233007 | 09 | 1 | Motor Controller Board (Used) | No |
Compatibility List |
$299.00 / Each
Out Of Stock |
|
722221 | 1000389183 | 11 | Motor set, Semi Assy, TM703 1US, servic | No |
Compatibility List |
$690.28 / Each
|
|
|
722220 | 1000389182 | 12 | Side Rail Set, Semi Assy, TM703, servic | No |
Compatibility List |
$423.78 / Each
|
|
|
722229 | 1000389376 | 22 | Sensor set, Semi Assy, left, TM694, servi | No |
Compatibility List |
$29.88 / Each
|
|
|
722230 | 1000389377 | 23 | Sensor set, Semi Assy, right, TM694, serv | No |
Compatibility List |
$29.88 / Each
|
|
|
721286 | 1000381549 | A12 | Console Set, TM697 1US | No |
Compatibility List |
Out Of Stock |
|
|
718913 | 1000354188 | AN12 | Control Board, Console, HCPC, V1.017, MF X | No |
Compatibility List |
$354.87 / Each
|
|
|
722528 | 1000393492 | AR2 | Roller Set, Rear, ??60.00x660.00, TM703 | No |
Compatibility List |
$266.16 / Each
|
|
|
702192 | 005238-00 | B29 | Washer, Lock, 8.2x16x1.25T | No |
Compatibility List |
$1.02 / Each
|
|
|
701599 | 004623-00 | B30 | Screw, Phillip, BH, Tapped, 4x12L, BED, Gap | No |
Compatibility List |
$3.88 / Each
|
|
|
720437 | 1000372837 | B30 | Fixing Plate, Frame, L, painting, DM515 matt | No |
Compatibility List |
$11.68 / Each
|
|
|
702008 | 005045-00 | B40 | Washer, Flat, 8.2x22x3.0T | No |
Compatibility List |
$3.88 / Each
|
|
|
712392 | 1000228690 | B42 | SCREW, BH, M8X1.25PX30L, HS, G12.9, BZN | No |
Compatibility List |
$3.88 / Each
|
|
|
702013 | 005048-00 | B45 | Washer, Flat, 8.2x15.0x1.2T | No |
Compatibility List |
$3.88 / Each
|
|
|
700265 | 000821-E2 | B50 | Deck Extension, Left | No |
Compatibility List |
$3.88 / Each
|
|
|
700264 | 000820-E2 | B51 | Deck Extension, Right | No |
Compatibility List |
$3.88 / Each
|
|
|
704187 | 020455-00 | B61 | WASHER, FLT, Diam.6.2XDiam.20.0X1.0T, BZN | No |
Compatibility List |
$3.88 / Each
|
|
|
721879 | 1000386014 | B63 | Screw, Socket Head, M6x1.0Px90L 20, Hex So | No |
Compatibility List |
$6.48 / Each
|
|
|
719105 | 1000355952 | C05 | Cover, left, SBR, TM694, Support plate of | No |
Compatibility List |
$23.38 / Each
|
|
|
719106 | 1000355953 | C08 | Cover, right, SBR, TM694, Support plate o | No |
Compatibility List |
$14.17 / Each
|
|
|
701322 | 004375-AD | C10 | SCREW, BH, M5X0.8PX15L, PH, BZN, BP | No |
Compatibility List |
$3.88 / Each
|
|
|
719791 | 1000365666 | C21 | Pulse CON, Middle, 24AWG, 700mm, SM 2Ax2 | No |
Compatibility List |
$7.78 / Each
|
|
|
718968 | 1000354823 | C22 | Pulse CON, Down, 2464 24AWG, 300mm, 110 F | No |
Compatibility List |
$20.78 / Each
|
|
|
720128 | 1000368897 | C23 | Cap, Arm Rest, Inner, SBR, TM694 | No |
Compatibility List |
$9.08 / Each
|
|
|
720834 | 1000377274 | C24 | Cap, Arm Rest, SBR, Q520 7 3, TM694 | No |
Compatibility List |
$5.18 / Each
|
|
|
976932 | 004926-00 | C53 | Nylon Lock Nut M8x1.25P (New) | No |
Compatibility List |
$12.99 / Each
|
|
|
701897 | 004926-00 | D34 | Nut, Nylon, M8x1.25P | No |
Compatibility List |
$3.88 / Each
|
|
|
701288 | 004356-00 | E33 | Screw, Phillip, BH, M4x0.7Px12L, Gap | No |
Compatibility List |
$3.88 / Each
|
|
|
702831 | 011179-00 | F21 | Washer, Teflon, M12x30Px1T | No |
Compatibility List |
$4.00 / Each
|
|
|
701964 | 005005-00 | H04 | Washer, Spring, Lock, 8.2x15.4x2.0t | Yes |
Compatibility List |
$3.88 / Each
|
|
|
701408 | 004462-00 | H07 | Screw, Round, Hex Socket, M6x1.0Px15L, Chromed | Yes |
Compatibility List |
$3.88 / Each
|
|
|
703994 | 020077-00 | H09 | Screw, Hex Socket, Round, M12X1.75PX60L(30L) | No |
Compatibility List |
$4.00 / Each
|
|
|
704202 | 020477-A | H13 | Washer, Flat, 12.5x23.0x2.0T, Black Zinc | No |
Compatibility List |
$1.60 / Each
|
|
|
701900 | 004928-00 | H15 | Nut, Nylon, M12x1.75P | No |
Compatibility List |
$3.88 / Each
|
|
|
712153 | 1000227025 | L01 | TRANSPORT WHEELS, N66 | No |
Compatibility List |
$10.22 / Each
|
|
|
1035855 | 1000227025 | L01 | 2 | Transport Wheels (Used) | No |
Compatibility List |
$3.00 / Each
|
|
710867 | 1000214660 | L06 | Pillar, 45, BZN | No |
Compatibility List |
$9.08 / Each
|
|
|
708085 | 1000099219 | L07 | Open Type Pin, R Type, Nominal diameter3. | No |
Compatibility List |
$1.90 / Each
|
|
|
701912 | 004941-00 | L08 | Nut, Nylon, M10x1.5P | Yes |
Compatibility List |
$3.88 / Each
|
|
|
704203 | 020478-00 | L09 | Washer, Flat, 10.2x20.0x2.0T, Black Zinc | No |
Compatibility List |
$3.88 / Each
|
|
|
700402 | 001251-F | L10 | Rail Lock, Fixing Washer, Side Rail | Yes |
Compatibility List |
$3.88 / Each
|
|
|
724570 | 1000422215 | M02 | Elevation Motor Set, Semi Assy, 110V | Yes |
Compatibility List |
$408.18 / Each
|
|
|
712296 | 1000228217 | M03 | WIRE, MOTOR GND, YELLOW/GREEN, 340L, (KS | No |
Compatibility List |
$9.57 / Each
|
|
|
701561 | 004592-00 | M05 | Screw, Hex, 3/8 16UNCx45L/Tooth15L | Yes |
Compatibility List |
$3.88 / Each
|
|
|
712130 | 1000226829 | M05 | WIRE, BS CON, BL, 60L, 250180 Deg.X2, 12AWG | No |
Compatibility List |
$5.18 / Each
|
|
|
701031 | 003378-00 | M06 | Ferrite Core | No |
Compatibility List |
$15.58 / Each
|
|
|
701908 | 004934-00 | M06 | Nut, Nylon, 3/8 | Yes |
Compatibility List |
$0.62 / Each
|
|
|
702121 | 005146-A | M07 | Washer, Flat, 10.5x20x2.0T, Black Zinc | No |
Compatibility List |
$3.88 / Each
|
|
|
701590 | 004619-AB | M08 | Screw, Phillip, BH, Oval Tapped, 4x8L | No |
Compatibility List |
$2.00 / Each
|
|
|
702007 | 005044-00 | M09 | Washer, Flat8.3x16x1.3T, Black Zinc | No |
Compatibility List |
$3.88 / Each
|
|
|
713436 | 1000303167 | M09 | Screw Sleeve, Motor, NYLON PA6, Black, TM4 | No |
Compatibility List |
$3.88 / Each
|
|
|
700296 | 000885-C | M38 | Rubber Pad, Motor, Anti Shake | Yes |
Compatibility List |
$16.74 / Each
|
|
|
722621 | 1000396097 | M42 | Filter, 20A, 125/250V, BF1103 20A 04(3) | Yes |
Compatibility List |
$86.94 / Each
|
|
|
701972 | 005010-00 | M69 | Spring Lock Washer 10.75x17.2x2.16T (New) | No |
Compatibility List |
$0.62 / Each
|
|
|
721568 | 1000384311 | N01 | Console Cover2, U, painting, DM334, Gray, TM | No |
Compatibility List |
$88.71 / Each
|
|
|
718948 | 1000354737 | N02 | Plastic Cover, Console, down, ABS/PA757, Q5 | No |
Compatibility List |
$53.22 / Each
|
|
|
721759 | 1000385427 | N02 | Panel Board Cover Exreawork, console, down | No |
Compatibility List |
$42.88 / Each
|
|
|
718951 | 1000354742 | N03 | Decorate Cover, Console Up Cover, ABS/PA7 | No |
Compatibility List |
$10.63 / Each
|
|
|
719090 | 1000355859 | N03 | Rubber Key, left, SBR, Q520 7 3, TM694 | No |
Compatibility List |
$27.28 / Each
|
|
|
719091 | 1000355860 | N04 | Rubber Key, right, SBR, Q520 7 3, TM694 | No |
Compatibility List |
$27.28 / Each
|
|
|
719087 | 1000355836 | N05 | Kettle Rack, left, TPE, Q520 7 3, TM694 | No |
Compatibility List |
$15.58 / Each
|
|
|
719088 | 1000355837 | N06 | Kettle Rack, right, TPE, Q520 7 3, TM694 | No |
Compatibility List |
$15.58 / Each
|
|
|
720141 | 1000368950 | N18 | Space Ring, Console Base Cover, left, SBR, Q | No |
Compatibility List |
$23.38 / Each
|
|
|
720142 | 1000368951 | N19 | Space Ring, Console Base Cover, right, SBR | No |
Compatibility List |
$16.88 / Each
|
|
|
719943 | 1000367251 | N21 | Waterproof Window, Water Proof, up, Acrylic | No |
Compatibility List |
Out Of Stock |
|
|
719942 | 1000367250 | N22 | Rubber Pad, Water Proof, up, Silicon, BL/Bla | No |
Compatibility List |
Out Of Stock |
|
|
719775 | 1000365378 | N29 | Polar Fixed Seat, ABS/PA757K, EP580 2K | No |
Compatibility List |
$2.29 / Each
|
|
|
707005 | 068304-00 | N31 | Screw, BH, M4x12L, , PH, , WZN, , | No |
Compatibility List |
$1.85 / Each
|
|
|
705077 | 035695-AB | N33 | Screw, BH, M4X0.7PX30L, PH, BAN | No |
Compatibility List |
$1.02 / Each
|
|
|
711296 | 1000219607 | N43 | SAFETY KEY SET, TM434 1US | No |
Compatibility List |
$15.58 / Each
|
|
|
704081 | 020201-A | N50 | SCREW, BH, Diam.3X8L, TC, PH, BZN, FLT | No |
Compatibility List |
$2.00 / Each
|
|
|
701326 | 004379-00 | N51 | Screw, Oval Head, M5x0.8Px12L | No |
Compatibility List |
$2.00 / Each
|
|
|
715311 | 1000323591 | N60 | Console Wire, UP1, 800, CKM254301 8P MX | Yes |
Compatibility List |
$44.18 / Each
|
|
|
718963 | 1000354783 | N61 | Manipulate Overlay, UP, 354.0x204.0, TM69 | No |
Compatibility List |
$35.46 / Each
|
|
|
718969 | 1000354824 | N61 | Key Board, 600mm, Molex70066 05 XHS 4 | No |
Compatibility List |
$20.78 / Each
|
|
|
718975 | 1000354869 | N62 | Safe Switch, TKP H25J2 03Green | No |
Compatibility List |
$12.98 / Each
|
|
|
718883 | 1000354006 | N63 | Membrane Keypad, CONSOLE, MF XR | No |
Compatibility List |
$35.46 / Each
Out Of Stock |
|
|
718978 | 1000354889 | N63 | Exchanged Board, Quick Key,Incline, HAPF | No |
Compatibility List |
$22.08 / Each
|
|
|
718979 | 1000354890 | N64 | Exchanged Board, Quick Key,Speed, HAPF | No |
Compatibility List |
$22.08 / Each
|
|
|
720626 | 1000374215 | N65 | Display CON Wire, 200mm, XHS2.5 10Px2 | No |
Compatibility List |
$8.87 / Each
|
|
|
731476 | 1000361185 | N65 | Pulse, UP1, Black, 24AWG, 850mm, XHS 2Y Yel | No |
Compatibility List |
$7.78 / Each
|
|
|
706286 | 060781-A | N69 | Ground Wire, Grip Pulse, 300mm | Yes |
Compatibility List |
$3.54 / Each
|
|
|
721033 | 1000379679 | N69 | Decal, Warning, TM697, Synthetic Paper | No |
Compatibility List |
$6.19 / Each
|
|
|
720964 | 1000378838 | N73 | Pulse receiver set, 300L, XHS 3Yred 9 | No |
Compatibility List |
$72.75 / Each
|
|
|
719506 | 1000362164 | N80 | Installation Board, SPHC, select | No |
Compatibility List |
$31.93 / Each
|
|
|
721031 | 1000379621 | N81 | Decal, Console POP, TM697 | No |
Compatibility List |
$30.16 / Each
|
|
|
705893 | 056437-00 | N90 | Absorptive Plate, Zinc, 15x25 | No |
Compatibility List |
$3.88 / Each
|
|
|
720837 | 1000377412 | Not Shown | Manual, Assembly, TM694 | No |
Compatibility List |
$10.63 / Each
|
|
|
721106 | 1000380622 | Not Shown | Hardware Set, Semi Assy, TM703 | No |
Compatibility List |
$71.48 / Each
|
|
|
721540 | 1000383747 | Not Shown | Manual, Use Manipulate, English/French/Sp | No |
Compatibility List |
$18.23 / Each
|
|
|
721561 | 1000384190 | Not Shown | Protect Sleeve, PU, 320*240*15, EP701 1U | No |
Compatibility List |
$13.49 / Each
|
|
|
721965 | 1000386873 | Not Shown | Manual, TM safety direction, EN/FR/ES, MAT | No |
Compatibility List |
$7.64 / Each
|
|
|
722180 | 1000388644 | Not Shown | Manual, Console, XR | No |
Compatibility List |
$6.68 / Each
|
|
|
729821 | ZMS4006122 | Not Shown | 2016 Matrix Retail Frame Spray Paint (Black) | No |
Compatibility List |
$125.03 / Each
|
|
|
713426 | 1000302764 | P01 | Power Switch, Double Pole, W/ Light, , 20A | No |
Compatibility List |
$18.18 / Each
|
|
|
700747 | 002127-A | P02 | BS Wire, 60L, 12AWG, Black, TM86 | No |
Compatibility List |
$5.18 / Each
|
|
|
701021 | 003347-00 | P02 | Circuit Breaker, Current, ZE 700 20A/250V | Yes |
Compatibility List |
$16.88 / Each
|
|
|
1003694 | 003347-00 | P02 | Power Entry Circuit Breaker | No |
Compatibility List |
$9.99 / Each
|
|
|
715317 | 1000323655 | P03 | Console Wire Set, Down, 1800mm, Molex:7 | Yes |
Compatibility List |
$38.98 / Each
|
|
|
712279 | 1000228075 | P05 | POWERSOCKET, 16A 250V, 150 900 80, 250 180 | Yes |
Compatibility List |
$19.14 / Each
|
|
|
701574 | 004608-00 | P06 | Screw, Phillip, BH, Tapped, 3x10L | No |
Compatibility List |
$3.88 / Each
|
|
|
728448 | 094924 | P13 | KSS HC 0R | No |
Compatibility List |
$3.88 / Each
|
|
|
701589 | 004619-00 | P18 | Screw, Phillip, BH, Oval Tapped, 4x8L | No |
Compatibility List |
$2.00 / Each
|
|
|
702145 | 005177-00 | P18 | Washer, Tooth, 5.3X10.0X0.6T, BAN | No |
Compatibility List |
$3.88 / Each
|
|
|
701866 | 004889-00 | P19 | Nut, Hex, M5x0.8P, Nickel | Yes |
Compatibility List |
$3.88 / Each
|
|
|
711070 | 1000216278 | P20 | Static/Ground Wire, Deck, TM639 1US | Yes |
Compatibility List |
$6.48 / Each
|
|
|
712131 | 1000226831 | P22 | WIRE, YL/GREEN, 200L, (Diam.5.0 O#X2), 14AW | No |
Compatibility List |
$7.78 / Each
|
|
|
720266 | 1000370779 | P24 | SF CON, 12AWG, 250L, RVS3 5X2 250??X2 | No |
Compatibility List |
$12.66 / Each
|
|
|
713438 | 1000303183 | P25 | MCB power wire, , , 12AWG, 350 350 500, Mol | Yes |
Compatibility List |
$76.68 / Each
|
|
|
728583 | 095416 | P58 | Screw, BH, M4X0.7PX25L, PH, Z.P.B | No |
Compatibility List |
$0.88 / Each
|
|
|
720140 | 1000368949 | Q01 | Cover, Motor, up, ABS/PA757, Black 7C, TM703 | No |
Compatibility List |
$53.28 / Each
|
|
|
731481 | 1000381919 | Q03 | Velcro, Motor Cover, 50x30mm, black | No |
Compatibility List |
$6.48 / Each
|
|
|
720143 | 1000368952 | Q06 | Decorate Cover, Frame, right, ABS/PA757, Bl | No |
Compatibility List |
$31.18 / Each
|
|
|
720145 | 1000368956 | Q07 | Decorate Cover, Frame, left, ABS/PA757, Bla | No |
Compatibility List |
$31.18 / Each
|
|
|
721043 | 1000379820 | Q07 | Console Mast Cover, Right Outer, paintin | No |
Compatibility List |
$7.78 / Each
|
|
|
721044 | 1000379824 | Q10 | Console Mast Cover, Right Outer, paintin | No |
Compatibility List |
$7.78 / Each
|
|
|
716101 | 1000332723 | Q14 | Decal Plate, Side Cover, left, ABS/PA757K | No |
Compatibility List |
$6.48 / Each
|
|
|
704999 | 028633-A | Q20 | Screw, Phillip, BH, Tapped, 4x15L, Zn BL | No |
Compatibility List |
$1.02 / Each
|
|
|
718953 | 1000354744 | Q20 | Back Cover, Console, down, ABS/PA757, CB20 | No |
Compatibility List |
$20.78 / Each
|
|
|
720439 | 1000372846 | Q21 | Decorative rail, Inner, PC, PQ 137C, TM694 | No |
Compatibility List |
$9.08 / Each
|
|
|
704177 | 020428-Z | Q23 | Washer, Flat, 5.0x10.0x1.0t | No |
Compatibility List |
$3.88 / Each
|
|
|
701847 | 004864-00 | Q30 | Screw, 4x12L | No |
Compatibility List |
$3.88 / Each
|
|
|
726730 | 084404 | Q35 | Screw, BH, Diam.X4x30L, TC, PH, , BED, POT, | No |
Compatibility List |
$3.88 / Each
|
|
|
703963 | 020012-00 | Q51 | SCREW, BH, M4X0.7PX6L, PH, BAN | No |
Compatibility List |
$0.24 / Each
|
|
|
708723 | 1000105082 | R09 | Screw, RND, M8x1.25Px40L, , HS, , BZN, , G8.8 | No |
Compatibility List |
$2.58 / Each
|
|
|
704015 | 020104-AD | R30 | Screw, Hex Socket, Round, M10x1.5Px30L, Adhe | No |
Compatibility List |
$3.88 / Each
|
|
|
701507 | 004542-00 | R32 | SCREW, SH, M10X1.5PX110L, HS, CRMO, F T | No |
Compatibility List |
$5.18 / Each
|
|
|
701602 | 004626-00 | T27 | Screw, Phillip, BH, Tapped, 4x10L, BED | No |
Compatibility List |
$3.88 / Each
|
|
|
713485 | 1000304308 | U14 | Spring, Extension, Diam.3.0XDiam.23.5X67L | No |
Compatibility List |
$11.68 / Each
|
|
|
709081 | 1000109127 | V02 | Decal, Pinch Point, MS21KM G3 | No |
Compatibility List |
$1.02 / Each
|
|
|
720722 | 1000375231 | V05 | Model Label, Motor Cover, T70, PU | No |
Compatibility List |
$1.77 / Each
|
|
|
721347 | 1000382189 | V08 | Warning Label | No |
Compatibility List |
$1.77 / Each
|
|
|
721885 | 1000386049 | V10 | Decal, ETL, PETP, TM703 | No |
Compatibility List |
$1.77 / Each
|
|
|
702074 | 005106-00 | Z03 | Washer, Flat, 10.2x20.0x1.5T, Black Zinc | No |
Compatibility List |
$3.88 / Each
|
|
|
701375 | 004425-B | Z06 | Screw, Phillip, Sink, Tapped, 5x15L | No |
Compatibility List |
$3.88 / Each
|
|
|
701430 | 004479-00 | Z07 | Screw, Round, Hex Socket, M8X1.25PX15L | Yes |
Compatibility List |
$3.88 / Each
|
|
|
705104 | 035882-A | Z08 | SCREW, SH, M8X1.25PX75L 30L, HS, BZN, P T | No |
Compatibility List |
$5.18 / Each
|
|
|
727994 | 092403 | Z08 | SCREW, RND, M4X0.7PX16L, PH, ZN 3WHITE, ROH | No |
Compatibility List |
$3.88 / Each
|
|
|
701742 | 004764-00 | Z10 | Screw, Hex Socket, BH, M8x1.25Px25L, Adhere | No |
Compatibility List |
$2.58 / Each
|
|
|
702034 | 005065-A | Z10 | Washer (Washer J, Step3, Qty 8) | No |
Compatibility List |
$3.88 / Each
|
|
|
703988 | 020067-00 | Z10 | Screw, Hex Socket, M6x1.0Px30L | No |
Compatibility List |
$3.88 / Each
|
|
|
712797 | 1000230700 | Z21 | SCREW, TRH, 4x15L, SM, PH, CHM, POT | No |
Compatibility List |
$1.02 / Each
|
|
|
701591 | 004620-00 | Z31 | Screw, Self Tapping, 4x12L | No |
Compatibility List |
$3.88 / Each
|
|
|
1009784 | 003347-00 | Circuit Breaker QMB 152 11C3N 3BA (New) | No |
Compatibility List |
$28.99 / Each
|
||
|
911968 | 004620-00 | Self Tapping Screw 4X12L (New) | No |
Compatibility List |
$12.99 / Each
|
||
|
911958 | 004608-00 | Rower Button Head Phillip Screw 3x10L (New) | No |
Compatibility List |
$12.99 / Each
|
6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818
© 2026. All Rights Reserved.
