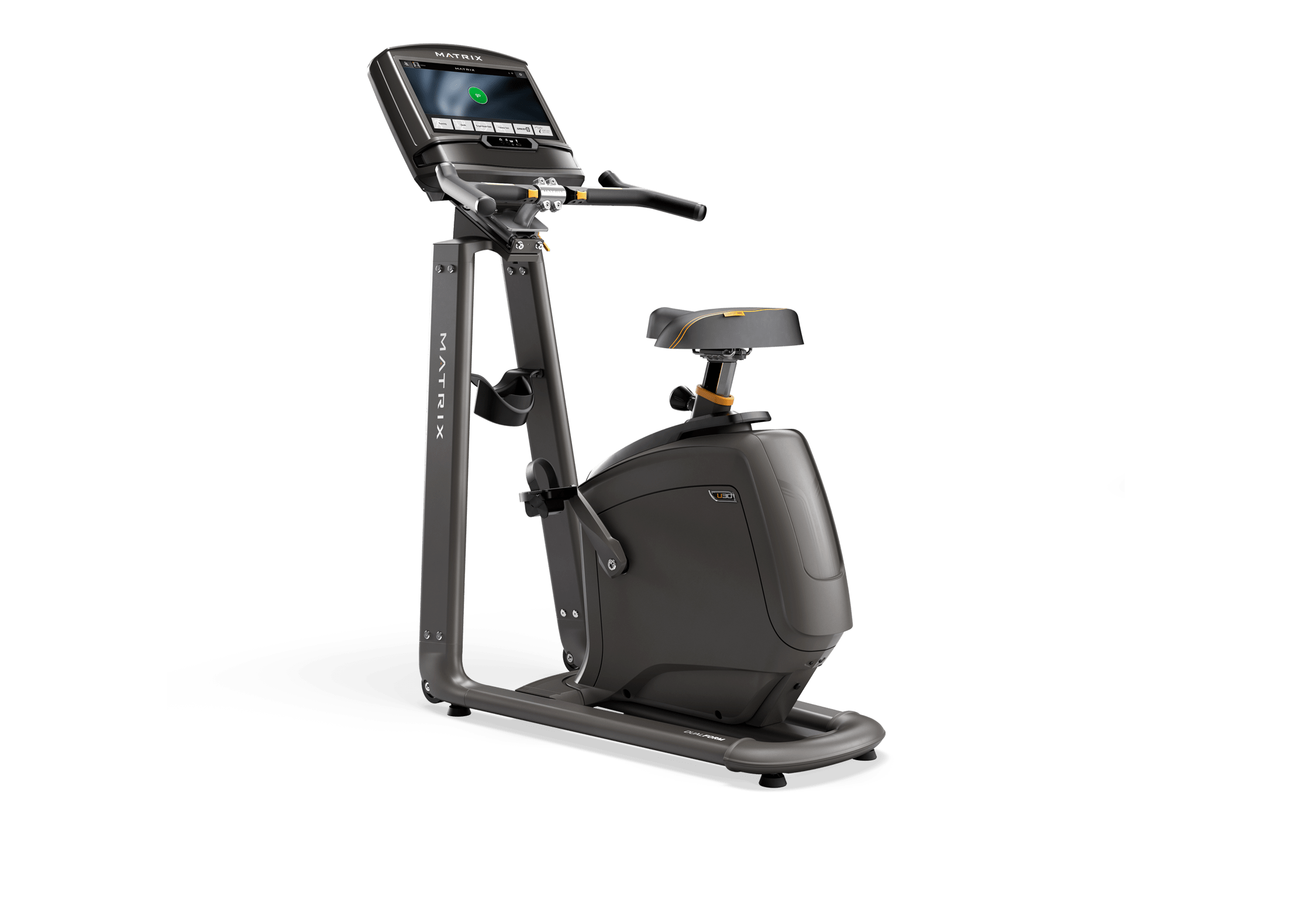

Repair Parts for Matrix Retail U30 XIR CB204
| Brand | Matrix Retail |
|---|---|
| Type | Stationary Bikes |
| Category | Upright |
| Model Number | CB204 |
| Model Name | U30 XIR |
| Version | 2016 |
Model Numbers: CB204, CTM699
| Image | Catalog # | MPN | List Key | Qty | Part Description | Used | Compat. | New Price |
|---|---|---|---|---|---|---|---|---|
|
718947 | 1000354727 | 1 | Console set, Semi Assy, TM699 1US C | Yes |
Compatibility List |
Out Of Stock |
|
|
1034578 | 1000354727 | 1 | 1 | Matrix XIR Display Console CTM699 Bike Elliptical Treadmill | No |
Compatibility List |
$899.00 / Each
Out Of Stock |
|
722263 | 1000390281 | 2 | Others set, English, TM699, POP Label | No |
Compatibility List |
$69.19 / Each
|
|
|
735796 | 1000341321 | 3 | Side Cover Set, right, CB202 1US | No |
Compatibility List |
Out Of Stock |
|
|
701931 | 004968-00 | 104 | Nut, Hex, Flange, 3/8 26UNF, Black Zinc | No |
Compatibility List |
$1.79 / Each
|
|
|
735791 | 1000341268 | AD2 | seat post tube set, welding, CB202 | No |
Compatibility List |
$72.78 / Each
|
|
|
731339 | 1000432807 | AR01 | Transmission set Tools, CB201 1US, SB | No |
Compatibility List |
$199.00 / Each
|
|
|
712462 | 1000228989 | AT1 | PEDAL SET, NO LOGO | Yes |
Compatibility List |
$54.73 / Each
|
|
|
709072 | 1000108805 | B06 | Screw, RND, M8x1.25Px20L, HS, CHM, BP, G12.9 | No |
Compatibility List |
$1.02 / Each
|
|
|
704979 | 028275-AA | B21 | Adjustable Leveler | Yes |
Compatibility List |
$7.00 / Each
|
|
|
730457 | 1000346473 | B32 | Axle, Wheel, 20#, Black Oxide, CB201, Diam.1 | No |
Compatibility List |
$3.88 / Each
|
|
|
730458 | 004467-00 | B41 | SCREW, SH, M6X1.0PX50L 20L, HS, G10.9, P T | No |
Compatibility List |
$1.94 / Each
|
|
|
730459 | 1000341681 | B47 | Pop pin set, Seat Pad | No |
Compatibility List |
$10.38 / Each
|
|
|
701893 | 004925-00 | B57 | Nut, Nylon, M6x1.0P, Zinc | Yes |
Compatibility List |
$1.54 / Each
|
|
|
701664 | 004699-00 | B60 | Screw, Hex Socket, M8X1.25PX15L | Yes |
Compatibility List |
$1.02 / Each
|
|
|
701379 | 004433-00 | B64 | Screw, FH, M4X0.7PX10L, CT, PH, BAN | No |
Compatibility List |
$1.79 / Each
|
|
|
735618 | 1000366868 | C01 | Console Mast Extrawork, left, Screen prin | No |
Compatibility List |
$16.84 / Each
|
|
|
735619 | 1000366870 | C02 | Console Mast Extrawork, right, Screen pri | No |
Compatibility List |
$15.58 / Each
|
|
|
725869 | 077441 | C10 | Sticker, Warning, Console set, 38x54, EP197 | No |
Compatibility List |
$1.77 / Each
|
|
|
709532 | 1000201047 | C65 | Screw, BH, M4X0.7PX10L, MT, NL, HS, G8.8, CHM | No |
Compatibility List |
$1.02 / Each
|
|
|
735620 | 1000345434 | D03 | Fixing Plate, Seat Pad2, WZN, CB201, Q235 | No |
Compatibility List |
$40.00 / Each
|
|
|
735621 | 1000345657 | D04 | Seat Pad, PU,Vesicant, Black, CB202 | No |
Compatibility List |
$72.00 / Each
|
|
|
730463 | 1000341358 | D05 | Plastic Bar, Adjust, BL/Black C, PA66 10G | No |
Compatibility List |
$5.18 / Each
|
|
|
730465 | 1000341353 | D21 | PLASTIC LINER, Seat Tube Sleeve, up, PA66 | No |
Compatibility List |
$7.78 / Each
|
|
|
730466 | 1000341354 | D22 | PLASTIC LINER, Seat Tube Sleeve, down, PA66 | No |
Compatibility List |
$7.78 / Each
|
|
|
730467 | 1000346231 | D31 | Decal, Seat Tube, PVC, Left | No |
Compatibility List |
$2.58 / Each
|
|
|
730468 | 1000346232 | D32 | Decal, Seat Tube, PVC, Right | No |
Compatibility List |
$2.58 / Each
|
|
|
705700 | 055204-A | D51 | Screw, SelfTapping, 4x10L | No |
Compatibility List |
$2.00 / Each
|
|
|
700135 | 000491-B | F06 | Wing Nut, Leveler, W3/8 16UNC, BED BL SPC | No |
Compatibility List |
$2.47 / Each
|
|
|
701901 | 004929-00 | F12 | Nut, Nylon, M8x1.25P, Chromed | No |
Compatibility List |
$1.02 / Each
|
|
|
701892 | 004924-AB | F13 | NUT, NLK, M5X0.8P, CHM | No |
Compatibility List |
$1.68 / Each
|
|
|
708419 | 1000102774 | G11 | Screw, Settle, M4x0.7Px8L | No |
Compatibility List |
$3.88 / Each
|
|
|
735622 | 1000369162 | G13 | Control Board, Quick Key, HDPD, U50i | No |
Compatibility List |
$11.22 / Each
|
|
|
735623 | 1000366904 | G14 | key Cover, Quick Key, ABS/PA757, 137C | No |
Compatibility List |
$7.00 / Each
|
|
|
735624 | 1000366906 | G17 | Plastic Base, Sensor, ABS/PA757 | No |
Compatibility List |
$5.18 / Each
|
|
|
735625 | 1000366915 | G18 | Plastic Base, left down, ABS/PA757 | No |
Compatibility List |
$1.68 / Each
|
|
|
735626 | 1000366920 | G22 | Plastic Base, right down, ABS/PA757 | No |
Compatibility List |
$1.68 / Each
|
|
|
735627 | 1000344508 | G31 | Cushion, Guide Rail, NR, BL/Black C | No |
Compatibility List |
$3.10 / Each
|
|
|
735628 | 1000344509 | G33 | PLASTIC LINER, Guide Rail | No |
Compatibility List |
$5.18 / Each
|
|
|
735631 | 1000366890 | G43 | Handlebar Set, Adjustable, painting, CB2 | No |
Compatibility List |
$14.28 / Each
|
|
|
735632 | 1000371355 | G53 | Spring, Compression, Diam.0.4xDiam.5.3x3.5 | No |
Compatibility List |
$1.38 / Each
|
|
|
735633 | 1000378820 | G54 | Screw, Round Head with Flange, Diam.2X6L, S | No |
Compatibility List |
$1.38 / Each
|
|
|
725598 | 073994 | H02 | Tension Cable, Steel Rope | No |
Compatibility List |
$9.31 / Each
|
|
|
702037 | 005067-00 | J04 | Washer, Flat, 10.2X15.0X1.5T, Black Zinc | No |
Compatibility List |
$3.88 / Each
|
|
|
701911 | 004938-00 | K009 | Nut, Nylon, M6X1.0P, Chromed | No |
Compatibility List |
$1.22 / Each
|
|
|
708675 | 1000104705 | K19 | Screw, RND, M6x1.0Px15L, HS, CHM, BP, G8.8 | No |
Compatibility List |
$1.02 / Each
|
|
|
700893 | 002671-A | KIT | Audio Wire, Three D Earphone | Yes |
Compatibility List |
$9.99 / Each
|
|
|
701008 | 003307-00 | KIT | Chest Strap, Polar, T34/T41 | No |
Compatibility List |
$76.99 / Each
|
|
|
700014 | 000021-B | L05 | Mobile Wheel, Rear Deck | Yes |
Compatibility List |
$11.62 / Each
|
|
|
701585 | 004616-00 | L10 | Screw, Umbrella Cross Tapped, 4x12L | No |
Compatibility List |
$1.54 / Each
|
|
|
708672 | 1000104702 | L38 | Screw, RND, M4x0.7Px10L, HS, G8.8, BAN, BP | No |
Compatibility List |
$5.18 / Each
|
|
|
723697 | 1000412073 | M40 | LCB, ECB Small Motor, HBPB, V2.002, digita | No |
Compatibility List |
$84.47 / Each
|
|
|
721570 | 1000384313 | N01 | Console Cover2, U, painting, DM334, Gray, TM | No |
Compatibility List |
$88.71 / Each
|
|
|
718948 | 1000354737 | N02 | Plastic Cover, Console, down, ABS/PA757, Q5 | No |
Compatibility List |
$53.22 / Each
|
|
|
718949 | 1000354740 | N03 | Decorate Cover, Console Up Cover, ABS/PA7 | No |
Compatibility List |
$10.63 / Each
|
|
|
718954 | 1000354745 | N07 | Loudspeaker Cover, Console, U, ST14, 409x62x | No |
Compatibility List |
$28.37 / Each
|
|
|
713469 | 1000303833 | N10 | Fixing Plate, Earphone Jack, PP, EP576 | No |
Compatibility List |
$3.88 / Each
|
|
|
|
719189 | 1000356808 | N19 | Rubber Pad, Water Proof, TM699 1US | No |
Compatibility List |
Out Of Stock |
|
|
705329 | 048036-A | N23 | Screw, Phillip, BH, Tapped, 4x12L, Color Zin | No |
Compatibility List |
$2.00 / Each
|
|
|
719775 | 1000365378 | N24 | Polar Fixed Seat, ABS/PA757K, EP580 2K | No |
Compatibility List |
$2.29 / Each
|
|
|
719187 | 1000356805 | N25 | Cover, Speaker, TM439 | No |
Compatibility List |
$7.62 / Each
|
|
|
707005 | 068304-00 | N31 | Screw, BH, M4x12L, , PH, , WZN, , | No |
Compatibility List |
$1.85 / Each
|
|
|
713467 | 1000303747 | N60 | Control Board, USB, HDPD, 3.2/5.2AE, Con | No |
Compatibility List |
$38.32 / Each
|
|
|
731145 | 1000354222 | N61 | USB&EUP Wire, 350mm, JST 8P XHS 6Yred | No |
Compatibility List |
$8.32 / Each
|
|
|
718965 | 1000354786 | N62 | CTL Overlay, USB, TM699 1US | No |
Compatibility List |
$3.54 / Each
|
|
|
718985 | 1000354908 | N63 | Speaker, Boxed, 5W/8?, 350mm, JST:XAP 02V 1 | No |
Compatibility List |
$42.56 / Each
|
|
|
719072 | 1000355591 | N64 | Connect, 24AWG AWM 2464, 100, JST XAP 0 | No |
Compatibility List |
$7.07 / Each
|
|
|
718925 | 1000354264 | N65 | VF, 24AWG, 450, JST 8P 4P, AUD IN | No |
Compatibility List |
$7.07 / Each
|
|
|
718924 | 1000354261 | N66 | FFC WIRE, 30mm, 6PIN 1.0 pitch | No |
Compatibility List |
$3.54 / Each
|
|
|
718922 | 1000354254 | N67 | Connect, 24AWG UL2468, 320, JST 2Predx2 | No |
Compatibility List |
$6.19 / Each
|
|
|
713536 | 1000304779 | N68 | VF, Black, AWM 2464 24AWG, 450, Audio ou | No |
Compatibility List |
$5.72 / Each
|
|
|
721033 | 1000379679 | N69 | Decal, Warning, TM697, Synthetic Paper | No |
Compatibility List |
$6.19 / Each
|
|
|
718984 | 1000354904 | N70 | TFT Module, 15.6 inch, F, G022, xir, Black | No |
Compatibility List |
$2,600.00 / Each
|
|
|
719794 | 1000365697 | N70(b) | Panel Board Set, With touch screen, 15 | No |
Compatibility List |
$1.30 / Each
|
|
|
722128 | 1000387857 | N71 | GND, Yellow/Green1, 16AWG, 200mm, 250 F4 | No |
Compatibility List |
Out Of Stock |
|
|
707653 | 1000094023 | N72 | Grounding Wire, 250, 4.0 6.0 | No |
Compatibility List |
$3.82 / Each
|
|
|
718982 | 1000354901 | N73 | WIFI Aerial, AN2450 5701RS,2.4G Hz | No |
Compatibility List |
Out Of Stock |
|
|
718918 | 1000354215 | N74 | Exchanged Board, Quick Key, HBPB, XER, SO | No |
Compatibility List |
$36.00 / Each
|
|
|
718574 | 1000351780 | N76 | Control Board, General, HEPE, V4.0, AVRCP1 | No |
Compatibility List |
$111.31 / Each
|
|
|
718980 | 1000354899 | N78 | Memory card set, TF Card, Sandisk 8G CLAS | No |
Compatibility List |
$58.55 / Each
|
|
|
722280 | 1000390536 | N80 | Installation Board, painting, DM515 matt | No |
Compatibility List |
Out Of Stock |
|
|
731146 | 1000379622 | N81 | Decal, Console POP, TM698 | No |
Compatibility List |
$30.04 / Each
|
|
|
701579 | 004613-00 | N84 | Screw, Phillip, BH, Tapped, 3x12L, Gap, Zn B | No |
Compatibility List |
$3.88 / Each
|
|
|
719100 | 1000355910 | N99 | Pulse receiver set, 300(JST 4Y 94032401 | No |
Compatibility List |
$72.75 / Each
|
|
|
719907 | 1000366961 | Not Shown | Manual, Assembly/Manipulate, CB204 | No |
Compatibility List |
$35.46 / Each
|
|
|
721540 | 1000383747 | Not Shown | Manual, Use Manipulate, English/French/Sp | No |
Compatibility List |
$18.23 / Each
|
|
|
721561 | 1000384190 | Not Shown | Protect Sleeve, PU, 320*240*15, EP701 1U | No |
Compatibility List |
$13.49 / Each
|
|
|
721618 | 1000384759 | Not Shown | Manual, BK safety direction, CB204 | No |
Compatibility List |
$6.73 / Each
|
|
|
729821 | ZMS4006122 | Not Shown | 2016 Matrix Retail Frame Spray Paint (Black) | No |
Compatibility List |
$125.03 / Each
|
|
|
731147 | 1000388647 | Not Shown | Manual, Console, XER, XIR | No |
Compatibility List |
$7.76 / Each
|
|
|
712041 | 1000225747 | P01 | WIRE, POWER SET, 900mmDC CKM 25430101 2P | No |
Compatibility List |
$14.50 / Each
|
|
|
735792 | 1000346120 | P06 | Console Wire Set, Black, 24AWG, 2100mm, M | No |
Compatibility List |
$28.06 / Each
|
|
|
708253 | 1000101534 | P16 | Speed Sensor Wire | Yes |
Compatibility List |
$12.99 / Each
|
|
|
714359 | 1000314036 | P20 | Adapter, UL, 100 240V/50 60Hz, 12V/2A, 2.75m cord, 2.1mm prong | No |
Compatibility List |
$72.98 / Each
|
|
|
701354 | 004404-00 | P22 | Screw, Phillip, BH, M4x0.7Px8L, Zn BL | No |
Compatibility List |
$1.60 / Each
|
|
|
|
728583 | 095416 | P58 | Screw, BH, M4X0.7PX25L, PH, Z.P.B | No |
Compatibility List |
$0.88 / Each
|
|
|
735637 | 1000332668 | Q01 | Cover, left, ABS/PA757, Black 7C, CB201 | No |
Compatibility List |
$42.88 / Each
|
|
|
735638 | 1000332671 | Q02 | Cover, right, ABS/PA757, Black 7C, CB201 | No |
Compatibility List |
$42.88 / Each
|
|
|
730484 | 1000332674 | Q04 | Cover, front, PP, Black 7C, CB201 | No |
Compatibility List |
$9.82 / Each
|
|
|
735639 | 1000332676 | Q05 | Cover, up, ABS/PA757, Black 7C, CB201 | No |
Compatibility List |
$15.58 / Each
|
|
|
730486 | 1000341357 | Q06 | Cover, Front Up, ABS/PA757, Black, CB202 | No |
Compatibility List |
$14.28 / Each
|
|
|
704273 | 022177-A | Q07 | Bracket, Side Cover, 2 Hole Plate | Yes |
Compatibility List |
$6.00 / Each
|
|
|
730487 | 1000344468 | Q07 | Cover, Rear Up, ABS/PA757, Black, CB202 | No |
Compatibility List |
$4.90 / Each
|
|
|
702217 | 005330-00 | Q08 | Tinnamen Nut | Yes |
Compatibility List |
$1.54 / Each
|
|
|
701586 | 004617-00 | Q11 | Screw, Console Case, Oval Tapping, 4x15L | No |
Compatibility List |
$1.54 / Each
|
|
|
716101 | 1000332723 | Q14 | Decal Plate, Side Cover, left, ABS/PA757K | No |
Compatibility List |
$6.48 / Each
|
|
|
716102 | 1000332724 | Q15 | Decal Plate, Side Cover, right, ABS/PA757K | No |
Compatibility List |
$8.42 / Each
|
|
|
718953 | 1000354744 | Q20 | Back Cover, Console, down, ABS/PA757, CB20 | No |
Compatibility List |
$20.78 / Each
|
|
|
730489 | 1000341252 | Q21 | Cover, Rear Up, ABS, Black 7C, CB201 | No |
Compatibility List |
$6.48 / Each
|
|
|
730490 | 1000341254 | Q22 | Cover, Rear Down, ABS, Black 7C, CB201 | No |
Compatibility List |
$7.00 / Each
|
|
|
735793 | 1000345508 | Q23 | Model Label, Left, CB202 | No |
Compatibility List |
$1.28 / Each
|
|
|
735794 | 1000345509 | Q24 | Model Label, Right, CB202 | No |
Compatibility List |
$1.28 / Each
|
|
|
701847 | 004864-00 | Q30 | Screw, 4x12L | No |
Compatibility List |
$3.88 / Each
|
|
|
986316 | 004616-00 | Q50 | Umbrella Cross Tapped Screw 4x12L (New) | No |
Compatibility List |
$12.00 / Each
|
|
|
705760 | 056049-A | Q59 | Screw, Phillip, BH, Tapped, 5x8L | No |
Compatibility List |
$1.66 / Each
|
|
|
719239 | 1000358248 | R02 | Bearing, Ball, 6005ZZ, ?25x?47x12T, TPI, C3 | No |
Compatibility List |
$17.24 / Each
|
|
|
707735 | 1000094722 | R06 | Drive Axle Assembly, RB134 | No |
Compatibility List |
$399.00 / Each
|
|
|
701644 | 004678-00 | R07 | Bolt, Eye Hook, 1/4" 20UNCX55L | No |
Compatibility List |
$1.79 / Each
|
|
|
708709 | 1000105037 | R18 | Screw, BH, M6x1.0Px10L, HS, G8.8, CHM, BP | No |
Compatibility List |
$2.00 / Each
|
|
|
702512 | 008394-00 | S05 | Fix Plate, Eye Bolt, SPC, 1.3t, AB01 | No |
Compatibility List |
$6.00 / Each
|
|
|
701907 | 004933-00 | S06 | Nut, Nylon, 1/4" 20UNC, BED | No |
Compatibility List |
$1.79 / Each
|
|
|
719904 | 1000366925 | T03 | Crank, L, painting, DM334, CB204 | No |
Compatibility List |
$54.73 / Each
|
|
|
712715 | 1000230349 | T04 | Screw | No |
Compatibility List |
$16.88 / Each
|
|
|
719906 | 1000366929 | T04 | Crank, R, painting, DM334, CB204 | No |
Compatibility List |
$54.73 / Each
|
|
|
702241 | 005366-00 | T11 | C Clip, External, S 25 | No |
Compatibility List |
$5.18 / Each
|
|
|
701348 | 004394-00 | Z05 | Screw, Phillip, BH, M6x1.0Px15L, Zn BL | No |
Compatibility List |
$1.79 / Each
|
|
|
701291 | 004357-00 | Z06 | Screw, Phillip, BH, M4x0.7Px15L | No |
Compatibility List |
$3.88 / Each
|
|
|
709069 | 1000108801 | Z08 | Screw, RND, M5x0.8Px15L, HS, CHM, BP, G8.8 | No |
Compatibility List |
$1.02 / Each
|
|
|
727994 | 092403 | Z08 | SCREW, RND, M4X0.7PX16L, PH, ZN 3WHITE, ROH | No |
Compatibility List |
$3.88 / Each
|
|
|
713886 | 1000309242 | Z12 | Washer, Flat, Diam.6.2XDiam.20.0X1.0T, Chr | No |
Compatibility List |
$1.66 / Each
|
|
|
709112 | 1000109777 | Z20 | Screw, RND, M6x1.0Px20L, HS, CHM, BP, G8.8 | No |
Compatibility List |
$11.68 / Each
|
|
|
701591 | 004620-00 | Z31 | Screw, Self Tapping, 4x12L | No |
Compatibility List |
$3.88 / Each
|
|
|
1004174 | 1000225747 | Power Set Wire Harness | No |
Compatibility List |
$13.99 / Each
Out Of Stock |
||
|
911968 | 004620-00 | Self Tapping Screw 4X12L (New) | No |
Compatibility List |
$12.99 / Each
|
||
|
971749 | 003307-00 | Rate Chest Strap (New) | Yes |
Compatibility List |
$76.65 / Each
|
||
|
1017370 | 000491-B | Stabilizer Leveling Foot Leveler (Used) | No |
Compatibility List |
$13.19 / Each
|
Catalog #: 1034578
MPN: 1000354727
Matrix XIR Display Console CTM699 Bike Elliptical Treadmill
$899.00 / each
Catalog #: 714359
MPN: 1000314036
Adapter, UL, 100 240V/50 60Hz, 12V/2A, 2.75m cord, 2.1mm prong
$72.98 / each
6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818
© 2026. All Rights Reserved.
