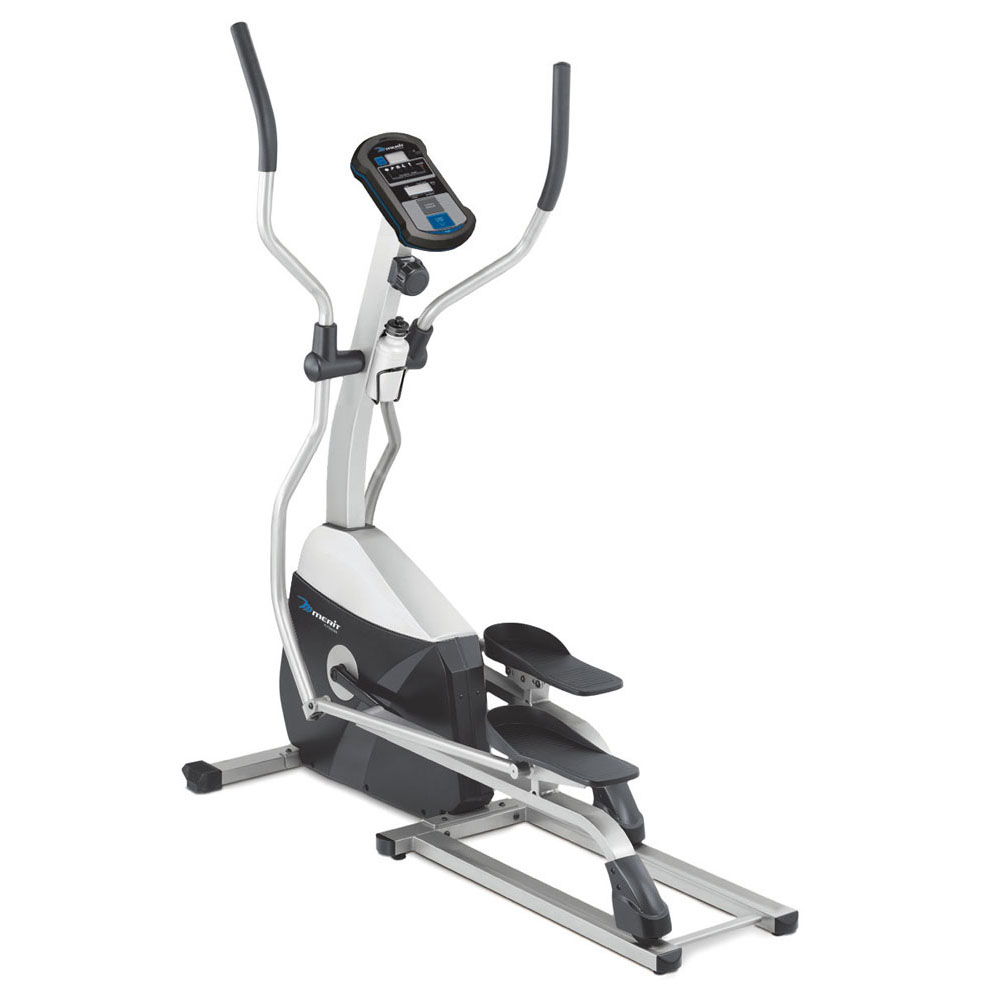

Repair Parts for Merit 715E EP509
| Brand | Merit |
|---|---|
| Type | Elliptical |
| Category | Traditional |
| Model Number | EP509 |
| Model Name | 715E |
| Version | 2009 |
Model Numbers: EP509
| Image | Catalog # | MPN | List Key | Qty | Part Description | Used | Compat. | New Price |
|---|---|---|---|---|---|---|---|---|
|
1002361 | 000891-A | 0 | 1 | Belt Drive | Yes |
Compatibility List |
$31.99 / Each
|
|
707284 | 1000091709 | AC1 | Console Mast Set, Painting, Elite, EP509 US | No |
Compatibility List |
$237.54 / Each
|
|
|
|
707280 | 1000091705 | AE1 | PEDAL ARM SET EP509 | No |
Compatibility List |
$216.89 / Each
|
|
|
|
707274 | 1000091699 | AE3 | CRANK PIN SLEEVE SET EP509 | No |
Compatibility List |
$53.22 / Each
|
|
|
|
707281 | 1000091706 | AF1 | RAIL SET EP509 | No |
Compatibility List |
$275.73 / Each
|
|
|
|
707283 | 1000091708 | AG1 | RIGHTL UPPER HANDLEBAR SET | No |
Compatibility List |
$131.92 / Each
|
|
|
|
707282 | 1000091707 | AG2 | LEFT UPPER HANDLEBAR SET | No |
Compatibility List |
$131.92 / Each
|
|
|
|
707277 | 1000091702 | AG3 | RIGHT LOWER HANDLEBAR SET | No |
Compatibility List |
$203.03 / Each
|
|
|
|
707276 | 1000091701 | AG4 | LEFT LOWER HANDLEBAR SET | No |
Compatibility List |
$203.03 / Each
|
|
|
|
707079 | 1000090052 | AG5 | Hand Arm Connected Sleeve Set, Painting, E | No |
Compatibility List |
$42.28 / Each
|
|
|
|
707279 | 1000091704 | AH1 | RIGHTL OWER LINK ARM SET | No |
Compatibility List |
$217.54 / Each
|
|
|
|
707278 | 1000091703 | AH2 | LEFT LOWER LINK ARM SET | No |
Compatibility List |
$201.45 / Each
|
|
|
707238 | 1000091510 | AJ1 | Crank Arm | No |
Compatibility List |
$57.49 / Each
|
|
|
|
724988 | 100766 | AN1 | Console set, EP509 | No |
Compatibility List |
$177.42 / Each
|
|
|
|
707694 | 1000094357 | AZ1 | Hardware Kit Set, EP509 | No |
Compatibility List |
$37.02 / Each
|
|
|
734267 | 1000444959 | B39 | RVN, A2 M8 BF | No |
Compatibility List |
$1.09 / Each
|
|
|
706239 | 060478-C | B44 | Bracket, Speed Sensor | No |
Compatibility List |
$3.82 / Each
|
|
|
701893 | 004925-00 | B57 | Nut, Nylon, M6x1.0P, Zinc | Yes |
Compatibility List |
$1.54 / Each
|
|
|
702078 | 005110-00 | C06 | Washer, Flat, 8.2x35x2.0T, Black Zinc | No |
Compatibility List |
$9.99 / Each
|
|
|
701991 | 005029-00 | C09 | Washer, Flat, 20.2X35X1.5T, Black Zinc | No |
Compatibility List |
$2.00 / Each
|
|
|
976932 | 004926-00 | C53 | Nylon Lock Nut M8x1.25P (New) | No |
Compatibility List |
$12.99 / Each
|
|
|
702180 | 005222-00 | D30 | Washer, Wavy, 16.7x22.5x0.3T | No |
Compatibility List |
$2.00 / Each
|
|
|
702161 | 005198-00 | D32 | Washer, Teflon, 15.9x28.4x1.0T | No |
Compatibility List |
$4.00 / Each
|
|
|
701897 | 004926-00 | D34 | Nut, Nylon, M8x1.25P | No |
Compatibility List |
$3.88 / Each
|
|
|
701305 | 004366-AB | D37 | Screw, Phillip, BH, M5x0.8Px8L | No |
Compatibility List |
$2.00 / Each
|
|
|
701796 | 004811-A | D46 | Screw, Umbrella Hex Socket, M8x1.25Px15L | No |
Compatibility List |
$2.00 / Each
|
|
|
701699 | 004724-00 | D53 | Bolt, M8x1.25Px15L | Yes |
Compatibility List |
$5.00 / Each
|
|
|
|
706475 | 062616-AA | E07 | Cover, Roller Wheel, Left | Yes |
Compatibility List |
$9.57 / Each
|
|
|
701153 | 004071-00 | E09 | Bearing, Ball, 608ZZ, TPI | No |
Compatibility List |
$9.10 / Each
|
|
|
707039 | 068845-Z | E09 | Roller Wheel Set | No |
Compatibility List |
$57.49 / Each
|
|
|
725259 | 103299 | E12 | Bushing, Pedal Arm | No |
Compatibility List |
$10.38 / Each
|
|
|
701089 | 003709-00 | E13 | C Clip, S 8 | No |
Compatibility List |
$2.00 / Each
|
|
|
701728 | 004751-00 | E16 | Screw, Hex Socket, BH, M8x1.25Px13L, Adhere | No |
Compatibility List |
$2.00 / Each
|
|
|
701159 | 004077-A2 | E17 | Ball Bearing, 6004ZZ, 20X42X12T, SKF | No |
Compatibility List |
$19.48 / Each
|
|
|
702046 | 005075-00 | E18 | Washer, Flat, 6.2X16X2.0T, Black Zinc | No |
Compatibility List |
$3.88 / Each
|
|
|
705963 | 057062-A | E19 | Bushing, Pedal Arm | No |
Compatibility List |
$4.00 / Each
|
|
|
704114 | 020266-00 | E20 | Screw, Hex Socket, BH, M8x1.25Px45L | No |
Compatibility List |
$2.00 / Each
|
|
|
|
706474 | 062615-AA | E27 | Cover, Roller Wheel, Right | No |
Compatibility List |
$9.57 / Each
|
|
|
703582 | 015589-AA | E42 | Connecting Plate, Footpad, Platinum | Yes |
Compatibility List |
$9.57 / Each
|
|
|
701939 | 004975-00 | F03 | Insert Nut, Brass, ALS7 8125 3.8(0.5 3.8) | No |
Compatibility List |
$1.90 / Each
|
|
|
705836 | 056334-AA | F04 | End Cap,Side Rail, Left/Right | No |
Compatibility List |
$3.82 / Each
|
|
|
701934 | 004972-00 | F05 | Insert Nut, Brass, ALS7 616 150(0.02 0.15) | No |
Compatibility List |
$1.90 / Each
|
|
|
705837 | 056335-AA | F05 | End Cap, Rear Frame, Back, Left/Right | No |
Compatibility List |
$3.82 / Each
|
|
|
705811 | 056297-AA | F06 | Leveler | No |
Compatibility List |
$3.82 / Each
|
|
|
700323 | 000960-AA | G09 | End Cap, Upper Vertical Handlebar | Yes |
Compatibility List |
$3.89 / Each
|
|
|
701827 | 004847-AB | G10 | Set Screw, M10X1.5PX12L | Yes |
Compatibility List |
$6.99 / Each
|
|
|
725255 | 103295 | G13 | Bushing, Pedal Arm Axle, 31.8x3.0tx329mm | No |
Compatibility List |
$20.12 / Each
|
|
|
700065 | 000241-EA | G16 | Cover, Handlebar, Front Left or Rear Right | Yes |
Compatibility List |
$8.40 / Each
|
|
|
700066 | 000242-DA | G17 | Cover, Handlebar, Front Right or Rear Left | Yes |
Compatibility List |
$8.40 / Each
|
|
|
702018 | 005053-00 | G18 | Washer, Flat, 8.2x27.0x2.0T | Yes |
Compatibility List |
$6.00 / Each
|
|
|
702163 | 005200-A | G19 | Washer, Teflon, 18.2X30.0X1.0T | Yes |
Compatibility List |
$3.88 / Each
|
|
|
701964 | 005005-00 | H04 | Washer, Spring, Lock, 8.2x15.4x2.0t | Yes |
Compatibility List |
$3.88 / Each
|
|
|
705962 | 057061-A | H10 | Bushing, Pedal Arm | No |
Compatibility List |
$3.82 / Each
|
|
|
705878 | 056406-AA | H18 | Footpad, Right | Yes |
Compatibility List |
$39.99 / Each
|
|
|
705879 | 056407-AA | H19 | Footpad, Left | No |
Compatibility List |
$39.99 / Each
|
|
|
|
707275 | 1000091700 | L01 | FRONT STABILIZER SET | No |
Compatibility List |
$122.23 / Each
|
|
|
705814 | 056300-AA | L02 | End Cap, Front Stabilizer, Left | No |
Compatibility List |
$8.00 / Each
|
|
|
701841 | 004859-00 | L05 | Screw, Umbrella Hex Scoket, M8x1.25Px20L | No |
Compatibility List |
$2.00 / Each
|
|
|
702020 | 005055-00 | L07 | Washer, Flat, 16.2x28.7x1.5T | No |
Compatibility List |
$2.00 / Each
|
|
|
703921 | 019394-B | P03 | Speed Sensor Wire, 1600L | Yes |
Compatibility List |
$8.87 / Each
|
|
|
701574 | 004608-00 | P06 | Screw, Phillip, BH, Tapped, 3x10L | No |
Compatibility List |
$3.88 / Each
|
|
|
701848 | 004865-00 | P07 | Screw, Self Tapping, 4x10L | No |
Compatibility List |
$2.00 / Each
|
|
|
706309 | 061154-BAX | Q01 | Side Cover, Left | No |
Compatibility List |
$56.97 / Each
|
|
|
706310 | 061155-BAX | Q02 | Side Cover, Right | No |
Compatibility List |
$56.97 / Each
|
|
|
706024 | 058193-AAX | Q03 | Top Main Cover | No |
Compatibility List |
$63.80 / Each
|
|
|
706022 | 058192-AAX | Q04 | Cover, Crank Arm, Left/Right | No |
Compatibility List |
$9.57 / Each
|
|
|
705810 | 056295-AA | Q05 | Console Mast Boot | No |
Compatibility List |
$3.82 / Each
|
|
|
702483 | 007964-00 | Q07 | Connecting Plate, Side Cover | Yes |
Compatibility List |
$1.90 / Each
|
|
|
702217 | 005330-00 | Q08 | Tinnamen Nut | Yes |
Compatibility List |
$1.54 / Each
|
|
|
701613 | 004632-00 | Q09 | Screw, Phillip, BH, Tapped, 4x16L | No |
Compatibility List |
$2.00 / Each
|
|
|
704298 | 022352-B | Q09 | Grommet, Console Mast Boot | No |
Compatibility List |
$1.90 / Each
|
|
|
706835 | 066034-AA | Q09 | Crank Cover, Small | No |
Compatibility List |
$3.82 / Each
|
|
|
957398 | 005330-00 | Q52 | Gear Rower Retainer Clip (New) | Yes |
Compatibility List |
$11.99 / Each
|
|
|
706665 | 064318-Z | R01 | Pedal Axle Set | Yes |
Compatibility List |
$90.51 / Each
|
|
|
701923 | 004956-00 | R05 | Nut, Hex, M20X1.0P, SS41, BOX | No |
Compatibility List |
$9.99 / Each
|
|
|
701869 | 004891-00 | R06 | Nut, Hex, 3/8 26UNCX9H | No |
Compatibility List |
$3.88 / Each
|
|
|
700298 | 000891-A | R07 | Drive Belt, Poly V, 390 J5 | No |
Compatibility List |
$31.99 / Each
|
|
|
705920 | 056538-BX | R10 | Drive Axle Set | No |
Compatibility List |
$159.69 / Each
|
|
|
701649 | 004687-C | R11 | Bolt, Eye Hook, 1/4" 20UNCx35L | No |
Compatibility List |
$2.00 / Each
|
|
|
701927 | 004964-00 | R13 | Nut, Hex, Flange, M10x1.25P, Black Zinc | No |
Compatibility List |
$1.02 / Each
|
|
|
705919 | 056537-B | S01 | Tension Knob | Yes |
Compatibility List |
$31.51 / Each
|
|
|
705964 | 057065-A | S02 | Tension Cable | No |
Compatibility List |
$10.74 / Each
|
|
|
701318 | 004374-00 | S03 | Screw, Phillip, BH, M5x0.8Px10L, Gap, Zn BL | No |
Compatibility List |
$3.88 / Each
|
|
|
706252 | 060608-AC | S04 | Screw, Phillip, BH, M5x0.8Px55L, Gap | No |
Compatibility List |
$2.00 / Each
|
|
|
702512 | 008394-00 | S05 | Fix Plate, Eye Bolt, SPC, 1.3t, AB01 | No |
Compatibility List |
$6.00 / Each
|
|
|
701904 | 004931-00 | S06 | Nut, Locking, Nylon, 1/4" 20UNC | Yes |
Compatibility List |
$1.59 / Each
|
|
|
701042 | 003413-00 | T16 | Magnet, Crank Wheel, 15x7t | No |
Compatibility List |
$4.00 / Each
|
|
|
702240 | 005365-00 | U04 | C Clip, External, S 20 | No |
Compatibility List |
$1.02 / Each
|
|
|
|
724979 | 100519 | V20 | Owners Manual | No |
Compatibility List |
$9.57 / Each
|
|
|
702186 | 005229-00 | Z01 | Washer, Wavy, 20.5x29.0x1.5T, Nylon | No |
Compatibility List |
$2.00 / Each
|
|
|
709055 | 1000108777 | Z02 | Washer, Flat, M8.2x16Px1.0T | No |
Compatibility List |
$1.24 / Each
|
|
|
701713 | 004730-00 | Z03 | Screw, Oval Hex Socket, M8X1.25PX50L | Yes |
Compatibility List |
$2.00 / Each
|
|
|
701737 | 004762-00 | Z05 | Screw, Hex Socket, BH, M8x1.25Px70L | No |
Compatibility List |
$2.00 / Each
|
|
|
|
704115 | 020267-00 | Z09 | Screw, Hex Socket, BH, M8x1.25Px50L(Tooth10 | No |
Compatibility List |
$2.00 / Each
|
|
|
702571 | 008692-D | Z10 | Inner Bushing, Lower Link Arm | No |
Compatibility List |
$1.90 / Each
|
|
|
701717 | 004737-00 | Z13 | Screw, BH, M8x1.25Px55L 20L | No |
Compatibility List |
$2.00 / Each
|
|
|
702178 | 005220-00 | Z20 | Washer, Wavy, 20.7x29.1x.3T | No |
Compatibility List |
$3.88 / Each
|
|
|
986204 | 004374-00 | Button Head Phillip Screw (New) | No |
Compatibility List |
$12.99 / Each
|
||
|
911958 | 004608-00 | Rower Button Head Phillip Screw 3x10L (New) | No |
Compatibility List |
$12.99 / Each
|
