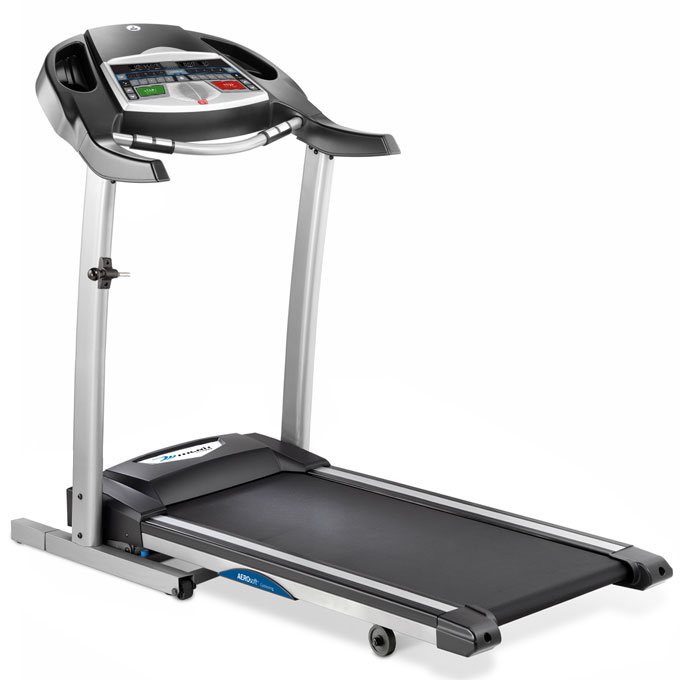

Repair Parts for Merit 735T TM629
| Brand | Merit |
|---|---|
| Type | Folding Treadmill |
| Category | Folding |
| Model Number | TM629 |
| Model Name | 735T |
| Version | 2010 |
Model Numbers: TM629
| Image | Catalog # | MPN | List Key | Qty | Part Description | Used | Compat. | New Price |
|---|---|---|---|---|---|---|---|---|
|
1017639 | 013871-A | # | 1 | Magnetic Safety Key (Used) | No |
Compatibility List |
$38.99 / Each
|
|
1020937 | 002124-B | 0 | 1 | Power Entry Socket Input Module | Yes |
Compatibility List |
$25.99 / Each
|
|
013699 | 013871-A | 0 | 1 | Magnetic Safety Key Lanyard (Used) | No |
Compatibility List |
$16.19 / Each
|
|
1000631 | 051345-A | 0 | 1 | Safety Key Set | No |
Compatibility List |
$25.00 / Each
|
|

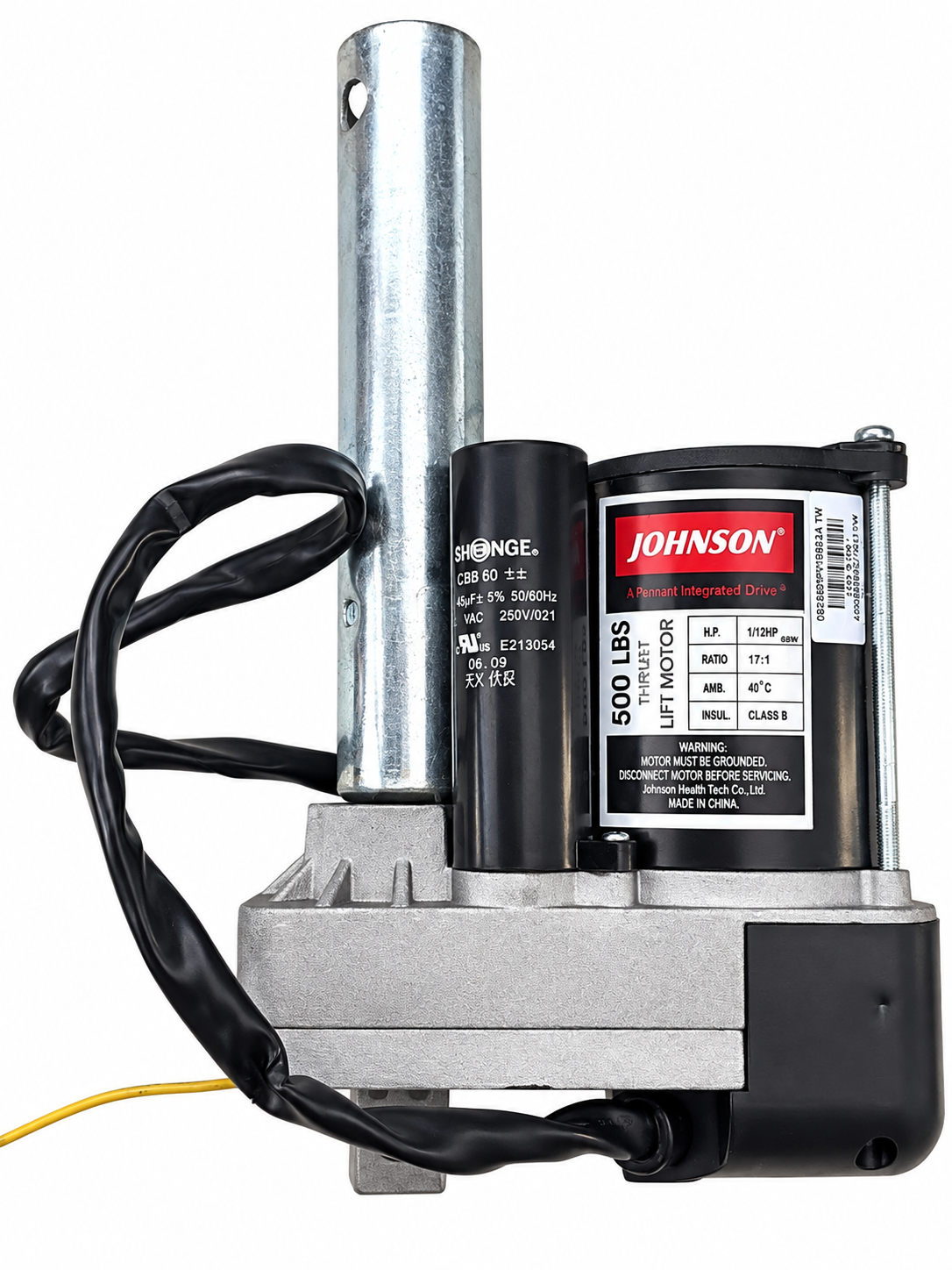

1002968 | 039043-00 | 0 | 1 | Motor Incline | No |
Compatibility List |
$329.00 / Each
|
|
1003509 | 032671-HF | 0 | 1 | Controller | No |
Compatibility List |
$199.99 / Each
|
|
1035628 | 039400-BA | 0 | 1 | Transport Wheel (Used) | Yes |
Compatibility List |
$5.00 / Each
|
|
707844 | 1000096339 | 1 | Side Rail Set | No |
Compatibility List |
$27.35 / Each
|
|
|
729052 | Order Parts Separately | 4 | Frame Assembly | No |
Compatibility List |
Out Of Stock |
|
|
708952 | 1000107524 | 8 | Console Frame Set | No |
Compatibility List |
$128.34 / Each
|
|
|
707849 | 1000096344 | AH1 | Elevation Frame Set, Painting, TM257 | No |
Compatibility List |
$164.24 / Each
|
|
|
707904 | 1000096844 | AK2 | Reinforced Tube Set, Right | No |
Compatibility List |
$67.03 / Each
|
|
|
707905 | 1000096845 | AK3 | Reinforced Tube Set, Left | No |
Compatibility List |
$66.98 / Each
|
|
|
707193 | 1000091155 | AM1 | Motor Bracket | No |
Compatibility List |
$71.06 / Each
|
|
|
729197 | Part of Kit 8 | AN2 | Incline Arm, Right, Panting, MM330, EP212 | No |
Compatibility List |
Out Of Stock |
|
|
705566 | 051345-A | AN3 | Safety Key Set | Yes |
Compatibility List |
$25.00 / Each
|
|
|
708950 | 1000107519 | AN3 | Arm Rest, Left, Painting, charcoal gray, TM | No |
Compatibility List |
$70.04 / Each
|
|
|
708951 | 1000107520 | AN4 | Arm Rest, Right, Painting, charcoal gray, TM | No |
Compatibility List |
$75.63 / Each
|
|
|
706951 | 067510-A | AR1 | Front Roller Set | No |
Compatibility List |
$191.62 / Each
|
|
|
705242 | 039346-A | AR2 | Rear Roller Set | Yes |
Compatibility List |
$191.62 / Each
|
|
|
705514 | 049800-B | B09 | Belt Guide | Yes |
Compatibility List |
$1.90 / Each
|
|
|
702160 | 005196-00 | B12 | Washer, Teflon, 10.5x20.0x1.0T | Yes |
Compatibility List |
$3.88 / Each
|
|
|
726392 | 081585 | B14 | Side Rail Accent Piece, TM298 | No |
Compatibility List |
$1.77 / Each
|
|
|
704047 | 020132-00 | B19 | Screw, Hex Socket, Sink, M8x1.25Px30L | No |
Compatibility List |
$2.00 / Each
|
|
|
701562 | 004595-00 | B20 | Screw, Hex, 3/8 16UNC 42L/Tooth14L | No |
Compatibility List |
$2.00 / Each
|
|
|
706312 | 061162-AC | B20 | Screw, Hex Socket, Sink, M8x1.25Px40L | No |
Compatibility List |
$4.00 / Each
|
|
|
705812 | 056298-BA | B23 | Elastomer | No |
Compatibility List |
$1.90 / Each
|
|
|
707484 | 1000092917 | B27 | Running Deck, 570X1220X18T, Silicon | No |
Compatibility List |
$249.13 / Each
|
|
|
705259 | 039400-BA | B34 | Transport Wheel, Nylon | Yes |
Compatibility List |
$14.00 / Each
|
|
|
701982 | 005017-AC | B36 | Washer, Spring, 10.2x18.4x2.5T, Black | No |
Compatibility List |
$2.00 / Each
|
|
|
705469 | 049262-00 | B38 | Screw, Hex, 3/8 16UNCX55L 14L, HE, P T | No |
Compatibility List |
$4.00 / Each
|
|
|
701938 | 004974-00 | B44 | Insert Nut, Brass, ALS7 610 4.2(0.5 4.2) | No |
Compatibility List |
$1.90 / Each
|
|
|
725835 | 076884 | B47 | Elastomer, Fixing, PVC, TM225 | No |
Compatibility List |
$1.77 / Each
|
|
|
702450 | 007490-C | B52 | Fix Plate, Speed Sensor | No |
Compatibility List |
$1.90 / Each
|
|
|
708948 | 1000107517 | C01 | Console Mast Set, Left | No |
Compatibility List |
$125.40 / Each
|
|
|
708949 | 1000107518 | C02 | Console Mast Set, Right, TM62 | No |
Compatibility List |
$121.99 / Each
|
|
|
705999 | 058048-A | C04 | Lock Latch, Deck | No |
Compatibility List |
$19.76 / Each
Out Of Stock |
|
|
704087 | 020210-00 | C05x | Screw, Phillip, Round, 3x20L | No |
Compatibility List |
$2.00 / Each
|
|
|
976932 | 004926-00 | C53 | Nylon Lock Nut M8x1.25P (New) | No |
Compatibility List |
$12.99 / Each
|
|
|
701897 | 004926-00 | D34 | Nut, Nylon, M8x1.25P | No |
Compatibility List |
$3.88 / Each
|
|
|
701699 | 004724-00 | D53 | Bolt, M8x1.25Px15L | Yes |
Compatibility List |
$5.00 / Each
|
|
|
701934 | 004972-00 | F05 | Insert Nut, Brass, ALS7 616 150(0.02 0.15) | No |
Compatibility List |
$1.90 / Each
|
|
|
704154 | 020351-A | G27 | Screw, Phillip, Sink, Tapped, 3x12L | No |
Compatibility List |
$2.00 / Each
|
|
|
701964 | 005005-00 | H04 | Washer, Spring, Lock, 8.2x15.4x2.0t | Yes |
Compatibility List |
$3.88 / Each
|
|
|
705480 | 049279-C | H06 | Screw, Special, M8X1.25PX9L D10X9.5L, HE, 45#, BOX | No |
Compatibility List |
$4.00 / Each
|
|
|
701583 | 004615-00 | J09 | Screw, Umbrella Cross Tapped, 4x10L | No |
Compatibility List |
$2.00 / Each
|
|
|
707787 | 1000095286 | K13 | Transport Wheel, NYLON, TM617 | No |
Compatibility List |
$3.82 / Each
|
|
|
704140 | 020307-A | K14 | Screw, Hex Socket, BH, M10x1.5Px55L(Tooth25 | No |
Compatibility List |
$3.69 / Each
|
|
|
705813 | 056299-BA | K16 | Leveler, Foot Pad, Gray, NON ROHS, TM234 K16C | No |
Compatibility List |
$1.90 / Each
|
|
|
707760 | 1000094876 | K50 | Leveler Foot, Base, PVC, 3/8 16UNC, BLACK, TM616 | Yes |
Compatibility List |
$9.99 / Each
|
|
|

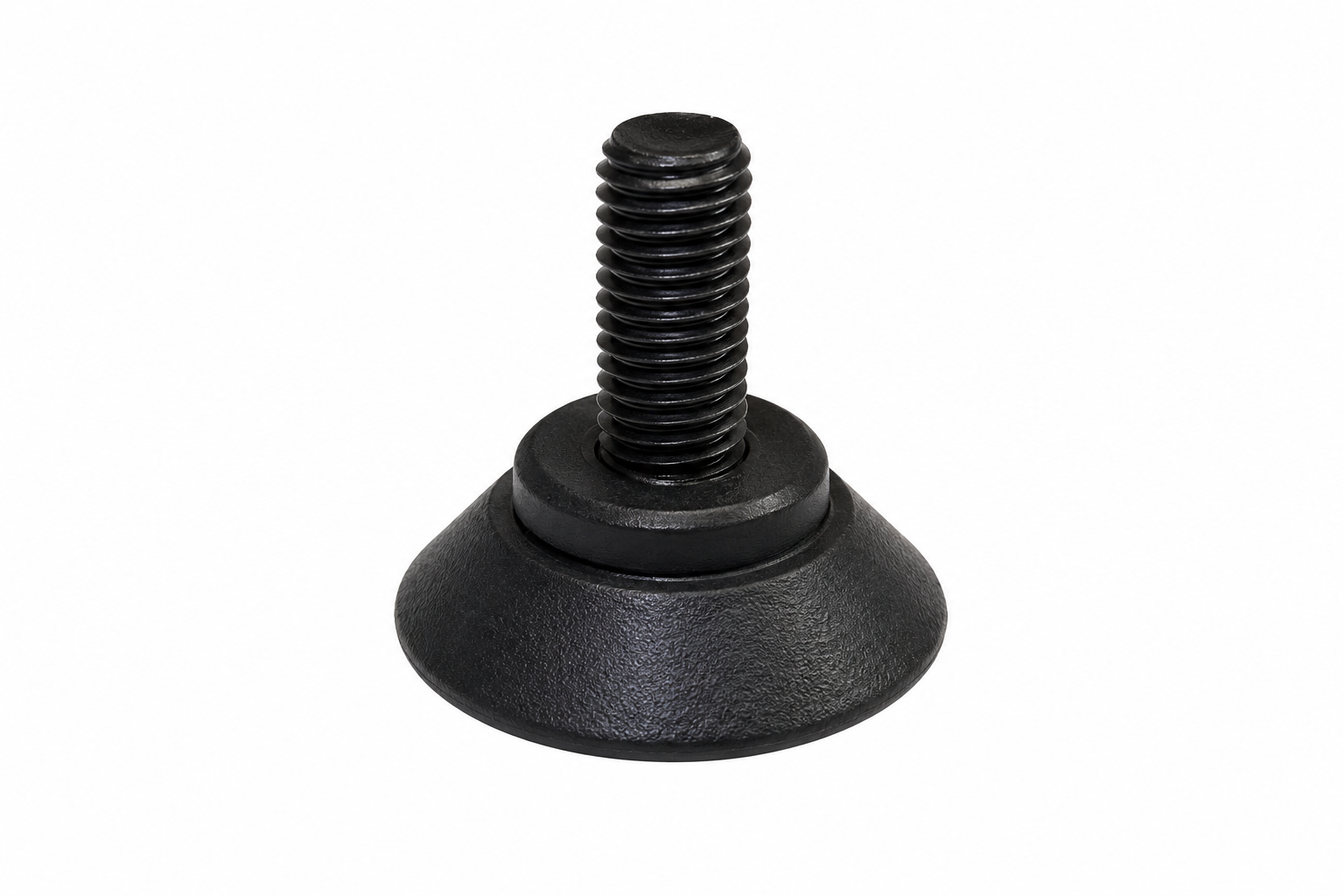

000089 | 1000094876 | K50 | 1 | Leveling Foot Leveler | No |
Compatibility List |
$19.99 / Each
|
|
706218 | 060295-CA | KIT | Digital Speed Sensor | No |
Compatibility List |
$42.02 / Each
Out Of Stock |
|
|
707457 | 1000092805 | Kit | Silicon Oil, 40ml | No |
Compatibility List |
$16.88 / Each
|
|
|
708304 | 1000101921 | Kit | Manual, Manipulate&Assembly, TM624 | No |
Compatibility List |
Out Of Stock |
|
|
|
708305 | 1000101926 | Kit | Hardware Pack | No |
Compatibility List |
$20.77 / Each
|
|
|
701912 | 004941-00 | L08 | Nut, Nylon, M10x1.5P | Yes |
Compatibility List |
$3.88 / Each
|
|
|
703771 | 016172-Z | M01 | Drive Motor Set, Digital 1.75HP | No |
Compatibility List |
$450.00 / Each
|
|
|

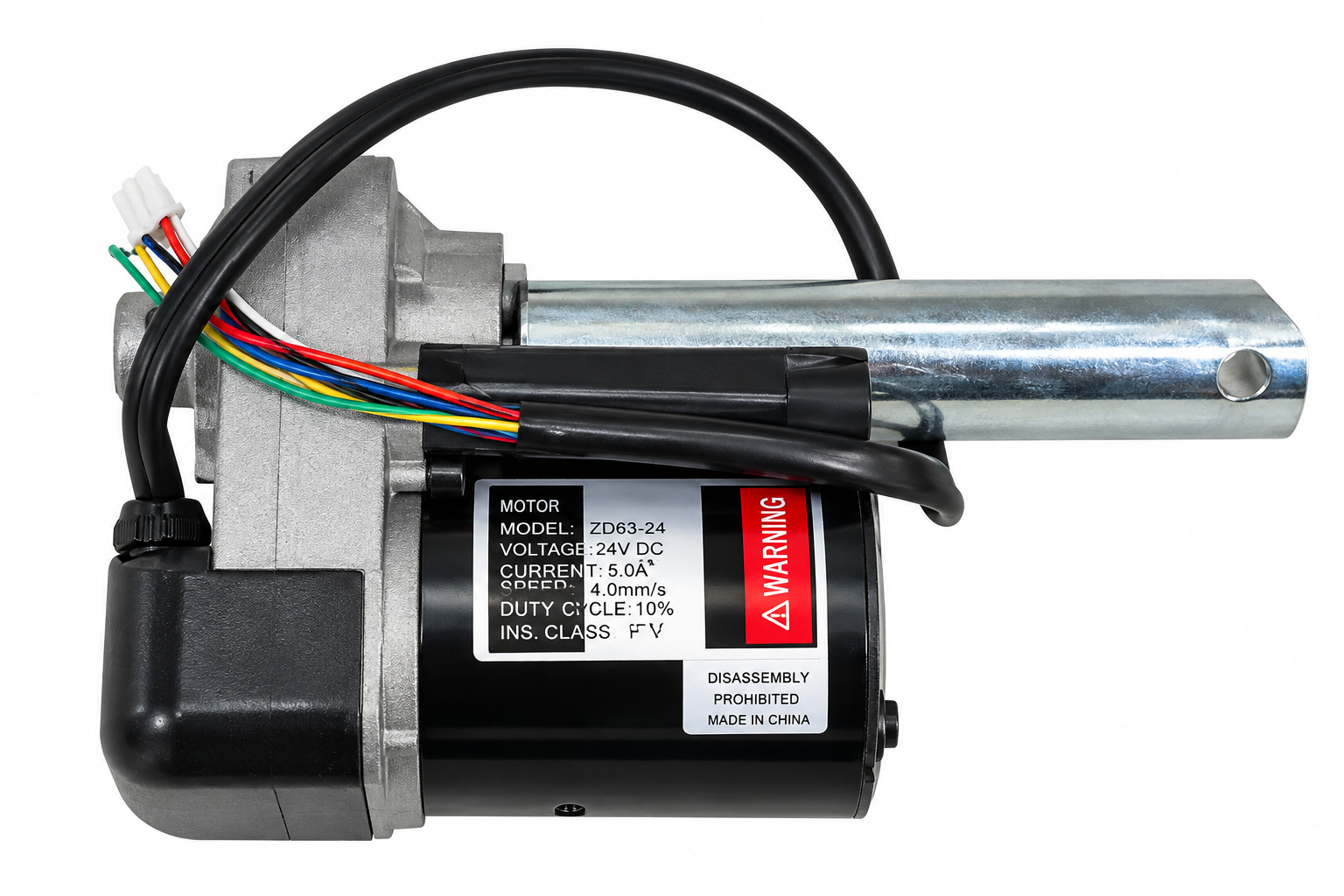

705182 | 039043-00 | M02 | Elevation Motor Set, 110V/80mm(225/3.96 4Pin) | Yes |
Compatibility List |
$329.00 / Each
|
|
|
1002738 | 039043-00 | M02 | Incline Lift Elevation Motor | No |
Compatibility List |
$29.99 / Each
|
|
|
705041 | 032671-HF | M03 | Motor Control Board, Digital Drive, 1.75/2.0HP | No |
Compatibility List |
$453.52 / Each
|
|
|
729194 | Part of Kit 7 | M03 | Incline Arm, Left, Panting, MM330, EP212 | No |
Compatibility List |
Out Of Stock |
|
|
701454 | 004502-00 | M06 | Screw, Hex Socket, Round, 5/16 18UNCx16L, Ad | No |
Compatibility List |
$2.00 / Each
|
|
|
701908 | 004934-00 | M06 | Nut, Nylon, 3/8 | Yes |
Compatibility List |
$0.62 / Each
|
|
|
705857 | 056374-AA | M07 | Rubber Pad, Drive Motor, Shockproof | No |
Compatibility List |
$9.57 / Each
|
|
|
701590 | 004619-AB | M08 | Screw, Phillip, BH, Oval Tapped, 4x8L | No |
Compatibility List |
$2.00 / Each
|
|
|
702075 | 005108-00 | M12 | Washer, Flat, 10.5x18.0x2.0T | No |
Compatibility List |
$2.00 / Each
|
|
|
|
703380 | 013938-B | M25 | No |
Compatibility List |
Out Of Stock |
||
|
702036 | 005066-A | M26 | Washer, Flat, 8.2x20.0x3.0T | No |
Compatibility List |
$3.88 / Each
|
|
|
701476 | 004523-00 | M46 | Screw, Hex Socket, Round, M8x1.25Px40L, Adhe | No |
Compatibility List |
$2.58 / Each
|
|
|
708546 | 1000103307 | N01 | Base Casing, Console, charcoal gray, TM624 | No |
Compatibility List |
$62.69 / Each
|
|
|
708547 | 1000103308 | N02 | Console Face plate, painting, DS099, NO Ro | No |
Compatibility List |
$22.75 / Each
|
|
|
708548 | 1000103309 | N03 | Upper Cover, Arm, Left, charcoal gray, TM624 | No |
Compatibility List |
$9.20 / Each
|
|
|
708549 | 1000103310 | N04 | Upper Cover, Arm, Right, charcoal gray, TM624 | No |
Compatibility List |
$9.93 / Each
|
|
|
708550 | 1000103311 | N05 | Lower Cover, Arm, Left, charcoal gray, TM624 | No |
Compatibility List |
$3.54 / Each
|
|
|
708551 | 1000103312 | N06 | Lower Cover, Arm, Right, charcoal gray, TM624 | No |
Compatibility List |
$3.82 / Each
|
|
|
701592 | 004620-AB | N17 | Screw, Phillip, BH, Tapped, 4x12L, BED(Black | No |
Compatibility List |
$2.00 / Each
|
|
|
708706 | 1000104985 | N19 | Screw, Big Button Head, 3x12L, Sheet Meta | No |
Compatibility List |
$1.85 / Each
|
|
|
700702 | 001956-C | N23 | Reed Switch | Yes |
Compatibility List |
$21.27 / Each
|
|
|
705329 | 048036-A | N23 | Screw, Phillip, BH, Tapped, 4x12L, Color Zin | No |
Compatibility List |
$2.00 / Each
|
|
|
705925 | 056548-00 | N24 | Screw, Phillip, BH, M6x1.0Px15L | No |
Compatibility List |
$2.00 / Each
|
|
|
705181 | 039042-A | N32 | Pulse Sensor | Yes |
Compatibility List |
$18.28 / Each
|
|
|
701605 | 004627-00 | N40 | Screw, Phillip, BH, Tapped, 5x12L | No |
Compatibility List |
$3.88 / Each
|
|
|
|
708362 | 1000102223 | N60 | UCB, 435T&735T, H101S504 | No |
Compatibility List |
$333.03 / Each
|
|
|
|
708307 | 1000101976 | N61 | Overlay, Manipulate, English, TM629 | No |
Compatibility List |
$35.46 / Each
|
|
|
729201 | Part of Kit 9 | N63 | Upper Handlebar Set, Right, MM330, EP212 | No |
Compatibility List |
Out Of Stock |
|
|
706286 | 060781-A | N69 | Ground Wire, Grip Pulse, 300mm | Yes |
Compatibility List |
$3.54 / Each
|
|
|
701579 | 004613-00 | N84 | Screw, Phillip, BH, Tapped, 3x12L, Gap, Zn B | No |
Compatibility List |
$3.88 / Each
|
|
|
705893 | 056437-00 | N90 | Absorptive Plate, Zinc, 15x25 | No |
Compatibility List |
$3.88 / Each
|
|
|

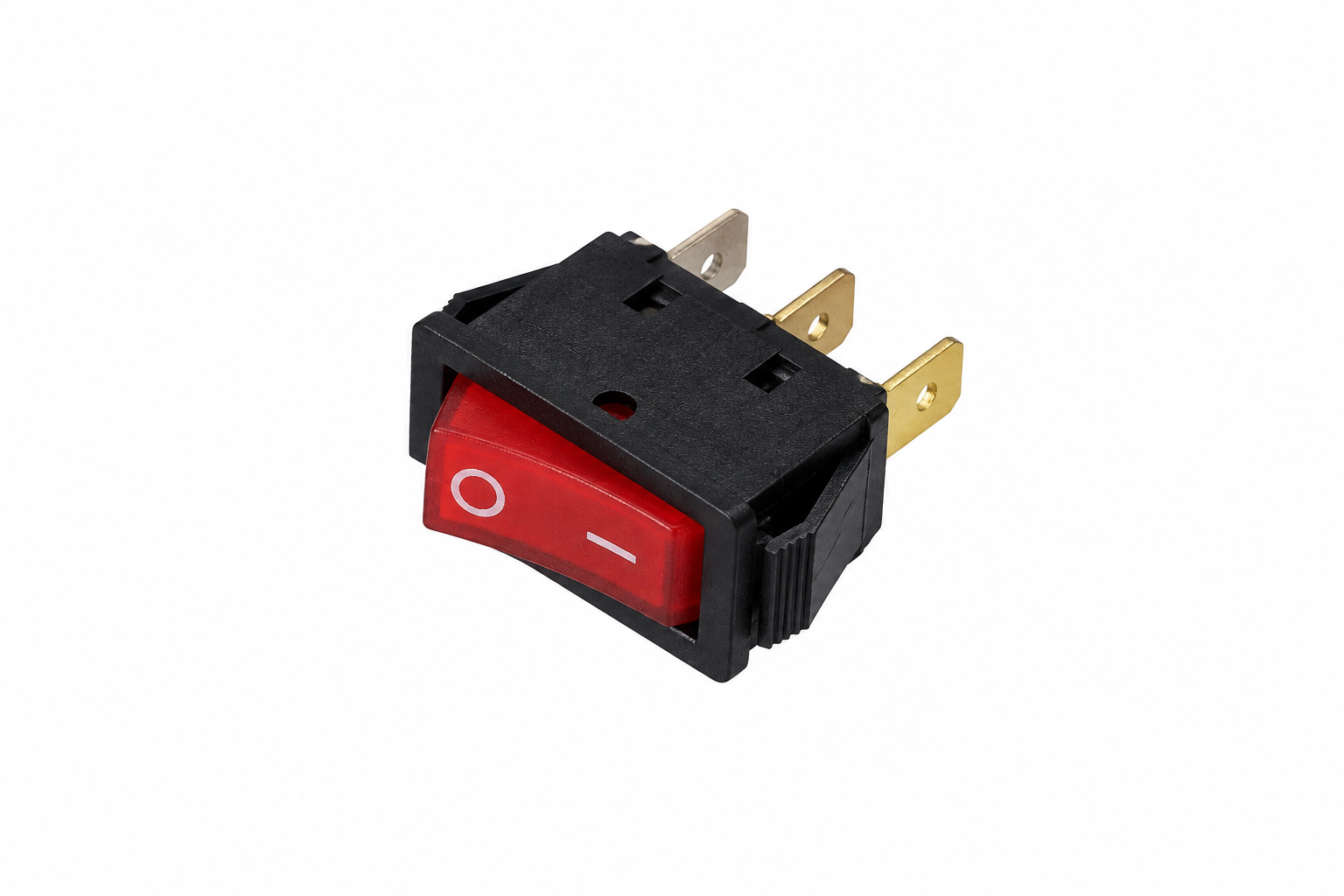

706350 | 061301-A | P02 | Power Switch, KCD3 | Yes |
Compatibility List |
$28.73 / Each
|
|
|
705897 | 056444-B | P03 | Console Cable, Mast, 2200L | No |
Compatibility List |
$38.32 / Each
|
|
|

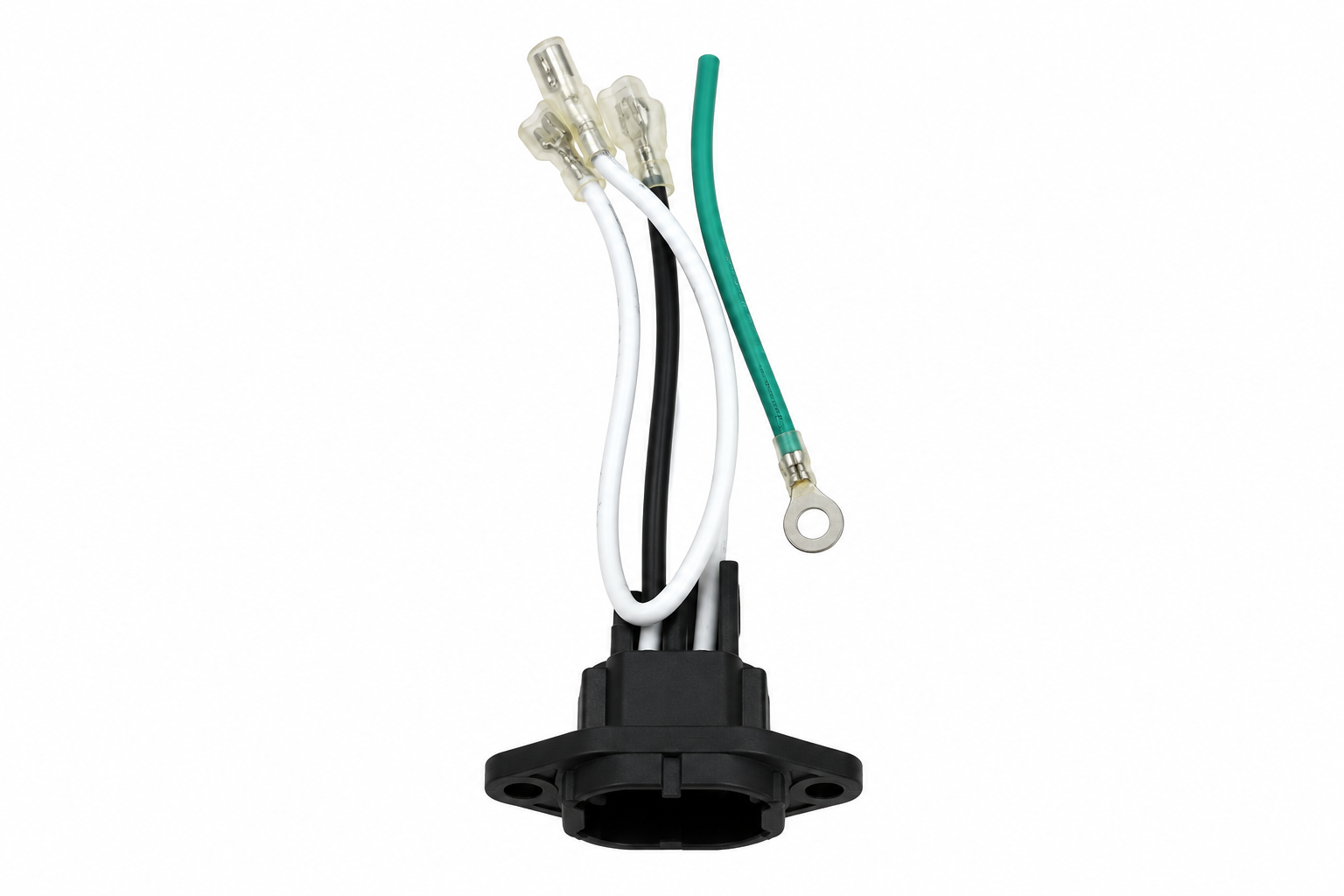

706850 | 066244-A | P03 | Power Socket, No CE(80,200,100 200) | No |
Compatibility List |
$11.15 / Each
|
|
|
701020 | 003346-00 | P04 | Circuit Breaker, 12A, 125V/250V | Yes |
Compatibility List |
$20.00 / Each
|
|
|
703919 | 019354-A | P05 | Connecting Cable, Breaker/Switch, Black, 120mm | No |
Compatibility List |
$13.00 / Each
|
|
|
703927 | 019457-A | P06 | MCB Power Cable150(250kz 250kz)BLACK | Yes |
Compatibility List |
$1.90 / Each
|
|
|
1036808 | 019354-A | P07 | Power harness wire | Yes |
Compatibility List |
$13.00 / Each
|
|
|
700746 | 002124-B | P08 | Connecting Cable, Socket/Breaker, 60, 16AWG Black | No |
Compatibility List |
$3.82 / Each
|
|
|
700570 | 001679-00 | P13 | Tie Strap, Adhesive, Nylon, 66, HC 101, W | No |
Compatibility List |
$5.18 / Each
|
|
|

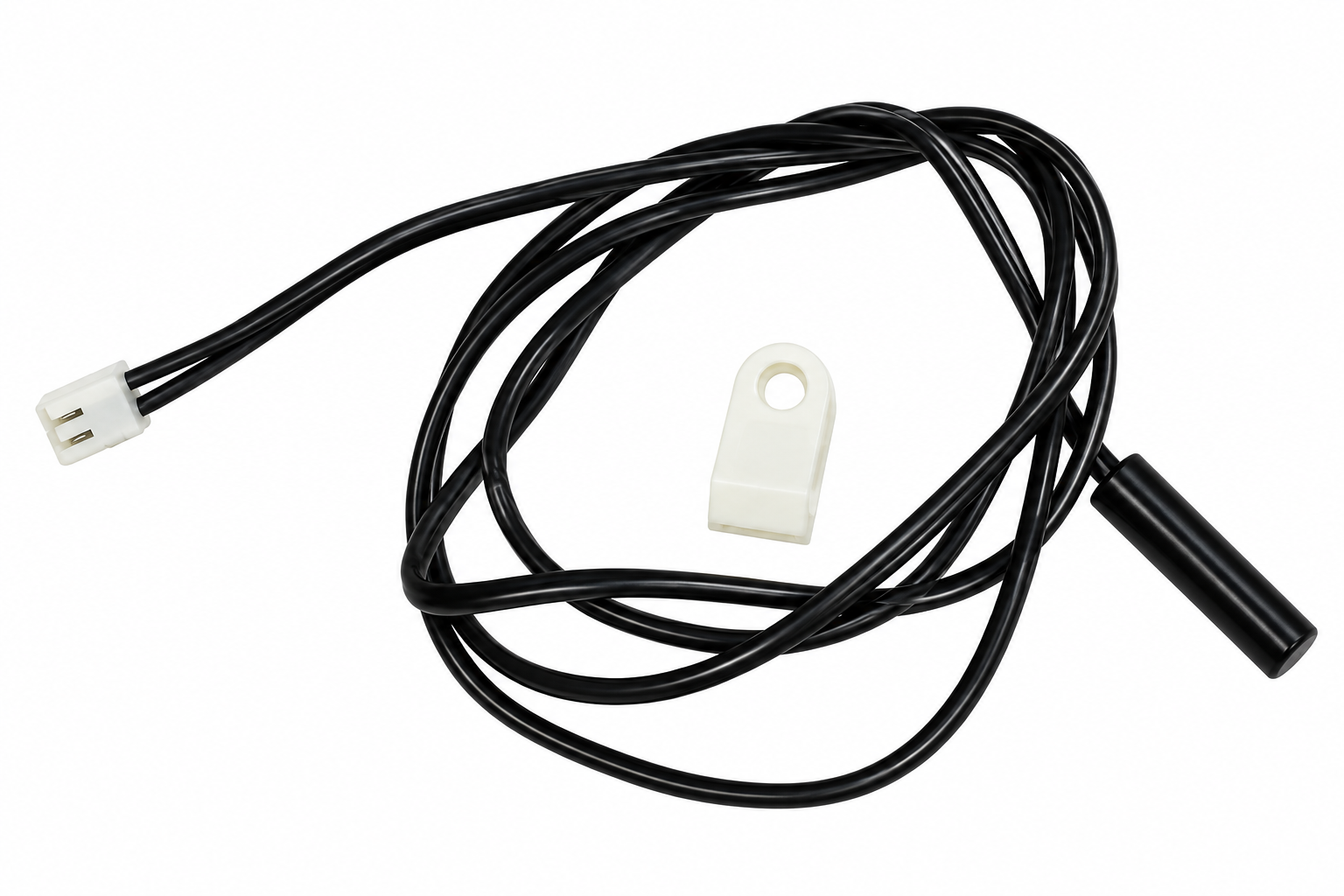

707652 | 1000094015 | P14 | Speed Sensor Wire, 1000mm, Analog | Yes |
Compatibility List |
$10.82 / Each
|
|
|
701325 | 004378-00 | P17 | Screw, Phillip, BH, M5x0.8Px25L, Ni, Gap | No |
Compatibility List |
$2.00 / Each
|
|
|
701581 | 004614-AB | P17 | Screw, Phillip, Umbrella, Tapped, 3x10L, Black | No |
Compatibility List |
$2.00 / Each
|
|
|
707911 | 1000096854 | P17 | Power Cord, USA, 16AWG, Long2M | No |
Compatibility List |
$57.49 / Each
|
|
|
702145 | 005177-00 | P18 | Washer, Tooth, 5.3X10.0X0.6T, BAN | No |
Compatibility List |
$3.88 / Each
|
|
|
701866 | 004889-00 | P19 | Nut, Hex, M5x0.8P, Nickel | Yes |
Compatibility List |
$3.88 / Each
|
|
|
707555 | 1000093352 | Q01 | Motor Up Cover, TM289, ABS/75140 | No |
Compatibility List |
$41.11 / Each
|
|
|
705794 | 056267-BA | Q02 | Motor Cover, Bottom | No |
Compatibility List |
$42.59 / Each
|
|
|
729118 | Part of Kit 1 | Q04 | Stabilizer Frame, Rear, B, Panting, MM330, EP212 | No |
Compatibility List |
Out Of Stock |
|
|
707485 | 1000092929 | Q05 | Rear Roller Cover, Left, TM617 | No |
Compatibility List |
$9.57 / Each
|
|
|
707486 | 1000092930 | Q06 | Rear Roller Cover, Right, TM617 | No |
Compatibility List |
$9.57 / Each
|
|
|
707482 | 1000092910 | Q08 | Base, Main Tube, Cap, TM617 | No |
Compatibility List |
$3.54 / Each
|
|
|
705257 | 039399-AA | Q09 | Access Panel, Console Cable | Yes |
Compatibility List |
$9.57 / Each
|
|
|
705822 | 056315-AB | Q10 | Water Bottle Holder | No |
Compatibility List |
$3.82 / Each
|
|
|
705256 | 039398-AA | Q13 | Accent Piece | No |
Compatibility List |
$9.57 / Each
|
|
|
701367 | 004417-00 | Q15 | Screw, Phillip, Sink, M5x0.8Px10L | No |
Compatibility List |
$2.00 / Each
|
|
|
706200 | 060221-00 | Q17 | Screw, Phillip, BH, M5x0.8Px20L, Gap | No |
Compatibility List |
$2.00 / Each
|
|
|
701847 | 004864-00 | Q30 | Screw, 4x12L | No |
Compatibility List |
$3.88 / Each
|
|
|
705756 | 056043-A | R03 | Running Belt, 458x2760x1.4T | No |
Compatibility List |
$249.13 / Each
|
|
|
708922 | 1000107269 | R04 | Drive Belt, Poly V, 180 J5 | Yes |
Compatibility List |
$57.49 / Each
|
|
|
701478 | 004525-00 | R05 | Screw, Hex Socket, Round, M8x1.25Px50L | Yes |
Compatibility List |
$2.58 / Each
|
|
|
701481 | 004527-AC | R08 | Screw, Round, Hex Socket, M8x1.25Px35L | No |
Compatibility List |
$1.68 / Each
|
|
|
701445 | 004488-00 | R09 | Screw, Hex Socket, Round, M8x1.25Px55L, BED | Yes |
Compatibility List |
$2.00 / Each
|
|
|
|
708306 | 1000101951 | V01 | POP Sticker, TM624 | No |
Compatibility List |
$3.54 / Each
|
|
|
|
725245 | 103247 | V02 | Sticker, Console, NO ROHS, EP511C | No |
Compatibility List |
$3.54 / Each
|
|
|
|
725077 | 101603 | V07 | Sticker, Motor Up Cover, LOGO, TM611 | No |
Compatibility List |
$3.54 / Each
|
|
|
702322 | 006069-AX | V16 | Sticker, Warning, new code disc | No |
Compatibility List |
$0.21 / Each
|
|
|
|
707069 | 1000090016 | V18 | Patent Sticker, TM602 | No |
Compatibility List |
Out Of Stock |
|
|
702136 | 005165-00 | Z05 | Washer, Arc, 8.2x18x1.5T | No |
Compatibility List |
$2.00 / Each
|
|
|
702135 | 005163-00 | Z07 | Washer, Arc, 8.4x17x1.0T | No |
Compatibility List |
$2.57 / Each
|
|
|
704175 | 020425-00 | Z09 | Washer, Flat, 8.4x15.5x1.6T | Yes |
Compatibility List |
$2.00 / Each
|
|
|
701591 | 004620-00 | Z31 | Screw, Self Tapping, 4x12L | No |
Compatibility List |
$3.88 / Each
|
|
|
1000418 | 051345-A | Magnetic Safety Key | No |
Compatibility List |
$25.00 / Each
|
||
|
1000574 | 016172-Z 1000093557 | DC Drive Motor With Bracket | No |
Compatibility List |
$149.99 / Each
Out Of Stock |
||
|
1000201 | 032671-HF | Motor Control Board Controller | No |
Compatibility List |
$169.00 / Each
Out Of Stock |
||
|
1002652 | 003346-00 | Power 12a Circuit Breaker | No |
Compatibility List |
$8.99 / Each
|
||
|
1003635-R | 032671-HF | Lower Control Board Motor Controller | No |
Compatibility List |
$169.00 / Each
Out Of Stock |
||
|
KO-L4L6-HFVV | JC22-001 | Motor Control Board Lower Controller | No |
Compatibility List |
$268.65 / Each
Out Of Stock |
||
|
A1-0NN9-NPTB | 032671-HF | Lower Control Board Motor Controller LPCA Digital Drive 1.75 2.0 HP (New) | No |
Compatibility List |
$259.99 / Each
|
||
|
1009798 | 003346-00 | Power Circuit Breaker 12AMP (New) | No |
Compatibility List |
$20.00 / Each
|
||
|
912107 | 1000465333 | Nut Locking Nylon 3/8 | No |
Compatibility List |
$11.99 / Each
|
||
|
911968 | 004620-00 | Self Tapping Screw 4X12L (New) | No |
Compatibility List |
$12.99 / Each
|
Catalog #: 1003635-R
MPN: 032671-HF
Lower Control Board Motor Controller
$169.00 / each
Catalog #: KO-L4L6-HFVV
MPN: JC22-001
Motor Control Board Lower Controller
$268.65 / each
Catalog #: A1-0NN9-NPTB
MPN: 032671-HF
Lower Control Board Motor Controller LPCA Digital Drive 1.75 2.0 HP (New)
$259.99 / each
6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818
© 2026. All Rights Reserved.
