Nautilus Residential - R514c - 100322 - 2012 Rev. A

Repair Parts for Nautilus Residential R514c 100322

Brand	Nautilus Residential
Type	Stationary Bikes
Category	Residential Recumbent Bikes
Model Number	100322
Model Name	R514c
Version	2012 Rev. A

Model Numbers: 100322

Parts Diagram

Replacement Parts (22 parts found)

Catalog #	MPN	List Key	Qty	Part Description	Used	Compat.	New Price
1023774	18132	0	1	Pin Seat (Used)	No	Compatibility List	$4.75 / Each Out Of Stock	1
1022484	18061	33	1	Right Pedal Crank Arm (Used)	No	Compatibility List	$20.99 / Each Out Of Stock	1
1022467	18061	38	1	Left Pedal Crank Arm (Used)	No	Compatibility List	$20.99 / Each Out Of Stock	1
1022495	18031	49	1	Wire Harness Power Input Jack (Used)	No	Compatibility List	$8.99 / Each Out Of Stock	1,19
1010009	set-pul-09			Seat Post Pull Pin	No	Compatibility List	$7.01 / Each Out Of Stock
1011028	lf-stab-28			Left Rear Stabilizer End Cap	No	Compatibility List	$9.59 / Each
1011012	rgt-stb-12			Right Rear Stabilizer End Cap	No	Compatibility List	$9.59 / Each Out Of Stock
1011024	trns-whl-24			Transport Wheel	No	Compatibility List	$8.99 / Each Out Of Stock
1011031	pin-set-031			Seat Post Pull Pin	No	Compatibility List	$7.79 / Each Out Of Stock
1010007	arm-pir-007			Pedal Pair Crank Arm	No	Compatibility List	$8.99 / Each Out Of Stock
1037659	004-8362			Crank Axle	No	Compatibility List	$53.40 / Each
1037670	18132			Seat post pull pin	No	Compatibility List	$9.00 / Each Out Of Stock	1
1010010	wir-10-jck			Power Input Jack Wire Harness	No	Compatibility List	$8.99 / Each Out Of Stock
Sch400J6	drv-j6-pul			Pulley Drive Belt 40 (New)	No	Compatibility List	$42.99 / Each
1007063	95184			Seat Assembly 8" x 9"	No	Compatibility List	$19.79 / Each Out Of Stock
1010002	strp-002-pdl			Pedal Pair With Straps 1/2"	No	Compatibility List	$11.99 / Each Out Of Stock
1010035	pdl-pair-35			Pedal Pair With Straps 9/16" (New)	No	Compatibility List	$49.99 / Each
1037734	004-7154			Speed Sensor	No	Compatibility List	$7.79 / Each Out Of Stock

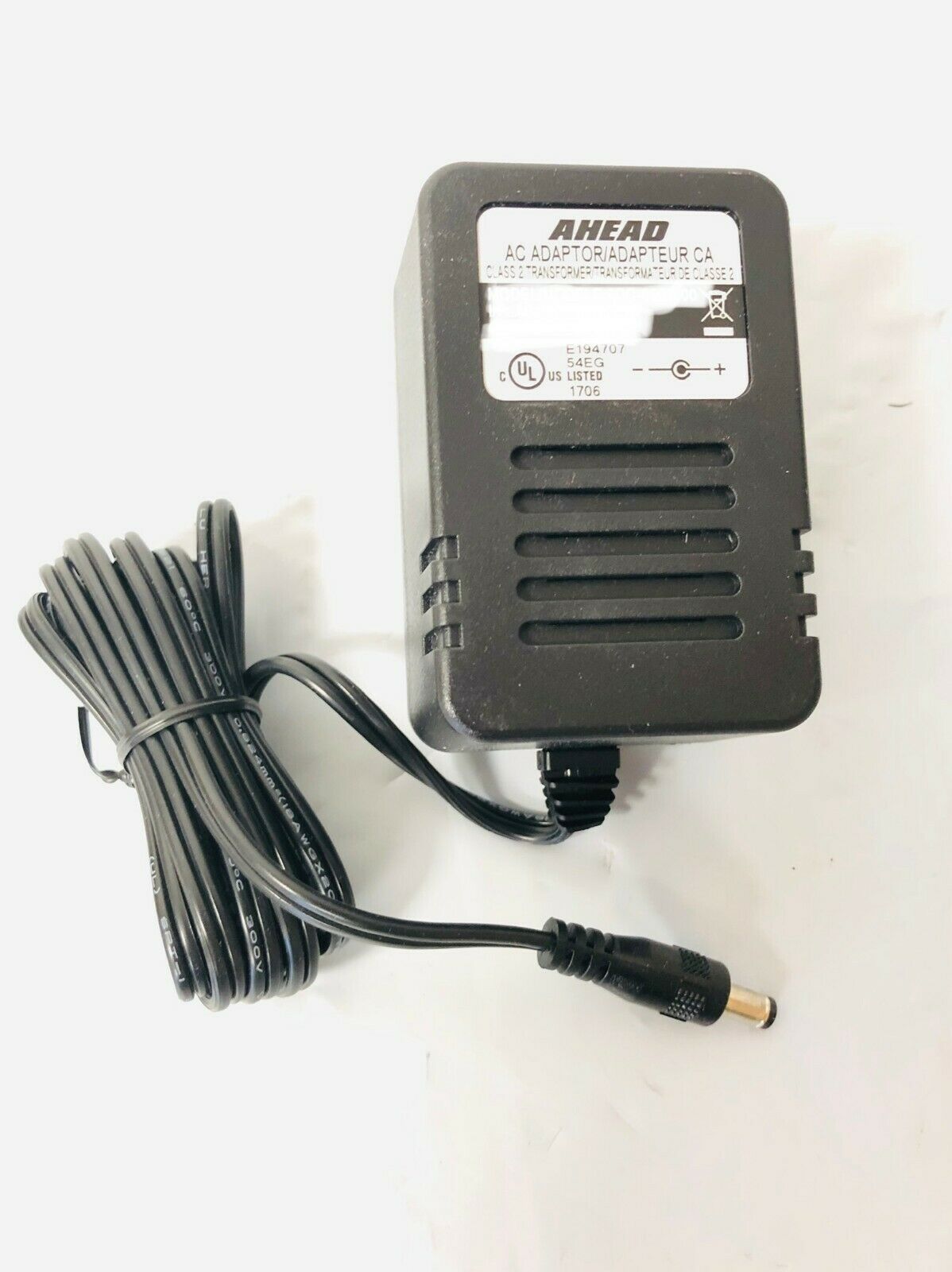

1008573	834002			Power Supply AC Adapter (Used)	No	Compatibility List	$29.99 / Each Out Of Stock	1
1040841	004-8385			Upright Wire Harness (Used)	No	Compatibility List	$15.00 / Each Out Of Stock	4
1040832	18236			Internal Rectangular Endcap (Used)	No	Compatibility List	$5.00 / Each	9
1041786	004-8046			Wire harness (Used)	No	Compatibility List	$10.99 / Each	4
