NordicTrack® - 4400 R
Brand: NordicTrack®
Category: Residential Treadmills
Type: Folding Treadmill
Model Number: NTL18951
Model Name: 4400 R
Exploded Diagrams
"Used Only" - contact us if interested in used or refurbished parts. Send us mail:
X-
Views
| Image | Catalog # | MPN | Part List Key | Quantity On Model | Part Description | Notes | Available Used | Model Compatibility List | New price |
|---|---|---|---|---|---|---|---|---|---|
| 100445 | 100606 | 62 | REAR ROLLER BOLT | No | Model Compatibility List | $0.81 / Each |
|||
 |
100081 | 113842 | 18 | ROLLER MAGNET | Yes | Model Compatibility List | $2.50 / Each |
||
 |
100064 | 116926 | 51 | RELEASABLE WIRE TIE | No | Model Compatibility List | $2.23 / Each |
||
 |
100262 | 116927 | 50 | TIE CLAMP HOLDER - SCREW MOUNT | No | Model Compatibility List | $2.26 / Each |
||
 |
100031 | 119425 | 32 | 3/8" HEX JAM NUT | No | Model Compatibility List | $1.50 / Each |
||
| 101661 | 012056 | 85 | 5/16" NYLON LOCKNUT | No | Model Compatibility List | $0.44 / Each |
|||
| 100088 | 123945 | # | TECH SHEET ENVELOPE | No | Model Compatibility List | $0.85 / Each |
|||
| 122690 | 128005 | 61 | SPRING WASHER | No | Model Compatibility List | $0.63 / Each |
|||
 |
100190 | 128457 | 111 | 3/16-7/32 ALLEN WRENCH | No | Model Compatibility List | $8.17 / Each |
||
 |
101035 | 129004 | 24 | ROUND GROMMET | No | Model Compatibility List | $3.31 / Each |
||
| 105930 | 129144 | 1 | CABLE PULLEY WASHER | No | Model Compatibility List | $2.45 / Each |
|||
 |
100079 | 131090 | 21 | RSW CLAMP | Yes | Model Compatibility List | $0.42 / Each |
||
 |
100258 | 013423 | 69 | 1/2" TAP SCREW | No | Model Compatibility List | $1.13 / Each |
||
 |
102260 | 013496 | 64 | CONSOLE BOLT | No | Model Compatibility List | $2.05 / Each |
||
 |
104188 | 013501 | 39 | WHEEL BOLT | No | Model Compatibility List | $3.34 / Each |
||
| 100326 | 013540 | 5 | HANDLE SCREW | No | Model Compatibility List | $0.11 / Each |
|||
 |
100465 | 138797 | 66 | EXTENSION LEG BOLT | No | Model Compatibility List | $2.47 / Each |
||
 |
100472 | 014073 | 96 | 5/16 | Yes | Model Compatibility List | $1.14 / Each |
||
 |
100263 | 014132 | 79 | IDLER WHEEL WASHER | No | Model Compatibility List | $2.21 / Each |
||
 |
100449 | 014149 | 67 | 5/16" STAR WASHER | No | Model Compatibility List | $0.18 / Each |
||
 |
100141 | 014157 | 22 | #8 STAR WASHER | Yes | Model Compatibility List | $1.06 / Each |
||
| 117600 | 143024 | 56 | FRONT ROLLER GROUND WIRE | No | Model Compatibility List | $1.98 / Each |
|||
| 100264 | 146427 | 82 | 1" TEK SCREW | No | Model Compatibility List | $0.25 / Each |
|||
 |
100432 | 015044 | 37 | COTTER PIN | No | Model Compatibility List | $1.80 / Each |
||
 |
102058 | 150508 | 87 | MOUNT SCREW | No | Model Compatibility List | $1.38 / Each |
||
| 108861 | 153403 | # | 4" BLUE WIRE, M/F | No | Model Compatibility List | $2.51 / Each |
|||
 |
101799 | 154848 | 26 | M4 X 52MM SCREW | No | Model Compatibility List | $1.12 / Each |
||
 |
100423 | 157504 | 22 | REED SWITCH | Yes | Model Compatibility List | $14.37 / Each |
||
 |
100076 | 157600 | 81 | BASE PAD | Yes | Model Compatibility List | $6.21 / Each |
||
| 102240 | 158157 | 92 | STATIC DECAL | No | Model Compatibility List | $1.67 / Each |
|||
 |
100063 | 016057 | 65 | 8" CABLE TIE | No | Model Compatibility List | $1.18 / Each |
||
 |
115655 | 160707 | 39 | M4 X 50MM SCREW | No | Model Compatibility List | $1.40 / Each |
||
| 121851 | 160830 | 80 | TENSION BOLT | No | Model Compatibility List | $2.99 / Each |
|||
 |
100433 | 165220 | 38 | FRONT ROLLER ADJ BOLT | No | Model Compatibility List | $2.54 / Each |
||
| 125523 | 167175 | 2 | ENDCAP SCREW | No | Model Compatibility List | $1.73 / Each |
|||
 |
100061 | 173169 | 46 | GROMMET | Yes | Model Compatibility List | $0.85 / Each |
||
| 111179 | 174798 | # | 3/8" X 5" BOLT | No | Model Compatibility List | $4.75 / Each |
|||
| 121829 | 177969 | 12 | BELT GUIDE | No | Model Compatibility List | $7.20 / Each |
|||
| 121828 | 177992 | 8 | LATCH PLATE | No | Model Compatibility List | $12.77 / Each |
|||
 |
100454 | 181385 | 72 | CONSOLE BOLT | No | Model Compatibility List | $3.71 / Each |
||
 |
106813 | 181980 | 55 | 3/8" X 1 1/2" BOLT | Yes | Model Compatibility List | $4.17 / Each |
||
 |
100201 | 186726 | 48 | POWER SWITCH | Yes | Model Compatibility List | $18.59 / Each |
||
 |
100120 | 186819 | 23 | #8 X 1/2" SCREW | Yes | Model Compatibility List | $0.38 / Each |
||
 |
100113 | 189813 | 83 | FILTER W/6" WIRE | Yes | Model Compatibility List | $21.68 / Each |
||
| 125091 | 191355 | # | N' LOGO DECAL | No | Model Compatibility List | $9.61 / Each |
|||
| 136869 | 192822 | 54 | INCLINE MOTOR STOP | No | Model Compatibility List | $6.06 / Each |
|||
 |
103990 | 194329 | 84 | 3/8" X 1 1/2" BOLT | No | Model Compatibility List | $4.45 / Each |
||
 |
100435 | 194343 | 41 | LOWER PIN | Yes | Model Compatibility List | $4.83 / Each |
||
 |
103170 | 195311 | 42 | TRANSFORMER | Yes | Model Compatibility List | $61.70 / Each |
||
| 125093 | 195458 | # | NORDICTRACK LOGO DECAL | No | Model Compatibility List | $5.05 / Each |
|||
| 113327 | 198072 | # | 12" BLUE WIRE F/F | No | Model Compatibility List | $3.53 / Each |
|||
| 122242 | 203663 | 88 | GROUND WIRE | No | Model Compatibility List | $2.93 / Each |
|||
 |
100394 | 212142 | # | CONTROLLER FUSE | No | Model Compatibility List | $7.47 / Each |
||
 |
125075 | 214849 | 99 | LEFT TRAY | Yes | Model Compatibility List | $11.67 / Each |
||
 |
125076 | 214850 | 97 | RIGHT TRAY | Yes | Model Compatibility List | $11.67 / Each |
||
 |
100197 | 215823 | 93 | AUDIO WIRE,18 | Yes | Model Compatibility List | $8.06 / Each |
||
| 118235 | 216122 | # | CONSOLE GROUND WIRE | No | Model Compatibility List | $2.46 / Each |
|||
| 136931 | 216459 | 107 | BOOK HOLDER | No | Model Compatibility List | $19.27 / Each |
|||
| 136484 | 216568 | 34A | CONTROL KNOB | No | Model Compatibility List | $7.41 / Each |
|||
| 136485 | 216569 | 34B | CONTROL KNOB CAP | No | Model Compatibility List | $3.51 / Each |
|||
| 100451 | 216573 | 79 | IDLER ARM SPACER | No | Model Compatibility List | $1.52 / Each |
|||
| 123897 | 217076 | 74 | 15" WIRE HARNESS | No | Model Compatibility List | $18.86 / Each |
|||
 |
136105 | 218117 | 110 | WHEEL SPACER | No | Model Compatibility List | $3.21 / Each |
||
 |
136094 | 219611 | 75 | LEFT OR RIGHT UPRIGHT COVER | Yes | Model Compatibility List | $13.00 / Each |
||
| 125065 | 219616 | 95 | ACCESS DOOR | No | Model Compatibility List | $3.17 / Each |
|||
 |
125098 | 220621 | 13 | 5/16 X 2" BTTN SCREW | No | Model Compatibility List | $2.92 / Each |
||
| 125097 | 220647 | . | HARDWARE KIT B | No | Model Compatibility List | $12.87 / Each |
|||
| 136930 | 220657 | 106 | ACCESS DOOR | No | Model Compatibility List | $3.04 / Each |
|||
| 137250 | 220711 | 77 | LATCH INSERT | No | Model Compatibility List | $3.93 / Each |
|||
 |
118353 | 220769 | 86 | MOTOR BELT | Yes | Model Compatibility List | $21.41 / Each |
||
| 125063 | 221151 | 69 | PULSE BAR | No | Model Compatibility List | $203.55 / Each |
|||
| 135970 | 221755 | 65 | RIGHT FOOT PAD | No | Model Compatibility List | $25.81 / Each |
|||
| 135958 | 221766 | 4 | 1/2" PIVOT WASHER | No | Model Compatibility List | $2.05 / Each |
|||
| 137245 | 221767 | 19 | FRAME SPACER | No | Model Compatibility List | $5.53 / Each |
|||
| 137146 | 221886 | 28 | LEFT REAR ENDCAP | No | Model Compatibility List | $55.87 / Each |
|||
| 137151 | 221887 | 36 | RIGHT REAR ENDCAP | No | Model Compatibility List | $55.87 / Each |
|||
| 137581 | 221888 | 45 | BELLYPAN | No | Model Compatibility List | $82.82 / Each |
|||
| 137150 | 221890 | 35 | RIGHT ROLLER GUARD | No | Model Compatibility List | $5.58 / Each |
|||
| 137147 | 221891 | 29 | LEFT ROLLER GUARD | No | Model Compatibility List | $5.58 / Each |
|||
| 137249 | 221940 | 76 | LATCH ASSEMBLY | No | Model Compatibility List | $7.41 / Each |
|||
| 137259 | 222026 | . | HARDWARE KIT | No | Model Compatibility List | $23.62 / Each |
|||
| 137582 | 222319 | # | TECH SHEET | No | Model Compatibility List | $0.79 / Each |
|||
| 137253 | 222474 | # | WLK BRD 'SPACESAVER' DECL | No | Model Compatibility List | $15.16 / Each |
|||
| 137254 | 222475 | # | WLK BRD 'REFLEX DECK' DCL | No | Model Compatibility List | $15.16 / Each |
|||
| 136490 | 222532 | 70 | RIGHT HANDRAIL | No | Model Compatibility List | $78.21 / Each |
|||
| 136133 | 223038 | 90 | BASE EXTENSION | No | Model Compatibility List | $35.31 / Each |
|||
| 137243 | 223260 | 14 | FRAME PIVOT BOLT | No | Model Compatibility List | $14.99 / Each |
|||
 |
100348 | 223673 | 43 | CONTROLLER | Yes | Model Compatibility List | $165.97 / Each |
||
| 137153 | 224259 | 49 | SUPPORT BRACKET | No | Model Compatibility List | $22.90 / Each |
|||
| 137584 | 225182 | # | USER'S MANUAL | No | Model Compatibility List | $15.38 / Each |
|||
| 100407 | 225209 | # | CD, MARATHON, INTERMEDIAT | No | Model Compatibility List | $83.89 / Each |
|||
| 100408 | 225212 | # | CD, 5K, BEGINNER | No | Model Compatibility List | $83.89 / Each |
|||
| 100409 | 225213 | # | CD, BODY TONE, LEVEL 3 | No | Model Compatibility List | $49.02 / Each |
|||
| 100410 | 225214 | # | CD, 10K, INTERMEDIATE | No | Model Compatibility List | $83.89 / Each |
|||
| 137577 | 225599 | 16 | WALKING BELT | No | Model Compatibility List | $245.60 / Each |
|||
| 137579 | 225602 | 33 | MOTOR HOOD | No | Model Compatibility List | $112.42 / Each |
|||
 |

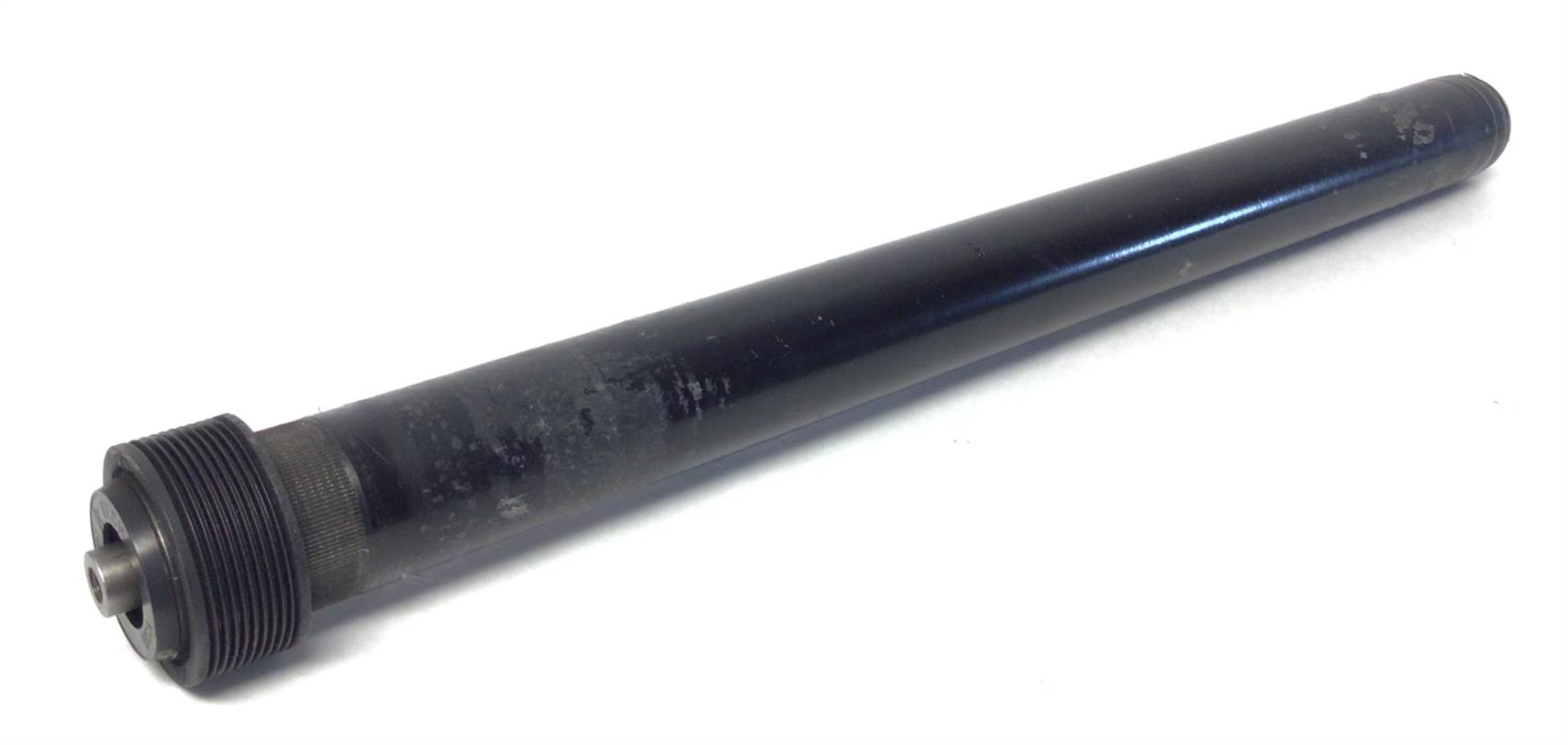

102930 | 225605 | 64 | REAR ROLLER | Yes | Model Compatibility List | $119.00 / Each |
||
 |

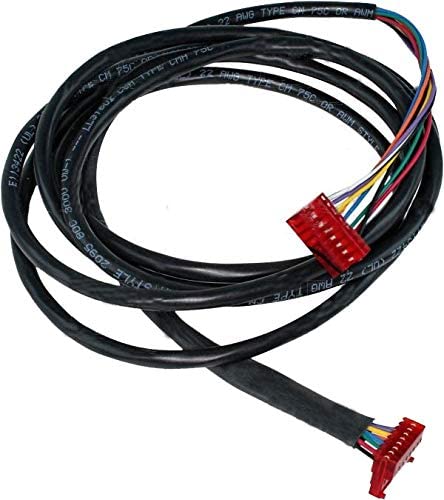

137248 | 225606 | 73 | UPRIGHT WIRE HARNESS | Yes | Model Compatibility List | $58.75 / Each |
||
 |
100232 | 227298 | 57 | IDLER ARM SPRING | Yes | Model Compatibility List | $3.40 / Each |
||
 |
100316 | 237858 | # | CHEST PULSE KIT | No | Model Compatibility List | $151.48 / Each |
||
| 122234 | 238737 | 78 | ELECTRONICS PLATE | No | Model Compatibility List | $33.89 / Each |
|||
| 125103 | 243329 | 98 | CONSOLE BASE | No | Model Compatibility List | $83.71 / Each |
|||
 |
119481 | 245920 | 103 | KEY/CLIP | Yes | Model Compatibility List | $18.08 / Each |
||
| 100280 | 256836 | 6 | LATCH WRNG DECAL, ENGLISH | No | Model Compatibility List | $1.36 / Each |
|||
 |
102291 | 259500 | 31 | MOTOR BOLT | No | Model Compatibility List | $2.93 / Each |
||
 |
102438 | 262782 | 25 | DRIVE MOTOR | Yes | Model Compatibility List | $454.34 / Each |
||
| 137097 | 266969 | # | FUSE | No | Model Compatibility List | $1.31 / Each |
|||
| 115252 | 052012 | 32 | WHEEL | No | Model Compatibility List | $4.08 / Each |
|||
 |
KV5-DWY-57F | 031229a | 031229 Power Cord | Yes | Model Compatibility List | $29.99 / Each |
|||
 |
1013204 | ET29509 | 105 | 1 | Display Console - Used Only | Yes | Model Compatibility List | $249.00 / Each Out Of Stock |
|
 |
1000884 | 124669 | # | 1 | Hardwired Power Cord (Used | Yes | Model Compatibility List | $14.99 / Each |
|
|
| |||||||||
