NordicTrack® - AUDIOSTRIDER 600

Exploded Diagrams

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry used@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
101448 100244 # #6 X 9.5MM SCREW No Model Compatibility List $0.08 / Each

2
100488 100630 100488 54 SNAP RING No Model Compatibility List $2.71 / Each

2
102372 101664 102372 96 5/16" WASHER No Model Compatibility List $0.21 / Each

2
104838 100396 104838 # LUBE, GREASE No Model Compatibility List $6.19 / Each

1,15
113842 100081 113842 # ROLLER MAGNET Yes Model Compatibility List $2.75 / Each

8
100814 115366 77 TRANSPORT HANDLE ENDCAP No Model Compatibility List $0.55 / Each

9,4,5,6,11
116980 114216 116980 73 38MM ROUND INNER CAP Yes Model Compatibility List $2.11 / Each

9
012142 101429 012142 94 M6 LOCKNUT No Model Compatibility List $1.98 / Each

2
131090 100079 131090 51 RSW CLAMP Yes Model Compatibility List $0.46 / Each

4,5,6
100828 140069 # SNAP RING PLIERS, 1" EXT No Model Compatibility List $85.64 / Each

2
140206 100027 140206 98 M10 FLAT WASHER No Model Compatibility List $2.43 / Each

2
141510 100894 141510 76 38MM X 76MM INNER CAP Yes Model Compatibility List $5.31 / Each

9
014174 100665 014174 97 M8 SPLIT WASHER No Model Compatibility List $2.48 / Each

2
143742 100654 143742 62 LARGE SNAP RING Yes Model Compatibility List $1.84 / Each

2
148710 100540 148710 82 M10 LOCKNUT No Model Compatibility List $2.67 / Each

2
148803 100467 148803 17 FRONT WHEEL Yes Model Compatibility List $2.52 / Each

8
100825 166295 # DECAL, WARNING, E/FCA No Model Compatibility List $1.03 / Each

7,3
100602 166909 # PAD FRAME WARNING DECAL No Model Compatibility List $1.84 / Each

7,3,12,13,14
170205 100752 170205 50 REED SWITCH/WIRE No Model Compatibility List $15.46 / Each

4,5,6
185387 101275 185387 42 WHEEL BEARING Yes Model Compatibility List $10.75 / Each

8
197780 116241 197780 65 UPPER WIRE HARNESS 30" Yes Model Compatibility List $72.02 / Each

4
201296 100697 201296 74 BELT Yes Model Compatibility List $106.39 / Each

15
204486 115304 204486 84 M8 X 14MM BUTTON SCREW No Model Compatibility List $2.09 / Each

2
204489 101362 204489 89 WAVE WASHER No Model Compatibility List $2.99 / Each

2,4,5,6
207682 100583 207682 85 M8 X 19MM SCREW No Model Compatibility List $3.97 / Each

2
100557 208581 100 M10 X 25MM BOLT No Model Compatibility List $3.73 / Each

2
208817 101187 208817 78 M4 X 16MM SCREW No Model Compatibility List $1.56 / Each

2
208855 100678 208855 87 M8-1.25 X 25MM BUTTON SCREW No Model Compatibility List $4.29 / Each

2
208938 100779 208938 91 M10 X 60MM BUTTON SCREW Yes Model Compatibility List $4.51 / Each

2
212500 113421 212500 90 M8-1.25 X 45MM Button Head Screw Yes Model Compatibility List $3.83 / Each

2
213148 100797 213148 80 WAVE WASHER No Model Compatibility List $1.65 / Each

2
224113 100672 224113 95 M8 X 18MM WASHER No Model Compatibility List $1.86 / Each

2
231745 101587 231745 46A PILLOW BLOCK Yes Model Compatibility List $22.30 / Each

1
116311 234639 8 HANDLEBAR ENDCAP No Model Compatibility List $3.26 / Each

9,4,5,6,11
234664 129561 234664 93 M10 X 80MM BUTTON HEAD SCREW No Model Compatibility List $3.86 / Each

2
241949 101588 241949 49 REISTANCE MOTOR Yes Model Compatibility List $76.77 / Each

1
101677 241952 # EDDY LINK ARM No Model Compatibility List $5.65 / Each

8,3
241954 101173 241954 # RESISTANCE WHEEL No Model Compatibility List $2.39 / Each

8,10
101577 241963 47 IDLER No Model Compatibility List $44.42 / Each

8
101590 241967 # IDLER WASHER No Model Compatibility List $1.03 / Each

2,8
242710 101592 242710 # M6 X 18MM IDLER SCREW Yes Model Compatibility List $0.52 / Each

2,8
242711 100775 242711 83 M6 X 10MM BUTTON HEAD SCREW No Model Compatibility List $0.52 / Each

2
243374 101063 243374 # IDLER SNAP RING Yes Model Compatibility List $1.32 / Each

2,8
244245 101589 244245 48 IDLER PULLEY Yes Model Compatibility List $26.07 / Each

8
100826 244325 # BATTERY DOOR No Model Compatibility List $6.42 / Each

1
133001 247246 24 LEFT UPPER BODY LEG No Model Compatibility List $122.25 / Each

1
133023 247247 72 RIGHT UPPER BODY LEG No Model Compatibility List $122.25 / Each

1
109895 247255 7 SMALL BUSHING No Model Compatibility List $27.91 / Each

8

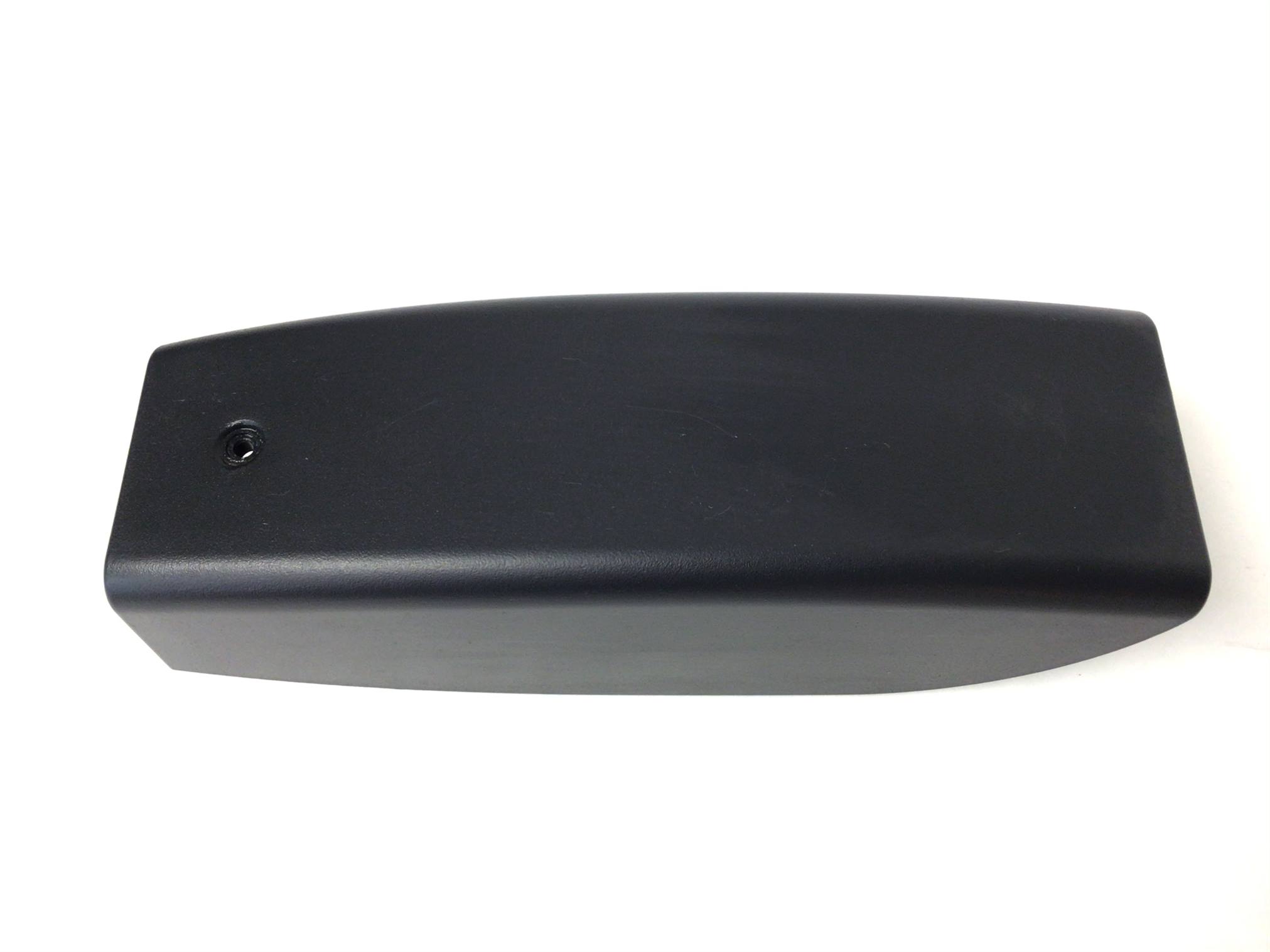

247265 131560 247265 39 PEDAL ARM COVER Yes Model Compatibility List $20.72 / Each

9
247269 131559 247269 35 RIGHT PEDAL Yes Model Compatibility List $100.74 / Each

8,9
247347 129549 247347 64 LOWER WIRE HARNESS Yes Model Compatibility List $72.00 / Each
4
133020 247525 68 BRASS BUSHING No Model Compatibility List $5.36 / Each

8
140096 247528 53 PIVOT ARM BUSHING No Model Compatibility List $22.03 / Each

8,3
132990 247530 9 UPPER BODY LEG SPACER No Model Compatibility List $1.19 / Each

2,3,4,5,6
133019 247531 60A CRANK SPACER No Model Compatibility List $2.31 / Each

2,8,3,4,5,6
132997 247532 16 STABILIZER ENDCAP No Model Compatibility List $10.45 / Each

9,4,5,6
140095 247534 40 CENTER FOOT No Model Compatibility List $2.31 / Each

9
133014 247537 52 LARGE AXLE COVER No Model Compatibility List $4.53 / Each

8,9
133004 247538 27 LT FRONT UPPER BODY COVER No Model Compatibility List $16.02 / Each

9
133003 247539 26 LT REAR UPPER BODY COVER No Model Compatibility List $15.29 / Each

9
133006 247540 29 RT FRONT UPPER BODY COVER No Model Compatibility List $16.02 / Each

9
133005 247541 28 RT REAR UPPER BODY COVER No Model Compatibility List $15.29 / Each

9
140097 247543 66 AXLE COVER No Model Compatibility List $3.02 / Each

8,9
133008 247544 36 LEFT FRAME COVER No Model Compatibility List $20.87 / Each

9,3
133009 247545 37 RIGHT FRAME COVER No Model Compatibility List $20.87 / Each

9,3
140093 247546 12 DISC No Model Compatibility List $124.60 / Each

1
140094 247547 13 DISC COVER No Model Compatibility List $40.62 / Each

9
132995 247548 14 LEFT SIDE SHIELD No Model Compatibility List $109.64 / Each

3
132996 247549 15 RIGHT SIDE SHIELD No Model Compatibility List $109.64 / Each

3
133024 247550 75 FOAM No Model Compatibility List $6.59 / Each

1
133007 247551 34 LEFT PEDAL No Model Compatibility List $76.57 / Each

8,9
133010 247555 38 LATCH SPRING No Model Compatibility List $10.12 / Each

2
133012 247556 43 LINK ARM PAD No Model Compatibility List $1.85 / Each

3,12,13,14
133011 247558 41 LATCH BUTTON No Model Compatibility List $11.99 / Each

1
132988 247562 5 LEFT PEDAL BRACKET No Model Compatibility List $81.59 / Each

2,8,9,3,4,5,6
132989 247563 6 RIGHT PEDAL BRACKET No Model Compatibility List $81.59 / Each

2,8,9,3,4,5,6
133021 247566 69 LATCH BRACKET No Model Compatibility List $24.82 / Each

2,3,4,5,6
140092 247571 3 REAR STABILIZER No Model Compatibility List $50.55 / Each

1
132987 247573 4 FRONT STABILIZER No Model Compatibility List $50.55 / Each

1
133002 247574 70 LATCH AXLE No Model Compatibility List $6.19 / Each

8
132998 247575 18 LINK AXLE No Model Compatibility List $10.12 / Each

8
133022 247577 25 PIVOT AXLE No Model Compatibility List $15.49 / Each

8
132999 247592 22 LEFT UPPER BODY ARM No Model Compatibility List $29.96 / Each

3
133000 247593 23 RIGHT UPPER BODY ARM No Model Compatibility List $29.96 / Each

3
132991 247596 10 UPRIGHT No Model Compatibility List $63.61 / Each

3
133025 247660 88 M8 X 25MM BOLT SET No Model Compatibility List $2.64 / Each

2
133018 247663 58A CRANK FLANGE No Model Compatibility List $72.91 / Each

8
133015 247664 55 CRANK ARM No Model Compatibility List $97.92 / Each

8,3
133017 247665 57A LARGE PULLEY No Model Compatibility List $103.50 / Each

8
133016 247666 56A CRANK ARM SPACER No Model Compatibility List $8.36 / Each

2,8,3,4,5,6
248512 100830 248512 # POWER SUPPLY Yes Model Compatibility List $21.95 / Each

4,5,6
131607 249363 61A CRANK No Model Compatibility List $16.30 / Each

8
131584 249365 21 PIVOT BUSHING No Model Compatibility List $12.23 / Each

8
250868 109029 250868 31 M8 X 23MM WASHER No Model Compatibility List $0.38 / Each

2
250913 123114 250913 92 M10 X 77MM CARRIAGE BOLT No Model Compatibility List $12.80 / Each

2
102005 250957 79 M4 X 15MM FLAT HEAD SCREW No Model Compatibility List $0.28 / Each

2
109858 251498 # EXERCISE CHART No Model Compatibility List $5.69 / Each

1
131566 252130 CN, AUDIO CABLE No Model Compatibility List $0.00 / Each
Out Of Stock
4,5,6
123083 252161 86 M8 X 23MM BUTTON SCREW No Model Compatibility List $0.90 / Each

2
140098 252622 # USER'S MANUAL, 23665V1 No Model Compatibility List $8.93 / Each

1
252795 104641 252795 99 M10 LOCK WASHER No Model Compatibility List $0.37 / Each

2
131689 253516 # EXERCISE CHART No Model Compatibility List $10.90 / Each

1
131565 255932 CN, M4 X 16MM SCREWS No Model Compatibility List $0.00 / Each
Out Of Stock
2
115167 258869 # DECAL, GENERAL WARNING No Model Compatibility List $3.77 / Each

7,3
140099 260081 # USER'S MANUAL,23665V1,FCA No Model Compatibility List $0.00 / Each
Out Of Stock
1
115784 262235 # DECAL, GENERAL WRNG, FCA No Model Compatibility List $6.89 / Each

7,3
263345 101617 263345 59B RT BEARING HOUSING ASSY No Model Compatibility List $65.93 / Each

1
101474 276770 # IFIT SD,JILLIAN MICHAELS No Model Compatibility List $27.49 / Each

1
101475 276771 # IFIT SD,JILLIAN MICHAELS No Model Compatibility List $27.49 / Each

1
101476 276772 # IFIT SD,JILLIAN MICHAELS No Model Compatibility List $27.49 / Each

1
101477 276773 # IFIT SD,JILLIAN MICHAELS No Model Compatibility List $27.49 / Each

1
101478 276774 # IFIT SD,JILLIAN MICHAELS No Model Compatibility List $27.49 / Each

1
101479 276775 # IFIT SD,JILLIAN MICHAELS No Model Compatibility List $27.49 / Each

1
283582 100776 283582 63 CRANK SCREW No Model Compatibility List $47.61 / Each

2,8
101465 290905 # IFIT CARD, WELLNESS, L1 No Model Compatibility List $21.99 / Each

1
101466 290906 # IFIT CARD, WELLNESS, L2 No Model Compatibility List $21.99 / Each

1
101467 290907 # IFIT CARD, WELLNESS, L3 No Model Compatibility List $21.99 / Each

1
101468 290908 # IFIT CARD, WEIGHT LOSS,L1 No Model Compatibility List $21.99 / Each

3
101469 290909 # IFIT CARD, WEIGHT LOSS,L2 No Model Compatibility List $21.99 / Each

3
101470 290910 # IFIT CARD, WEIGHT LOSS,L3 No Model Compatibility List $21.99 / Each

3
045008 100604 045008 # 5MM ALLEN WRENCH No Model Compatibility List $3.85 / Each

2
045021 100541 045021 # 6MM ALLEN WRENCH No Model Compatibility List $5.28 / Each

2
264256 1005465 264256 # 1 10" Eddy Mechanism Brake (Used) Yes Model Compatibility List $328.90 / Each

8
247401 1019266 247401 0 1 ELNT7506 DISPLAY CONSOLE (USED) Yes Model Compatibility List $179.00 / Each
Out Of Stock
7
014033 1020703 014033 0 1 M6 Flat Washer (Used) Yes Model Compatibility List $2.02 / Each

1
View Drawing
