NordicTrack® - C2420

Brand: NordicTrack®

Category: Residential Treadmills

Type: Folding Treadmill

Model Number: 831.295112

Model Name: C2420

Exploded Diagrams

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry used@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
106879 110794 106879 58 3/8" X 3" BOLT No Model Compatibility List $2.94 / Each

113842 100081 113842 18 ROLLER MAGNET Yes Model Compatibility List $2.75 / Each

116926 100064 116926 51 RELEASABLE WIRE TIE No Model Compatibility List $2.45 / Each

116927 100262 116927 50 TIE CLAMP HOLDER - SCREW MOUNT No Model Compatibility List $2.49 / Each

119425 100031 119425 20 3/8" HEX JAM NUT No Model Compatibility List $1.65 / Each

121576 100424 121576 9 SPRING NUT Yes Model Compatibility List $0.34 / Each

100088 123945 # TECH SHEET ENVELOPE No Model Compatibility List $0.94 / Each

125819 101014 125819 151 LARGE STANDOFF Yes Model Compatibility List $0.34 / Each

117645 126040 111 ALLEN WRENCH 3/16" No Model Compatibility List $1.29 / Each

126650 106102 126650 83 RUBBER BUMPER No Model Compatibility List $3.01 / Each

128272 100221 128272 5 PLATFORM BOLT, FRONT 1/4 X1.25" Yes Model Compatibility List $7.04 / Each

122932 128645 130 1/4" X 2.25" BOLT No Model Compatibility List $1.92 / Each

013162 101030 013162 129 M4 X 13MM SCREW Yes Model Compatibility List $1.26 / Each

013206 100358 013206 74 REAR ROLLER BOLT 1/4-20X3" Yes Model Compatibility List $4.51 / Each

013300 100149 013300 32 #8 X 3/4" WASHER HD SCREW No Model Compatibility List $1.28 / Each

133333 100032 133333 34 #8 HOOD CLIP No Model Compatibility List $0.65 / Each

122929 013427 4 1/4" X 1.5" SCREW No Model Compatibility List $0.84 / Each

013496 102260 013496 64 CONSOLE BOLT No Model Compatibility List $2.25 / Each

013547 100450 013547 68 IDLER ARM BOLT No Model Compatibility List $2.89 / Each

100412 013567 2 SPRING PAD SCREW No Model Compatibility List $0.26 / Each

136012 100252 136012 57 PLATFORM NUT No Model Compatibility List $1.47 / Each

136121 100359 136121 60 REAR ROLLER STAR WASHER No Model Compatibility List $2.33 / Each

136728 100137 136728 13 #8 X 1/2" SCREW Yes Model Compatibility List $0.30 / Each

138797 100465 138797 66 EXTENSION LEG BOLT No Model Compatibility List $2.72 / Each

014063 100042 014063 43 1/4" FLAT WASHER No Model Compatibility List $1.03 / Each

014132 100263 014132 79 IDLER WHEEL WASHER No Model Compatibility List $2.43 / Each

014149 100449 014149 67 5/16" STAR WASHER No Model Compatibility List $0.20 / Each

142622 100255 142622 14 HANDRAIL BOLT No Model Compatibility List $3.28 / Each

100264 146427 82 1" TEK SCREW No Model Compatibility List $0.28 / Each

150148 100266 150148 88 WHEEL BOLT No Model Compatibility List $4.19 / Each

015044 100432 015044 37 COTTER PIN No Model Compatibility List $1.98 / Each

150508 102058 150508 87 MOUNT SCREW No Model Compatibility List $1.52 / Each

153403 108861 153403 # 4 No Model Compatibility List $2.76 / Each

154848 101799 154848 101 M4 X 52MM SCREW No Model Compatibility List $1.23 / Each

157600 100076 157600 81 BASE PAD Yes Model Compatibility List $6.83 / Each

102240 158157 116 STATIC DECAL No Model Compatibility List $1.84 / Each

118633 158440 140 CUSHION ADJ PIN No Model Compatibility List $0.35 / Each

016057 100063 016057 65 8" CABLE TIE No Model Compatibility List $1.30 / Each

162866 100229 162866 8 IDLER WHEEL BOLT Yes Model Compatibility List $5.49 / Each

164574 100341 164574 124 IDLER ARM SPRING Yes Model Compatibility List $21.13 / Each

165220 100433 165220 38 FRONT ROLLER ADJ BOLT No Model Compatibility List $2.79 / Each

165798 102795 165798 22 REED SWITCH Yes Model Compatibility List $14.41 / Each

174796 103809 174796 149 BASE PAD SCREW No Model Compatibility List $2.77 / Each

181385 100454 181385 72 CONSOLE BOLT No Model Compatibility List $4.08 / Each

186819 100120 186819 23 #8 X 1/2" SCREW Yes Model Compatibility List $0.42 / Each

189034 124268 189034 80 CLEVIS PIN No Model Compatibility List $5.46 / Each

118635 189757 11 SPRING PLATE SPACER No Model Compatibility List $0.82 / Each

118634 189759 143 CUSHION ADJ GEAR No Model Compatibility List $9.49 / Each

125091 191355 # N' LOGO DECAL No Model Compatibility List $10.57 / Each

194329 103990 194329 120 3/8" X 1 1/2" BOLT No Model Compatibility List $4.89 / Each

194343 100435 194343 41 LOWER PIN Yes Model Compatibility List $5.31 / Each

113323 194526 # CONTROLLER GROUND WIRE No Model Compatibility List $2.33 / Each

125093 195458 # NORDICTRACK LOGO DECAL No Model Compatibility List $5.55 / Each

195476 100223 195476 # MAGNET No Model Compatibility List $14.08 / Each

113327 198072 # 12" BLUE WIRE F/F No Model Compatibility List $3.88 / Each

100344 200747 56 GROUND WIRE No Model Compatibility List $2.56 / Each

201563 102808 201563 # INCLINE WIRE No Model Compatibility List $13.42 / Each

113296 203982 108 FILTER WIRE No Model Compatibility List $20.16 / Each

208748 123871 208748 132 GEAR RACK Yes Model Compatibility List $21.48 / Each

100356 209415 144 BELLYPAN FASTENER No Model Compatibility List $1.83 / Each

123868 209704 30 LEAF SPRING SPACER No Model Compatibility List $6.42 / Each

214849 125075 214849 99 LEFT TRAY Yes Model Compatibility List $12.84 / Each

214850 125076 214850 97 RIGHT TRAY Yes Model Compatibility List $12.84 / Each

214851 100421 214851 19 FRAME SPACER No Model Compatibility List $2.90 / Each

214869 136090 214869 59 REAR WHEEL Yes Model Compatibility List $9.15 / Each

215823 100197 215823 93 AUDIO WIRE,18 Yes Model Compatibility List $8.87 / Each

215942 100431 215942 36 UPPER CLEVIS PIN No Model Compatibility List $5.72 / Each

118235 216122 113 CONSOLE GROUND WIRE No Model Compatibility List $2.71 / Each

125104 216458 106 CONSOLE "LENS" INSERT No Model Compatibility List $32.34 / Each

136931 216459 107 BOOK HOLDER No Model Compatibility List $21.20 / Each

136484 216568 128A CONTROL KNOB No Model Compatibility List $8.15 / Each

136485 216569 128B CONTROL KNOB CAP No Model Compatibility List $3.86 / Each

100451 216573 122 IDLER ARM SPACER No Model Compatibility List $1.67 / Each

216626 100422 216626 21 REED SWITCH CLIP No Model Compatibility List $1.85 / Each

123897 217076 117 15" WIRE HARNESS No Model Compatibility List $20.75 / Each

123866 217485 27 LEAF SPRING Yes Model Compatibility List $28.67 / Each

123867 217496 29 SPRING PAD No Model Compatibility List $6.94 / Each

136940 217504 # TECH SHEET No Model Compatibility List $0.87 / Each

217805 123883 217805 146 CUSHION SENSOR Yes Model Compatibility List $36.87 / Each

136939 217938 # "C2420" FRAME RAIL DECAL No Model Compatibility List $10.34 / Each

123905 217950 # CUSHION MOTOR WIRE No Model Compatibility List $44.18 / Each

218117 136105 218117 104 WHEEL SPACER No Model Compatibility List $3.53 / Each

136915 218676 42 TRANSFORMER No Model Compatibility List $134.85 / Each

136936 218928 145 CIRCUIT BOARD BRACKET No Model Compatibility List $10.34 / Each

123909 219089 28 CONTROLLER WIRE No Model Compatibility List $10.96 / Each

136933 219464 114 LEFT RAIL COVER No Model Compatibility List $75.32 / Each

136934 219466 115 RIGHT RAIL COVER No Model Compatibility List $75.32 / Each

136902 219470 1 LEFT FOOT RAIL No Model Compatibility List $75.32 / Each

136920 219472 54 RIGHT FOOT RAIL No Model Compatibility List $75.32 / Each

136919 219597 53 FRONT RIGHT ENDCAP No Model Compatibility List $8.01 / Each

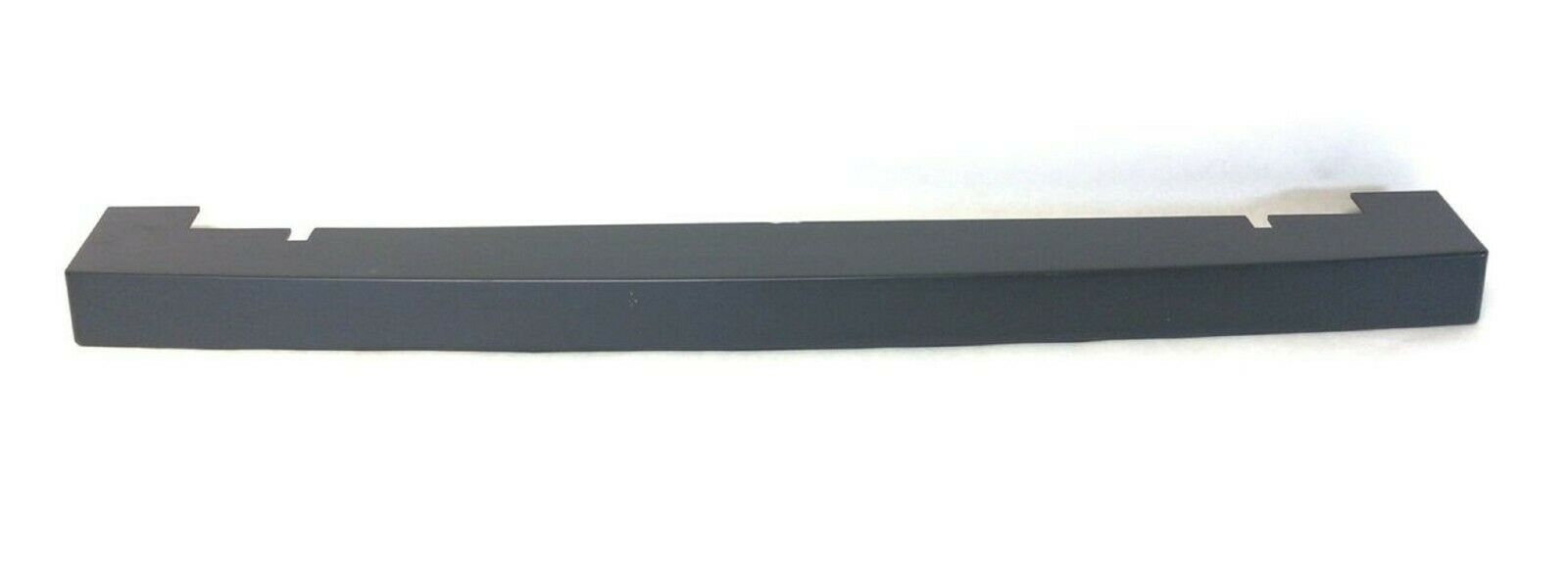

136084 219598 3 FRONT LEFT ENDCAP No Model Compatibility List $8.09 / Each

136924 219603 65 LEFT REAR ENDCAP No Model Compatibility List $18.03 / Each

136098 219607 91 RIGHT UPRIGHT CAP No Model Compatibility List $8.20 / Each

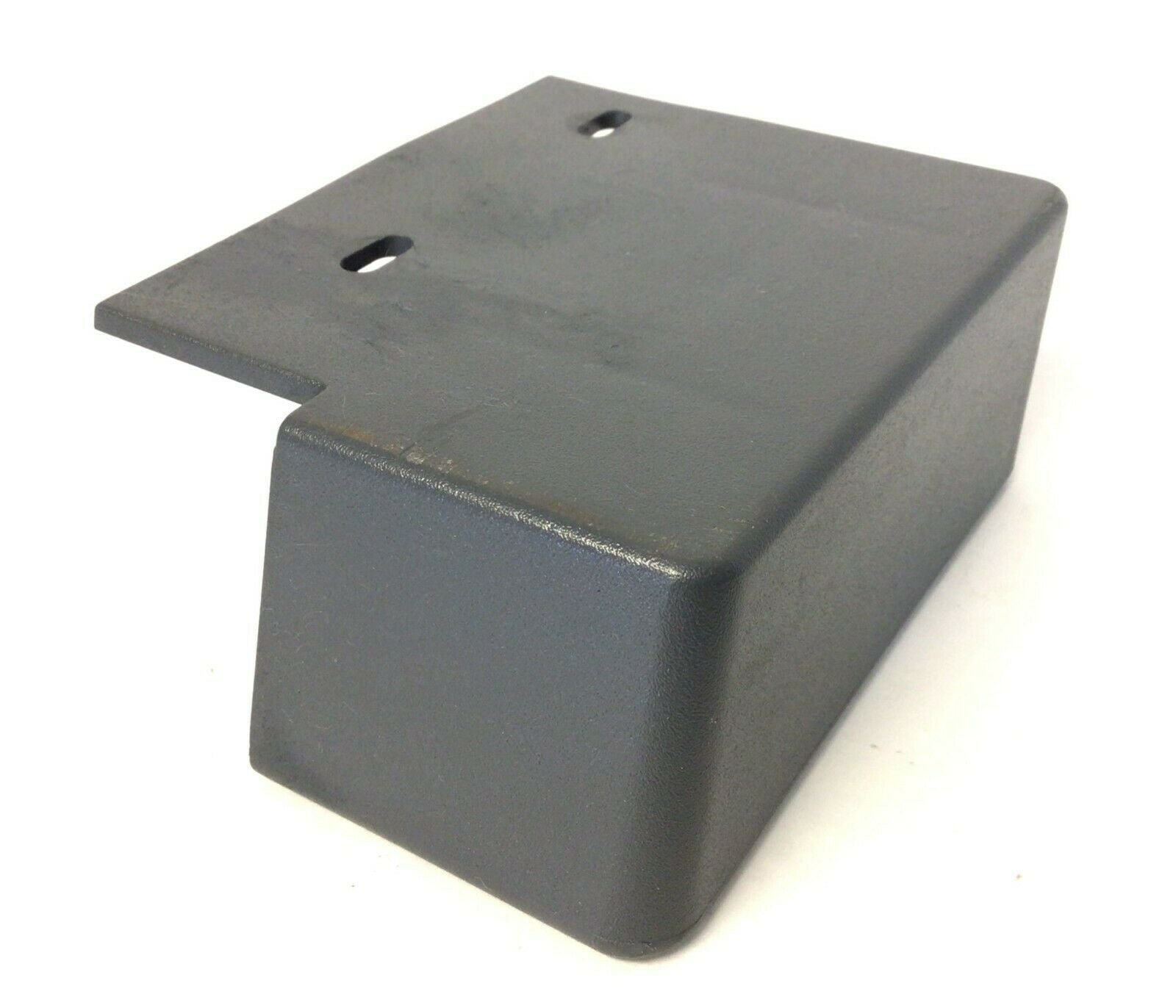

136095 219608 78 LEFT UPRIGHT CAP No Model Compatibility List $8.20 / Each

219610 125064 219610 77 LATCH KNOB SLEEVE No Model Compatibility List $3.89 / Each

219611 136094 219611 75 LEFT OR RIGHT UPRIGHT COVER Yes Model Compatibility List $14.30 / Each

136099 219613 92 BASE COVER No Model Compatibility List $47.67 / Each

125066 219617 98 CONSOLE BASE No Model Compatibility List $80.36 / Each

136916 219622 45 BELLYPAN No Model Compatibility List $88.10 / Each

136911 219969 24 LEFT CUSHION HOUSING No Model Compatibility List $20.41 / Each

136926 219970 79 RIGHT CUSHION HOUSING No Model Compatibility List $20.41 / Each

220621 125098 220621 . 5/16 X 2" BTTN SCREW No Model Compatibility List $3.21 / Each

125097 220647 . HARDWARE KIT B No Model Compatibility List $14.16 / Each

136930 220657 95 ACCESS DOOR No Model Compatibility List $3.34 / Each

220696 135996 220696 40 INCLINE MOTOR Yes Model Compatibility List $164.89 / Each

220769 118353 220769 26 MOTOR BELT Yes Model Compatibility List $23.55 / Each

125063 221151 69 PULSE BAR No Model Compatibility List $223.91 / Each

117440 221349 # CONTROLLER FUSE No Model Compatibility List $6.67 / Each

100479 222429 110 HOOD FOAM, RIGHT No Model Compatibility List $6.69 / Each

136490 222532 70 RIGHT HANDRAIL No Model Compatibility List $86.03 / Each

136945 222536 32 PLATFORM BRACKET No Model Compatibility List $15.54 / Each

136133 223038 90 BASE EXTENSION No Model Compatibility List $38.84 / Each

136905 223081 12 BELT GUIDE No Model Compatibility List $10.80 / Each

136947 223184 # USER'S MANUAL-NTL1495.2 No Model Compatibility List $10.34 / Each

223673 100348 223673 43 CONTROLLER Yes Model Compatibility List $182.57 / Each

123887 223682 141 CUSHION ADJ WHEEL No Model Compatibility List $20.73 / Each

136913 223844 33 MOTOR HOOD No Model Compatibility List $97.43 / Each

223927 123882 223927 148 CIRCUIT BOARD Yes Model Compatibility List $80.45 / Each

136906 224003 15 WALKING BOARD No Model Compatibility List $195.34 / Each

224005 136907 224005 17 FRONT ROLLER No Model Compatibility List $141.92 / Each

136116 224008 39 IDLER ARM No Model Compatibility List $68.00 / Each

100407 225209 # CD, MARATHON, INTERMEDIAT No Model Compatibility List $92.28 / Each

100408 225212 # CD, 5K, BEGINNER No Model Compatibility List $92.28 / Each

100409 225213 # CD, BODY TONE, LEVEL 3 No Model Compatibility List $53.92 / Each

100410 225214 # CD, 10K, INTERMEDIATE No Model Compatibility List $92.28 / Each

123865 225330 135 ISOLATOR No Model Compatibility List $29.27 / Each

237858 100316 237858 # CHEST PULSE KIT No Model Compatibility List $166.63 / Each

238669 100456 238669 123 IDLER ARM Yes Model Compatibility List $13.67 / Each

245920 119481 245920 103 KEY/CLIP Yes Model Compatibility List $19.89 / Each

100178 252433 84 WARNING DECAL No Model Compatibility List $0.47 / Each

136923 254349 64 REAR ROLLER No Model Compatibility List $135.79 / Each

100280 256836 6 LATCH WRNG DECAL, ENGLISH No Model Compatibility List $1.50 / Each

259500 102291 259500 31 MOTOR BOLT No Model Compatibility List $3.22 / Each

293895 102245 293895 25 DRIVE MOTOR Yes Model Compatibility List $358.19 / Each

100094 356520 # ACCESSORY KIT No Model Compatibility List $42.89 / Each

052012 115252 052012 32 WHEEL Yes Model Compatibility List $4.49 / Each

CushAct 1008730 CushAct Cushion Actuator Motor Assembly - Used No Model Compatibility List $146.30 / Each

220586 1009260 220586 # 1 Shock 29.5" (Used) Yes Model Compatibility List $54.99 / Each
Out Of Stock
