NordicTrack® - E8100 COMPETITION SERIES

Brand: NordicTrack®

Category: Functional Trainer

Type: Strength Systems

Model Number: NTSY19080

Model Name: E8100 COMPETITION SERIES

Exploded Diagrams

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry used@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
100886 103087 73 CABLE CLIP No Model Compatibility List $13.82 / Each

104838 100396 104838 # LUBE, GREASE No Model Compatibility List $5.63 / Each

119894 100086 119894 # 4MM ALLEN WRENCH No Model Compatibility List $1.44 / Each

106584 120696 119 FRAME CROSSBAR ENDCAP No Model Compatibility List $3.03 / Each

104626 120733 68 25MM ROUND INNER CAP No Model Compatibility List $1.48 / Each

114759 120808 126 CURL BAR CAP No Model Compatibility List $1.09 / Each

113817 133758 83 M10 X 175MM BOLT No Model Compatibility List $15.76 / Each

114477 133759 85 M10 X 86MM BOLT No Model Compatibility List $14.95 / Each

106167 135574 120 M6 X 64MM BOLT No Model Compatibility List $3.54 / Each

140206 100027 140206 66 M10 FLAT WASHER No Model Compatibility List $2.21 / Each

102195 147592 98 CHAIN 16" No Model Compatibility List $15.72 / Each

148710 100540 148710 65 M10 LOCKNUT No Model Compatibility List $2.43 / Each

114732 157721 43 SMALL CABLE TRAP No Model Compatibility List $6.11 / Each

112496 164086 121 M10 X 65MM BOLT No Model Compatibility List $9.21 / Each

104586 165356 95 M10 X 25MM BOLT No Model Compatibility List $6.06 / Each

106094 181851 34 4.5" PULLEY No Model Compatibility List $63.82 / Each

106018 189241 123 BUMPER No Model Compatibility List $11.37 / Each

113923 189426 128 FOAM PAD No Model Compatibility List $27.48 / Each

104636 191144 48 M10 X 155MM SCREW No Model Compatibility List $18.89 / Each

104620 192210 92 M10 X 60MM BOLT No Model Compatibility List $0.42 / Each

102217 193237 82 M10 X 65MM BOLT No Model Compatibility List $7.37 / Each

106005 194610 103A CLIP COVER No Model Compatibility List $15.98 / Each

104496 194792 67 12MM SPACER No Model Compatibility List $1.87 / Each

104472 194795 77 SLIDE BUMPER No Model Compatibility List $18.16 / Each

112888 194877 100 M6 X 18MM SCREW No Model Compatibility List $2.11 / Each

106159 194883 93 M12 WASHER No Model Compatibility List $1.09 / Each

102207 195560 69 M10 X 45MM BOLT No Model Compatibility List $5.92 / Each

104666 195561 94 M10 X 55MM BOLT No Model Compatibility List $7.15 / Each

195562 100586 195562 47 M4 X 16MM SCREW Yes Model Compatibility List $1.31 / Each

139109 195923 46 M10 X 168MM BOLT No Model Compatibility List $7.91 / Each

104621 196511 27 WEIGHT CLIP No Model Compatibility List $18.20 / Each

104610 199398 70 M10 X 6.5MM SPACER No Model Compatibility List $1.17 / Each

116866 200521 79 M8 X 20MM SHOULDER BOLT No Model Compatibility List $4.86 / Each

104580 200896 133 SPRING RETAINER No Model Compatibility List $7.98 / Each

104468 204027 60 48MM ROUND INT ENDCAP No Model Compatibility List $12.51 / Each

123654 204031 21 V-PULLEY No Model Compatibility List $36.78 / Each

139115 204452 54 40MM X 70MM INNER CAP No Model Compatibility List $2.11 / Each

128961 205957 # EXERCISE GUIDE No Model Compatibility List $1.40 / Each

101947 208914 80 M6 X 40MM BOLT No Model Compatibility List $1.85 / Each

116914 220148 90 M5 X 20MM SELF-TAP SCREW No Model Compatibility List $0.94 / Each

102198 221103 87 M10 X 100MM BOLT No Model Compatibility List $11.46 / Each

100591 223086 81B M10 X 50MM BOLT No Model Compatibility List $3.03 / Each

100863 226917 33 SMALL PULLEY No Model Compatibility List $65.42 / Each

100560 227130 104 M10 X 15MM SCREW No Model Compatibility List $2.80 / Each

102214 237951 81A M10 X 50MM BOLT No Model Compatibility List $3.51 / Each

113816 239042 134 19MM ROUND INNER CAP No Model Compatibility List $2.64 / Each

122413 240606 102 UPRIGHT ENDCAP, LEFT No Model Compatibility List $2.81 / Each

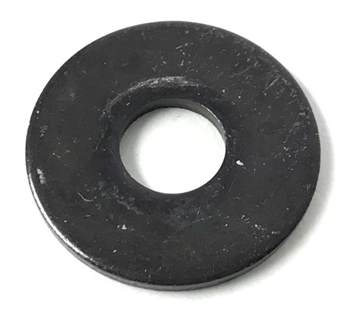

118272 243677 61 M6 FLAT WASHER No Model Compatibility List $0.14 / Each

114079 245588 63 BACKREST BUSHING No Model Compatibility List $4.08 / Each

100897 245795 40 ROUND FRAME BUMPER No Model Compatibility List $0.24 / Each

116736 247632 97 M10 X 130MM BOLT No Model Compatibility List $8.65 / Each

112848 248443 64 SMALL BEARING No Model Compatibility List $68.97 / Each

100881 250961 39 M4 X 19MM SELF-TAP SCREW No Model Compatibility List $0.65 / Each

104432 253213 # DECAL, MAX WEIGHT No Model Compatibility List $5.61 / Each

100543 253229 # WARNING DECAL No Model Compatibility List $11.51 / Each

104655 254033 75 BAR SLIDE BUSHING No Model Compatibility List $80.92 / Each

256446 100030 256446 84 M8 NUT No Model Compatibility List $0.65 / Each

131878 258462 76 WEIGHT BAR BUSHING No Model Compatibility List $4.48 / Each

131899 258468 41 WEIGHT CARRIAGE BUMPER No Model Compatibility List $17.32 / Each

131868 258471 44 WEIGHT BAR END KNOB No Model Compatibility List $58.11 / Each

139096 258564 22 WEIGHT BAR ADAPTER No Model Compatibility List $133.04 / Each

104607 258838 74 BARBELL SPOTTER RETAINER No Model Compatibility List $2.57 / Each

100900 260939 72 M6 X 10MM SCREW No Model Compatibility List $0.19 / Each

131882 263059 88 M12 X 75MM BOLT No Model Compatibility List $13.56 / Each

139148 264322 137 WEIGHT SPACER No Model Compatibility List $15.62 / Each

139147 264324 136 CURL KNOB No Model Compatibility List $14.08 / Each

139137 264337 115 CURL PIN No Model Compatibility List $18.53 / Each

139092 264366 17 WEIGHT BAR GUIDE No Model Compatibility List $305.85 / Each

139082 264368 6 CARRIAGE GUIDE No Model Compatibility List $132.65 / Each

139090 264369 15 ARM PAD No Model Compatibility List $49.20 / Each

139107 264372 38 FRONT UPRIGHT CAP No Model Compatibility List $50.18 / Each

139104 264374 35 RIGHT REAR UPRIGHT CAP No Model Compatibility List $20.64 / Each

139125 264375 96 LEFT REAR UPRIGHT CAP No Model Compatibility List $20.64 / Each

139102 264377 31 SWIVEL BRACKET CAP No Model Compatibility List $5.04 / Each

139110 264378 49 ARM BUSHING No Model Compatibility List $7.16 / Each
Out Of Stock
139108 264379 42 PULLEY BRACKET SPACER No Model Compatibility List $6.64 / Each

139106 264380 37 RACK FOOT No Model Compatibility List $34.58 / Each

139127 264621 101 CURL BAR BUSHING No Model Compatibility List $1.87 / Each

139142 264622 127 FRONT LEG PLATE No Model Compatibility List $15.25 / Each

139146 264623 135 LEG BUMPER No Model Compatibility List $11.12 / Each

106287 264624 122 LEFT SEAT FRAME SLEEVE No Model Compatibility List $3.04 / Each

139144 264625 131 BENCH STABILIZER CAP No Model Compatibility List $19.14 / Each

139141 264626 124 LOG LEVER BUSHING No Model Compatibility List $5.50 / Each

139117 264667 57 DOUBLE U-BRACKET No Model Compatibility List $59.40 / Each

139100 264668 29 BARBELL SPOTTER No Model Compatibility List $143.12 / Each

139087 264782 11 LEFT ARM FRAME No Model Compatibility List $50.38 / Each

139101 264784 30 BARBELL REST No Model Compatibility List $124.77 / Each

139088 264785 13 LEFT ARM No Model Compatibility List $148.62 / Each

139089 264787 14 RIGHT ARM No Model Compatibility List $148.62 / Each

139078 264799 3 CENTER UPRIGHT No Model Compatibility List $774.99 / Each

139080 264800 5A HINGE FRAME No Model Compatibility List $82.48 / Each

131893 264810 116 SEAT No Model Compatibility List $81.90 / Each

139086 264834 10 ARM ROD No Model Compatibility List $49.20 / Each

139083 264836 7 WEIGHT CARRIAGE No Model Compatibility List $88.72 / Each

139143 264848 129 SHORT PAD TUBE No Model Compatibility List $21.02 / Each

106230 264849 130 FOAM PAD TUBE No Model Compatibility List $18.50 / Each

139139 264862 118 BACKREST FRAME No Model Compatibility List $75.88 / Each

139134 264863 111 BACKREST POST No Model Compatibility List $64.18 / Each

139132 264864 109 FRONT LEG No Model Compatibility List $137.94 / Each

139130 264866 107 BENCH FRAME No Model Compatibility List $252.64 / Each

139136 264867 113 CURL POST No Model Compatibility List $68.25 / Each

139133 264868 110 LEG LEVER No Model Compatibility List $119.68 / Each

139135 264870 112 CURL BAR No Model Compatibility List $103.00 / Each

139122 264904 86 CABLE GUARD No Model Compatibility List $15.56 / Each

139118 264905 58 U-BRACKET No Model Compatibility List $29.01 / Each

139116 264906 56 PULLEY PLATE No Model Compatibility List $40.77 / Each

139094 264909 19 LOCKING BAR No Model Compatibility List $110.14 / Each

139097 264911 23 WEIGHT BAR SPOTTER No Model Compatibility List $33.13 / Each

139095 264913 20 WEIGHT BAR CARRIAGE No Model Compatibility List $64.69 / Each

139131 265022 108 BENCH STABILIZER No Model Compatibility List $98.05 / Each

139081 265024 5B HINGE FRAME W/WRNG DECAL No Model Compatibility List $106.64 / Each

131892 265036 114 CURL PAD No Model Compatibility List $87.16 / Each

139098 265078 24 SPOTTER HOOK No Model Compatibility List $16.30 / Each

139123 265089 89 BACKREST BRACKET No Model Compatibility List $14.88 / Each

139111 265093 50 ARM CABLE No Model Compatibility List $28.03 / Each

139112 265094 51 WEIGHT CARRIAGE CABLE No Model Compatibility List $53.18 / Each

139114 265095 53 HIGH CABLE No Model Compatibility List $124.46 / Each

139113 265096 52 LOW CABLE No Model Compatibility List $85.27 / Each

139120 265183 62 WEIGHT CARRIAGE BUSHING No Model Compatibility List $3.27 / Each

139105 265264 36 ARM STOP No Model Compatibility List $10.87 / Each

139149 272399 # USER'S MANUAL No Model Compatibility List $8.33 / Each

139119 274124 59 WEIGHT STORAGE TUBE No Model Compatibility List $58.50 / Each

139093 274125 18 WEIGHT BAR No Model Compatibility List $131.61 / Each

139084 274126 8 WEIGHT CARRIAGE TUBE No Model Compatibility List $88.64 / Each

139103 274127 32 SWIVEL BRACKET No Model Compatibility List $96.25 / Each

139099 274128 28 FOOT PLATE No Model Compatibility List $122.13 / Each

139085 274134 9 UPRIGHT BACKREST No Model Compatibility List $127.69 / Each

139079 274272 4 TOP FRAME No Model Compatibility List $434.56 / Each

139091 274273 16 CENTER UPRIGHT PLATE No Model Compatibility List $16.37 / Each

139138 274395 117 BACKREST No Model Compatibility List $127.67 / Each

139121 275364 78 M6 X 170MM SCREW No Model Compatibility List $13.09 / Each

139124 275365 91 M12 X 25MM PATCH SCREW No Model Compatibility List $1.64 / Each

139129 275366 106 M10 X 107MM BOLT SET No Model Compatibility List $14.33 / Each

139128 275409 105 100MM X 50MM INNER CAP No Model Compatibility List $4.91 / Each

139145 275411 132 150MM X 50MM INNER CAP No Model Compatibility List $7.16 / Each

139126 276196 99 BENCH PLATE No Model Compatibility List $93.25 / Each

106079 307476 25 HANDLE No Model Compatibility List $16.82 / Each

102194 344347 26 ANKLE STRAP No Model Compatibility List $56.29 / Each

104528 373258 71 M10 X 20MM BOLT No Model Compatibility List $3.55 / Each

045008 100604 045008 # 5MM ALLEN WRENCH No Model Compatibility List $3.50 / Each

045021 100541 045021 # 6MM ALLEN WRENCH No Model Compatibility List $4.80 / Each
