NordicTrack® - ELITE 3700
Brand: NordicTrack®
Category: Residential Treadmills
Type: Folding Treadmill
Model Number: 831.249326
Model Name: ELITE 3700
Exploded Diagrams
"Used Only" - contact us if interested in used or refurbished parts. Send us mail:
X-
Views
| Image | Catalog # | MPN | Part List Key | Quantity On Model | Part Description | Notes | Available Used | Model Compatibility List | New price |
|---|---|---|---|---|---|---|---|---|---|
 |
100139 | 100427 | 9 | 5/16" NUT | Yes | Model Compatibility List | $1.42 / Each |
||
| 102457 | 100553 | 34 | 1/2" NUT | No | Model Compatibility List | $0.90 / Each |
|||
 |
101061 | 101896 | # | 4" WHITE WIRE, M/F | No | Model Compatibility List | $4.44 / Each |
||
 |
109942 | 102973 | 46 | 3/8 | No | Model Compatibility List | $4.63 / Each |
||
| 101849 | 104794 | 77 | CARRIAGE CAP | No | Model Compatibility List | $1.14 / Each |
|||
 |
102521 | 114078 | 67 | INCLINE MTR SPACER | Yes | Model Compatibility List | $1.67 / Each |
||
| 100186 | 116566 | # | 15 1/2" CABLE TIE | No | Model Compatibility List | $0.69 / Each |
|||
 |
100064 | 116926 | # | RELEASABLE WIRE TIE | No | Model Compatibility List | $2.23 / Each |
||
 |
100031 | 119425 | 35 | 3/8" HEX JAM NUT | No | Model Compatibility List | $1.50 / Each |
||
 |
100424 | 121576 | 33 | SPRING NUT | Yes | Model Compatibility List | $0.31 / Each |
||
 |
102450 | 128263 | 17 | #8 X 1 3/4" SCREW | No | Model Compatibility List | $2.31 / Each |
||
| 105930 | 129144 | 47 | CABLE PULLEY WASHER | No | Model Compatibility List | $2.45 / Each |
|||
| 100073 | 132315 | 58 | WIRE TIE | No | Model Compatibility List | $0.51 / Each |
|||
 |
100149 | 013300 | 32 | #8 X 3/4" WASHER HD SCREW | No | Model Compatibility List | $1.16 / Each |
||
 |
100032 | 133333 | 36 | #8 HOOD CLIP | No | Model Compatibility List | $0.59 / Each |
||
 |
100132 | 013607 | 14A | #8 X 3/4" TRUSS HEAD SCRW | No | Model Compatibility List | $0.20 / Each |
||
 |
100137 | 136728 | 18 | #8 X 1/2" SCREW | Yes | Model Compatibility List | $0.27 / Each |
||
 |
100151 | 139090 | 92 | WHEEL | Yes | Model Compatibility List | $5.92 / Each |
||
 |
100449 | 014149 | 67 | 5/16" STAR WASHER | No | Model Compatibility List | $0.18 / Each |
||
 |
100141 | 014157 | 22 | #8 STAR WASHER | Yes | Model Compatibility List | $1.06 / Each |
||
 |
100097 | 146119 | # | FLOOR MAT 36X72" | No | Model Compatibility List | $69.00 / Each |
||
 |
100293 | 149072 | 22 | UPPER LATCH BOLT | No | Model Compatibility List | $4.50 / Each |
||
 |
100695 | 152478 | 31 | M8 X 25MM WASHER | Yes | Model Compatibility List | $0.68 / Each |
||
 |
100347 | 159986 | 15 | TOP LIFT MOTOR BOLT | No | Model Compatibility List | $6.39 / Each |
||
 |
100063 | 016057 | 65 | 8" CABLE TIE | No | Model Compatibility List | $1.18 / Each |
||
| 100128 | 167049 | 6 | #10 X 3/4" SCREW | No | Model Compatibility List | $0.29 / Each |
|||
 |
100061 | 173169 | 70 | GROMMET | Yes | Model Compatibility List | $0.85 / Each |
||
 |
109932 | 175284 | 29 | #6 X 1/2" SCREW | Yes | Model Compatibility List | $0.16 / Each |
||
 |
109966 | 186253 | 30 | CONSOLE FRAME CAP | Yes | Model Compatibility List | $5.31 / Each |
||
 |
100201 | 186726 | 71 | POWER SWITCH | Yes | Model Compatibility List | $18.59 / Each |
||
 |
100120 | 186819 | 13 | #8 X 1/2" SCREW | Yes | Model Compatibility List | $0.38 / Each |
||
| 102304 | 188015 | 95 | CONSOLE FAN | No | Model Compatibility List | $29.24 / Each |
|||
 |
100147 | 198639 | 43 | BELT GUIDE | Yes | Model Compatibility List | $9.99 / Each |
||
 |
101667 | 203283 | 2 | 5/16"X 2" BTN SCRW, NOTE: | No | Model Compatibility List | $3.88 / Each |
||
| 102975 | 209460 | # | HEX KEY | No | Model Compatibility List | $5.27 / Each |
|||
 |
100163 | 211260 | # | INCLINE MOTOR WIRE HRNS 12 | No | Model Compatibility List | $14.43 / Each |
||
| 100212 | 214773 | # | 6" GRN WIRE F/R, PWR GRND | No | Model Compatibility List | $2.06 / Each |
|||
 |
100187 | 215822 | # | 4 | No | Model Compatibility List | $4.90 / Each |
||
 |
100197 | 215823 | # | AUDIO WIRE,18 | Yes | Model Compatibility List | $8.06 / Each |
||
 |
100095 | 219168 | # | 1 TUBE LUBE KIT | No | Model Compatibility List | $6.19 / Each |
||
 |
100096 | 219170 | # | 3 TUBE LUBE KIT | No | Model Compatibility List | $27.62 / Each |
||
 |
109952 | 223662 | 59 | IDLER ROLLER | Yes | Model Compatibility List | $139.52 / Each |
||
| 100182 | 227199 | 86 | UPRIGHT GROMMET | No | Model Compatibility List | $1.41 / Each |
|||
| 100227 | 230979 | 68 | HOOD MOUNT | No | Model Compatibility List | $3.49 / Each |
|||
| 100185 | 240351 | 53 | ANCHORED CABLE TIE | No | Model Compatibility List | $0.67 / Each |
|||
| 100178 | 252433 | 85 | WARNING DECAL | No | Model Compatibility List | $0.43 / Each |
|||
 |
100162 | 286707 | # | INCLINE MOTOR SENSOR KIT | No | Model Compatibility List | $45.57 / Each |
||
 |
100133 | 291486 | 25 | #8X5/8" DECKRAIL SCREW | No | Model Compatibility List | $1.25 / Each |
||
| 109922 | 295136 | 1 | 5/16" X 3/4" SCREW | No | Model Compatibility List | $1.04 / Each |
|||
 |
102452 | 295758 | 19 | 5/16 | No | Model Compatibility List | $3.67 / Each |
||
 |
102459 | 298474 | 27 | RUBBER GROMMET | No | Model Compatibility List | $6.38 / Each |
||
 |
102454 | 298484 | 20 | 5/16 | Yes | Model Compatibility List | $1.46 / Each |
||
 |
102503 | 301345 | 23 | BASE PAD | Yes | Model Compatibility List | $1.99 / Each |
||
| 100037 | 305284 | 38 | LATCH WARNING DECAL | No | Model Compatibility List | $1.36 / Each |
|||
 |
136264 | 398065 | 74 | CONTROLLER | Yes | Model Compatibility List | $169.02 / Each |
||
 |
101031 | 315183 | 16B | CHEST STRAP | Yes | Model Compatibility List | $9.99 / Each |
||
 |
108827 | 319256 | 55 | MOTOR BELT -Flexonic | Yes | Model Compatibility List | $34.31 / Each |
||
 |
109924 | 346519 | 14 | 3/8" X 1 1/2" BOLT | Yes | Model Compatibility List | $3.71 / Each |
||
 |
110968 | 347877 | 87 | KEY | Yes | Model Compatibility List | $22.99 / Each |
||
| 109923 | 349213 | 4 | 5/16" X 2 1/4" BOLT | Yes | Model Compatibility List | $2.89 / Each |
|||
| 109562 | 349317 | 16A | HEART RATE MONITOR | No | Model Compatibility List | $106.19 / Each |
|||
| 126890 | 351467 | 76 | UPRIGHT CROSSBAR | No | Model Compatibility List | $41.45 / Each |
|||
 |
126891 | 351687 | 79 | TRAY | No | Model Compatibility List | $38.81 / Each |
||
| 112047 | 351693 | 72 | BELLY PAN | No | Model Compatibility List | $65.68 / Each Out Of Stock |
|||
| 126899 | 351786 | 100 | CONSOLE BASE | No | Model Compatibility List | $77.37 / Each |
|||
 |
109979 | 351787 | 94 | LEFT TRAY | Yes | Model Compatibility List | $7.83 / Each |
||
 |
109933 | 351788 | 101 | RIGHT TRAY | Yes | Model Compatibility List | $7.83 / Each |
||
| 126900 | 351789 | 102 | RIGHT SPEAKER GRILL | No | Model Compatibility List | $35.63 / Each |
|||
| 126898 | 351790 | 98 | LEFT SPEAKER GRILL | No | Model Compatibility List | $35.63 / Each |
|||
| 126897 | 351791 | 97 | LEFT SPEAKER COVER | No | Model Compatibility List | $9.62 / Each |
|||
| 126901 | 351792 | 88 | RIGHT SPEAKER COVER | No | Model Compatibility List | $9.62 / Each |
|||
 |
126884 | 351848 | 41 | LEFT FOOT RAIL | Yes | Model Compatibility List | $39.00 / Each |
||
 |
126885 | 351849 | 42 | RIGHT FOOT RAIL | Yes | Model Compatibility List | $39.99 / Each |
||
 |
109964 | 351951 | 75 | LEFT HANDRAIL BOTTOM CVR | Yes | Model Compatibility List | $11.19 / Each |
||
 |
109962 | 351952 | 73 | LEFT HANDRAIL TOP COVER | Yes | Model Compatibility List | $12.69 / Each |
||
 |
109970 | 351953 | 82 | RIGHT HANDRAIL BOTTOM CVR | Yes | Model Compatibility List | $11.07 / Each |
||
 |
109969 | 351954 | 81 | RIGHT HANDRAIL TOP COVER | Yes | Model Compatibility List | $12.57 / Each |
||
 |
109968 | 351955 | 80 | PULSE CROSSBAR | Yes | Model Compatibility List | $81.10 / Each |
||
| 126894 | 352004 | 90 | RIGHT UPRIGHT COVER | No | Model Compatibility List | $33.84 / Each |
|||
| 126893 | 352005 | 89 | LEFT UPRIGHT COVER | No | Model Compatibility List | $33.84 / Each |
|||
 |
111094 | 352008 | 66 | INCLINE MOTOR | Yes | Model Compatibility List | $127.05 / Each |
||
 |
109946 | 352011 | 51 | DRIVE ROLLER/PULLEY | Yes | Model Compatibility List | $120.48 / Each |
||
| 140702 | 352037 | 62 | HOOD | No | Model Compatibility List | $102.53 / Each |
|||
| 126882 | 352038 | 39 | WALKING PLATFORM | No | Model Compatibility List | $176.69 / Each Out Of Stock |
|||
 |
140700 | 352039 | 40 | WALKING BELT | No | Model Compatibility List | $121.82 / Each |
||
| 126886 | 352040 | 44 | LEFT FRAME COVER | No | Model Compatibility List | $54.66 / Each |
|||
 |
111097 | 352053 | 83 | UPRIGHT WIRE | Yes | Model Compatibility List | $53.30 / Each |
||
 |

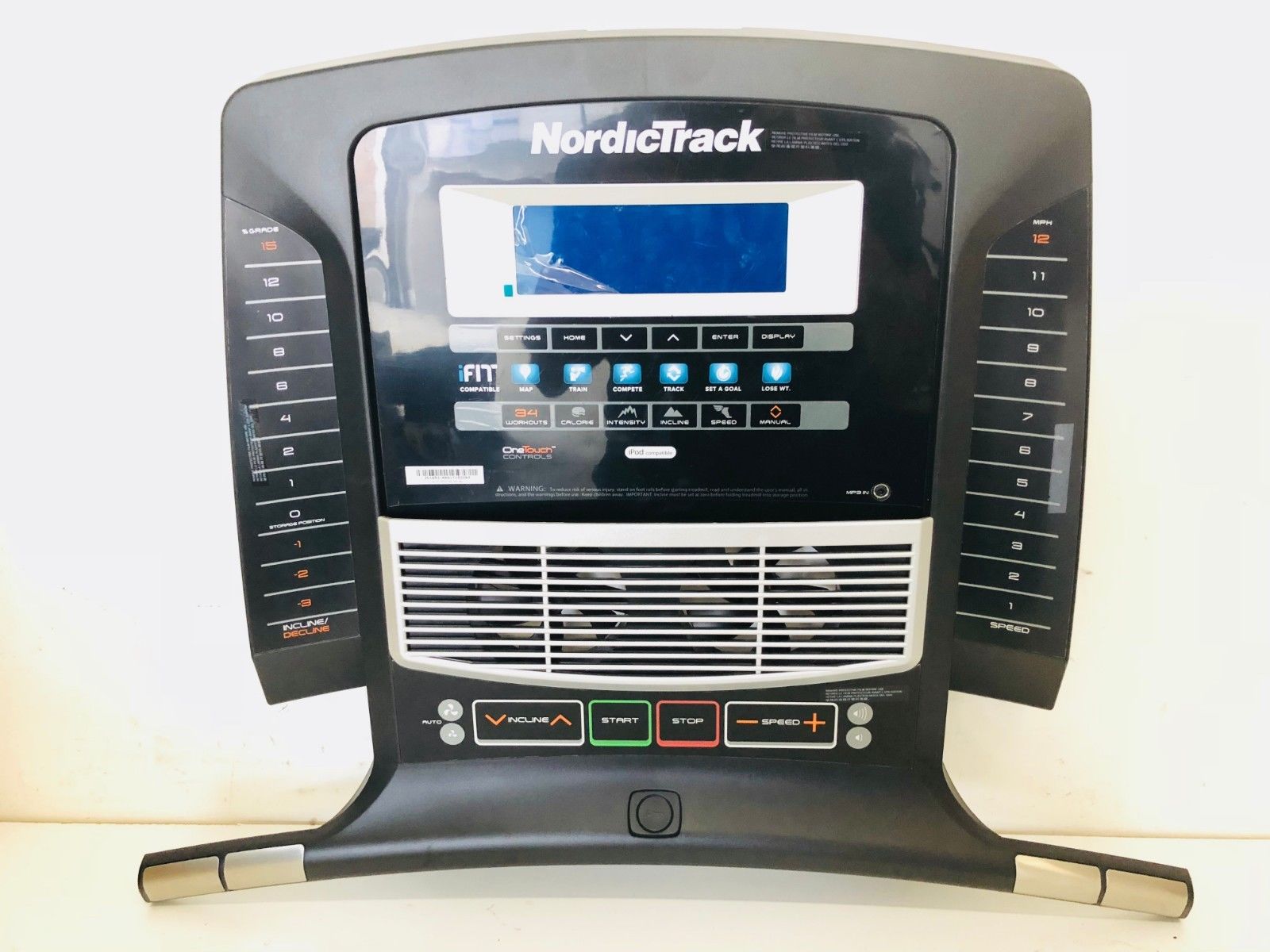

140703 | 352054 | 96A | CONSOLE | No | Model Compatibility List | $560.86 / Each |
||
| 140704 | 352055 | 96B | CNSL REPROG MODULE | No | Model Compatibility List | $187.13 / Each |
|||
| 111497 | 353429 | 99 | SPEAKER | No | Model Compatibility List | $25.40 / Each |
|||
| 100094 | 356520 | # | ACCESSORY KIT | No | Model Compatibility List | $38.99 / Each |
|||
| 109963 | 357773 | 74 | HANDRAIL | No | Model Compatibility List | $36.92 / Each |
|||
| 111103 | 357803 | 91 | RIGHT EXTENSION LEG | No | Model Compatibility List | $48.15 / Each |
|||
| 111104 | 357804 | 93 | LEFT EXTENSION LEG | No | Model Compatibility List | $48.15 / Each |
|||
 |
109953 | 358779 | 60 | LEFT REAR CAP | Yes | Model Compatibility List | $25.70 / Each |
||
 |
109954 | 358780 | 61 | RIGHT REAR CAP | Yes | Model Compatibility List | $24.00 / Each |
||
| 140701 | 359332 | 57 | RIGHT FRAME COVER | No | Model Compatibility List | $65.84 / Each |
|||
| 109974 | 360378 | 7 | CONTROLLER CLAMP | No | Model Compatibility List | $2.39 / Each |
|||
| 109945 | 361845 | 50 | CONTROLLER BRACKET | No | Model Compatibility List | $18.09 / Each |
|||
 |
102396 | 364027 | 12 | 1/4" X 2 1/2" BOLT | Yes | Model Compatibility List | $1.83 / Each |
||
 |
110153 | 405597 | 54 | DRIVE MOTOR | Yes | Model Compatibility List | $485.67 / Each |
||
| 109931 | 372033 | 28 | 3/8" X 1" SCREW | No | Model Compatibility List | $3.70 / Each |
|||
| 109941 | 372092 | 45 | 3/8" BUSHING | No | Model Compatibility List | $3.16 / Each |
|||
| 109956 | 372106 | 63 | INCLINE FRAME SPACER | No | Model Compatibility List | $1.54 / Each |
|||
| 109957 | 372107 | 64 | FRAME SPACER | No | Model Compatibility List | $2.01 / Each |
|||
| 109982 | 372108 | 78 | 1/2" BUSHING | No | Model Compatibility List | $2.24 / Each |
|||
| 109930 | 372109 | 26 | 1/2" X 2.25" BOLT, NOTE: | No | Model Compatibility List | $2.57 / Each |
|||
| 109958 | 372310 | 65 | INCLINE FRAME | No | Model Compatibility List | $65.78 / Each |
|||
| 140715 | 374056 | # | TECH SHEET | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 126916 | 374147 | 84 | UPRIGHT | No | Model Compatibility List | $449.75 / Each |
|||
| 140719 | 376905 | # | LITPAC, NOTE: | No | Model Compatibility List | $143.26 / Each |
|||
| 140718 | 376906 | # | USER'S MANUAL | No | Model Compatibility List | $16.03 / Each |
|||
| 109934 | 378158 | 32 | CONSOLE FRAME | No | Model Compatibility List | $92.69 / Each |
|||
| 111312 | 378980 | # | HARDWARE KIT NOTE: | No | Model Compatibility List | $20.20 / Each |
|||
| 126936 | 379622 | 37 | ADJUSTABLE CUSHION | No | Model Compatibility List | $30.50 / Each |
|||
 |
109949 | 388199 | 56 | STORAGE LATCH | Yes | Model Compatibility List | $96.90 / Each |
||
| 110986 | ARC14 | # | WALL ARC FILTER | No | Model Compatibility List | $34.99 / Each |
|||
 |
101226 | EXIF12 | # | IFIT WIFI ACCESSORY KIT | Yes | Model Compatibility List | $220.00 / Each |
||
 |
KV5-DWY-57F | 031229a | 031229 Power Cord | Yes | Model Compatibility List | $29.99 / Each |
|||
 |
1000884 | 124669 | # | 1 | Hardwired Power Cord (Used | Yes | Model Compatibility List | $14.99 / Each |
|
|
| |||||||||
