NordicTrack® - EXP2000
Brand: NordicTrack®
Category: Residential Treadmills
Type: Folding Treadmill
Model Number: 831.298843
Model Name: EXP2000
Exploded Diagrams
"Used Only" - contact us if interested in used or refurbished parts. Send us mail:
X-
Views
| Image | Catalog # | MPN | Part List Key | Quantity On Model | Part Description | Notes | Available Used | Model Compatibility List | New price |
|---|---|---|---|---|---|---|---|---|---|
 |
121977 | 100076 | 71 | LOCK KNOB SPRING | Yes | Model Compatibility List | $5.43 / Each |
||
 |
100630 | 100488 | 73 | SNAP RING | No | Model Compatibility List | $2.46 / Each |
||
 |
102620 | 100691 | 54 | #12 X 1.25" SCREW | No | Model Compatibility List | $1.20 / Each |
||
 |
100111 | 102634 | # | 8" GRN WIRE F/R, POWER | No | Model Compatibility List | $4.32 / Each |
||
 |
118672 | 104621 | 27 | CONSOLE BASE SCREW | No | Model Compatibility List | $1.32 / Each |
||
 |
104339 | 105444 | 59 | REAR ROLLER ADJ BOLT | Yes | Model Compatibility List | $2.68 / Each |
||
 |
110794 | 106879 | 94 | 3/8" X 3" BOLT | No | Model Compatibility List | $2.67 / Each |
||
 |
117640 | 107503 | 22 | MOTOR BOLT | Yes | Model Compatibility List | $5.92 / Each |
||
 |
103130 | 109382 | 41 | CIRCUIT BREAKER | Yes | Model Compatibility List | $10.47 / Each |
||
 |
100115 | 109407 | # | 4" BLK WIRE F/F, POWER | No | Model Compatibility List | $2.66 / Each |
||
 |
117627 | 113278 | 17 | PULY/FLWH/FAN | Yes | Model Compatibility List | $69.60 / Each |
||
 |
100081 | 113842 | 7 | ROLLER MAGNET | Yes | Model Compatibility List | $2.50 / Each |
||
 |
121827 | 114261 | 57 | ROLLER GROUND WIRE | No | Model Compatibility List | $7.06 / Each |
||
| 113328 | 114953 | # | 14" BLUE WIRE F/F | No | Model Compatibility List | $3.79 / Each |
|||
 |
100064 | 116926 | 89 | RELEASABLE WIRE TIE | No | Model Compatibility List | $2.23 / Each |
||
 |
100262 | 116927 | 91 | TIE CLAMP HOLDER - SCREW MOUNT | No | Model Compatibility List | $2.26 / Each |
||
 |
118532 | 117882 | 10A | REED SWITCH/SENSOR WIRE | Yes | Model Compatibility List | $14.10 / Each |
||
| 102820 | 118204 | # | 8" BLUE WIRE,M/F | No | Model Compatibility List | $3.00 / Each |
|||
 |
100031 | 119425 | 9 | 3/8" HEX JAM NUT | No | Model Compatibility List | $1.50 / Each |
||
 |
103901 | 120630 | 56 | CONSOLE GROUND SCREW | No | Model Compatibility List | $1.08 / Each |
||
 |
104004 | 120867 | 19 | SEAT RAIL FLANGE NUT | No | Model Compatibility List | $3.41 / Each |
||
| 105280 | 012096 | 75 | ADJUSTMENT BLOCK NUT | No | Model Compatibility List | $0.24 / Each |
|||
 |
100136 | 012149 | 16B | 3/8" HEX LOCK NUT | No | Model Compatibility List | $1.63 / Each |
||
 |
100462 | 012179 | 83 | U-NUT | No | Model Compatibility List | $4.02 / Each |
||
 |
113293 | 122812 | 101 | MOTOR WASHER | No | Model Compatibility List | $1.39 / Each |
||
| 100088 | 123945 | # | TECH SHEET ENVELOPE | No | Model Compatibility List | $0.85 / Each |
|||
| 117665 | 124695 | 109 | WIRE HARNESS GROMMET | No | Model Compatibility List | $0.75 / Each |
|||
 |
101014 | 125819 | 25 | LARGE STANDOFF | Yes | Model Compatibility List | $0.31 / Each |
||
 |
100112 | 126146 | # | 4" BLU WIRE F/F, DR MOTOR | No | Model Compatibility List | $2.21 / Each |
||
 |
106102 | 126650 | 99 | RUBBER BUMPER | No | Model Compatibility List | $2.74 / Each |
||
 |
100221 | 128272 | 53 | PLATFORM BOLT, FRONT 1/4 X1.25" | Yes | Model Compatibility List | $6.40 / Each |
||
 |
100190 | 128457 | 61 | 3/16-7/32 ALLEN WRENCH | No | Model Compatibility List | $8.17 / Each |
||
 |
101035 | 129004 | 97 | ROUND GROMMET | No | Model Compatibility List | $3.31 / Each |
||
 |
101030 | 013162 | 129 | M4 X 13MM SCREW | Yes | Model Compatibility List | $1.15 / Each |
||
 |
100149 | 013300 | 32 | #8 X 3/4" WASHER HD SCREW | No | Model Compatibility List | $1.16 / Each |
||
 |
100354 | 013316 | 63 | HOOD SCREW | No | Model Compatibility List | $1.29 / Each |
||
 |
118521 | 134690 | 31 | 8" POWER WIRE | Yes | Model Compatibility List | $8.08 / Each |
||
| 112926 | 135261 | # | 12" WHITE WIRE, M/F | No | Model Compatibility List | $3.53 / Each |
|||
 |
102048 | 013529 | 56 | M4 X 38MM SCREW | No | Model Compatibility List | $1.33 / Each |
||
 |
100450 | 013547 | 68 | IDLER ARM BOLT | No | Model Compatibility List | $2.63 / Each |
||
 |
106107 | 013601 | 64 | 3/8 | Yes | Model Compatibility List | $6.32 / Each |
||
| 104232 | 137824 | # | 10" WHITE WIRE, 2F | No | Model Compatibility List | $3.06 / Each |
|||
 |
100042 | 014063 | 43 | 1/4" FLAT WASHER | No | Model Compatibility List | $0.94 / Each |
||
 |
102446 | 014117 | 4 | 3/8" CONSOLE SUPPORT | No | Model Compatibility List | $1.20 / Each |
||
| 121861 | 141544 | 32 | FRONT ROLLER ADJ BOLT | No | Model Compatibility List | $0.77 / Each |
|||
 |
100255 | 142622 | 5 | HANDRAIL BOLT | No | Model Compatibility List | $2.98 / Each |
||
 |
118516 | 144809 | 62 | REAR ROLLER | Yes | Model Compatibility List | $131.04 / Each |
||
| 100264 | 146427 | 3 | 1" TEK SCREW | No | Model Compatibility List | $0.25 / Each |
|||
 |
100318 | 148202 | 12 | REED SWTICH CLIP | No | Model Compatibility List | $2.20 / Each |
||
 |
100467 | 148803 | 95 | FRONT WHEEL | Yes | Model Compatibility List | $2.29 / Each |
||
 |
118396 | 149442 | 78 | 4" BOLT | No | Model Compatibility List | $6.33 / Each |
||
| 123827 | 153409 | 39 | LONG BELLYPAN SCREW | No | Model Compatibility List | $0.66 / Each |
|||
 |
101799 | 154848 | 90 | M4 X 52MM SCREW | No | Model Compatibility List | $1.12 / Each |
||
| 117650 | 155353 | 60 | LATCH WARNING DECAL | No | Model Compatibility List | $52.73 / Each |
|||
 |
100453 | 157223 | 79 | ROUND UPRIGHT ENDCAP | Yes | Model Compatibility List | $5.01 / Each |
||
 |
123830 | 157360 | 49 | Push FASTENER | No | Model Compatibility List | $0.24 / Each |
||
 |
100423 | 157504 | 10B | REED SWITCH | Yes | Model Compatibility List | $14.37 / Each |
||
 |
100076 | 157600 | # | BASE PAD | Yes | Model Compatibility List | $6.21 / Each |
||
 |
123837 | 157611 | 70 | LOCK KNOB SLEEVE | Yes | Model Compatibility List | $10.00 / Each |
||
 |
123845 | 157612 | 117 | LOCK KNOB SPACER | Yes | Model Compatibility List | $4.00 / Each |
||
| 122848 | 157640 | 104 | WARNING DECAL, ENGLISH | No | Model Compatibility List | $2.37 / Each |
|||
 |
100352 | 157646 | 113 | 12" IFIT AUDIO JACK WIRE | Yes | Model Compatibility List | $15.22 / Each |
||
| 102240 | 158157 | 40 | STATIC DECAL | No | Model Compatibility List | $1.67 / Each |
|||
 |
100386 | 158332 | 86 | JACK | Yes | Model Compatibility List | $6.96 / Each |
||
 |
123836 | 158349 | 68 | LOCK KNOB | No | Model Compatibility List | $4.84 / Each |
||
 |
122230 | 158693 | 6 | FRAME PIVOT SPACER | No | Model Compatibility List | $6.38 / Each |
||
 |
123828 | 158715 | 44 | LEFT ENDCAP INSERT | Yes | Model Compatibility List | $18.66 / Each |
||
 |
123842 | 158716 | 96 | RIGHT ENDCAP INSERT | Yes | Model Compatibility List | $18.84 / Each |
||
| 125191 | 160172 | # | TECH SHEET | No | Model Compatibility List | $0.56 / Each |
|||
 |
123831 | 160324 | 51 | FRONT RIGHT FOOT RAIL CAP | Yes | Model Compatibility List | $9.62 / Each |
||
 |
102193 | 160327 | 103 | 2 | Yes | Model Compatibility List | $8.60 / Each |
||
| 123838 | 160399 | 75A | PLASTIC BUSHING | No | Model Compatibility List | $0.62 / Each |
|||
 |
123834 | 160400 | 65 | HANDRAIL SPACER | Yes | Model Compatibility List | $9.10 / Each |
||
 |
100063 | 016057 | 65 | 8" CABLE TIE | No | Model Compatibility List | $1.18 / Each |
||
 |
121832 | 160695 | 84 | KEY/CLIP | Yes | Model Compatibility List | $9.99 / Each |
||
 |
115655 | 160707 | 33 | M4 X 50MM SCREW | No | Model Compatibility List | $1.40 / Each |
||
 |
123829 | 161043 | 47 | ISOLATOR | Yes | Model Compatibility List | $29.44 / Each |
||
 |
100247 | 161411 | . | PAD SPACER | Yes | Model Compatibility List | $3.38 / Each |
||
| 120310 | 161695 | 77 | M8.5 WASHER | No | Model Compatibility List | $0.13 / Each |
|||
| 106104 | 161713 | 93 | 3/8" X 5" BTNHD SCREW | No | Model Compatibility List | $4.75 / Each |
|||
 |
122275 | 161943 | 87 | HANDRAIL CAP | Yes | Model Compatibility List | $3.19 / Each |
||
 |
123824 | 162135 | 8 | FRONT ROLLER/PULLEY | Yes | Model Compatibility List | $113.22 / Each |
||
 |
123843 | 162204 | 98 | UPRIGHT WIRE HARNESS | Yes | Model Compatibility List | $58.80 / Each |
||
| 139466 | 163675 | # | USER'S MANUAL | No | Model Compatibility List | $12.47 / Each |
|||
| 122853 | 163889 | # | RAIL WARNING DECAL | No | Model Compatibility List | $20.26 / Each |
|||
| 118208 | 165224 | # | 12" GREEN WIRE, 2RING | No | Model Compatibility List | $2.48 / Each |
|||
| 100485 | 165831 | 64A | CHEST PULSE STRAP | No | Model Compatibility List | $12.79 / Each |
|||
 |
123832 | 166484 | 55 | REAR ISOLATOR | Yes | Model Compatibility List | $19.42 / Each |
||
 |
100385 | 167079 | 85 | AUDIO CABLE | Yes | Model Compatibility List | $16.01 / Each |
||
| 123826 | 171192 | 38 | FRONT BELLY PAN | No | Model Compatibility List | $86.53 / Each |
|||
 |
100351 | 172822 | # | AUDIO WIRE NUT | No | Model Compatibility List | $1.20 / Each |
||
| 125181 | 172958 | 107 | 1.75" CONSOLE SCREW | No | Model Compatibility List | $0.21 / Each |
|||
| 125188 | 173163 | . | HARDWARE KIT | No | Model Compatibility List | $90.74 / Each |
|||
| 123835 | 173766 | 67 | ENDCAP CLIP | No | Model Compatibility List | $1.20 / Each |
|||
 |
123851 | 174491 | 58 | REAR ENDCAP | Yes | Model Compatibility List | $118.72 / Each |
||
| 123852 | 176294 | 88 | CONSOLE BASE | No | Model Compatibility List | $43.11 / Each |
|||
| 123840 | 184806 | 81 | CONSOLE BASE | No | Model Compatibility List | $71.26 / Each |
|||
| 123839 | 188883 | 75B | METAL BUSHING | No | Model Compatibility List | $0.71 / Each |
|||
| 125091 | 191355 | # | N' LOGO DECAL | No | Model Compatibility List | $9.61 / Each |
|||
 |

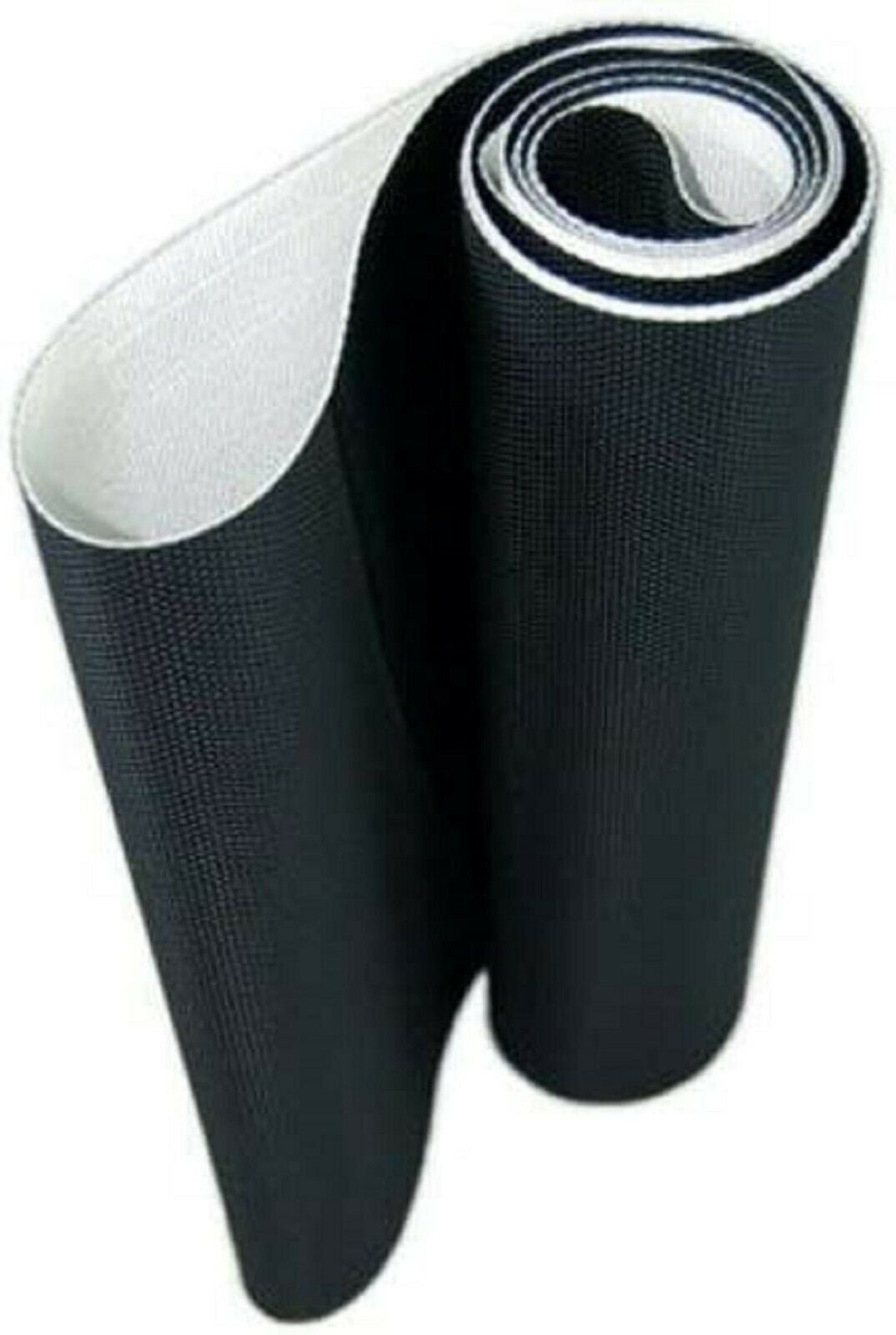

123853 | 195284 | 114 | WALKING BELT | No | Model Compatibility List | $119.44 / Each |
||
 |
100096 | 219170 | 114A | 3 TUBE LUBE KIT | No | Model Compatibility List | $27.62 / Each |
||
 |
102248 | 219550 | # | FRONT ROLLER BUSHING | No | Model Compatibility List | $2.29 / Each |
||
 |
118353 | 220769 | 18 | MOTOR BELT | Yes | Model Compatibility List | $21.41 / Each |
||
| 100407 | 225209 | # | CD, MARATHON, INTERMEDIAT | No | Model Compatibility List | $83.89 / Each |
|||
| 100408 | 225212 | # | CD, 5K, BEGINNER | No | Model Compatibility List | $83.89 / Each |
|||
| 100409 | 225213 | # | CD, BODY TONE, LEVEL 3 | No | Model Compatibility List | $49.02 / Each |
|||
| 100410 | 225214 | # | CD, 10K, INTERMEDIATE | No | Model Compatibility List | $83.89 / Each |
|||
 |
100316 | 237858 | 63A | CHEST PULSE KIT | No | Model Compatibility List | $151.48 / Each |
||
| 117657 | 242812 | 48A | 3# HAND WEIGHT KIT | No | Model Compatibility List | $100.95 / Each |
|||
| 100094 | 356520 | # | ACCESSORY KIT | No | Model Compatibility List | $38.99 / Each |
|||
 |
KV5-DWY-57F | 031229a | 031229 Power Cord | Yes | Model Compatibility List | $29.99 / Each |
|||
 |
1005302 | 157611-157612 | Lock Knob Latch Assembly - Used | No | Model Compatibility List | $24.99 / Each Out Of Stock |
|||
 |
1001465-R | 147213 | Drive Motor - Refurbished | Yes | Model Compatibility List | $119.00 / Each |
|||
 |
1001459 | et-1939 | 1 | Display Console - Used Only | No | Model Compatibility List | $189.00 / Each Out Of Stock |
||
 |
1001494 | 163896 | 1 | Incline Motor (Used) | Yes | Model Compatibility List | $89.00 / Each Out Of Stock |
||
 |
1013037 | NTApexPlunge | 80 | 1 | Folding Latch Pin Set (Used) | No | Model Compatibility List | $14.99 / Each Out Of Stock |
|
 |
1014253 | 158615 | # | 1 | incline Insert Plate (Used Only) | Yes | Model Compatibility List | $14.99 / Each |
|
 |
1014254 | 160328 | # | 1 | Latch (used) | Yes | Model Compatibility List | $3.99 / Each |
|
 |
1015764 | 162206 | # | 2 | Leg Base Stabilizer (Used) | Yes | Model Compatibility List | $49.99 / Each |
|
 |
1015769 | 162856 | # | 1 | Latch Pin Assembly - Used | Yes | Model Compatibility List | $24.99 / Each Out Of Stock |
|
 |
1015773 | 160325 | # | 1 | FRONT LEFT FOOT RAIL CAP (Used) | Yes | Model Compatibility List | $9.99 / Each |
|
 |
1017096 | 072062 | 4 | Front - Rear Roller Screw | Yes | Model Compatibility List | $6.99 / Each |
||
 |
1000884 | 124669 | # | 1 | Hardwired Power Cord (Used | Yes | Model Compatibility List | $14.99 / Each |
|
 |
1019100 | 173654 | # | 1 | Rear Roller Endcap (Used) | Yes | Model Compatibility List | $59.00 / Each |
|
 |
1019077 | 144244 | # | 1 | On Off Rocker Switch | Yes | Model Compatibility List | $6.99 / Each Out Of Stock |
|
|
| |||||||||
