NordicTrack® - FUSION CST

Exploded Diagrams

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry used@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
100886 103087 65 CABLE CLIP No Model Compatibility List $15.20 / Each

2,4,5,6
113842 100081 113842 # ROLLER MAGNET Yes Model Compatibility List $2.75 / Each

8
100186 116566 # 15 1/2" CABLE TIE No Model Compatibility List $0.76 / Each

2,4,5,6
107587 012006 122 M6 LOCKNUT No Model Compatibility List $0.34 / Each

2
127597 111183 127597 31 PLASTIC FASTENER No Model Compatibility List $3.48 / Each

9
100073 132315 75 WIRE TIE No Model Compatibility List $0.56 / Each

2,4,5,6
013423 100258 013423 69 1/2" TAP SCREW No Model Compatibility List $1.24 / Each

2
101656 013509 74 SCREW, NOTE: No Model Compatibility List $0.16 / Each

2
013529 102048 013529 56 M4 X 38MM SCREW No Model Compatibility List $1.46 / Each

2
100828 140069 # SNAP RING PLIERS, 1" EXT No Model Compatibility List $85.64 / Each

2
144528 100689 144528 113 #8 X 9MM SCREW Yes Model Compatibility List $0.23 / Each

2
146119 100097 146119 # FLOOR MAT 36X72" No Model Compatibility List $75.90 / Each

1
016057 100063 016057 65 8" CABLE TIE No Model Compatibility List $1.30 / Each

2
119746 173852 92 HANDLEBAR BOLT No Model Compatibility List $4.63 / Each

2,11
110182 174108 108A M6 CRANK ARM SCREW No Model Compatibility List $4.55 / Each

2,8,3
106069 203402 150 M10 JAMNUT No Model Compatibility List $0.79 / Each

2
112746 207069 40 M10 X 19MM HEX SCREW No Model Compatibility List $3.72 / Each

2
134125 207522 99 ZIP TIE No Model Compatibility List $2.32 / Each

2
131636 209659 113 M8 X 30MM BUTTON SCREW No Model Compatibility List $0.95 / Each

2
100820 214003 # POWER JACK NUT No Model Compatibility List $3.96 / Each

2,4,5,6
223125 100674 223125 95 M8-1.25 X 65MM BUTTON SCREW Yes Model Compatibility List $5.58 / Each

2
108642 226395 112 M4 X 13MM SLF-TPPNG SCREW No Model Compatibility List $0.28 / Each

2
115957 229333 95 M10 WASHER No Model Compatibility List $0.52 / Each

2
100003 234274 4 M8 X 35MM SCREW No Model Compatibility List $0.79 / Each

2
110042 242355 109 #8 X 3/4" TEK SCREW No Model Compatibility List $0.15 / Each

2
110629 244821 # POWER JACK/WIRE No Model Compatibility List $11.42 / Each

4,5,6
102005 250957 108 M4 X 15MM FLAT HEAD SCREW No Model Compatibility List $0.28 / Each

2
256446 100030 256446 31 M8 NUT No Model Compatibility List $0.72 / Each

2
134066 258074 11 BEARING SPACER No Model Compatibility List $40.20 / Each

2,3,4,5,6
134064 259192 9 MAIN BEARING No Model Compatibility List $16.72 / Each

1
134134 263974 124 #8 X 5/8" TEK SCREW No Model Compatibility List $1.26 / Each

2
119323 265485 56 PEDAL LEG BEARING No Model Compatibility List $40.95 / Each

8,9
107141 276016 45 M4 LOCKNUT No Model Compatibility List $0.47 / Each

2
134028 283247 83 M10 STAR WASHER No Model Compatibility List $0.25 / Each

2
286527 101022 286527 117A MOUNT No Model Compatibility List $1.91 / Each

2
139075 307656 128 M5X6MM MTR SCRW, NOTE: No Model Compatibility List $0.46 / Each

1
112552 307676 110 M8 WASHER No Model Compatibility List $1.20 / Each

2
105734 330440 85 M4 X 30MM SCREW No Model Compatibility List $1.86 / Each

2
102525 331708 # CONSOLE BACK BUMPON No Model Compatibility List $0.46 / Each

7,4,5,6
333350 100099 333350 29B M8 LOCKNUT, DECK MTG Yes Model Compatibility List $1.44 / Each

2,3
337717 110342 337717 67 POWER ADAPTER Yes Model Compatibility List $32.99 / Each

4,5,6

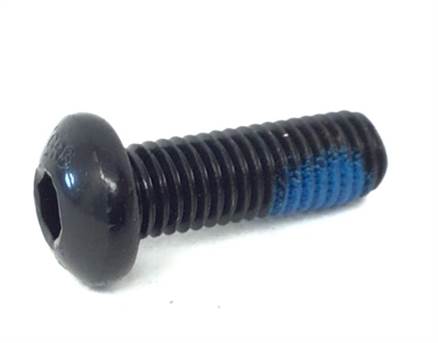

134126 348905 100 M10 X 30MM SCREW No Model Compatibility List $1.16 / Each

2
120490 350910 91 FRONT STABILIZER FOOT No Model Compatibility List $3.83 / Each

9
121468 355570 41 M8 X 30MM SCREW No Model Compatibility List $3.48 / Each

2
134085 362932 32 SWIVEL PULLEY AXLE No Model Compatibility List $0.69 / Each

8
110334 363953 56 CLAMP No Model Compatibility List $1.67 / Each

4,5,6
364361 103644 364361 # CHEST HEART RATE MONITOR Yes Model Compatibility List $126.56 / Each

12,13,14
134102 366113 54 ARM PULLEY SPACER No Model Compatibility List $1.86 / Each

2,8,3,4,5,6
134069 366149 14 PULLEY SPACER No Model Compatibility List $3.01 / Each

2,8,3,4,5,6
134065 366150 10 FRONT HUB SPACER No Model Compatibility List $1.86 / Each

2,3,4,5,6
134086 366344 33 SWIVEL PULLEY No Model Compatibility List $8.82 / Each

8
134103 366347 55 SMALL PULLEY No Model Compatibility List $14.21 / Each

8
134118 367220 72 LIGHT BAR No Model Compatibility List $118.65 / Each

1
133921 367242 61 M10 X 20MM SCREW No Model Compatibility List $0.24 / Each

2
134112 367404 65 DISC SHIELD No Model Compatibility List $36.18 / Each

3
134060 367428 5 DISC COVER No Model Compatibility List $10.05 / Each

9
134082 367429 29 COUNTERWEIGHT No Model Compatibility List $7.19 / Each

3
134073 367433 17 SLIDE FRAME BRACKET No Model Compatibility List $2.32 / Each

2,3,4,5,6
134116 367434 70 SLIDE FRAME No Model Compatibility List $6.95 / Each

3
134087 367440 34 ROPE COLLAR No Model Compatibility List $9.80 / Each

1

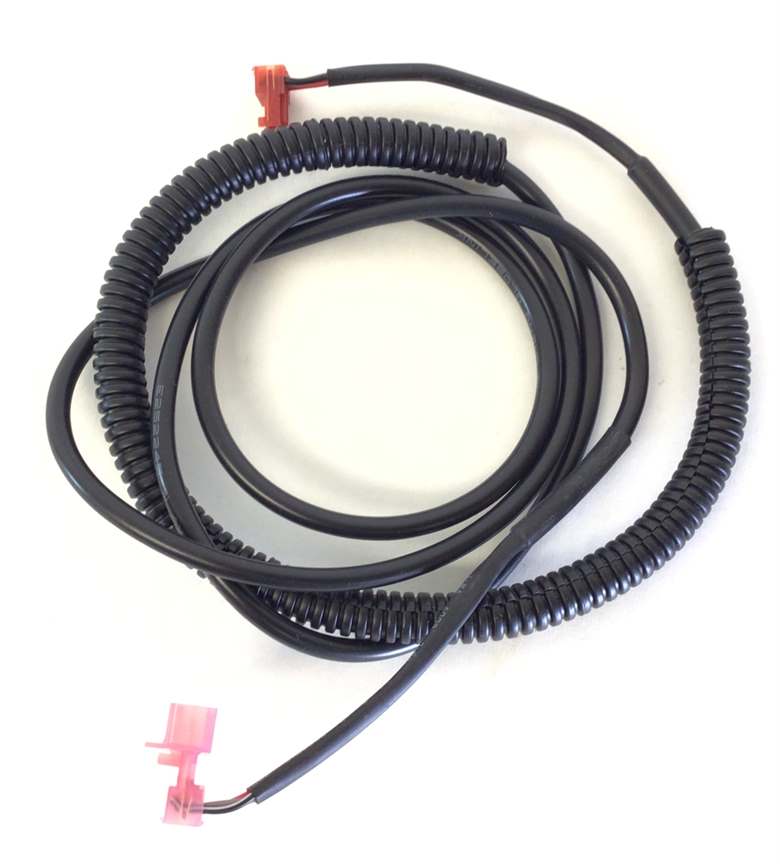

134133 367819 123 EXTENSION WIRE No Model Compatibility List $25.09 / Each

4,5,6
134135 367824 125 MAIN WIRE No Model Compatibility List $13.73 / Each

4,5,6
134079 367896 23 REED SWITCH BRACKET No Model Compatibility List $1.63 / Each

2,3,4,5,6
134078 367939 22 RESISTANCE MOTOR No Model Compatibility List $106.19 / Each

10
134077 367941 21 RESISTANCE DISC No Model Compatibility List $0.69 / Each

10
134062 367961 7 RESISTANCE AXLE No Model Compatibility List $92.19 / Each

8,10
134140 368073 # DECAL, GENERAL WARNING No Model Compatibility List $0.92 / Each

7,3
134063 368147 8 RETENTION RING No Model Compatibility List $0.69 / Each

1

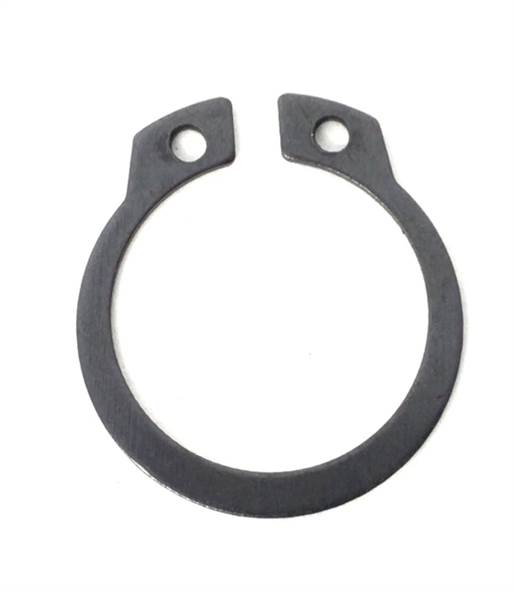

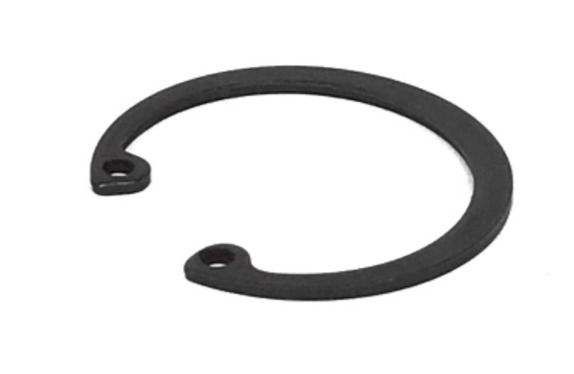

134081 368148 28 SNAP RING No Model Compatibility List $0.23 / Each

2
134117 368177 71 MAGNET BRACKET No Model Compatibility List $28.59 / Each

2,8,3,4,5,6
134120 369109 77 M4 X 5MM SET SCREW No Model Compatibility List $0.23 / Each

2
134121 369110 89 M6 X 20MM HEX SCREW No Model Compatibility List $6.95 / Each

2
134123 369111 92 M10 X 25MM FLAT HEAD SCRW No Model Compatibility List $1.16 / Each

1
134122 369114 91 M8 X 115MM BOLT No Model Compatibility List $2.78 / Each

2
112662 371185 102 M10 STAINLESS WASHER No Model Compatibility List $0.23 / Each

2
134104 371318 56 LARGE PULLEY No Model Compatibility List $14.21 / Each

8
134092 371321 42 REAR HUB SPACER No Model Compatibility List $1.86 / Each

2,3,4,5,6
372449 115862 372449 38 REED SWITCH/WIRE Yes Model Compatibility List $17.16 / Each

4,5,6
139065 372874 63 SLIDE COVER No Model Compatibility List $10.54 / Each

9
139066 372875 64 WALL COVER No Model Compatibility List $12.01 / Each

9
134095 372880 46 PULLEY CARRIAGE No Model Compatibility List $5.34 / Each

8
134072 372908 16 TOWER BRACKET No Model Compatibility List $32.28 / Each

2,3,4,5,6
139062 372911 60 SLIDE BRACKET No Model Compatibility List $44.34 / Each

2,3,4,5,6
139064 372918 62 TOWER BRACKET No Model Compatibility List $5.10 / Each

2,3,4,5,6
139063 372919 61 WALL BRACKET No Model Compatibility List $20.10 / Each

2,3,4,5,6

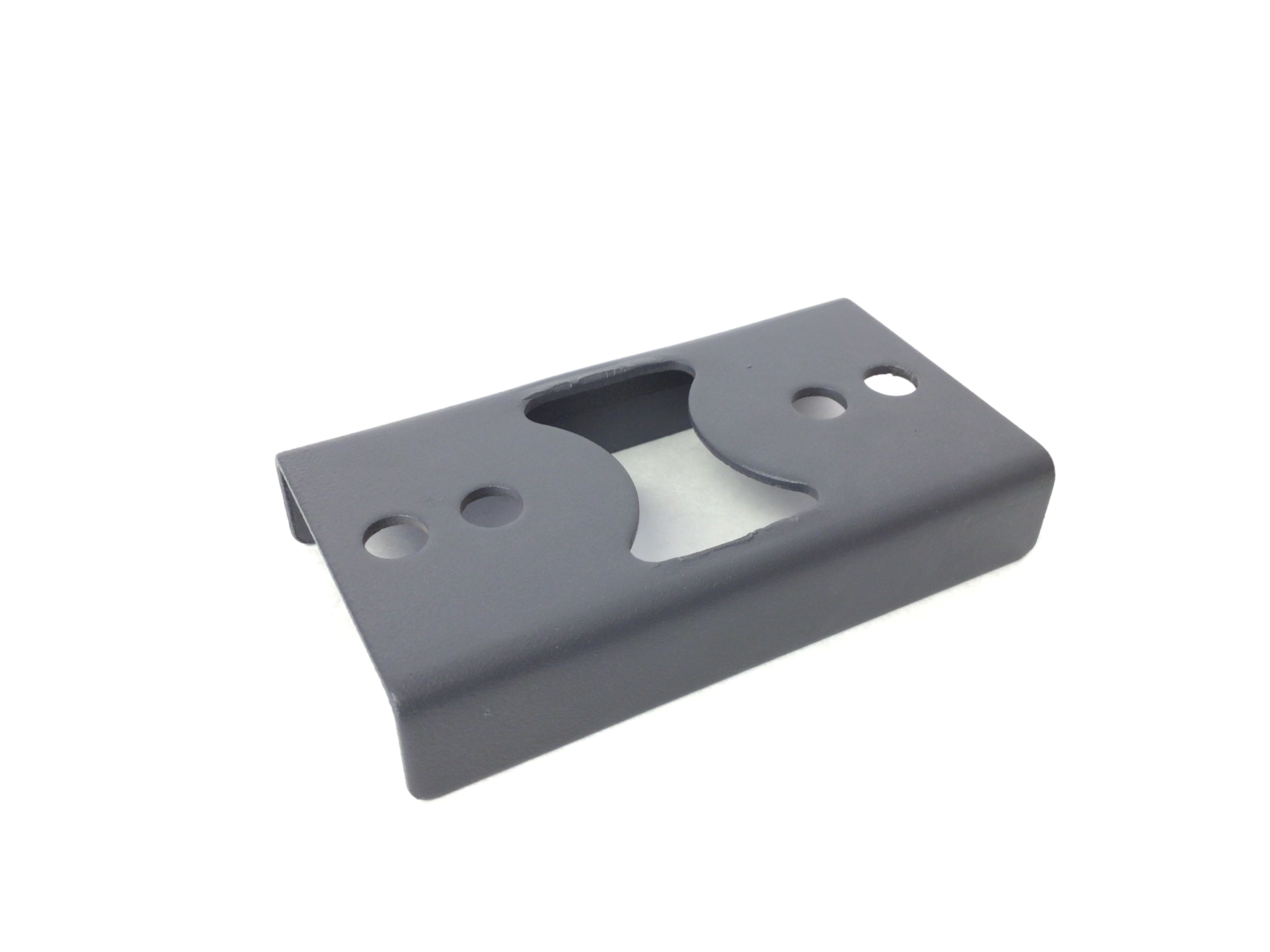

134099 372920 51 SHORT SENSOR BRACKET No Model Compatibility List $1.16 / Each

2,3,4,5,6
139061 372922 50 TALL SENSOR BRACKET No Model Compatibility List $1.16 / Each

2,3,4,5,6
134096 372924 47 CABLE TRAP No Model Compatibility List $1.39 / Each

4,5,6
134076 372926 20 UPPER TOWER COVER No Model Compatibility List $4.64 / Each

9
134080 372928 26 TOWER ARM COVER No Model Compatibility List $5.80 / Each

9,3
134128 372930 109 REAR BOTTOM COVER No Model Compatibility List $15.20 / Each

9
139073 372931 44 RIGHT SIDE COVER No Model Compatibility List $3.48 / Each

9
139074 372932 66 LEFT SIDE COVER No Model Compatibility List $3.48 / Each

9
134093 372933 43 LEFT TOWER COVER No Model Compatibility List $4.64 / Each

9
134090 372934 38 RIGHT TOWER COVER No Model Compatibility List $4.64 / Each

9
134106 372952 58 FRONT SHROUD No Model Compatibility List $140.90 / Each

12,13,14
134105 373068 57 SHROUD COVER No Model Compatibility List $136.40 / Each

9,12,13,14
134129 373111 115 LEFT PULLEY COVER A No Model Compatibility List $19.56 / Each

8,9
134083 373112 30 RIGHT PULLEY COVER A No Model Compatibility List $19.56 / Each

8,9
134084 373113 31 RIGHT PULLEY COVER B No Model Compatibility List $19.56 / Each

8,9
134130 373114 116 LEFT PULLEY COVER B No Model Compatibility List $19.56 / Each

8,9
134091 373401 39 EYEBOLT No Model Compatibility List $1.39 / Each

2
134088 373417 35 ROPE END No Model Compatibility List $8.82 / Each

1
134097 373434 48 D SENSOR No Model Compatibility List $40.84 / Each

1

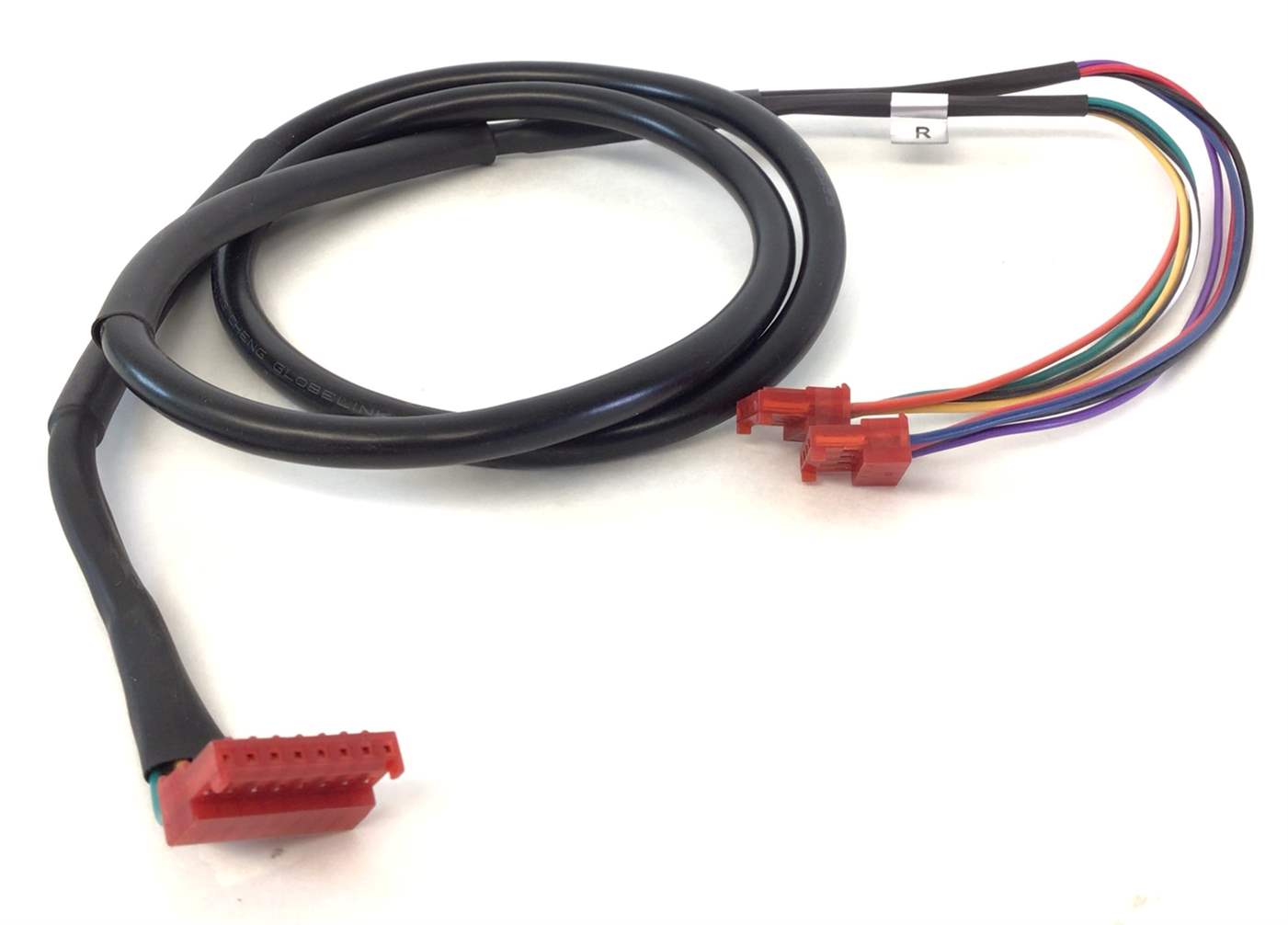

134132 373556 122 SENSOR WIRE No Model Compatibility List $20.48 / Each

4,5,6
134131 373623 118 M4 X 25MM SCREW No Model Compatibility List $0.69 / Each

2
139069 373625 105 M10 X 100MM TOGGLE BOLT No Model Compatibility List $8.34 / Each

2
134057 373668 2 TOWER TOP COVER No Model Compatibility List $25.83 / Each

9
139072 373669 15B TABLET STAND SLIDER No Model Compatibility List $5.10 / Each

1
134107 373670 59A REAR SHROUD WITH SLOTS No Model Compatibility List $131.19 / Each

12,13,14
134114 373671 67 FRONT BOTTOM COVER No Model Compatibility List $298.45 / Each

9

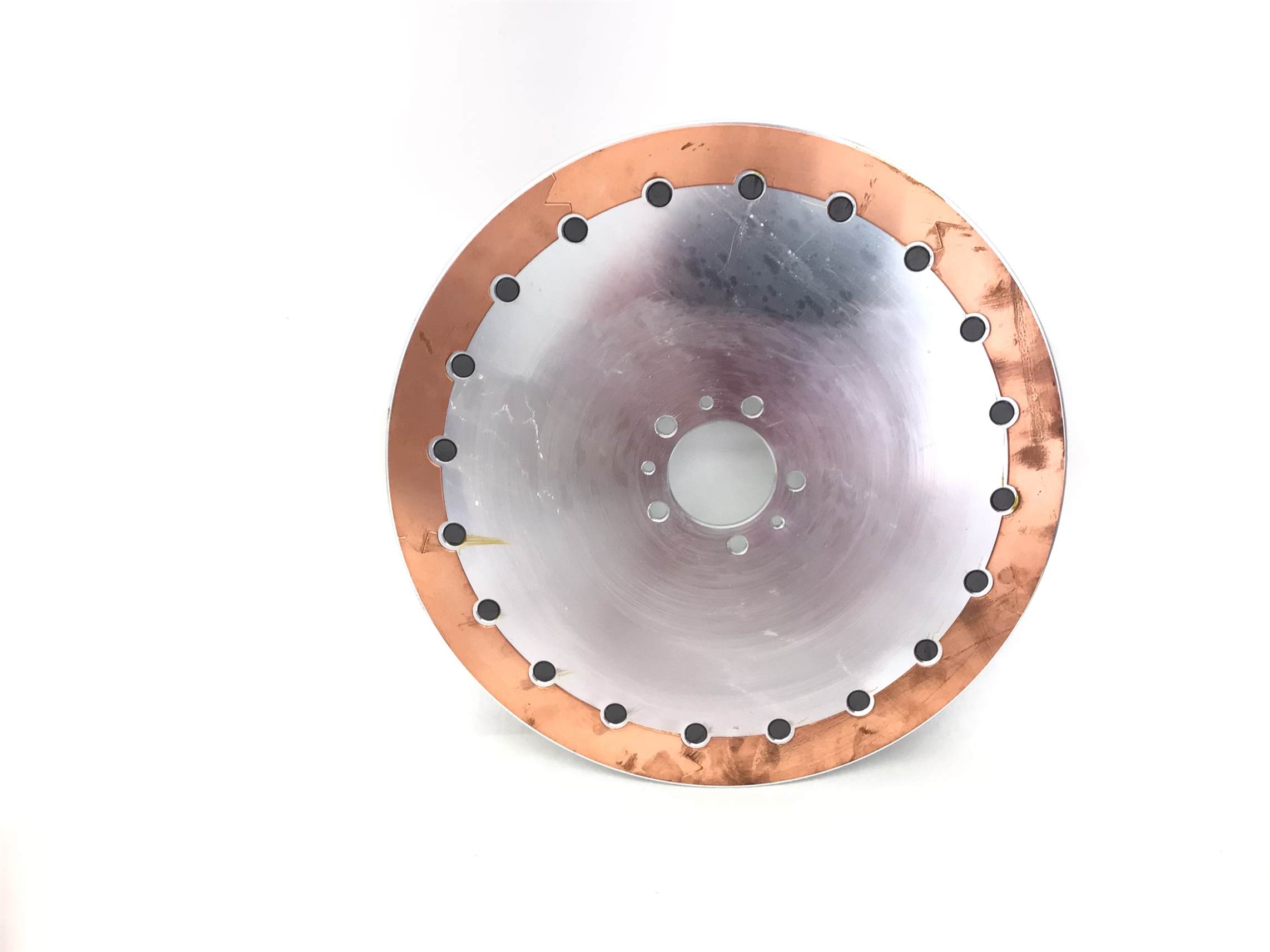

134061 373672 6 RESISTANCE DISC No Model Compatibility List $29.75 / Each

10
134068 373673 13 MECHANISM PULLEY No Model Compatibility List $57.38 / Each

8
134067 373674 12 PULLEY HUB No Model Compatibility List $57.38 / Each

8
134058 373677 3 SPRING No Model Compatibility List $38.18 / Each

2
134115 373689 68 TABLET HOLDER No Model Compatibility List $81.69 / Each

1
134074 374009 18 RESISTANCE ARM ASSEMBLY No Model Compatibility List $63.74 / Each

3,10
134124 376862 94 M5 X 13MM SCREW No Model Compatibility List $0.46 / Each

2
116385 378659 56 M8 X 32MM SCREW No Model Compatibility List $7.19 / Each

2
134059 378817 4 SPRING COVER No Model Compatibility List $14.19 / Each

2,9

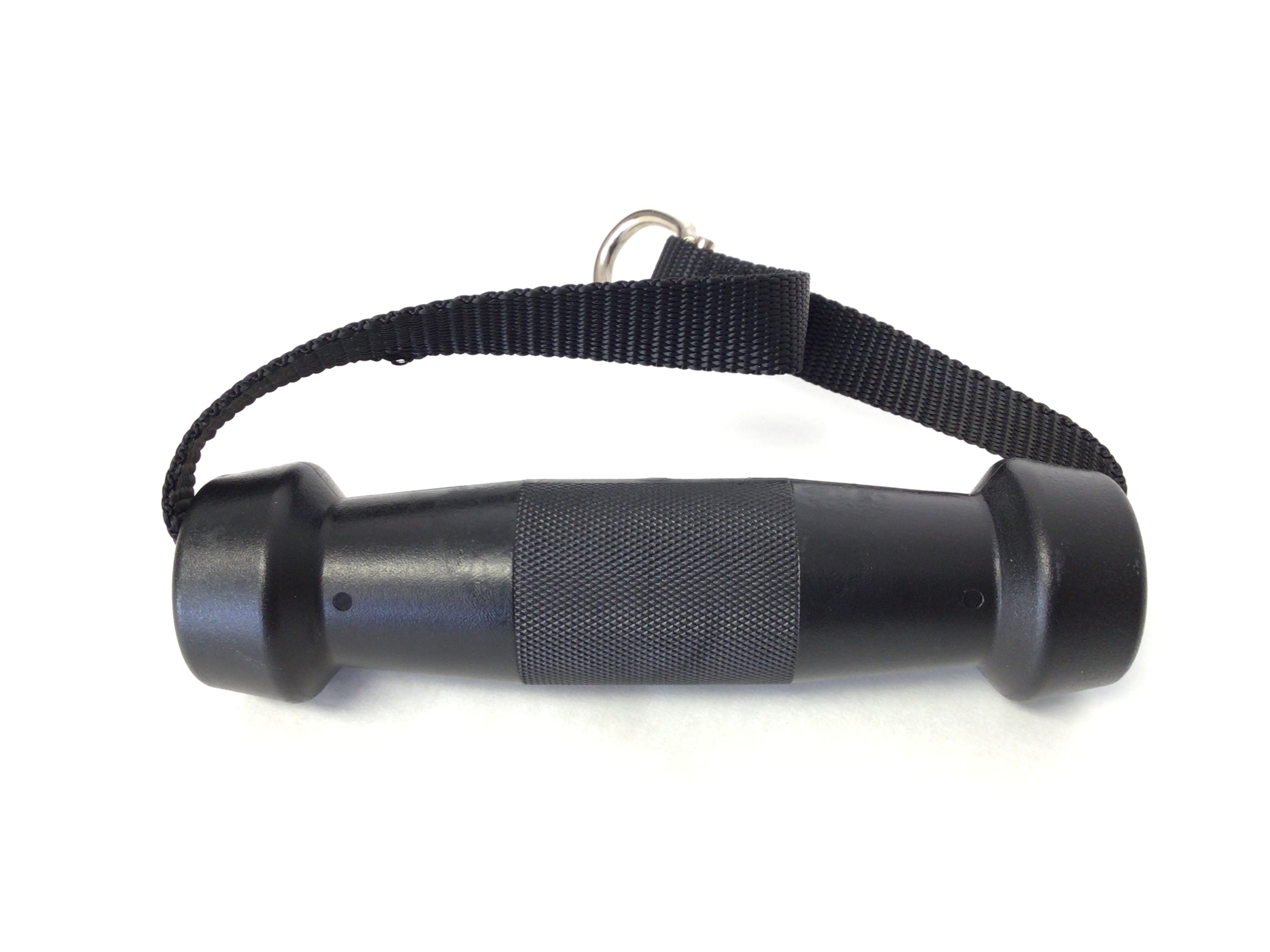

134089 385883 37 HANDLE No Model Compatibility List $12.25 / Each

11
139076 386358 # EXERCISE GUIDE No Model Compatibility List $0.00 / Each
Out Of Stock
1
139077 386590 # USER'S MANUAL No Model Compatibility List $0.00 / Each
Out Of Stock
1
386678 134119 386678 73A CONSOLE (RESET CNSL) ESYNT19014 No Model Compatibility List $262.76 / Each

4,5,6,7

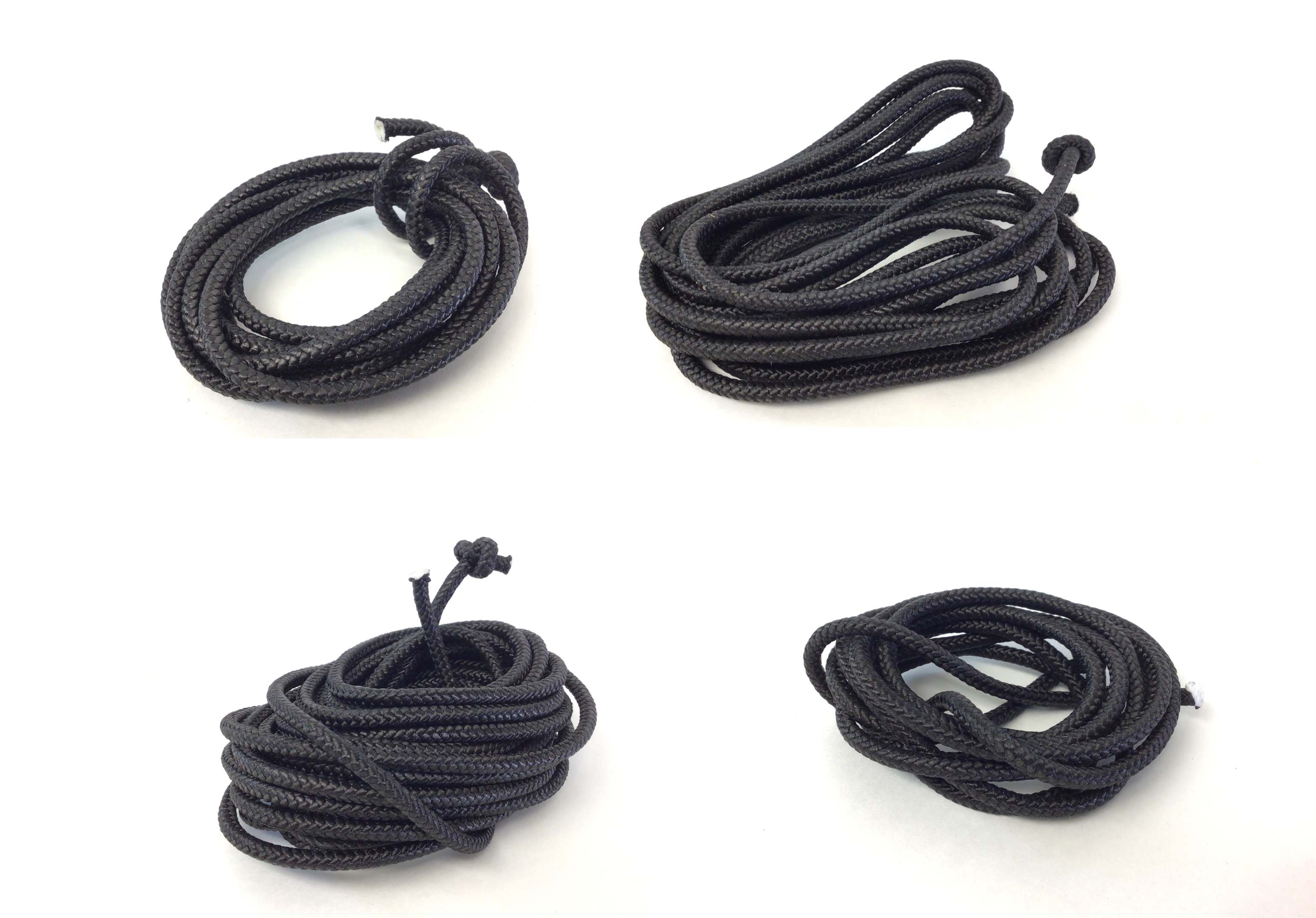

134100 387106 52 ROPE KIT,OM HAS 201" ROPE No Model Compatibility List $204.74 / Each

1
134075 387259 19 TOWER ARM No Model Compatibility List $108.06 / Each

3
139071 387264 15A TABLET STAND No Model Compatibility List $159.18 / Each

1
134101 387373 53 ANKLE STRAP No Model Compatibility List $20.30 / Each

1
045021 100541 045021 # 6MM ALLEN WRENCH No Model Compatibility List $5.28 / Each

2
104795 CC1053 79 #4 X 3/16" SCREW No Model Compatibility List $0.35 / Each

2
CC1248 104794 CC1248 78 STANDOFF No Model Compatibility List $4.12 / Each

2
139068 GZ1030-05 103 3/8" X 3" SCREW No Model Compatibility List $0.51 / Each

2
103310 GZ7006 # CAUTION "DO NOT USE"DECAL No Model Compatibility List $3.67 / Each

7,3
