NordicTrack® - INCLN TRAIN X11I INTERA

Exploded Diagrams

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry used@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Belt
  • Motor
  • Frame Related
  • Rollers and Rotating Parts
  • Covers and Plastics
  • Sensors
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
100427 100139 100427 27 5/16" NUT Yes Model Compatibility List $1.56 / Each

2,40
116926 100064 116926 # RELEASABLE WIRE TIE No Model Compatibility List $2.45 / Each

2,4,5,6
119425 100031 119425 26 3/8" HEX JAM NUT Yes Model Compatibility List $1.65 / Each

2
012090 102840 012090 28 1/4" NUT No Model Compatibility List $1.54 / Each

2
129004 101035 129004 76 ROUND GROMMET No Model Compatibility List $3.64 / Each

2
130659 100269 130659 4 CONSOLE PLATE SCREW Yes Model Compatibility List $0.19 / Each

2,7,1
131090 100079 131090 65 RSW CLAMP Yes Model Compatibility List $0.46 / Each

4,5,6,2,1,47
100073 132315 41 WIRE TIE No Model Compatibility List $0.56 / Each

2,4,5,6,1
013300 100149 013300 9 #8 X 3/4" WASHER HD SCREW Yes Model Compatibility List $1.28 / Each

2
133333 100032 133333 16 #8 HOOD CLIP No Model Compatibility List $0.65 / Each

2,9,1,46
104791 013523 19 1/4" X 2" SCREW No Model Compatibility List $1.14 / Each

2
100466 135622 22 FRONT WHEEL BOLT No Model Compatibility List $4.19 / Each

2,8
013607 100132 013607 8 #8 X 3/4" TRUSS HEAD SCRW No Model Compatibility List $0.22 / Each

2
110916 136489 1 3/8" X 5 1/4" SCREW No Model Compatibility List $9.64 / Each

2
136728 100137 136728 6 #8 X 1/2" SCREW Yes Model Compatibility List $0.30 / Each

2
014157 100141 014157 23 #8 STAR WASHER Yes Model Compatibility List $1.17 / Each

2
100084 142711 # 4" GRN WIRE, F/R, CNTRLR No Model Compatibility List $1.91 / Each

7,4,5,6
146119 100097 146119 # FLOOR MAT 36X72" No Model Compatibility List $75.90 / Each

1
150148 100266 150148 21 WHEEL BOLT No Model Compatibility List $4.19 / Each

2,8
152478 100695 152478 25 M8 X 25MM WASHER Yes Model Compatibility List $0.75 / Each

2
159986 100347 159986 15 TOP LIFT MOTOR BOLT No Model Compatibility List $7.03 / Each

2,10
110964 016055 92B WIRE CLIP,FAN No Model Compatibility List $1.44 / Each

2,8,4,5,6
016057 100063 016057 # 8" CABLE TIE No Model Compatibility List $1.30 / Each

2,1,4
163045 100123 163045 3 3/8" STAR WASHER Part # 3 On Drawing Yes Model Compatibility List $1.30 / Each

2
165798 102795 165798 67 REED SWITCH Yes Model Compatibility List $14.41 / Each

4,5,6
100261 169663 2 UPRT BOLT/REAR WHEEL BOLT No Model Compatibility List $6.03 / Each

2,8
173169 100061 173169 39 GROMMET Yes Model Compatibility List $0.94 / Each

2,1
183246 102957 183246 12 1/4" x .5" Button Head Screw No Model Compatibility List $1.14 / Each

2
186477 101335 186477 86 HANDLEBAR CAP Yes Model Compatibility List $6.36 / Each

9,11,46
186726 100201 186726 37 POWER SWITCH Yes Model Compatibility List $20.45 / Each

4,5,6,1
186819 100120 186819 17 #8 X 1/2" SCREW Yes Model Compatibility List $0.42 / Each

2
100375 187089 57 STOP BRACKET No Model Compatibility List $1.45 / Each

2,3,4,5,6
189813 100113 189813 # FILTER W/6" WIRE Yes Model Compatibility List $23.85 / Each

4,5,6
195476 100223 195476 45 MAGNET No Model Compatibility List $14.08 / Each

8,1
100043 196829 38 UPRIGHT GROMMET No Model Compatibility List $1.68 / Each

2,3,1
198639 100147 198639 29 BELT GUIDE Yes Model Compatibility List $10.99 / Each

15,40
215822 100187 215822 84 4 No Model Compatibility List $5.39 / Each

4,5,6,7
215823 100197 215823 # AUDIO WIRE,18 Yes Model Compatibility List $8.87 / Each

4,5,6
219168 100095 219168 # 1 TUBE LUBE KIT No Model Compatibility List $6.81 / Each

1,3,15
219170 100096 219170 # 3 TUBE LUBE KIT No Model Compatibility List $30.38 / Each

1,3,15
100185 240351 # ANCHORED CABLE TIE No Model Compatibility List $0.74 / Each

2,4,5,6,1
100178 252433 81 WARNING DECAL No Model Compatibility List $0.47 / Each

7,3,1
252752 110925 252752 40 POWER CORD Yes Model Compatibility List $62.53 / Each

4,5,6,1
100117 268476 # DECAL, GROUNG WARNING No Model Compatibility List $0.91 / Each

7,3,1
106557 271317 80 WARNING DECAL No Model Compatibility List $10.57 / Each

7,3,1
273782 110948 273782 72 WHEEL Yes Model Compatibility List $2.78 / Each

8,45
286707 100162 286707 # INCLINE MOTOR SENSOR KIT No Model Compatibility List $50.13 / Each

10,47,4,1
111572 430380 62 CONTROLLER MC5100D-EXT-48W No Model Compatibility List $387.59 / Each

7,8
291486 100133 291486 10 #8X5/8" DECKRAIL SCREW No Model Compatibility List $1.38 / Each

2,3,9
295667 110936 295667 59 INCLINE MOTOR BUSHING No Model Compatibility List $5.55 / Each

8,10
295758 102452 295758 20 5/16" MOTOR SCREW No Model Compatibility List $4.04 / Each

2
102522 305751 # 7/32" ALLEN WRENCH No Model Compatibility List $25.55 / Each

2,1
307849 110917 307849 14 3/8"-16 X 1 1/2" HEX HEAD BOLT Yes Model Compatibility List $6.45 / Each

2
315183 101031 315183 97B CHEST STRAP Yes Model Compatibility List $10.99 / Each

1
127665 318705 61 ELECTRONICS BRACKET No Model Compatibility List $16.93 / Each

2,3,4,5,6
319487 102462 319487 50 ISOLATOR SPRING No Model Compatibility List $14.53 / Each

2,3,40,1
319711 127664 319711 46 BELT V8 8pj736 Yes Model Compatibility List $52.02 / Each

15
111508 320295 49 CUSHION PLATE No Model Compatibility List $0.89 / Each

3,46
324707 111509 324707 51 CUSHION SPRING Yes Model Compatibility List $7.52 / Each

2,3,40
325431 126746 325431 77 LEVELING FOOT Yes Model Compatibility List $21.88 / Each

9,46
126733 329455 58 INCLINE MTR BTTM BKT No Model Compatibility List $9.83 / Each

10,1
126732 329456 56 INCLINE MOTOR TOP COVER No Model Compatibility List $9.83 / Each

9,10,46
110002 331921 53 FRAME COVER No Model Compatibility List $1.62 / Each

9,3,40
338270 110922 338270 34 IDLER ROLLER Yes Model Compatibility List $143.65 / Each

8,45
347877 110968 347877 95 KEY Yes Model Compatibility List $25.29 / Each

9,1
109562 349317 97A HEART RATE MONITOR No Model Compatibility List $116.81 / Each

12,13,14
110971 349544 93B FAN No Model Compatibility List $30.15 / Each

8
110953 350191 82 CONSOLE CLAMP No Model Compatibility List $2.40 / Each

7,4,5,6
126753 350192 96 CONSOLE BACK No Model Compatibility List $56.68 / Each

7,4,5,6
110963 350193 92A CONSOLE BASE No Model Compatibility List $40.33 / Each

7,3
126750 350195 91 LEFT TRAY No Model Compatibility List $10.00 / Each

1
126752 350196 94 RIGHT TRAY No Model Compatibility List $10.00 / Each

1
127668 350473 79 BASE CAP No Model Compatibility List $7.85 / Each

9,3
350476 126742 350476 73 BASE PAD No Model Compatibility List $4.84 / Each

3,12,13,14,46
350490 126719 350490 35 BELLY PAN COVER No Model Compatibility List $31.43 / Each

9,46
127661 350494 32 LEFT FOOT RAIL No Model Compatibility List $42.04 / Each

9
127662 350495 33 RIGHT FOOT RAIL No Model Compatibility List $42.04 / Each

9
126728 350503 48 FRONT HOOD No Model Compatibility List $63.93 / Each

9,1
126740 350518 70 RIGHT INSIDE UPRT CVR No Model Compatibility List $20.57 / Each

9,1,46
126741 350519 71 RIGHT OUTSIDE UPRT CVR No Model Compatibility List $20.57 / Each
Out Of Stock
9

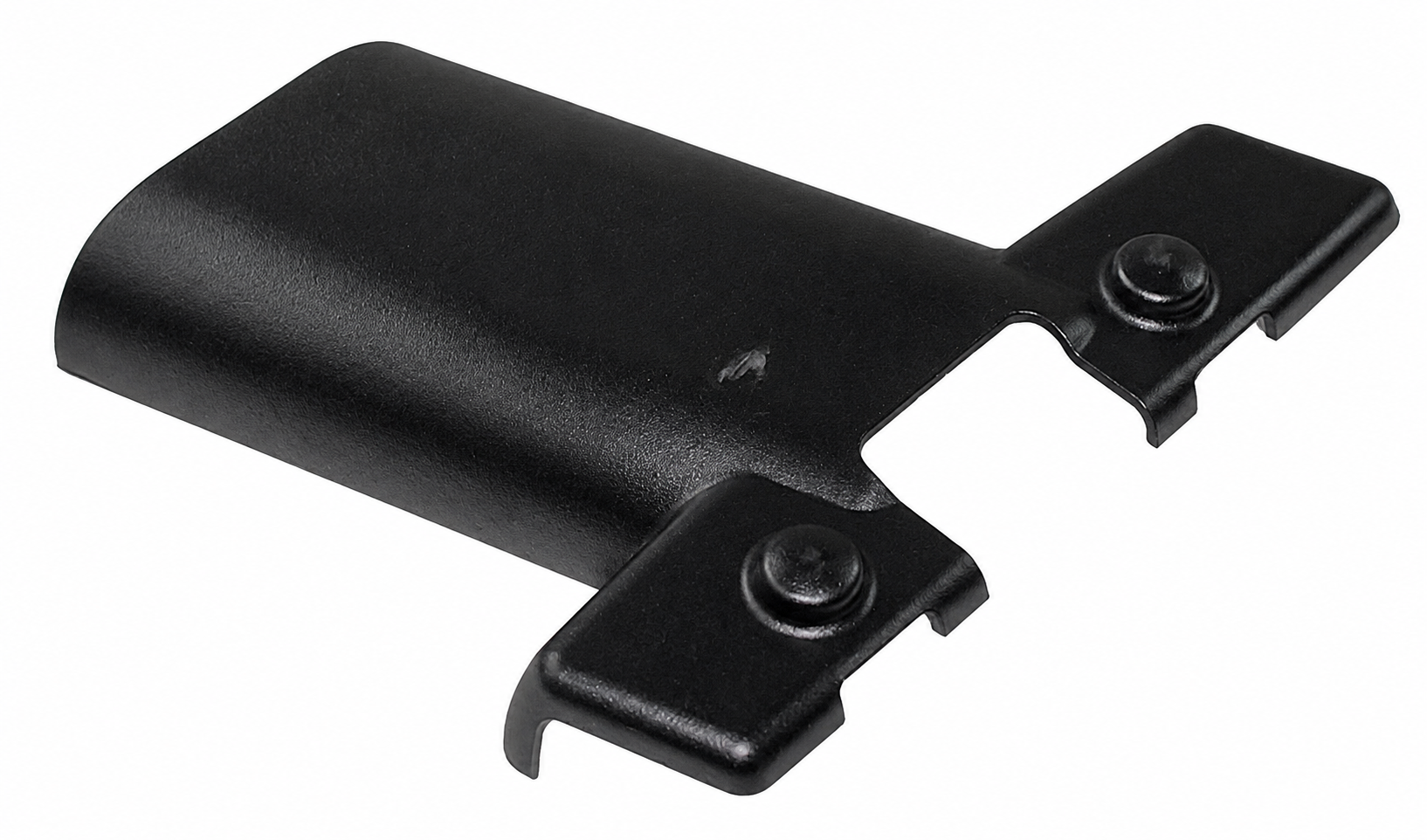

126739 350520 69 LEFT INSIDE UPRT CVR No Model Compatibility List $17.91 / Each

9,46,1
126738 350521 68 LEFT OUTSIDE UPRT CVR No Model Compatibility List $17.91 / Each

9
110933 351129 55 ELECTRONICS COVER No Model Compatibility List $77.45 / Each

9
351145 110956 351145 87A PULSE ASSEMBLY Yes Model Compatibility List $57.29 / Each

12,13,14
110985 351151 # HARDWARE KIT, NOTE: No Model Compatibility List $81.78 / Each

1
126759 351303 60C 65"INCLN MTR WIRE HRNS No Model Compatibility List $17.72 / Each

4,5,6,12,13,14
136701 351304 60B 90" LIFT MTR WIRE HRNS No Model Compatibility List $41.94 / Each

4,5,6,10,12,13,14
110961 351343 90 LEFT HANDRAIL No Model Compatibility List $130.62 / Each

9,3
110960 351344 89 RIGHT HANDRAIL No Model Compatibility List $130.62 / Each

9,3
126727 351345 47 FRONT HOOD COVER No Model Compatibility List $98.12 / Each

9
126723 351346 43 RIGHT FOOT RAIL COVER No Model Compatibility List $21.95 / Each

9
351351 126744 351351 75 UPRIGHT WIRE No Model Compatibility List $61.41 / Each
Out Of Stock
3,4,5,6
110918 351355 30 WALKING PLATFORM No Model Compatibility List $187.52 / Each

15
351356 126716 351356 31 WALKING BELT Yes Model Compatibility List $141.76 / Each

15
138125 353080 # TECH SHEET No Model Compatibility List $1.24 / Each

1
127258 353085 44 LEFT FOOT RAIL COVER No Model Compatibility List $11.62 / Each

9
353258 110937 353258 60A INCLINE MOTOR No Model Compatibility List $158.64 / Each

10
353808 113157 353808 # 14" BROWN WIRE,F/F No Model Compatibility List $3.95 / Each

4,5,6
110957 355746 87B 20" LEFT PULSE WIRE No Model Compatibility List $13.66 / Each

4,5,6,12,13,14
110958 355747 87C 20" RIGHT PULSE WIRE No Model Compatibility List $13.64 / Each

4,5,6,12,13,14
110959 355797 88 LONG HANDRAIL GRIP No Model Compatibility List $66.34 / Each

9,3,11
110955 355798 85 SHORT HANDRAIL GRIP No Model Compatibility List $25.74 / Each

9,3,11
100094 356520 # ACCESSORY KIT No Model Compatibility List $42.89 / Each

4,5,6,1
138129 356594 # BASE BUSHING No Model Compatibility List $1.38 / Each

8,3
127667 356728 74 BASE No Model Compatibility List $475.35 / Each

3
126749 356729 83 UPRIGHT No Model Compatibility List $427.42 / Each

3
358598 126729 358598 52 BASE WIRE No Model Compatibility List $59.60 / Each

3,4,5,6
361917 126747 361917 78 AXLE No Model Compatibility List $20.83 / Each

8,45
364027 102396 364027 13 1/4" X 2 1/2" BOLT Yes Model Compatibility List $2.01 / Each

2
366465 138123 366465 93A CONSOLE No Model Compatibility List $2128.50 / Each

7
366467 138124 366467 93C CNSL REPROG MICRO SD CARD No Model Compatibility List $117.42 / Each

7
371623 110926 371623 42 DRIVE ROLLER/PULLEY No Model Compatibility List $143.65 / Each

8,10
373400 126730 373400 54 LARGE PIVOT BUSHING No Model Compatibility List $5.30 / Each

8,2
136697 373714 36 BELLY PAN No Model Compatibility List $55.15 / Each

1
138131 373774 # LITPAC, NOTE: No Model Compatibility List $0.00 / Each
Out Of Stock
4,5,6
138130 373775 # USER'S MANUAL No Model Compatibility List $18.26 / Each

1
391420 110942 391420 63 RESISTOR Yes Model Compatibility List $80.63 / Each

1
405699 112914 405699 64 DRIVE MOTOR Yes Model Compatibility List $416.90 / Each

10
103158 045017 # 7/32" ALLEN WRENCH No Model Compatibility List $2.20 / Each

2,1
013500 1019798 013500 0 1 Button Screw 5/16-18X1.5 No Model Compatibility List $4.99 / Each

2
411167 1002788 411167 0 1 Incline Motor No Model Compatibility List $144.22 / Each

28
321628 1002868 321628 0 1 Drive Motor No Model Compatibility List $284.05 / Each

28
