NordicTrack® - NT GX3.0 SPORT

Exploded Diagrams

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry used@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
103833 101902 103833 19 POST CAP No Model Compatibility List $4.69 / Each

9,12,13,14
113842 100081 113842 66 ROLLER MAGNET Yes Model Compatibility List $2.75 / Each

8
101666 012002 40 M8 NYLON LOCKNUT No Model Compatibility List $0.46 / Each

2
012142 101429 012142 29 M6 LOCKNUT No Model Compatibility List $1.98 / Each

2
131090 100079 131090 67 RSW CLAMP Yes Model Compatibility List $0.46 / Each

4,5,6
100828 140069 # SNAP RING PLIERS, 1" EXT No Model Compatibility List $85.64 / Each

2
148710 100540 148710 58 M10 LOCKNUT No Model Compatibility List $2.67 / Each

2
101940 150983 55 M8 HEX NUT No Model Compatibility List $0.25 / Each

2
153209 101910 153209 32 CRANK CAP Yes Model Compatibility List $2.40 / Each

8,9
104949 175286 49 M10 NUT No Model Compatibility List $4.18 / Each

2
018007 101927 018007 46 WHEEL BEARING Yes Model Compatibility List $11.55 / Each

8
100796 193109 24 M8 SMALL WASHER No Model Compatibility List $1.82 / Each

2
109508 200566 50 M8 X 30MM SCREW No Model Compatibility List $8.60 / Each

2
100557 208581 34 M10 X 25MM BOLT No Model Compatibility List $3.73 / Each

2
101947 208914 51 M6 X 40MM BOLT No Model Compatibility List $2.04 / Each

2
214070 100673 214070 25 M8 X 16MM BUTTON SCREW No Model Compatibility List $3.26 / Each

2
100593 223088 27 M6 X 38MM SCREW No Model Compatibility List $4.18 / Each

2
117703 236948 65 M5 X 16MM SCREW No Model Compatibility List $0.53 / Each

2
110793 248339 33 M10 FLAT WASHER No Model Compatibility List $0.52 / Each

2
116115 275069 54 M5 X 25MM SCREW No Model Compatibility List $4.99 / Each

2
101942 282797 39 M5 X 12MM SCREW No Model Compatibility List $0.35 / Each

2
101953 291546 # TOOL, ALLEN WRENCH No Model Compatibility List $2.52 / Each

2
101954 291547 # TOOL, WRENCH / PHILLIPS No Model Compatibility List $7.99 / Each

2
101933 291585 6 ACORN NUT No Model Compatibility List $4.79 / Each

2,4,5,6
101931 291587 13 SELF-TAPPING SCREW No Model Compatibility List $1.01 / Each

2,12,13,14
116102 291588 18 STABILIZER CAP No Model Compatibility List $3.78 / Each

9
101939 291610 52 M5 WASHER No Model Compatibility List $3.78 / Each

2
101937 291613 56 M6 FLANGE NUT No Model Compatibility List $0.78 / Each

2
116105 292758 26 6.5MM PLASTIC SPACER No Model Compatibility List $0.76 / Each

2,9,3,4,5,6
101052 292765 43 M10 X 25MM WASHER No Model Compatibility List $1.01 / Each

2
292768 116100 292768 16 LEVELING FOOT Yes Model Compatibility List $21.42 / Each

9
101955 299149 # DECAL, CAUTION No Model Compatibility List $5.05 / Each

7,3
101956 306047 # DECAL, MAX WEIGHT No Model Compatibility List $3.02 / Each

7,3
134495 307115 48 CONSOLE No Model Compatibility List $262.39 / Each

7
133491 308830 2 SEAT POST No Model Compatibility List $132.67 / Each

12,13,14
133492 308831 3 SEAT CARRIAGE No Model Compatibility List $91.85 / Each

12,13,14
134482 308839 11 RESISTANCE KNOB No Model Compatibility List $29.83 / Each

10

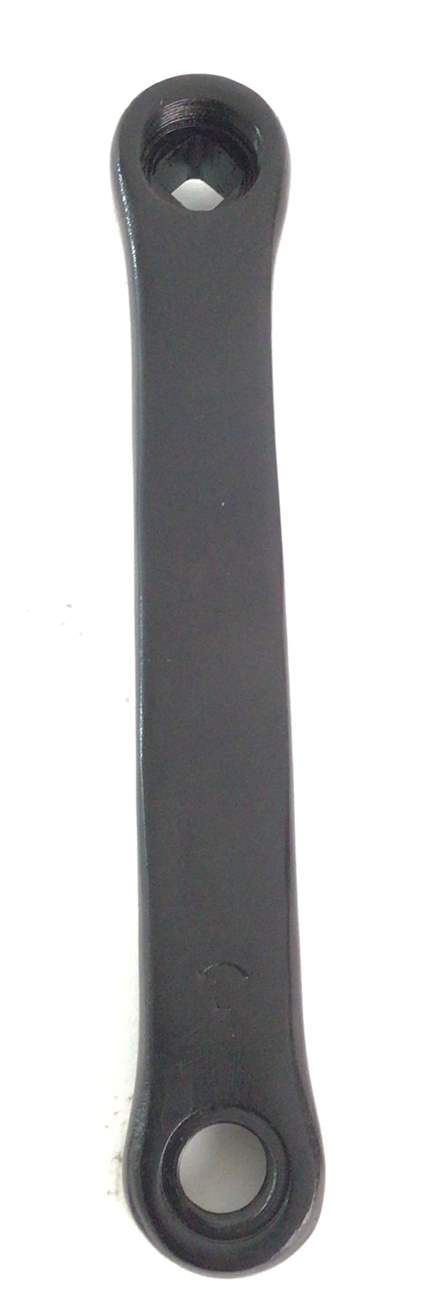

133498 308840 12 LEFT CRANK ARM No Model Compatibility List $68.84 / Each

8,3
116680 308855 30 BOTTOM BRACKET No Model Compatibility List $91.85 / Each

2,3,4,5,6

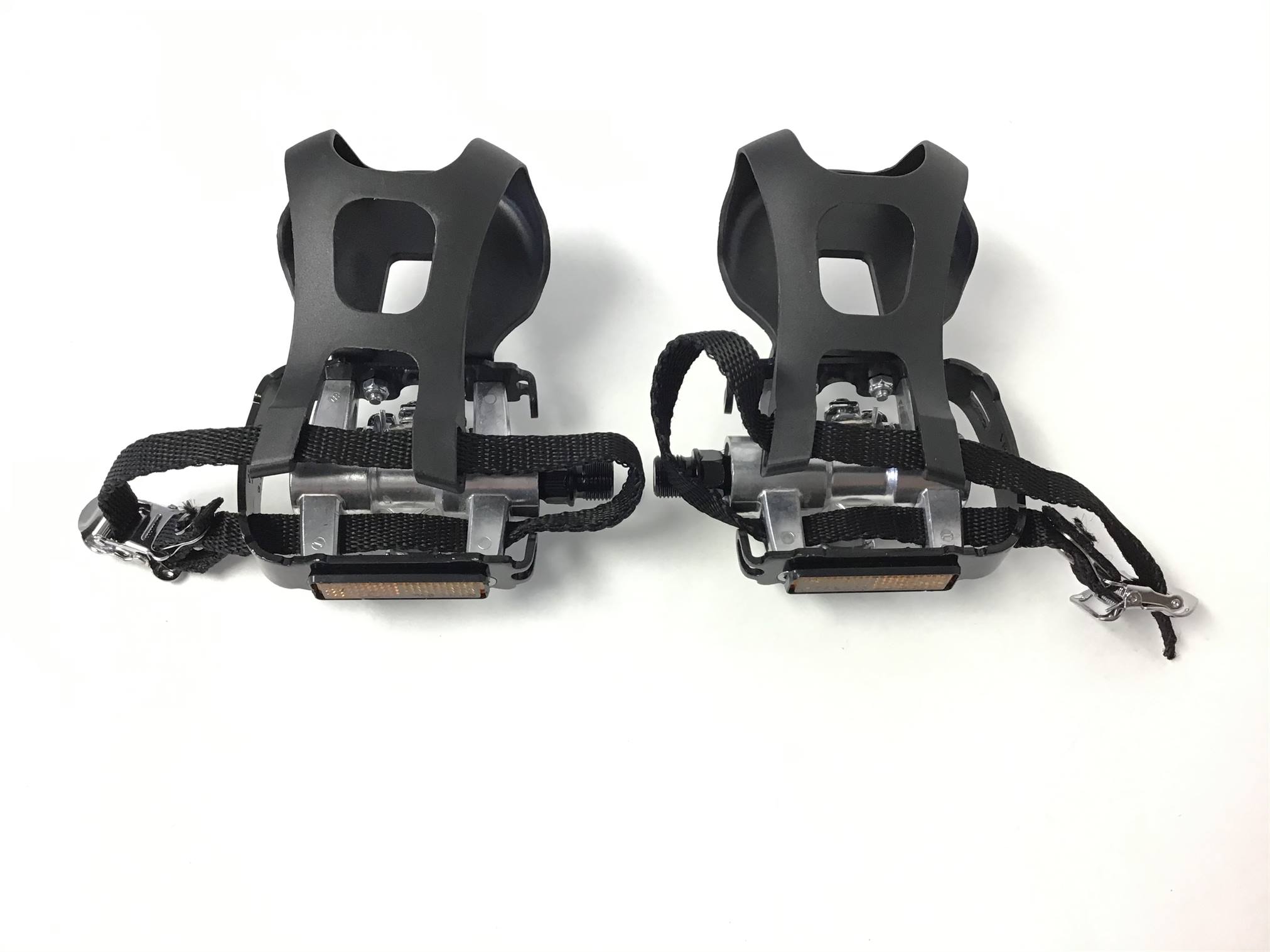

308857 133533 308857 35 LT/RT PEDAL/STRAP SET No Model Compatibility List $110.18 / Each

8,9
133514 308901 64 CONSOLE BRACKET No Model Compatibility List $17.45 / Each

7,2,3,4,5,6
134477 308905 4 HANDLEBAR POST No Model Compatibility List $114.48 / Each

12,13,14,11
134478 308906 5 HANDLEBAR No Model Compatibility List $130.98 / Each

11
134480 308908 8 FRONT STABILIZER No Model Compatibility List $147.61 / Each

1
116664 308909 9 BRAKE LEVER No Model Compatibility List $36.66 / Each

3
134483 308910 14 RIGHT SHIELD No Model Compatibility List $68.84 / Each

3
134484 308911 15 LEFT SHIELD No Model Compatibility List $68.84 / Each

3
134485 308912 17 POST BUSHING No Model Compatibility List $11.55 / Each

8,12,13,14
134486 308913 20 SHIELD COVER No Model Compatibility List $21.84 / Each

9,3
116674 308914 21 WHEEL No Model Compatibility List $23.87 / Each

8
134488 308917 23 ADJUSTMENT KNOB No Model Compatibility List $19.61 / Each

1
134489 308920 28 CHAIN No Model Compatibility List $32.17 / Each

1

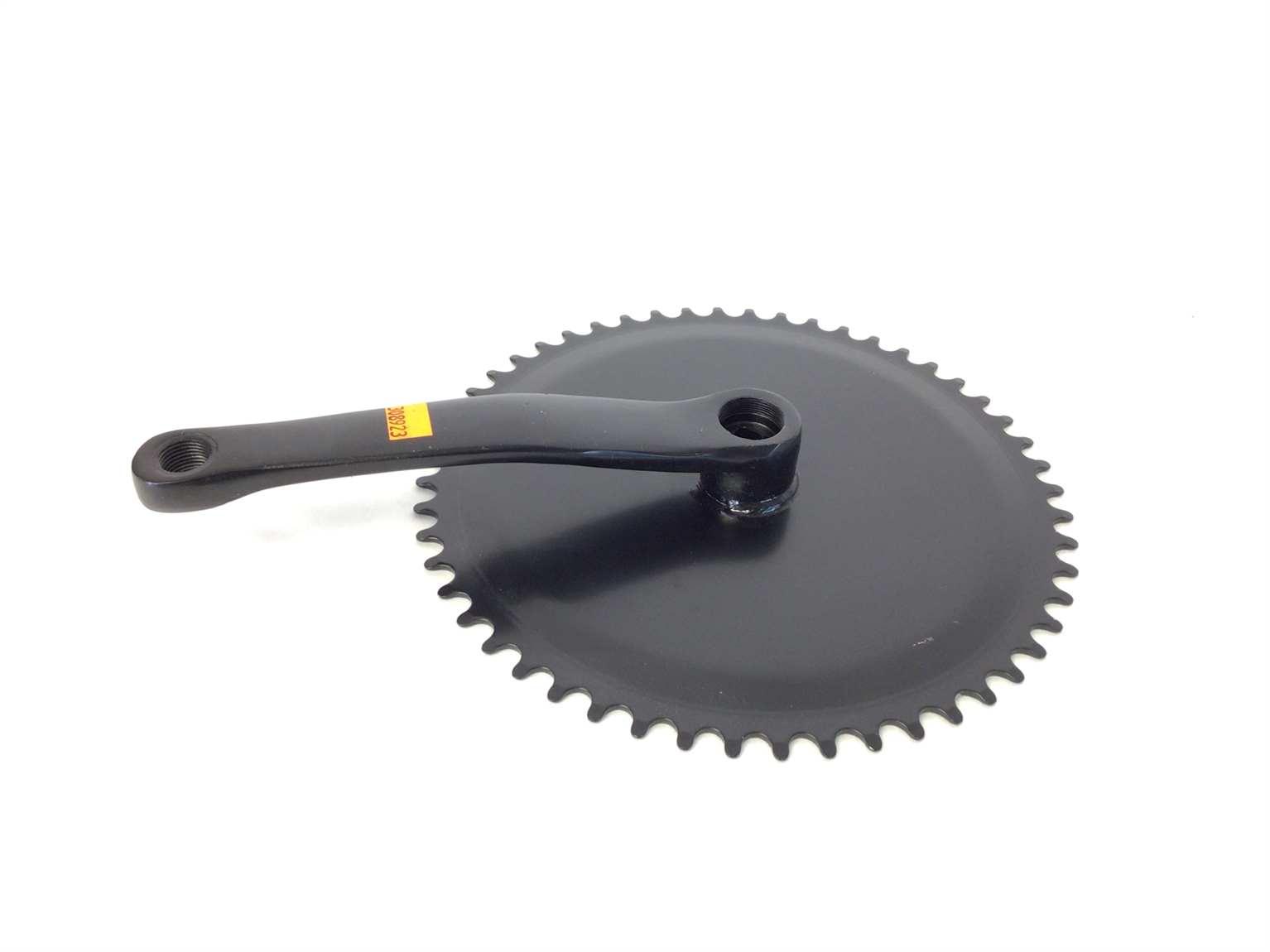

134490 308923 31 RT CRANK ARM/CRANK WHEEL No Model Compatibility List $68.84 / Each

8,3
134481 308928 10 PLASTIC SPACER No Model Compatibility List $4.18 / Each

2,9,3,4,5,6
116689 308930 42 BRAKE BRACKET No Model Compatibility List $21.84 / Each

2,3,4,5,6
134493 308935 45 CALIPER BRAKE No Model Compatibility List $114.66 / Each

1
134494 308937 60 WATER BOTTLE HOLDER No Model Compatibility List $19.43 / Each

1
134492 308940 41 BRAKE PAD, LEFT/RIGHT SET No Model Compatibility List $45.83 / Each

12,13,14
134479 308994 7 REAR STABILIZER No Model Compatibility List $130.98 / Each

1
116693 310618 53 CRANK ARM SCREW No Model Compatibility List $5.58 / Each

2,8,3
110533 312178 # OPTIONAL CHEST PULSE No Model Compatibility List $140.89 / Each

12,13,14
134497 318513 # DECAL, MAX WEIGHT, FCA No Model Compatibility List $1.63 / Each

7,3
176257 318515 22 SEAT No Model Compatibility List $0.00 / Each
Out Of Stock
12,13,14
176258 318516 # USER'S MANUAL No Model Compatibility List $0.00 / Each
Out Of Stock
1
176259 318517 # USER'S MANUAL, FCA No Model Compatibility List $0.00 / Each
Out Of Stock
1
134491 319795 36 FLYWHEEL No Model Compatibility List $734.93 / Each

8
134496 341516 # CHAIN TENSIONER No Model Compatibility List $20.15 / Each

1
