NordicTrack® - POWERTREAD PLUS

Exploded Diagrams

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry used@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Motor
  • Frame Related
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
100427 100139 100427 4 5/16" NUT Yes Model Compatibility List $1.56 / Each

2,40
101896 101061 101896 # 4" WHITE WIRE, M/F No Model Compatibility List $4.88 / Each

4,5,6
121677 101951 # 8" BLACK WIRE, 2F No Model Compatibility List $3.11 / Each

4,5,6
118360 102246 # 8" WHITE WIRE, 2F No Model Compatibility List $3.32 / Each

4,5,6
102634 100111 102634 105 8" GRN WIRE F/R, POWER No Model Compatibility List $4.75 / Each

4,5,6
102955 104351 102955 111 INCLINE SENSOR SWITCH No Model Compatibility List $16.73 / Each

4,5,6,10
102959 104355 102959 115 SMALL BOLT No Model Compatibility List $1.28 / Each

2,40
139615 105437 127 CORD GUIDE NUT No Model Compatibility List $0.22 / Each

2,4,5,6
105444 104339 105444 28 REAR ROLLER ADJ BOLT Yes Model Compatibility List $2.95 / Each

2,8
124534 105496 7 SMALL PUSHNUT, 3/8" No Model Compatibility List $1.10 / Each

2
106896 119587 106896 3 THRUST BEARING Yes Model Compatibility List $3.29 / Each

12,13,14
107503 117640 107503 15 MOTOR BOLT 3/8-16X5" Yes Model Compatibility List $6.51 / Each

2
109370 104346 109370 108 INCLINE DISK Yes Model Compatibility List $5.31 / Each

10
112083 100300 112083 # 8" BLUE WIRE, 2F No Model Compatibility List $5.46 / Each

4,5,6
113842 100081 113842 48 ROLLER MAGNET Yes Model Compatibility List $2.75 / Each

8,1
116926 100064 116926 67 RELEASABLE WIRE TIE No Model Compatibility List $2.45 / Each

2,4,5,6
116927 100262 116927 22 TIE CLAMP HOLDER - SCREW MOUNT No Model Compatibility List $2.49 / Each

2,4,5,6
117544 106302 117544 18 40MM X 50MM INT ENDCAP No Model Compatibility List $3.12 / Each

4,5,6,9
117806 118348 117806 23 WHEEL BOLT Yes Model Compatibility List $5.86 / Each
2,8
119038 104349 119038 . KEY/CLIP Yes Model Compatibility List $9.89 / Each

2,9
118346 119070 114 SPEED DISK No Model Compatibility List $0.13 / Each

1
100237 119439 44 ELECTRONIC BRACKET NUT No Model Compatibility List $0.18 / Each

2,3,4,5,6
012056 101661 012056 54 5/16" NYLON LOCKNUT No Model Compatibility List $0.48 / Each

2
120630 103901 120630 35 CONSOLE GROUND SCREW No Model Compatibility List $1.19 / Each

2,7
123763 120866 126 ELECTRONICS SCREW No Model Compatibility List $0.13 / Each

2
120867 104004 120867 34 SEAT RAIL FLANGE NUT No Model Compatibility List $3.75 / Each

2,9,12,13,14
012149 100136 012149 24 3/8" HEX LOCK NUT No Model Compatibility List $1.79 / Each

2
122812 113293 122812 120 MOTOR WASHER No Model Compatibility List $1.53 / Each

2
124318 117643 124318 55 BELT GUIDE Yes Model Compatibility List $3.22 / Each

15
124695 117665 124695 70 WIRE HARNESS GROMMET No Model Compatibility List $4.12 / Each

4,5,6
125677 118533 125677 49 SHORT HOOD BRACKET No Model Compatibility List $3.56 / Each

2,3,4,5,6,9
125819 101014 125819 62 LARGE STANDOFF Yes Model Compatibility List $0.34 / Each

2,1
118345 125871 121 MOTOR/CONTROLLER WIRE No Model Compatibility List $5.90 / Each

7,8,4,5,6
117645 126040 . ALLEN WRENCH 3/16" No Model Compatibility List $1.29 / Each
Out Of Stock
2

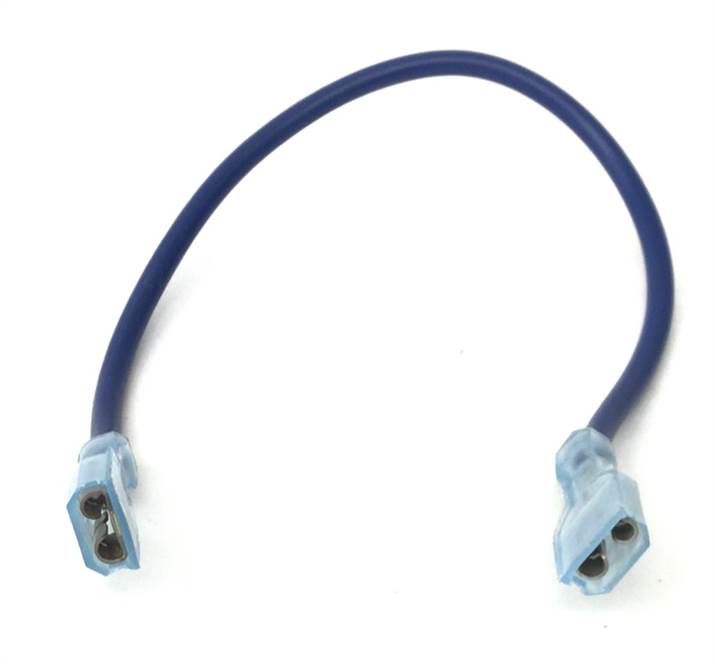

126146 100112 126146 # 4" BLU WIRE F/F, DR MOTOR No Model Compatibility List $2.43 / Each

4,5,6
126911 104352 126911 112 20" WIRE HARNESS Yes Model Compatibility List $12.17 / Each

4,5,6
121978 126996 1 CONSOLE BASE SCREW No Model Compatibility List $0.25 / Each

7,2,3
127860 118677 127860 # FASTENER No Model Compatibility List $1.28 / Each

1
121909 128260 41 RT REAR RLR ADJ BOLT No Model Compatibility List $1.02 / Each

2
128272 100221 128272 39 PLATFORM BOLT, FRONT 1/4" X1.25" Yes Model Compatibility List $7.04 / Each

2
129004 101035 129004 72 ROUND GROMMET No Model Compatibility List $3.64 / Each

2
121910 129168 16 SAFETY COVER SCREW No Model Compatibility List $0.26 / Each

2,9
118358 129740 . BASE PAD No Model Compatibility List $2.50 / Each

3,12,13,14
130853 100362 130853 5 CONSOLE BACK SCREW, 1/2" Yes Model Compatibility List $0.23 / Each

2,4,5,6,7
130868 121971 130868 110 PIVOT BOLT 3/8-16X1.75X.5 Yes Model Compatibility List $2.07 / Each

2,8
121619 131826 . 1/4" X 5/8" BOLT No Model Compatibility List $0.63 / Each

2
013300 100149 013300 36 #8 X 3/4" WASHER HD SCREW Yes Model Compatibility List $1.28 / Each

2
118347 013307 38 INCLINE LEG BOLT No Model Compatibility List $9.38 / Each

2,10
139630 133263 . USER'S MANUAL No Model Compatibility List $8.46 / Each

1
013375 106621 013375 25 3/8" BOLT No Model Compatibility List $4.17 / Each

2
013484 101724 013484 19A 5/16" X 1/2" BUTTON SCREW Yes Model Compatibility List $1.26 / Each

2
013529 102048 013529 135 M4 X 38MM SCREW No Model Compatibility List $1.46 / Each

2
013547 100450 013547 31 IDLER ARM BOLT No Model Compatibility List $2.89 / Each

2,3,8
139614 135546 130 CORD GUIDE BOLT No Model Compatibility List $1.74 / Each

2,4,5,6
135713 118350 135713 73 INCLINE MOTOR Yes Model Compatibility List $122.99 / Each

10
014063 100042 014063 99 1/4" FLAT WASHER No Model Compatibility List $1.03 / Each

2
100142 014088 78 #10 STAR WASHER No Model Compatibility List $0.07 / Each

2
014117 102446 014117 33 3/8" CONSOLE SUPPORT No Model Compatibility List $1.32 / Each

2
014127 104040 014127 29 1/4" WASHER No Model Compatibility List $1.20 / Each

2,3
014132 100263 014132 32 IDLER WHEEL WASHER No Model Compatibility List $2.43 / Each

2,8
014157 100141 014157 113 #8 STAR WASHER Yes Model Compatibility List $1.17 / Each

2
121761 142082 102 WALKING BELT No Model Compatibility List $119.41 / Each

15
016028 118356 016028 . ADHESIVE CLIP No Model Compatibility List $2.23 / Each

2
016029 100321 016029 107 CLAMP, CABLE TIE 4" No Model Compatibility List $1.17 / Each

2,4,5,6
016057 100063 016057 106 8" CABLE TIE No Model Compatibility List $1.30 / Each

2,1,4
162741 118357 162741 117 FRONT ROLLER ADJ BOLT No Model Compatibility List $1.91 / Each

2,8
185582 104353 185582 66 CHOKE Yes Model Compatibility List $76.47 / Each

1
219170 100096 219170 # 3 TUBE LUBE KIT No Model Compatibility List $30.38 / Each

1,3,15
220769 118353 220769 60 MOTOR BELT Yes Model Compatibility List $23.55 / Each

15
100280 256836 # LATCH WRNG DECAL, ENGLISH No Model Compatibility List $1.50 / Each

7,3
100094 356520 # ACCESSORY KIT No Model Compatibility List $42.89 / Each

4,5,6,1
052012 115252 052012 53 WHEEL Yes Model Compatibility List $4.49 / Each

8
031229a KV5-DWY-57F 031229a 031229 Power Cord Yes Model Compatibility List $32.99 / Each

5,6
128191 1022093 128191 111 1 Power supply board (Used) No Model Compatibility List $149.53 / Each
