NordicTrack® - RW200

Exploded Diagrams

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry used@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
113842 100081 113842 85 ROLLER MAGNET Yes Model Compatibility List $2.75 / Each

8
012142 101429 012142 57 M6 LOCKNUT No Model Compatibility List $1.98 / Each

2
113872 013074 83 M8 X 55MM BOLT No Model Compatibility List $6.67 / Each

2
100073 132315 # WIRE TIE No Model Compatibility List $0.56 / Each

2,4,5,6
133333 100032 133333 67 #8 HOOD CLIP No Model Compatibility List $0.65 / Each

2,9
100828 140069 # SNAP RING PLIERS, 1" EXT No Model Compatibility List $85.64 / Each

2
146119 100097 146119 # FLOOR MAT 36X72" No Model Compatibility List $75.90 / Each

1
100825 166295 # DECAL, WARNING, E/FCA No Model Compatibility List $1.03 / Each

7,3
133894 176420 25 SNAP RING No Model Compatibility List $0.64 / Each

2
101335 186477 15 HANDLEBAR CAP No Model Compatibility List $3.36 / Each

9,11
100796 193109 73 M8 SMALL WASHER No Model Compatibility List $1.82 / Each

2
195562 100586 195562 68 M4 X 16MM SCREW Yes Model Compatibility List $1.44 / Each

2
197037 101027 197037 71 M6 X 12MM SCREW Yes Model Compatibility List $0.69 / Each

2
100890 207678 60 M10 X 40MM BOLT No Model Compatibility List $4.64 / Each

2
208320 100889 208320 70 M4 X 10MM SCREW Yes Model Compatibility List $0.32 / Each

2
213148 100797 213148 28 WAVE WASHER No Model Compatibility List $1.65 / Each

2
215823 100197 215823 # AUDIO WIRE,18 Yes Model Compatibility List $8.87 / Each

4,5,6
242356 106540 242356 64 #8 X 3/4" SCREW Yes Model Compatibility List $0.15 / Each

2
100534 246785 65 M6 X 15MM SCREW No Model Compatibility List $2.52 / Each

2
115162 248333 82 M8 X 35MM SCREW No Model Compatibility List $1.80 / Each

2
250961 100881 250961 69 M4 X 19MM SELF-TAP SCREW No Model Compatibility List $0.72 / Each

2
261150 101053 261150 58 M8 X 25MM WASHER No Model Compatibility List $2.64 / Each

2
133928 264384 79 WIRE GROMMET No Model Compatibility List $3.34 / Each

2,4,5,6
138903 266080 # DECAL, GENERAL WARNING No Model Compatibility List $3.96 / Each

7,3
268411 109171 268411 56 M6 X 13MM WASHER Yes Model Compatibility List $0.23 / Each

2,8,9
138915 275863 # DECAL, SITE WRNG, FRENCH No Model Compatibility List $0.00 / Each
Out Of Stock
7,3
101434 275979 96 M6 X 12MM HEX PATCH SCREW No Model Compatibility List $1.40 / Each

2
115485 276048 97 M8 X 10MM HEX SCREW No Model Compatibility List $0.47 / Each

2
282277 100954 282277 50 CLAMP Yes Model Compatibility List $2.32 / Each

4,5,6
110137 316650 # 8" CABLE TIE, 50# No Model Compatibility List $0.38 / Each

2,4,5,6
337717 110342 337717 # POWER ADAPTER Yes Model Compatibility List $32.99 / Each

4,5,6
101934 339153 66 CRANK NUT No Model Compatibility List $0.94 / Each

2,8
138916 358321 # DECAL, GENRL WRNG,FCA No Model Compatibility List $0.00 / Each
Out Of Stock
7,3
105514 360925 63 M5 X 10MM BUTTON SCREW No Model Compatibility List $0.24 / Each

2
362434 133917 362434 53 PIVOT AXLE No Model Compatibility List $9.20 / Each

8
362435 133884 362435 11 BUNGEE No Model Compatibility List $34.36 / Each

1
362437 133906 362437 40 CARRIAGE AXLE No Model Compatibility List $7.13 / Each

8
133877 363138 5 SEAT CARRIAGE No Model Compatibility List $20.02 / Each

12,13,14
133912 363142 46 ROLLER AXLE No Model Compatibility List $1.67 / Each

8
363143 133919 363143 55 PULLEY BRACKET No Model Compatibility List $1.57 / Each

2,3,4,5,6,8
133891 363148 21 LEFT FOOTREST No Model Compatibility List $21.29 / Each

9
133887 363149 17 RIGHT FOOTREST No Model Compatibility List $21.29 / Each

9
133890 363152 20 LEFT FOOTREST BRACKET No Model Compatibility List $6.47 / Each

2,9,3,4,5,6
133889 363153 19 RIGHT FOOTREST BRACKET No Model Compatibility List $6.47 / Each

2,9,3,4,5,6
363155 133883 363155 10 STRAP GROMMET No Model Compatibility List $3.01 / Each

2
133916 363156 52 FRAME HANDLE No Model Compatibility List $5.75 / Each

3,11
133900 363157 34 RAIL HANDLE No Model Compatibility List $12.66 / Each

9,11
133909 363158 43 STORAGE FOOT No Model Compatibility List $9.32 / Each

9
133907 363159 41 STABILIZER FOOT No Model Compatibility List $2.40 / Each

9
133902 363163 36 RAIL FOOT No Model Compatibility List $6.71 / Each

9
133904 363164 38 RAIL CAP No Model Compatibility List $2.87 / Each

9
133914 363165 49 FRAME FOOT No Model Compatibility List $3.60 / Each

9,3
133898 363166 32 STOP No Model Compatibility List $1.44 / Each

1
133901 363171 35 FOLDING CLAMP No Model Compatibility List $3.83 / Each

4,5,6
363182 133897 363182 31 PIVOT BUSHING No Model Compatibility List $4.11 / Each

8
133922 363815 62 5MM WASHER No Model Compatibility List $1.20 / Each

2
363912 133913 363912 48 FRAME PULLEY No Model Compatibility List $13.18 / Each

3,8
363913 133910 363913 44 RAIL PULLEY No Model Compatibility List $10.81 / Each

8,9
133905 363914 39 LARGE CARRIAGE ROLLER No Model Compatibility List $12.66 / Each

8
133903 363915 37 SMALL CARRIAGE ROLLER No Model Compatibility List $5.51 / Each

8
133911 363916 45 STRAP ROLLER No Model Compatibility List $6.00 / Each

8
133918 363917 54 DEFLECTOR BRACKET No Model Compatibility List $2.40 / Each

2,3,4,5,6
133940 364005 # STRAP PIN No Model Compatibility List $0.47 / Each

12,13,14
133899 365018 33 BUMPER No Model Compatibility List $4.07 / Each

1
133908 365455 42 WHEEL No Model Compatibility List $2.87 / Each

8
133921 367242 61 M10 X 20MM SCREW No Model Compatibility List $0.24 / Each

2
133915 367365 51 ROW BAR REST No Model Compatibility List $24.04 / Each

1

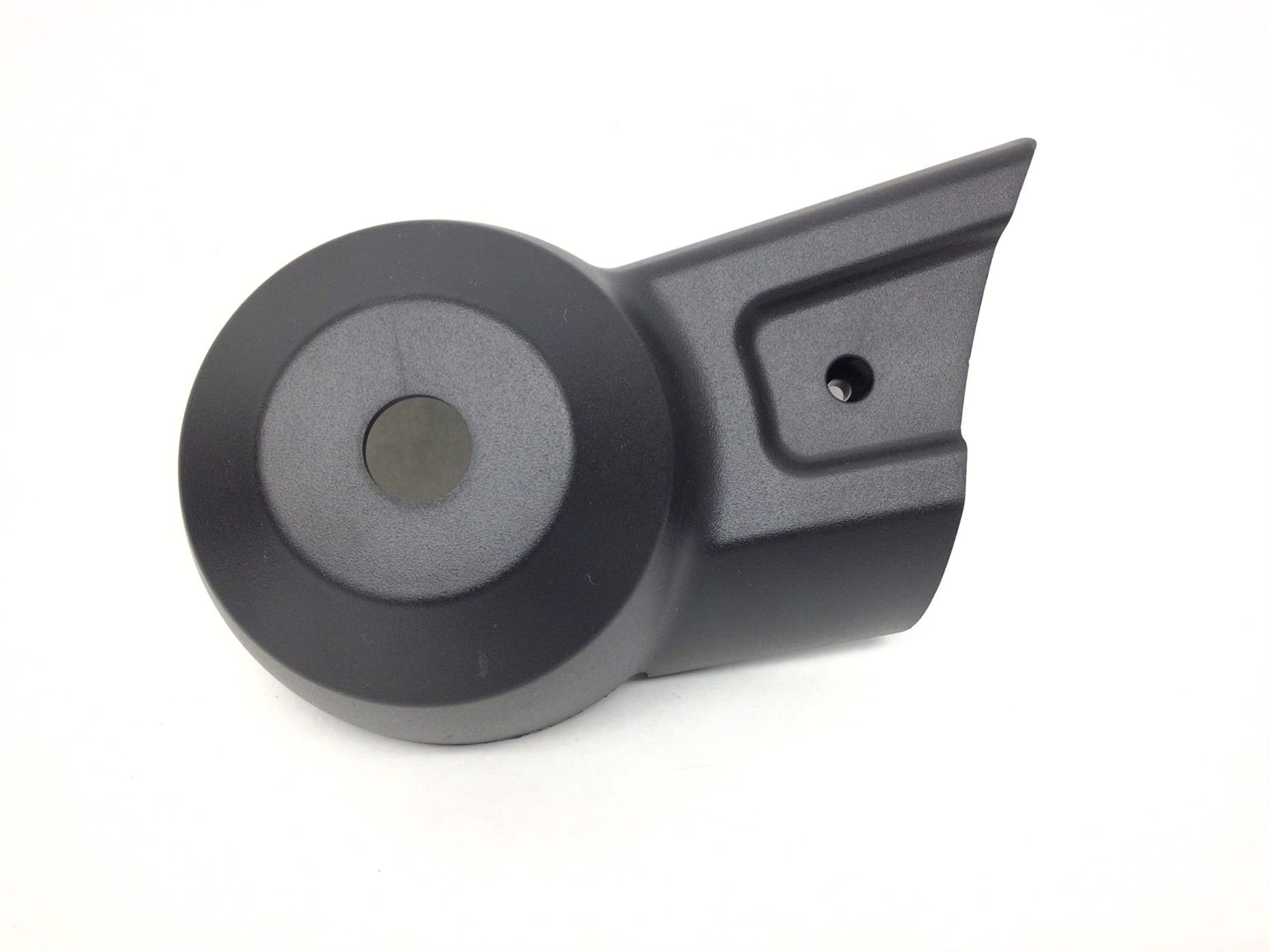

133929 367366 80 RIGHT UPRIGHT COVER No Model Compatibility List $12.93 / Each

9,3
133930 367367 81 LEFT UPRIGHT COVER No Model Compatibility List $12.93 / Each

9,3
367368 133892 367368 22 LEFT FOOT PAD No Model Compatibility List $17.49 / Each

9
133888 367369 18 RIGHT FOOT PAD No Model Compatibility List $10.89 / Each

9,12,13,14
133886 367486 16 FOOTREST STRAP No Model Compatibility List $20.53 / Each

9
133931 367682 84 UPRIGHT WIRE No Model Compatibility List $11.65 / Each

3,4,5,6

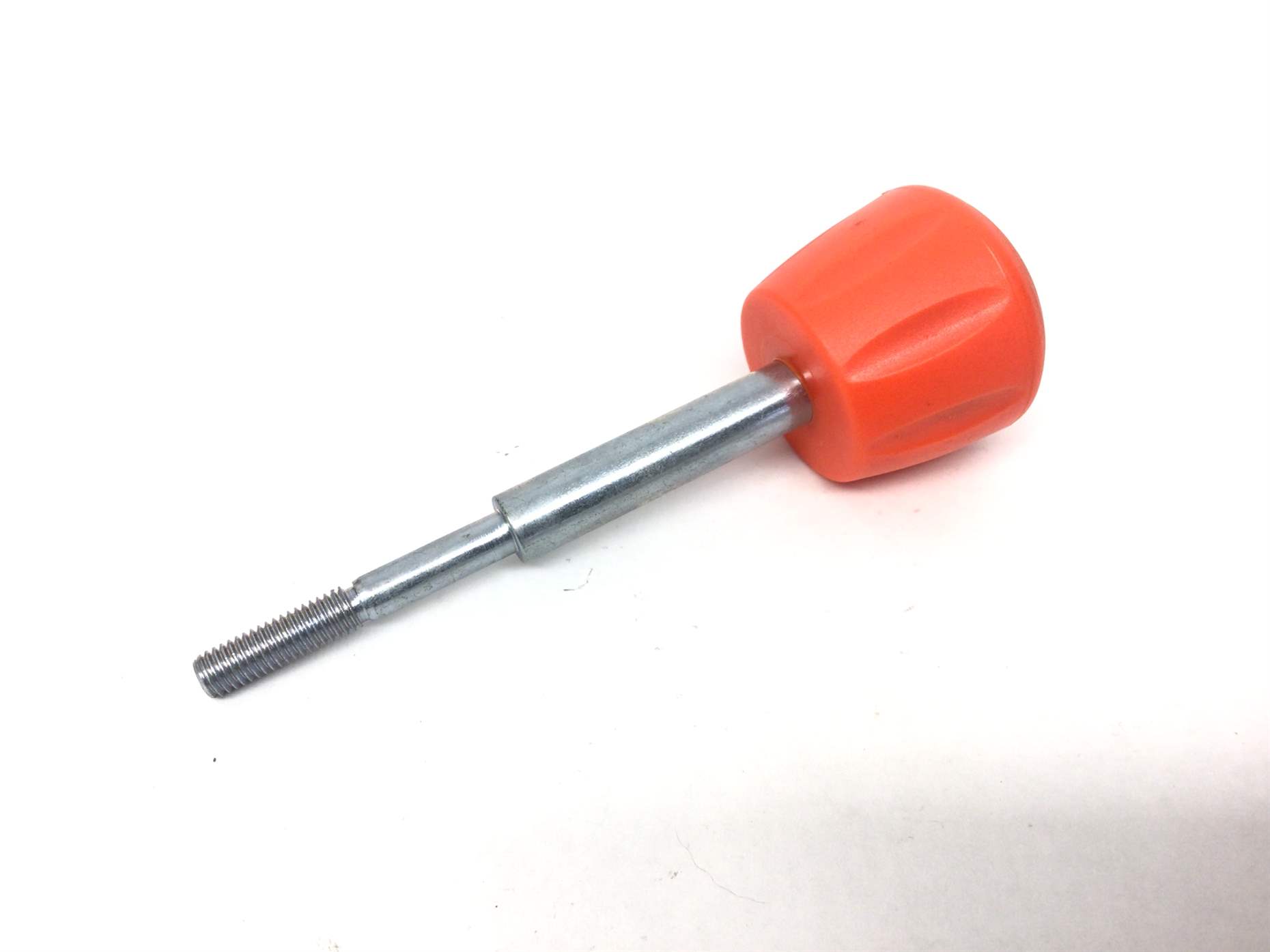

133927 367790 78 KNOB No Model Compatibility List $19.50 / Each

1
133875 367820 3 STABILIZER No Model Compatibility List $111.18 / Each

1
133878 367822 6A RIGHT DEFLECTOR No Model Compatibility List $32.36 / Each

1
133879 367936 6B LEFT DEFLECTOR No Model Compatibility List $32.36 / Each

1
133926 367954 77 UPRIGHT No Model Compatibility List $22.51 / Each

3
133944 367985 # DECAL, UPRT SITE WARNING No Model Compatibility List $0.24 / Each

7,3
133920 368570 59 M8 X 12MM SCREW No Model Compatibility List $0.72 / Each

2
133933 371472 87 M4 X 10MM FLAT HEAD SCREW No Model Compatibility List $0.24 / Each

2
372449 115862 372449 47 REED SWITCH/WIRE Yes Model Compatibility List $17.16 / Each

4,5,6
138913 372484 23 SEAT No Model Compatibility List $0.00 / Each
Out Of Stock
12,13,14
133934 375759 88 BEARING BRACKET No Model Compatibility List $24.98 / Each

2,3,4,5,6
133895 375762 29 PULLEY ASSEMBLY No Model Compatibility List $99.69 / Each

8
375766 133896 375766 30 AXLE No Model Compatibility List $43.31 / Each

8
116412 380825 95 M4 X 12MM SCREW No Model Compatibility List $0.46 / Each

2
133881 385621 8 LEFT SHIELD No Model Compatibility List $47.07 / Each

3
133880 385623 7 RIGHT SHIELD No Model Compatibility List $47.07 / Each

3
133935 385626 89 HANDLE BRACKET No Model Compatibility List $12.25 / Each

2,3,4,5,6,11
133939 385627 93 FRAME MAGNET No Model Compatibility List $0.46 / Each

8,3
133923 385632 72 RIGHT FAN No Model Compatibility List $140.90 / Each

8
133937 385637 91 MAGNET BRACKET No Model Compatibility List $16.92 / Each

2,8,3,4,5,6
133938 385641 92 RESISTANCE MAGNET No Model Compatibility List $17.90 / Each

8,10

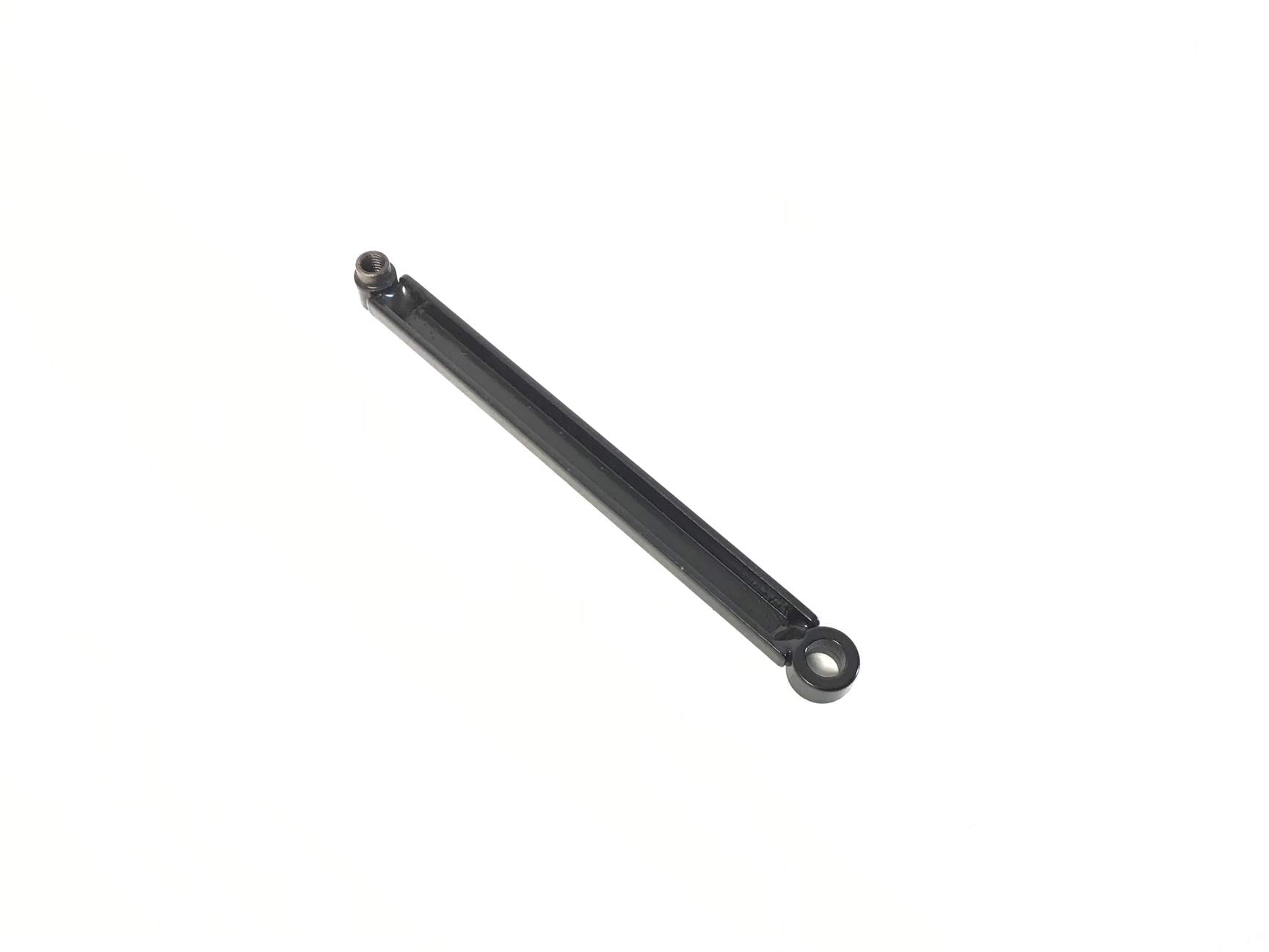

385646 133936 385646 90 LINK ARM No Model Compatibility List $21.81 / Each

3
133876 385946 4 LEFT FAN No Model Compatibility List $108.83 / Each

8
133882 386078 9 RESISTANCE HANDLE No Model Compatibility List $25.65 / Each

10,11

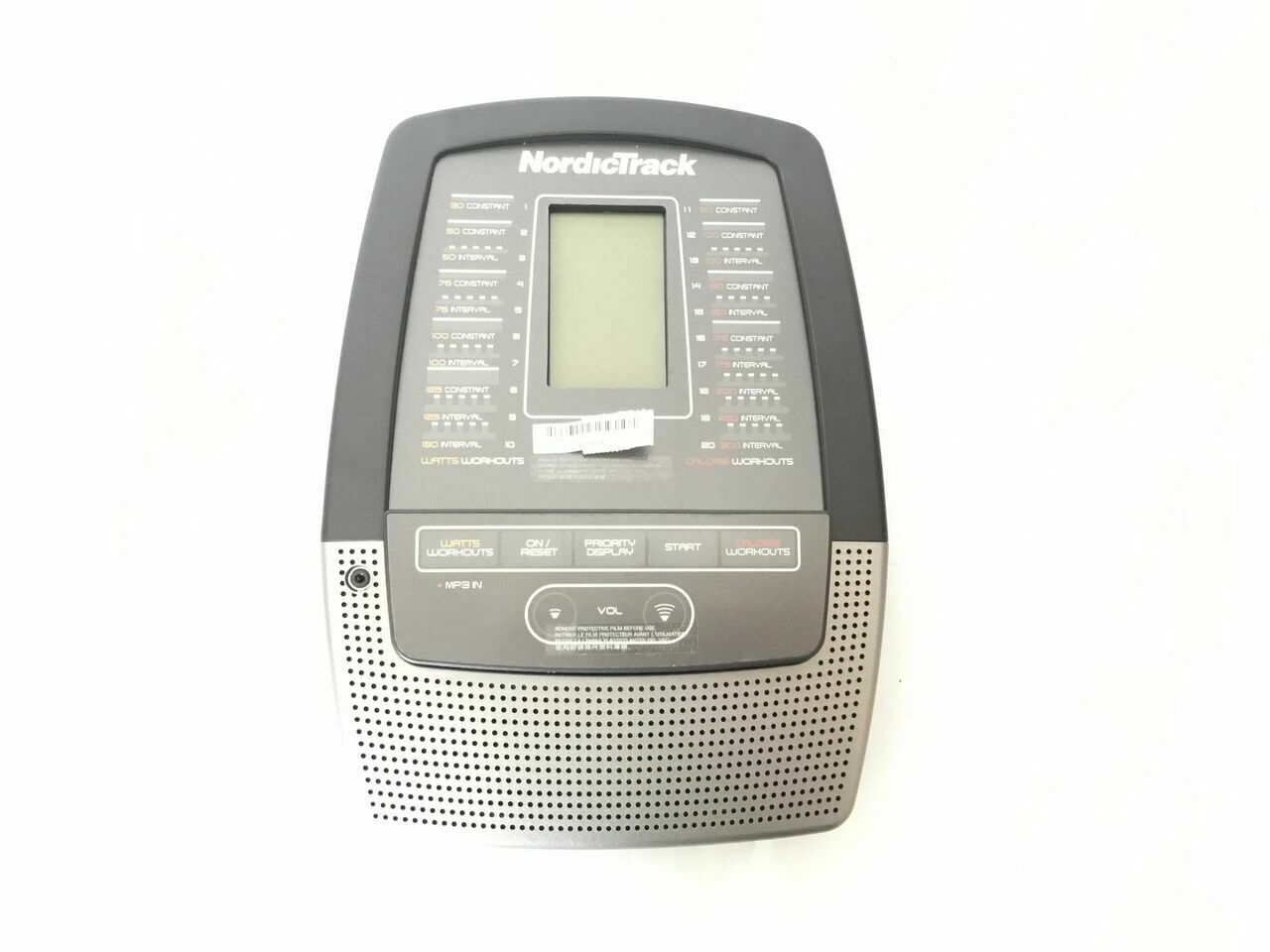

386345 133924 386345 75 CONSOLE No Model Compatibility List $208.98 / Each

7
138917 390897 # USER'S MANUAL, ECA No Model Compatibility List $0.00 / Each
Out Of Stock
7
138912 390898 2 RAIL No Model Compatibility List $0.00 / Each
Out Of Stock
9
138914 390899 76 NECK No Model Compatibility List $0.00 / Each
Out Of Stock
1
138918 390938 # USER'S MANUAL, FCA No Model Compatibility List $0.00 / Each
Out Of Stock
1
397466 133885 397466 12 STRAP,MECH W/ PULL HANDLE No Model Compatibility List $69.16 / Each
Out Of Stock
1
View Drawing
