Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
107771 102884 107771 # 8 No Model Compatibility List $4.41 / Each

4,5,6
114011 102281 114011 # 4 Yes Model Compatibility List $4.87 / Each

4,5,6
114012 102280 114012 # 4 No Model Compatibility List $2.74 / Each

4,5,6
100186 116566 75 15 1/2" CABLE TIE No Model Compatibility List $0.76 / Each

2,4,5,6,1
116926 100064 116926 74 RELEASABLE WIRE TIE No Model Compatibility List $2.45 / Each

2,4,5,6
119425 100031 119425 29 3/8" HEX JAM NUT Yes Model Compatibility List $1.65 / Each

2
012149 100136 012149 10 3/8" HEX LOCK NUT No Model Compatibility List $1.79 / Each

2
100088 123945 # TECH SHEET ENVELOPE No Model Compatibility List $0.94 / Each

1
128457 100190 128457 59 3/16-7/32" ALLEN WRENCH No Model Compatibility List $9.99 / Each

2,1
013028 100265 013028 34 1" SCREW No Model Compatibility List $1.40 / Each

2,4,5,6
100073 132315 99 WIRE TIE No Model Compatibility List $0.56 / Each

2,4,5,6,1
133333 100032 133333 31 #8 HOOD CLIP No Model Compatibility List $0.65 / Each

2,9,1,46
013529 102048 013529 111 M4 X 38MM SCREW No Model Compatibility List $1.46 / Each

2
013544 100017 013544 3 3/8" BOLT No Model Compatibility List $2.87 / Each

2
013556 100125 013556 5 5/16" X 3/4" SCREW No Model Compatibility List $1.14 / Each

2
136012 100252 136012 30 PLATFORM NUT No Model Compatibility List $1.47 / Each

2
013607 100132 013607 28 #8 X 3/4" TRUSS HEAD SCRW No Model Compatibility List $0.22 / Each

2
136728 100137 136728 19 #8 X 1/2" SCREW Yes Model Compatibility List $0.30 / Each

2
137224 100253 137224 23 PLATFORM BOLT, REAR No Model Compatibility List $2.20 / Each

2
113326 139113 # 14" BLACK WIRE M/F No Model Compatibility List $4.15 / Each

4,5,6
014063 100042 014063 25 1/4" FLAT WASHER No Model Compatibility List $1.03 / Each

2
014126 100283 014126 26 REAR ROLLER WASHER No Model Compatibility List $1.10 / Each

2,8
014149 100449 014149 9 5/16" STAR WASHER No Model Compatibility List $0.20 / Each

2
014157 100141 014157 33 #8 STAR WASHER Yes Model Compatibility List $1.17 / Each

2
100084 142711 # 4" GRN WIRE, F/R, CNTRLR No Model Compatibility List $1.91 / Each

7,4,5,6
100264 146427 2 1" TEK SCREW No Model Compatibility List $0.28 / Each

2
154848 101799 154848 112 M4 X 52MM SCREW No Model Compatibility List $1.23 / Each

2
157504 100423 157504 44 REED SWITCH Yes Model Compatibility List $15.81 / Each

4,5,6
157600 100076 157600 92 BASE PAD Yes Model Compatibility List $6.83 / Each

3,12,13,14,46,1
016057 100063 016057 76 8" CABLE TIE No Model Compatibility List $1.30 / Each

2,1,4
163045 100123 163045 11 3/8" STAR WASHER Part # 3 On Drawing Yes Model Compatibility List $1.30 / Each

2
100602 166909 108 PAD FRAME WARNING DECAL No Model Compatibility List $1.84 / Each

7,3,12,13,14,1
173169 100061 173169 72 GROMMET Yes Model Compatibility List $0.94 / Each

2,1
179767 100134 179767 16 3/8"X1 3/4" BOLT INC TOP Yes Model Compatibility List $2.87 / Each

2
183246 102957 183246 8 1/4" x .5" Button Head Screw No Model Compatibility List $1.14 / Each

2
186726 100201 186726 70 POWER SWITCH Yes Model Compatibility List $20.45 / Each

4,5,6,1
186819 100120 186819 17 #8 X 1/2" SCREW Yes Model Compatibility List $0.42 / Each

2
100444 189861 12 REAR ROLLER STAR WASHER No Model Compatibility List $0.12 / Each

2,8
100246 191892 95 REAR WHEEL Yes Model Compatibility List $3.11 / Each

8
103179 198081 # 6" BLUE WIRE, M/F No Model Compatibility List $2.90 / Each

4,5,6
198639 100147 198639 39 BELT GUIDE Yes Model Compatibility List $10.99 / Each

15,40
102773 203451 27 5/16" CAGE NUT No Model Compatibility List $2.75 / Each

2,3
215822 100187 215822 107 4 No Model Compatibility List $5.39 / Each

4,5,6,7
215823 100197 215823 93 AUDIO WIRE,18 Yes Model Compatibility List $8.87 / Each

4,5,6
216626 100422 216626 45 REED SWITCH CLIP No Model Compatibility List $1.85 / Each

2,4,5,6
219168 100095 219168 # 1 TUBE LUBE KIT No Model Compatibility List $6.81 / Each

1,3,15
219170 100096 219170 # 3 TUBE LUBE KIT No Model Compatibility List $30.38 / Each

1,3,15
100487 222258 67 WHEEL SPACER No Model Compatibility List $1.24 / Each

2,8,3,4,5,6
100420 222902 43 MAGNET No Model Compatibility List $13.18 / Each

8
223520 102354 223520 73 INCLINE/CONTROLLER WIRE No Model Compatibility List $9.35 / Each

4,5,6,7,8,10
228465 102455 228465 24 1/4" X 1 3/4" SCREW Yes Model Compatibility List $1.56 / Each

2
103057 240343 49 LATCH CAP No Model Compatibility List $0.96 / Each

9
100185 240351 109 ANCHORED CABLE TIE No Model Compatibility List $0.74 / Each

2,4,5,6,1
102234 251606 18 FOOT RAIL SCREW No Model Compatibility List $0.54 / Each

2,9
100178 252433 89 WARNING DECAL No Model Compatibility List $0.47 / Each

7,3,1
252752 110925 252752 71 POWER CORD Yes Model Compatibility List $62.53 / Each

4,5,6,1
256790 102419 256790 98 KEY/CLIP Yes Model Compatibility List $21.03 / Each

2,9
100280 256836 36 LATCH WRNG DECAL, ENGLISH No Model Compatibility List $1.50 / Each

7,3
259500 102291 259500 20 MOTOR BOLT No Model Compatibility List $3.22 / Each

2
398056 102856 398056 54 CONTROLLER Yes Model Compatibility List $180.00 / Each

7,8
263724 111823 263724 56 IDLER ROLLER Yes Model Compatibility List $102.56 / Each

8
266622 102767 266622 6 3/8" X 1 3/4" PATCH SCRW Yes Model Compatibility List $4.58 / Each

1
100117 268476 # DECAL, GROUNG WARNING No Model Compatibility List $0.91 / Each

7,3,1
269360 110575 269360 4 5/16" X 1 1/2" SCREW Yes Model Compatibility List $1.92 / Each

2
111145 270043 105 ACCESS DOOR No Model Compatibility List $1.28 / Each

4,5,6
280156 121693 280156 7 3/8" X 5 1/2" PATCH BOLT No Model Compatibility List $5.47 / Each

2
283997 100144 283997 63 INCLINE FRAME WASHER No Model Compatibility List $1.23 / Each

2,3,10
121732 284000 97 WHEEL AXLE No Model Compatibility List $2.23 / Each

8
121711 284184 110 OUTSIDE LIFT FRM BSHG No Model Compatibility List $2.60 / Each

10
118713 284186 77 HANDRAIL CAP No Model Compatibility List $1.99 / Each

9,3,46
121736 284188 62 INSIDE LIFT FRAME BUSHING No Model Compatibility List $2.65 / Each

8,3,10
113573 284195 64 FRAME SPACER No Model Compatibility List $0.76 / Each

2,3,4,5,6
121731 284196 96 WHEEL HOUSING No Model Compatibility List $4.26 / Each

8
121714 284197 68 HOOD MOUNT No Model Compatibility List $4.86 / Each

2,9
121696 284552 22 3/8" X 1 3/8" BOLT No Model Compatibility List $3.77 / Each
Out Of Stock
2
121695 284554 21 3/8" X 2 1/8" BOLT No Model Compatibility List $4.79 / Each

2
121708 284557 53 ELECTRONICS BRACKET No Model Compatibility List $18.67 / Each

2,3,4,5,6
121727 284713 88 BOLT SPACER No Model Compatibility List $1.91 / Each

2,3,4,5,6
135424 284858 # HARDWARE KIT, NOTE: No Model Compatibility List $68.52 / Each

1
121719 285098 80 CONSOLE CLAMP No Model Compatibility List $0.70 / Each

7,4,5,6
285260 121702 285260 42 DRIVE ROLLER/PULLEY Yes Model Compatibility List $132.31 / Each

8,10
285484 121705 285484 48 WALKING BELT No Model Compatibility List $128.88 / Each

15
285985 119140 285985 103 MODULE HOUSING WIFI Yes Model Compatibility List $36.19 / Each

1
108883 286408 35 LEFT FOOT RAIL No Model Compatibility List $77.79 / Each

9
121699 286715 38 WALKING PLATFORM No Model Compatibility List $163.80 / Each

15
287224 121703 287224 46 DRIVE MOTOR BELT No Model Compatibility List $38.15 / Each

10,15
304511 121704 304511 47 M-295736 DRIVE MOTOR Yes Model Compatibility List $499.77 / Each

10
287658 121713 287658 66 INCLINE MOTOR Yes Model Compatibility List $135.11 / Each

10
134032 287726 114B USB CABLE No Model Compatibility List $14.23 / Each

4,5,6
135414 289523 100 CONSOLE No Model Compatibility List $702.65 / Each

7
125994 289961 61 MOTOR HOOD No Model Compatibility List $108.48 / Each

9
134033 291539 114C IFIT WIFI USER'S MANUAL No Model Compatibility List $8.56 / Each

1

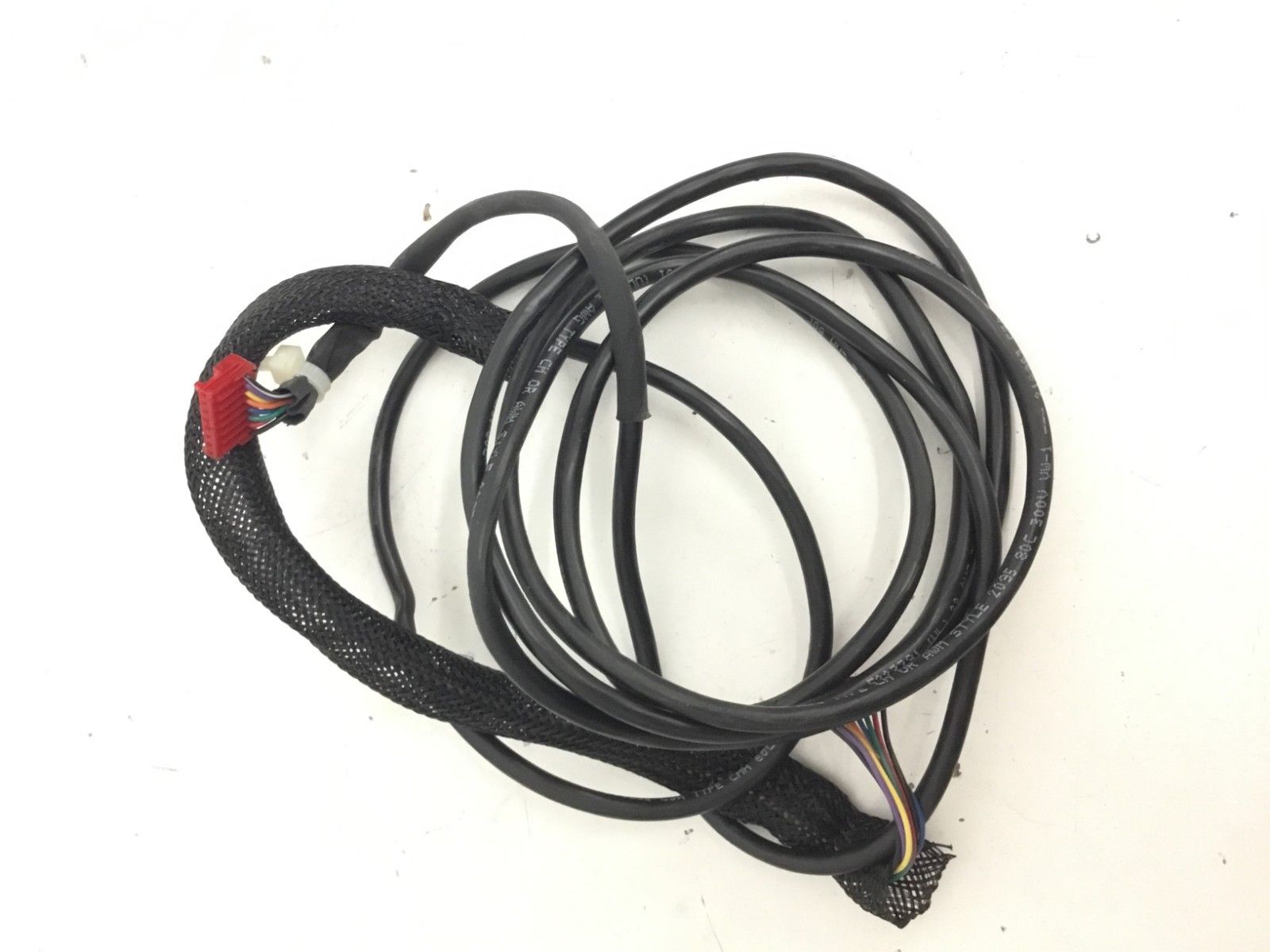

121724 291681 85 UPRIGHT WIRE No Model Compatibility List $65.43 / Each

3,4,5,6
135394 294758 13 PULSE CROSSBAR No Model Compatibility List $54.54 / Each

12,13,14
135412 294760 91 RIGHT UPRIGHT SPACER No Model Compatibility List $19.46 / Each

2,3,4,5,6
135411 294761 90 LEFT UPRIGHT SPACER No Model Compatibility List $19.46 / Each

2,3,4,5,6
135413 294763 94 BASE No Model Compatibility List $193.61 / Each

3
135401 294764 65 LIFT FRAME No Model Compatibility List $97.60 / Each
Out Of Stock
3,10
135409 294767 86 RIGHT UPRIGHT COVER No Model Compatibility List $16.41 / Each

9,3
135410 294768 87 LEFT UPRIGHT COVER No Model Compatibility List $16.41 / Each

9,3
135402 294769 69 BELLY PAN No Model Compatibility List $67.17 / Each

1
135408 294770 84 BASE COVER No Model Compatibility List $21.10 / Each

9,3
135416 294772 102 CONSOLE BASE No Model Compatibility List $94.09 / Each

7,3
135415 294773 101 LEFT ACCESSORY TRAY No Model Compatibility List $18.14 / Each

4,5,6
135417 294774 104 RIGHT ACCESSORY TRAY No Model Compatibility List $18.14 / Each

4,5,6
135399 294775 57 LEFT FRAME FOOT, NOTE: No Model Compatibility List $19.21 / Each

9,3
135400 294776 58 RIGHT FRAME FOOT, NOTE: No Model Compatibility List $19.21 / Each

9,3
135403 294778 78 LEFT HANDRAIL No Model Compatibility List $74.37 / Each
Out Of Stock
9,3
135404 294780 79 RIGHT HANDRAIL No Model Compatibility List $74.37 / Each
Out Of Stock
9,3
135418 294833 106 PULSE BAR No Model Compatibility List $74.11 / Each

12,13,14
135421 294839 # TECH SHEET No Model Compatibility List $0.87 / Each

1
135423 294840 # LITPAC, NOTE: No Model Compatibility List $88.40 / Each

4,5,6
135422 294841 # USER'S MANUAL No Model Compatibility List $6.23 / Each

1
135395 296583 37 PLATFORM CUSHION No Model Compatibility List $38.72 / Each

3
135396 296584 40 LEFT FOOT RAIL COVER No Model Compatibility List $47.69 / Each

9
135397 296585 41 RIGHT FOOT RAIL COVER No Model Compatibility List $47.69 / Each

9
135398 296586 50 RIGHT FOOT RAIL No Model Compatibility List $44.09 / Each

9
135405 296587 81 CONSOLE FRAME No Model Compatibility List $44.65 / Each

7,3
135406 296588 82 LEFT UPRIGHT No Model Compatibility List $125.84 / Each

3
135407 296589 83 RIGHT UPRIGHT No Model Compatibility List $155.84 / Each

3
135419 296922 CN, ID CHART UPDATE No Model Compatibility List $0.00 / Each
Out Of Stock
1
101518 298995 # WIRE, STATIC FILTER No Model Compatibility List $15.20 / Each

4,5,6
135420 299555 # RE-PROGRAMMING MODULE No Model Compatibility List $198.06 / Each

1
305744 100250 305744 15 REAR ROLLER ADJ. BOLT Yes Model Compatibility List $10.92 / Each

2,8
103999 308561 113A PULSE CIRCUIT BOARD No Model Compatibility List $355.00 / Each

7,4,5,6,12,13,14
328558 121707 328558 51 STORAGE LATCH Yes Model Compatibility List $105.39 / Each
Out Of Stock
1
100094 356520 # ACCESSORY KIT No Model Compatibility List $42.89 / Each

4,5,6,1
101453 359077 CN, TURN OFF DEMO MODE No Model Compatibility List $0.00 / Each
Out Of Stock
1
045023 100191 045023 60 1 5/32" ALLEN WRENCH No Model Compatibility List $4.62 / Each

2,1
EXIF12 101226 EXIF12 114A IFIT WIFI ACCESSORY KIT Yes Model Compatibility List $242.00 / Each

4,5,6
287227 000121 287227 0 1 DC Drive Motor No Model Compatibility List $459.00 / Each

1
311588 1000001 311588 0 1 Rear Idler Roller No Model Compatibility List $49.99 / Each

1
