NordicTrack® - WALKFIT

Exploded Diagrams

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price

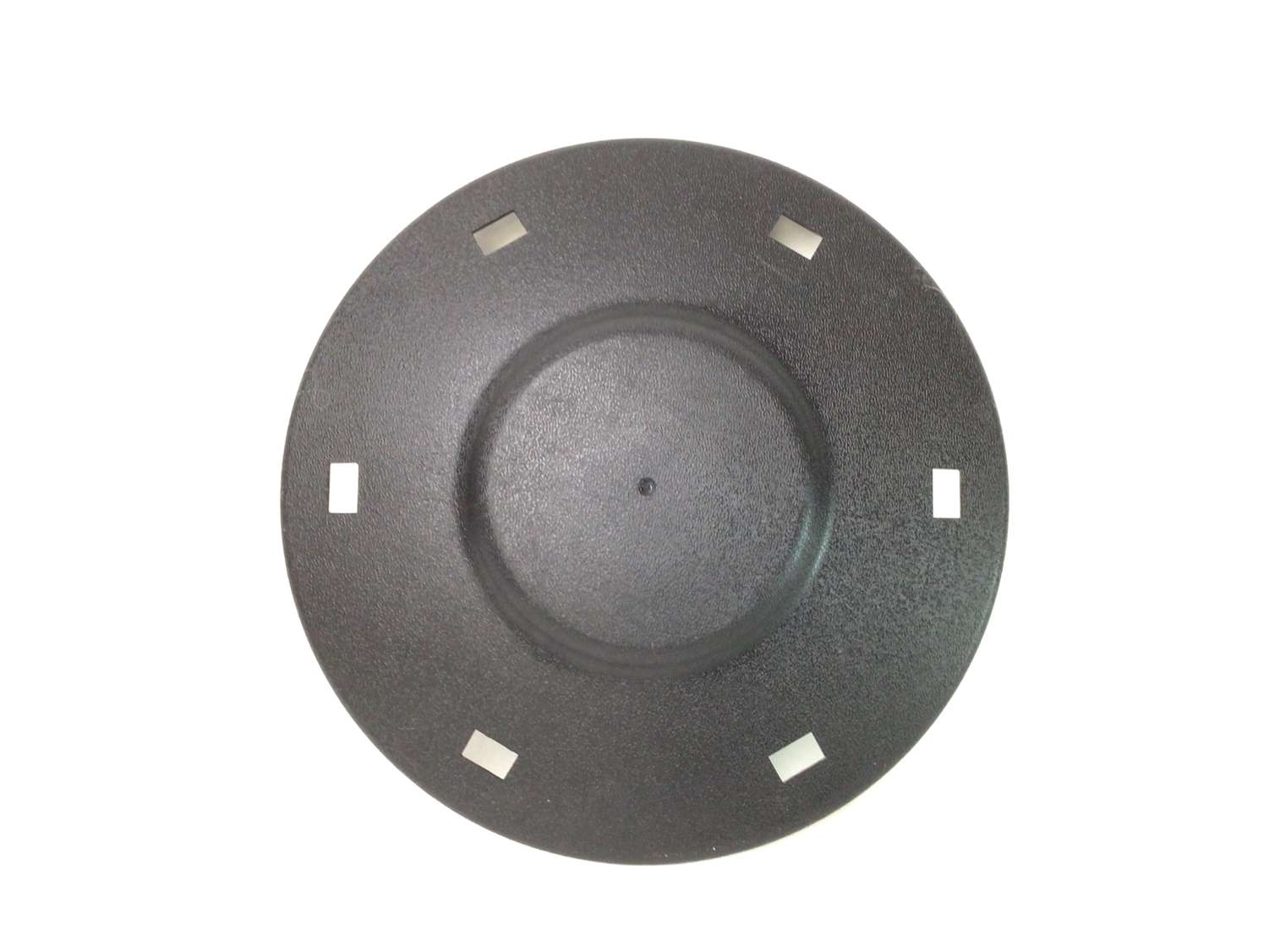

Frame Plate Round Disc Metal (Used) 1026781 WF-FPRDM 0 1 Frame Plate Round Disc Metal (Used) No Model Compatibility List $19.99 / Each

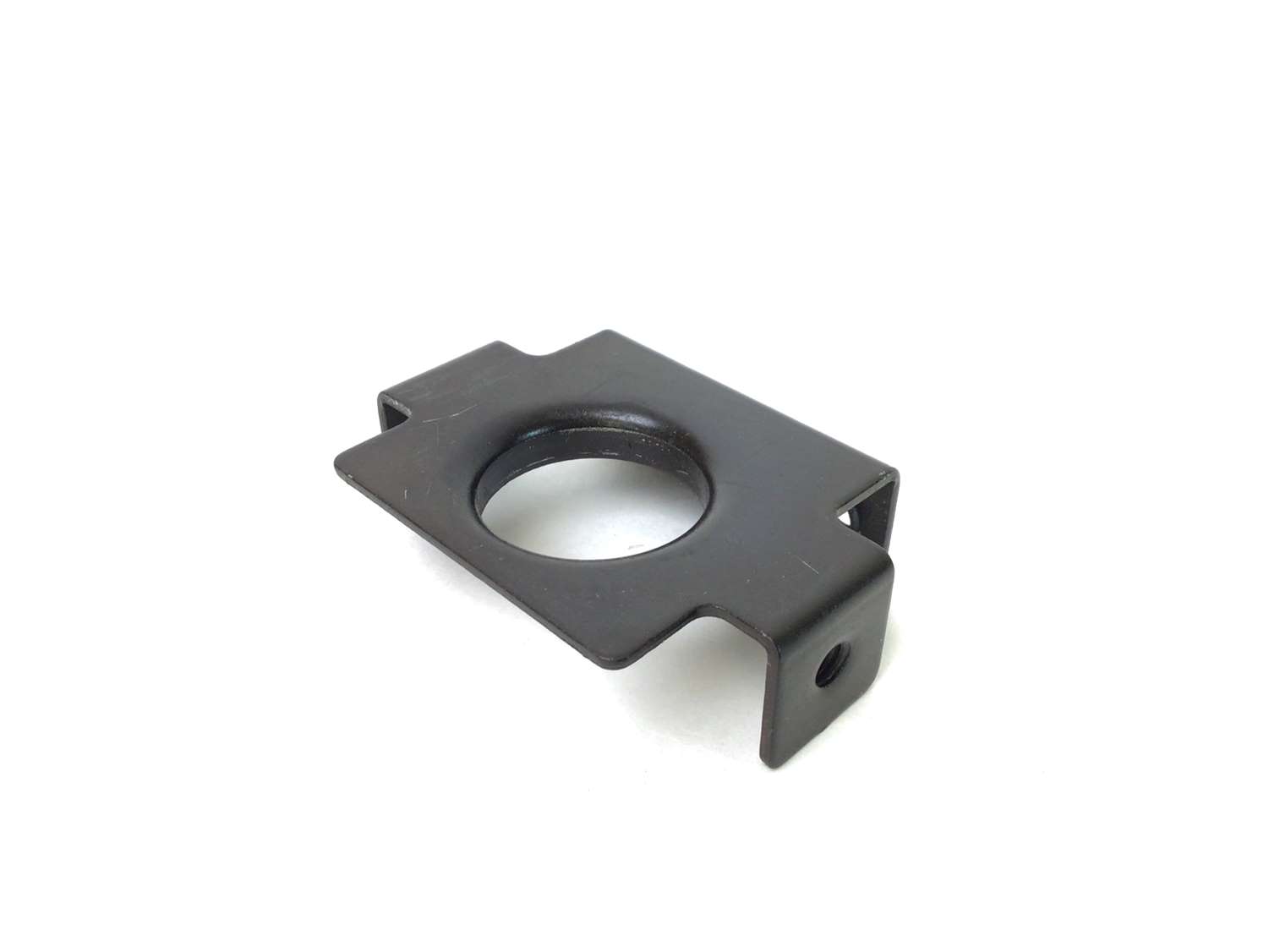

Metal Bracket Mount Weldment (Used) 1026793 WF-MBMW 0 1 Metal Bracket Mount Weldment (Used) No Model Compatibility List $5.00 / Each

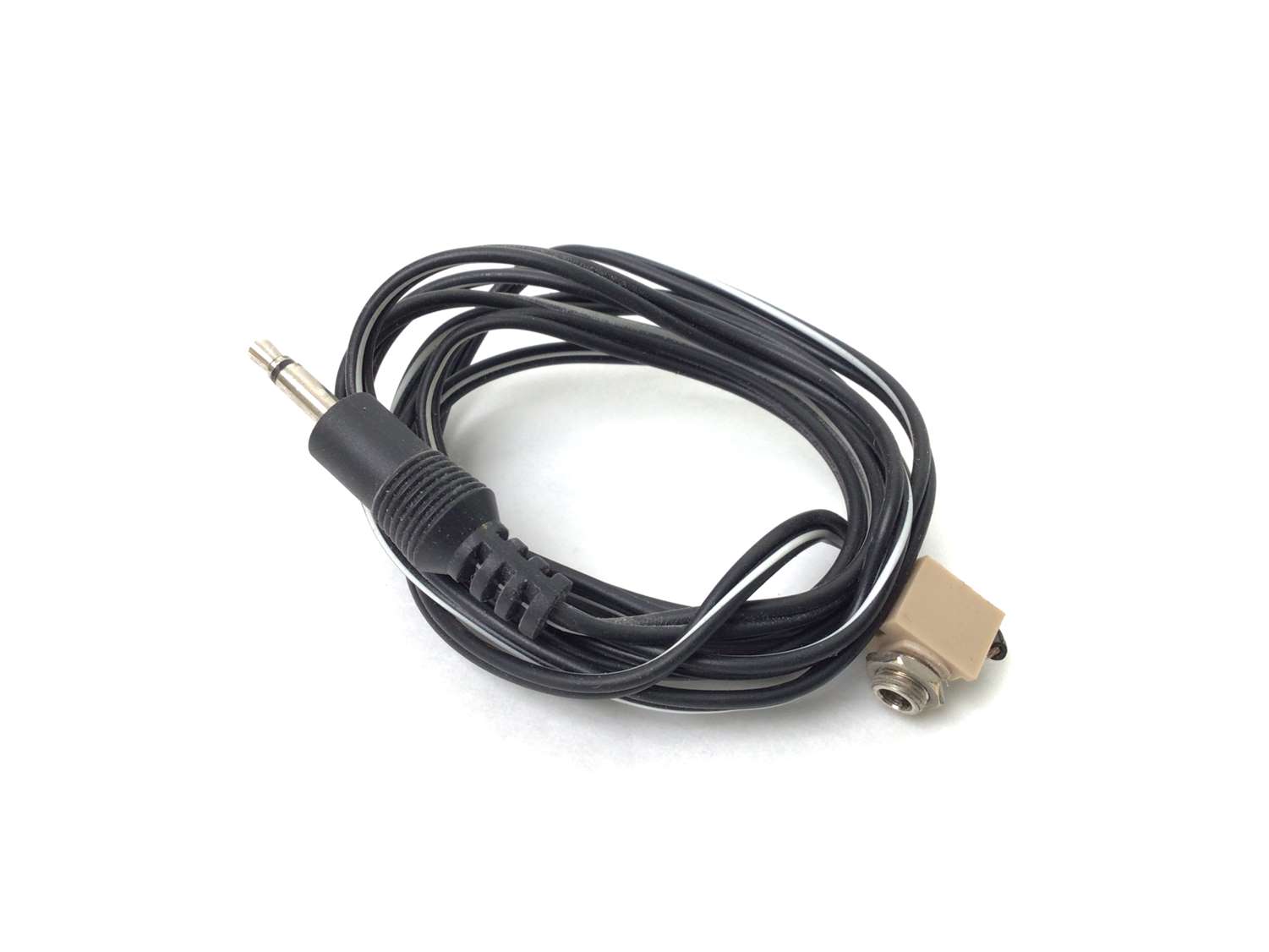

Middle Wire with In Line Jack Cable Harness (Used) 1026754 WF-MWWILJCH 0 1 Middle Wire with In Line Jack Cable Harness (Used) No Model Compatibility List $9.99 / Each

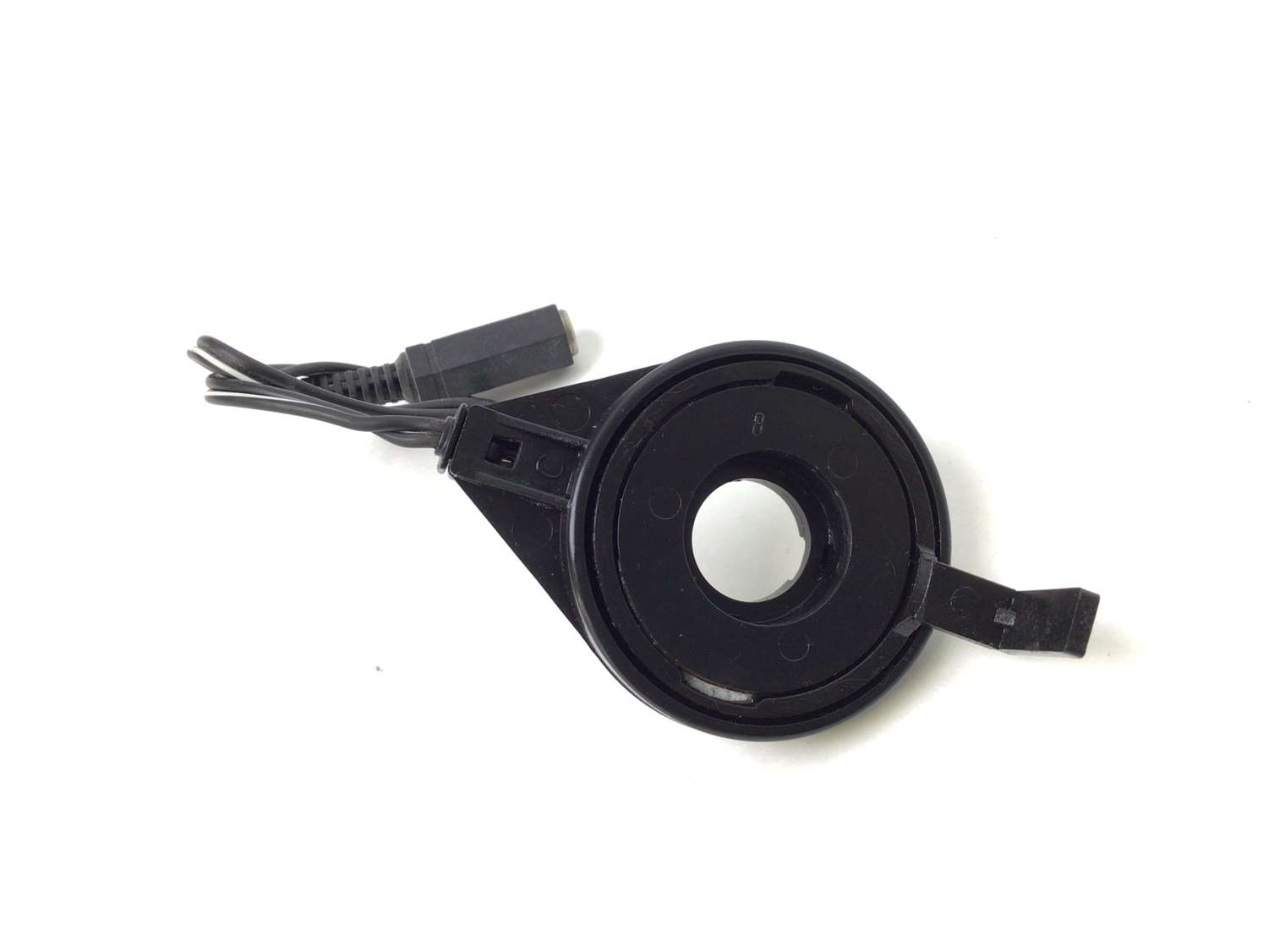

Wire Harness Interconnect Sensor Set (Used) 1026794 WF-WHICSS 0 1 Wire Harness Interconnect Sensor Set (Used) No Model Compatibility List $14.99 / Each
Out Of Stock
View Drawing
