NordicTrack® - X11I INTRACTV INCLINE TRAINER

Exploded Diagrams

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry used@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
106318 102419 113 M8 X 20MM BOLT No Model Compatibility List $1.86 / Each

2
113842 100081 113842 # ROLLER MAGNET Yes Model Compatibility List $2.75 / Each

8
012111 100663 012111 83 M6 NUT Yes Model Compatibility List $3.31 / Each

2
131090 100079 131090 # RSW CLAMP Yes Model Compatibility List $0.46 / Each

4,5,6
100184 013282 # #10 HANDLEBAR SCREW No Model Compatibility List $0.21 / Each

2,11
114192 014012 37 M8 WASHER No Model Compatibility List $0.40 / Each

2
116174 014038 63 M10 SPLIT WASHER No Model Compatibility List $0.43 / Each

2
014174 100665 014174 85 M8 SPLIT WASHER No Model Compatibility List $2.48 / Each

2
164675 101707 164675 47 REED SWITCH/WIRE Yes Model Compatibility List $24.11 / Each

4,5,6
193223 100647 193223 66 RESISTANCE MOTOR Yes Model Compatibility List $106.74 / Each

10
195562 100586 195562 42 M4 X 16MM SCREW Yes Model Compatibility List $1.44 / Each

2
115070 212501 32 UPPER WIRE No Model Compatibility List $48.75 / Each

4,5,6
154109 212580 24 LEFT PEDAL No Model Compatibility List $18.75 / Each

8,9
154110 212582 26 RIGHT PEDAL No Model Compatibility List $18.75 / Each
Out Of Stock
8,9
152891 212591 36 CRANK BEARING SET No Model Compatibility List $19.23 / Each

8
116914 220148 64 M5 X 20MM SELF-TAP SCREW No Model Compatibility List $1.03 / Each

2
223894 116426 223894 30 BELT 38 No Model Compatibility List $73.79 / Each

15
224606 100788 224606 100 M4 X 25MM SCREW Yes Model Compatibility List $0.51 / Each

2
110671 241862 # CABLE TIE CLAMP No Model Compatibility List $1.03 / Each

2,4,5,6
115654 242434 73 WIRE HARNESS No Model Compatibility List $49.46 / Each

4,5,6
152323 244433 19 SPRING No Model Compatibility List $3.34 / Each

2
245838 130569 245838 91 M10 X 20MM SCREW No Model Compatibility List $4.18 / Each

2
152324 245853 20 SEAT POST BUSHING No Model Compatibility List $5.14 / Each

8,12,13,14
160820 245855 18 RIGHT SIDE SHIELD No Model Compatibility List $97.03 / Each

3
160819 245857 17 LEFT SIDE SHIELD No Model Compatibility List $97.03 / Each

3
152318 245858 11 ADJUSTMENT KNOB No Model Compatibility List $6.42 / Each
Out Of Stock
1

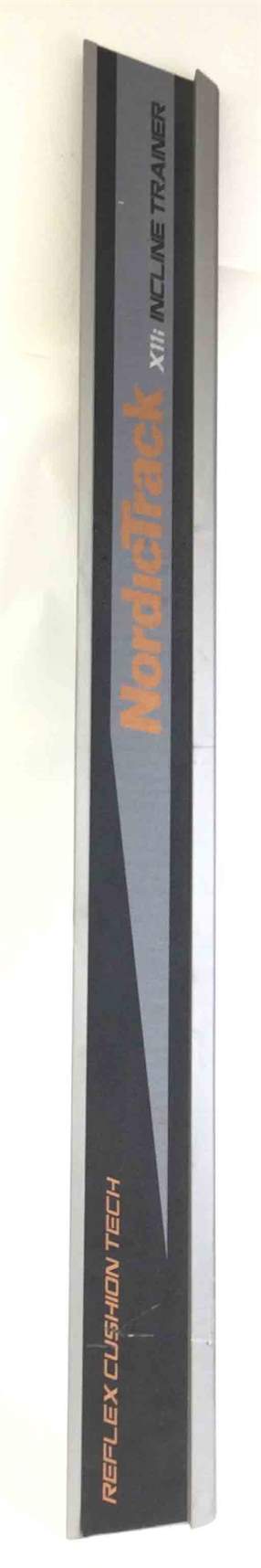

140557 245860 # DECAL DECKRAIL DURASFT RT No Model Compatibility List $38.81 / Each

7,9,3
154102 245861 2 FRONT STABILIZER No Model Compatibility List $38.81 / Each

1
154106 245862 14 REAR STABILIZER No Model Compatibility List $38.81 / Each

1
160818 245864 12 SEAT No Model Compatibility List $58.86 / Each

12,13,14
160821 245866 # USER'S MANUAL No Model Compatibility List $12.68 / Each

1
154103 246084 3 UPRIGHT No Model Compatibility List $54.34 / Each

3
116298 247748 31 EYEBOLT No Model Compatibility List $8.70 / Each

2
116280 248961 11 IDLER No Model Compatibility List $18.84 / Each

8
109858 251498 # EXERCISE CHART No Model Compatibility List $5.69 / Each

1
252795 104641 252795 86 M10 LOCK WASHER No Model Compatibility List $0.37 / Each

2
258847 108949 258847 69 M10 X 73MM BUTTON BOLT No Model Compatibility List $4.18 / Each

2
100823 258868 # DECAL, GENERAL WARNING No Model Compatibility List $0.24 / Each

7,3
116302 260054 43 FLYWHEEL NUT No Model Compatibility List $0.77 / Each

2,8
116294 260055 27 3/8" NUT No Model Compatibility List $1.03 / Each

2
116295 260080 28 U-BRACKET No Model Compatibility List $1.29 / Each

2,3,4,5,6
152317 265407 10 RESISTANCE CABLE No Model Compatibility List $6.17 / Each
Out Of Stock
4,5,6,10
116273 287469 3 WATER BOTTLE HOLDER No Model Compatibility List $2.55 / Each

1
045021 100541 045021 # 6MM ALLEN WRENCH No Model Compatibility List $5.28 / Each

2
115385 INCOMPLETE+LIST ************************* No Model Compatibility List $0.00 / Each
Out Of Stock
1
013500 1019798 013500 0 1 Button Screw 5/16-18X1.5 No Model Compatibility List $4.99 / Each
Out Of Stock
2
View Drawing
