Precor - 714DSL, ABDOMINAL CRUNCH CORE

Repair Parts for Precor 714DSL, ABDOMINAL CRUNCH CORE BA80

Brand: Precor

Category: Miscellaneous

Type: Strength Systems

Model Name: 714DSL, ABDOMINAL CRUNCH CORE

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Rotating Parts
  • Plastic Parts
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
403930 CW10158-101 5 Bearing, Sealed No Model Compatibility List $50.31 / Each

1
403932 CW10158-106 4 BEARING, BALL, 6203, 40MM OD X 17MM No Model Compatibility List $27.43 / Each

1
403971 CW11382-109 4 CAP, TUBE, PLASTIC, ROUND, RN2-1/2F No Model Compatibility List $0.00 / Each
Out Of Stock 		9
403974 CW12112-101 1 RIVNUT,INSERT,HEX,1/4"-20 No Model Compatibility List $8.70 / Each

1
404029 CW12664-101 7 ROD END, FEMALE, STEEL/TEFLON, ZINC No Model Compatibility List $225.55 / Each

3
404167 CW33752-102 1 FORMED PLATE, .19 THICK No Model Compatibility List $470.56 / Each

1
404170 CW33755-102 1 BAR, .50 DIA., SEAT LATCH SHAFT No Model Compatibility List $90.51 / Each

12,13,14
404171 CW33756-101 1 BAR, .75 DIA. No Model Compatibility List $80.28 / Each

3
404173 CW33797-101 1 BAR,1.25 DIA,PIVOT SHAFT No Model Compatibility List $96.54 / Each

8
404174 CW33821-101 5 INDEXING PLATE, SEAT ADJUST No Model Compatibility List $142.80 / Each

12,13,14
404175 CW33822-101 5 STOP PLATE, SEAT ADJUST No Model Compatibility List $109.71 / Each

12,13,14
404179 CW33880-101 8 FORMED,PLATE, .19 THICK,DOUBLE-D CO No Model Compatibility List $47.54 / Each

1
404185 CW33938-101 1 SPRING, TORSION, SEAT LATCH No Model Compatibility List $45.71 / Each

2
404189 CW33976-102 1 BAR, .75 DIA, SEAT ROLLER SHAFT No Model Compatibility List $55.77 / Each

12,13,14
404190 CW33991-102 6 WEIGHT TOWER BOLT ON, SHORT No Model Compatibility List $36.57 / Each

3
404191 CW33992-101 1 BALL, GAS SPRING No Model Compatibility List $12.30 / Each

2
404193 CW33993-101 1 GAS SPRING, 200MM STROKE No Model Compatibility List $89.78 / Each

2
404194 CW33996-101 9 DOUBLE D TUBE END CAP No Model Compatibility List $15.77 / Each

3
404198 CW33997-110 1 4.5 PULLEY COVER, HEX MOUNT, BACK No Model Compatibility List $15.13 / Each

8
404204 CW34039-101 4 RING,GRIP,W/SS,1.25 in.ID No Model Compatibility List $91.43 / Each

11
404208 CW34060-101 7 HANDLE END CAP, ALUM, No Model Compatibility List $47.16 / Each

11
404215 CW34062-101 1 FOOT ASSIST COVER No Model Compatibility List $38.08 / Each

9
404246 CW34377-103 1 Label, Seat adjustment No Model Compatibility List $54.48 / Each

12,13,14
404262 CW34690-101 5 BUMPER, RUBBER, SCREW-ON, 3/8-16. No Model Compatibility List $236.60 / Each

3
404277 CW35085-101 1 LABEL, PIVOT POINT, C-LINE No Model Compatibility List $25.53 / Each

8
404295 CW35415-101 1 DRAWING, MECHANICAL, REGULATORY, DI No Model Compatibility List $200.21 / Each

1
404328 CW38006-101 7 MOUNT,TWR COVERS,PLASTIC,DS No Model Compatibility List $6.06 / Each

2
404329 CW38009-101 6 CAP,END,SANTOPRENE,GUIDE ROD,DS No Model Compatibility List $10.40 / Each

9
404330 CW38010-101 1 PULLEY,5ODX.5ID No Model Compatibility List $82.28 / Each

8
404331 CW38012-101 4 PAD,FOOT,SANTO OVRMLD,DS TWR No Model Compatibility List $66.92 / Each

12,13,14
404332 CW38013-101 9 BUMPER,2.5ODX.75IDX.8,WT STK No Model Compatibility List $30.51 / Each

3
404333 CW38015-101 1 PIN,ROLL,16.5MMODX70MM,STEEL No Model Compatibility List $15.77 / Each

12,13,14
404335 CW38017-101 4 DECAL SET,10LB WT PLATES,DS No Model Compatibility List $41.33 / Each

3
404336 CW38020-101 1 GUIDEROD,.75ODX49.75,CRS,CR No Model Compatibility List $173.34 / Each

1
404341 CW38037-101 3 ASSY,WT PLATE,10LB,DS No Model Compatibility List $162.73 / Each

3
404342 CW38040-102 2 SPACER,FLANGED,.86ODX.51IDX.5,BZ No Model Compatibility List $28.05 / Each

2
404343 CW38041-101 5 GUIDEROD,.75ODX47.63,CRS,DS,CR No Model Compatibility List $166.93 / Each

1
404344 CW38051-101 1 MOUNT,FRONT CAP,PLASTIC,DS No Model Compatibility List $30.02 / Each

2
404345 CW38052-101 1 MOUNT,REAR CAP,PLASTIC,DS No Model Compatibility List $10.40 / Each

2
404347 CW38054-101 2 COVER,PULLEY,R VERT/L HORZ,DS TWR No Model Compatibility List $29.95 / Each

9
404349 CW38055-101 5 ADPTR,RING,COVER SPACER,PLASTIC,DS No Model Compatibility List $7.94 / Each

9
404353 CW38134-103 2 HANDLE,AOW SELECT,TOP,OVRMLD,DS No Model Compatibility List $27.99 / Each

11
404354 CW38134-104 2 HANDLE,AOW SELECT,BOTTOM,OVRMLD,DS No Model Compatibility List $9.84 / Each

11
404355 CW38136-101 2 BRKT,CABLE ANTIJUMP,DS,PC No Model Compatibility List $34.05 / Each

4,5,6
404357 CW38137-102 1 WASHER,DOMED FINISH,1.5OD,AL,DS No Model Compatibility List $40.35 / Each

2
404358 CW38138-103 1 ASSY,SLCTR PIN WITH TETHER,DS No Model Compatibility List $77.15 / Each

12,13,14
404359 CW38141-101 1 WASHER,COMP,1.38ODX1IDX.15,TPE No Model Compatibility List $10.22 / Each

2
404366 CW38334-102 2 RING,SPLIT,0.59ODX0.50IDX.09T,CZ No Model Compatibility List $2.01 / Each

2
404413 CW38760-101 8 PLACARD, INSTR,DSAC No Model Compatibility List $257.78 / Each

1
404423 CW39664-101 2 TETHER,SLCTR PIN,11.4MMODX100L,DS No Model Compatibility List $25.22 / Each

12,13,14
404424 CW39916-103 1 Foot, Adjusting No Model Compatibility List $23.65 / Each

9
404428 CW40346-101 1 ASSY,AOW WT,5LB,DS No Model Compatibility List $0.00 / Each
Out Of Stock 		3
404430 CW40355-101 1 WLDMT,LATCH,SEAT ADJUST No Model Compatibility List $208.44 / Each

12,13,14
404433 CW49768-101 3 1 X 1.75 X 0.75 BUMPER WITH STEEL B No Model Compatibility List $49.37 / Each

3
404455 CW58108-101 2 Handle, Top No Model Compatibility List $39.60 / Each

11
404468 CWAC1009-101 1 PULLEY, 4 1/2 DIA X 1/2 ID No Model Compatibility List $41.99 / Each

8
404502 CWACNN206-039 4 RING,RETAIN,INT,2.06ODX.039W,SMALLE No Model Compatibility List $20.49 / Each

2
404506 CWAECN050-004 1 E-RING,.50 DIA X .04 THICK, CLEAR Z No Model Compatibility List $2.01 / Each

1
404507 CWAECN075-005 1 E-RING,.75 DIA X .05 THICK, CLEAR Z No Model Compatibility List $4.54 / Each

1
404532 CWCACN031-150 1 SCREW, HEX, GR 5, 5/16-18 X 1.0, ZN No Model Compatibility List $2.52 / Each

2
404535 CWCACN038-075 1 SCREW, SCKT LW HD,MCH CLR ZI,3/8-16 No Model Compatibility List $6.06 / Each

2
404536 CWCACN038-100 1 SCREW,SHC,3/8-16 X 1.00, CZ No Model Compatibility List $4.16 / Each

2
404537 CWCACN038-275 1 BOLT,HH5,3/8-16X2.50,BLK XYLAN No Model Compatibility List $5.68 / Each

2
404541 CWCACN050-150 6 SCREW, HEX HEAD,ZN, 1/2-13 X 1 1/4" No Model Compatibility List $4.54 / Each

2
404544 CWCACN050-300 1 SCREW, HEX HEAD, ZN, 1/2-13 X 2.75 No Model Compatibility List $9.84 / Each

2
404557 CWCAYN038-075 1 SCREW, SOCKET HEAD, BLK XYLAN, 3/8 No Model Compatibility List $7.19 / Each

2
404664 CWGR4713-500 5 GRIP, RUBBER, 1-1/4" in. OD HANDLE, 13. No Model Compatibility List $62.17 / Each

11
404696 CWHFWN050-175 1 BOLT,HH8,1/2-20X1.75,YZ No Model Compatibility List $9.84 / Each

2
404698 CWKACN025-022 3 LOCKNUT, NYLON INSERT, FULL, UNC, 1 No Model Compatibility List $1.51 / Each

2
404707 CWKDCN031-034 1 LOCKNUT,HALF, 5/16-18,ZN No Model Compatibility List $1.01 / Each

2
404709 CWKDCN050-059 4 LOCKNUT,HALF, 1/2-13, ZN No Model Compatibility List $2.52 / Each

2
404712 CWKDYN038-045 1 LOCKNUT, NYLON INSERT, FULL, UNC, 3 No Model Compatibility List $3.03 / Each

2
404726 CWMACCN025-038 4 SCREW, FH,SHC,UNC,1/4"-20 X .38,CZ No Model Compatibility List $21.12 / Each

2
404727 CWMACCN025-100 2 SCREW,FLTHD, SKT,1/4"-20X1, CLR ZN No Model Compatibility List $9.07 / Each

2

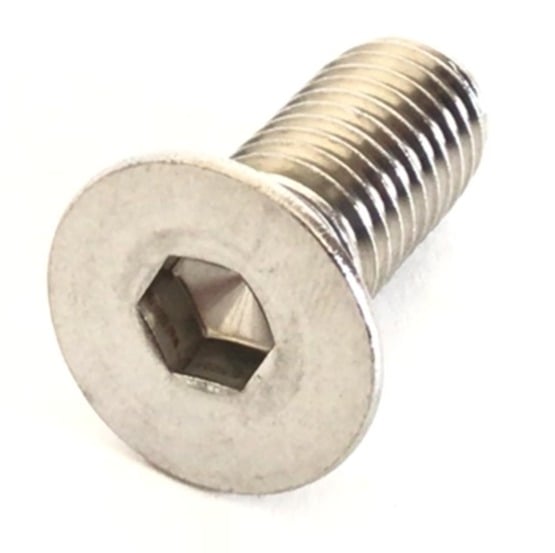

404728 CWMACCN050-150 1 SCREW,FH,1/2-13X1.25 THREAD,1.50 LO No Model Compatibility List $10.72 / Each

2
404741 CWP011600-102 1 ASSY, ROLLER No Model Compatibility List $12.30 / Each

8
404945 CWPHTN019-075 1 SCREW, S/T,#10 X 3/4, WASHER HEX HE No Model Compatibility List $11.04 / Each

2
404948 CWPLCN025-125 1 SCREW,ST,SLT HEX WSHR,1/4"-20X1.25,C No Model Compatibility List $4.54 / Each

2
404949 CWPMTN016-063 1 SCREW, SELF TAPPING,#8 X 5/8 PHIL, No Model Compatibility List $5.68 / Each

2
404950 CWPMTN016-125 1 SCREW, SELF TAPPING,#8 X 1 1/4" PHIL No Model Compatibility List $4.54 / Each

2
405430 CWRANN025-150 1 BOLT, SHOULDER, 1/4"-20 X 5/16 X 1 1 No Model Compatibility List $8.32 / Each

2
405433 CWRANN038-150 1 BOLT - SHOULDER - 3/8-16 X 1/2 X 1 1/ No Model Compatibility List $13.87 / Each

2
405441 CWTAKN038-150 2 SCREW,BTHD,3/8-16X1-1/2,BLK ZN No Model Compatibility List $5.29 / Each

2
405442 CWTAKN038-300 2 SCREW,BTHD,3/8-16X2-3/4,BLK ZN No Model Compatibility List $8.32 / Each

2
405443 CWTAKN038-500 1 SCREW,BHC,3/8-16X5.00,BZ No Model Compatibility List $18.60 / Each

2
405446 CWTATN025-075 1 SCREW,BTHD,1/4"-20X3/4,BLK SHARPERIZ No Model Compatibility List $2.01 / Each

2
405461 CWTEKN004-010 2 SCREW,BHC, M4X0.7X10L,BZ No Model Compatibility List $0.00 / Each
Out Of Stock 		2
405462 CWWAACN025-006 1 WASHER, FLAT, TYPE B, 1/4" ID X .734 No Model Compatibility List $14.18 / Each

2
405471 CWWALCN038-009 1 WASHER, SPLIT, 3/8 ID, CLR ZINC No Model Compatibility List $1.01 / Each

2
405476 CWWATCN038-032 8 WASHER, LK, INT. TOOTH, .375 No Model Compatibility List $0.51 / Each

2
405485 CWWGCN038-007 1 Washer, Flat No Model Compatibility List $1.01 / Each

2
405486 CWWGCN050-010 9 Washer, Flat No Model Compatibility List $1.01 / Each

2
405487 CWWGKN038-007 1 WASHER, FLAT, TYPE A, SAE, 3/8 ID No Model Compatibility List $1.01 / Each

2
405489 CWWHKN050-010 1 WASHER,A,WIDE,1/2ID,BZ No Model Compatibility List $4.54 / Each

2
View Drawing
