Precor - EFX 546 Self Powered HR

Repair Parts for Precor EFX 546 Self Powered HR IK

Brand: Precor

Category: Commercial Ellipticals

Type: Elliptical

Model Number:

Info

Model Numbers are Unique Identifiers, they are important because they lead you to access diagrams and part lists specific to the version of a given model equipment you own. Bottom line, they help you get the right part. Note: Sometimes we put a serial prefix in this field to elicit versioning, and if this field is blank that means the model name alone will suffice for part selection.

IK

Model Name: EFX 546 Self Powered HR

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Image	Catalog #	MPN	Part List Key	Quantity On Model	Part Description	Notes	Available Used	Model Compatibility List	New price
	1019088	10003-111	0	1	M10 - 1.5 X 90mm Cap Screw - Bolt		No	Model Compatibility List	$14.99 / Each	2
	1019075	Prec-hex3816	0	3	3/8"-16 x 5" Hex Bolt		No	Model Compatibility List	$14.99 / Each	2
	1019076	PPP00000TAKN025250	0	1	1/4"-20x2.5" Handrail Screw - Bolt		Yes	Model Compatibility List	$9.99 / Each	2
	1019089	PPP0000037658202	0	1	3 Hole Mounting Plate		Yes	Model Compatibility List	$19.99 / Each	3

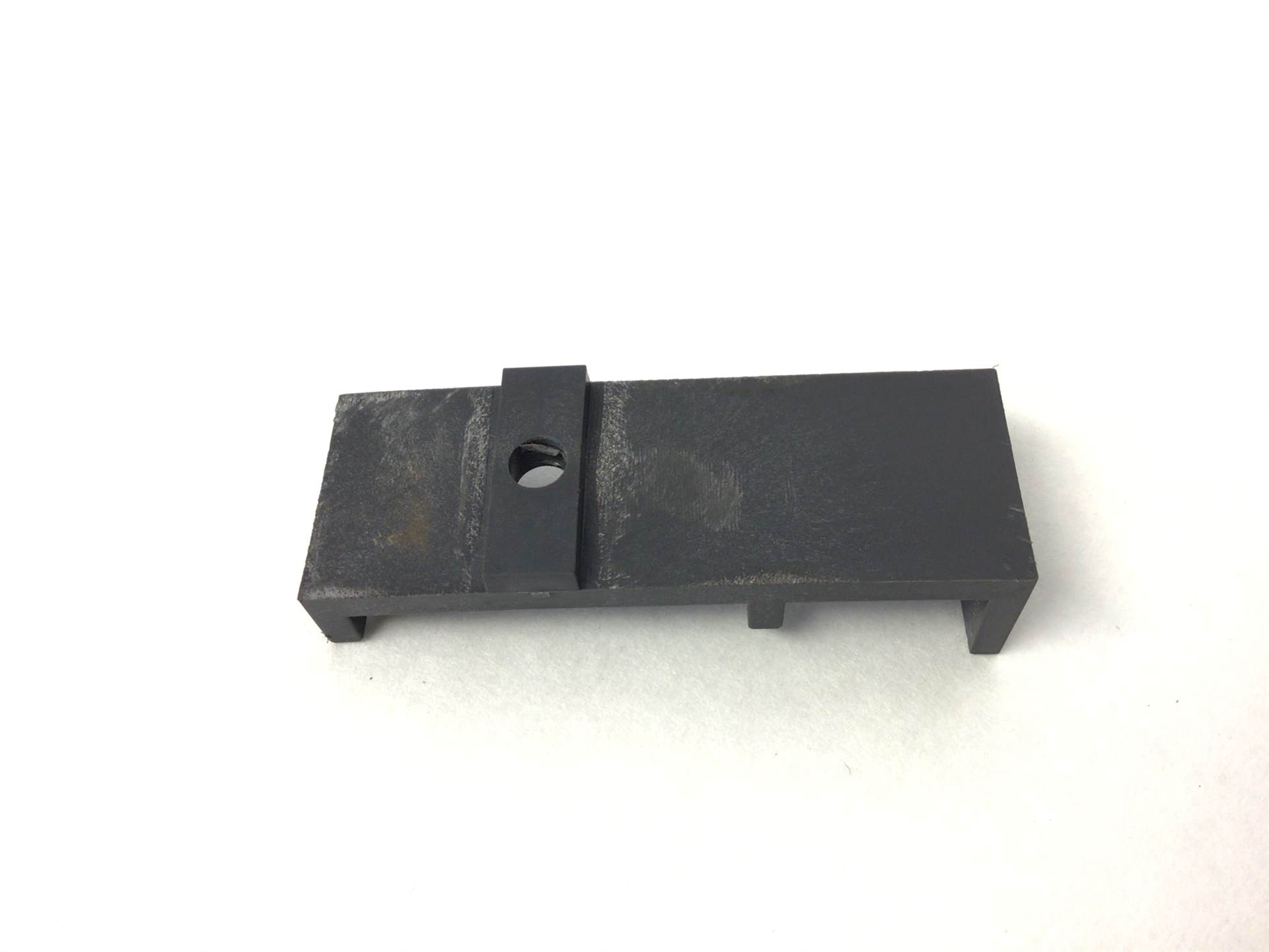

	1019129	36102-103	0	2	Frame Nut Sliding Handrail		No	Model Compatibility List	$25.00 / Each	2
	1019116	PP00000CAKN038250	0	1	1/4"-20x2.5" Handrail Cap Screw - Bolt		No	Model Compatibility List	$5.00 / Each	2
	1019102	MGCN016-063b	0	1	1/4"-20x1.5" Handrail Cap Screw - Bolt		Yes	Model Compatibility List	$5.00 / Each	2
	1019471	36102-103a	#	2	Frame Handrail Mount Hardware		Yes	Model Compatibility List	$14.99 / Each	9
	1025446	39029-501	0	1	Touch Sensor Wire Harness (Used)		No	Model Compatibility List	$39.99 / Each	19,42
	1028670	43607-102	0	1	Left Grey Cover (Used)		No	Model Compatibility List	$49.00 / Each Out Of Stock	18

View Drawing
