ProForm - 320 SPX

Repair Parts for ProForm 320 SPX PFEX028120

Brand: ProForm

Category: Indoor Cycles

Type: Stationary Bikes

Model Name: 320 SPX

Exploded Diagrams

Other Languages Available

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
M6 LOCKNUT 101429 012142 51 M6 LOCKNUT No Model Compatibility List $1.98 / Each

2
100184 013282 13 #10 HANDLEBAR SCREW No Model Compatibility List $0.21 / Each

2,11
FLOOR MAT 36X72 100097 146119 # FLOOR MAT 36X72" No Model Compatibility List $42.90 / Each

1,3
101940 150983 40 M8 HEX NUT No Model Compatibility List $0.25 / Each

2
100796 193109 33 M8 SMALL WASHER No Model Compatibility List $2.78 / Each

2
M10 FLANGE NUT 101369 195728 6 M10 FLANGE NUT Yes Model Compatibility List $2.38 / Each

2
M8-1.25 X 45MM Button Head Screw 113421 212500 46 M8-1.25 X 45MM Button Head Screw Yes Model Compatibility List $3.83 / Each

2
M8 X 16MM BUTTON SCREW 100673 214070 25 M8 X 16MM BUTTON SCREW No Model Compatibility List $1.06 / Each

2
100593 223088 50 M6 X 38MM SCREW No Model Compatibility List $4.18 / Each

2
106147 238947 53 SPACER CAP No Model Compatibility List $2.40 / Each

2,9,3,4,5,6
116684 239169 34 M8 X 90MM CARRIAGE BOLT No Model Compatibility List $7.19 / Each

2
101916 249932 29 STABILIZER WASHER No Model Compatibility List $1.20 / Each

2
116117 290295 # DECAL, MAX WT WARNING No Model Compatibility List $4.93 / Each

7,3,1
101955 299149 # DECAL, CAUTION No Model Compatibility List $5.05 / Each

7,3
116665 308838 10 FLAT WASHER No Model Compatibility List $3.02 / Each

2
116680 308855 30 BOTTOM BRACKET No Model Compatibility List $91.85 / Each

2,3,4,5,6
116664 308909 9 BRAKE LEVER No Model Compatibility List $36.66 / Each

3
116674 308914 21 WHEEL No Model Compatibility List $23.87 / Each

8
116689 308930 42 BRAKE BRACKET No Model Compatibility List $21.84 / Each

2,3,4,5,6
116693 310618 52 CRANK ARM SCREW No Model Compatibility List $5.58 / Each

2,8,3
116139 317155 47 WATER BOTTLE HOLDER No Model Compatibility List $29.25 / Each

1
102010 328496 # 5 FRENCH DECALS ON 1SHEET No Model Compatibility List $78.23 / Each

7,3,1
102011 330224 # DECAL,REWRK,OVRYLY SHEET No Model Compatibility List $54.80 / Each

7,3,1
116662 333935 7 REAR STABILIZER No Model Compatibility List $63.18 / Each

1
116663 333936 8 FRONT STABILIZER No Model Compatibility List $94.78 / Each

1
116658 333937 2 SEAT POST No Model Compatibility List $99.54 / Each
Out Of Stock 		12,13,14
116659 333938 3 SEAT CARRIAGE No Model Compatibility List $104.52 / Each
Out Of Stock 		12,13,14
116660 333939 4 HANDLEBAR POST No Model Compatibility List $80.34 / Each

12,13,14,11
116661 333940 5 HANDLEBAR No Model Compatibility List $145.07 / Each

11
116669 333943 15 REAR INNER SHIELD No Model Compatibility List $28.67 / Each

3
116673 333944 20 FRONT INNER SHIELD No Model Compatibility List $18.13 / Each

3
116670 333945 16 STABILIZER CAP No Model Compatibility List $18.18 / Each
Out Of Stock 		9
LARGE FRAME BUSHING 116677 333946 24 LARGE FRAME BUSHING No Model Compatibility List $5.81 / Each

8,3
147429 333951 23 ADJUSTMENT KNOB No Model Compatibility List $29.83 / Each

1
153213 333952 22 SEAT No Model Compatibility List $86.00 / Each

12,13,14

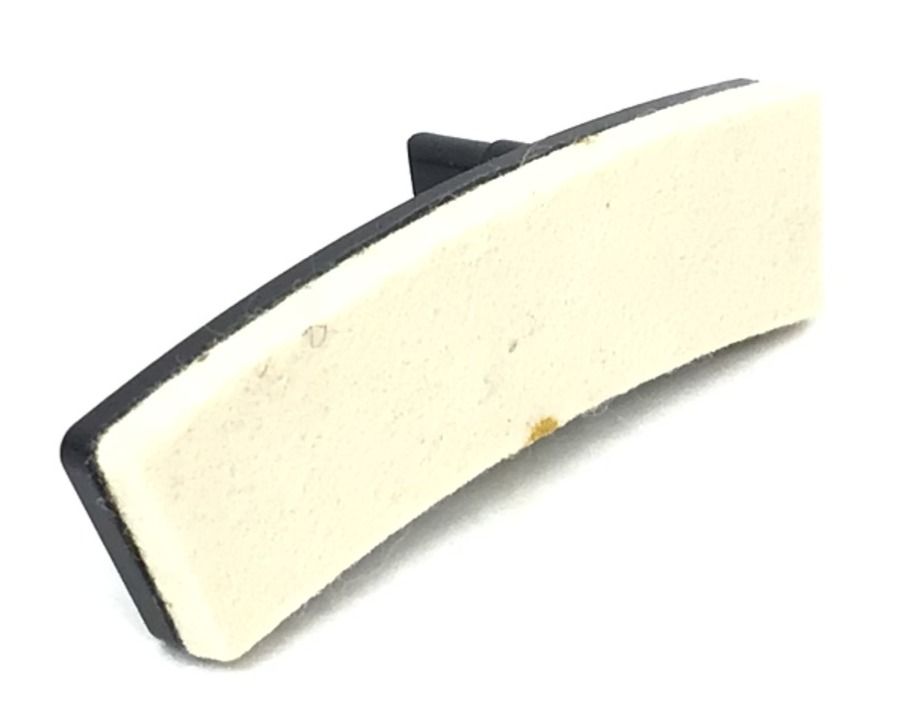

116688 333954 41 BRAKE PAD SET No Model Compatibility List $45.83 / Each

12,13,14
116691 333957 45 LT PEDAL/STRAP No Model Compatibility List $45.02 / Each

8,9
116685 333958 35 RIGHT PEDAL/STRAP No Model Compatibility List $45.02 / Each

8,9
153843 333962 # USER'S MANUAL No Model Compatibility List $8.93 / Each

1

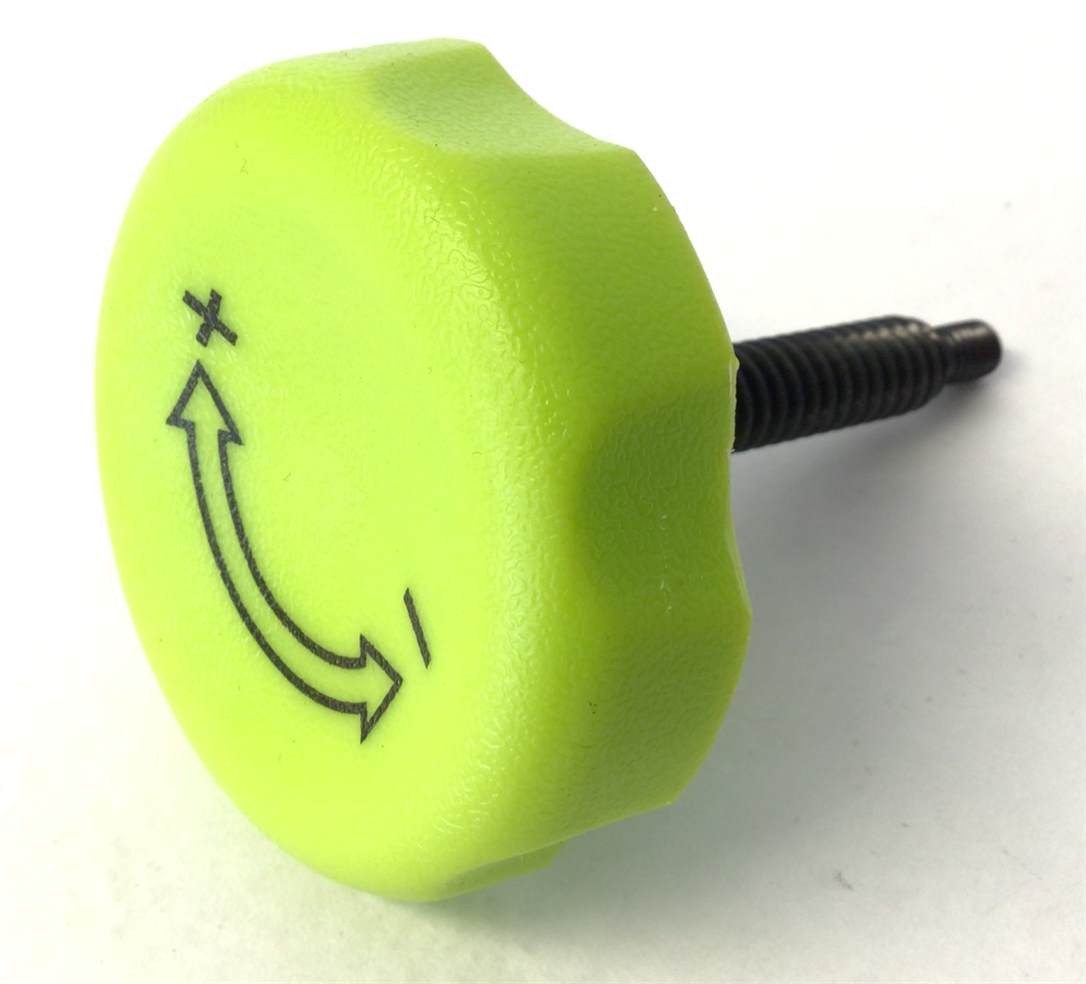

RESISTANCE KNOB 147426 333969 11 RESISTANCE KNOB No Model Compatibility List $29.83 / Each

10
116681 333970 31 RIGHT CRANK ARM/SPROCKET No Model Compatibility List $88.34 / Each

8,3
116667 333971 12 LEFT CRANK ARM No Model Compatibility List $68.84 / Each

8,3
147430 334202 36 FLYWHEEL No Model Compatibility List $686.89 / Each

8
147427 334506 14 OUTER SHIELD No Model Compatibility List $67.08 / Each

3
134358 337218 18 SHORT AXLE SPACER No Model Compatibility List $14.95 / Each

2,8,3,4,5,6
134360 337220 39 LONG AXLE SPACER No Model Compatibility List $5.75 / Each

2,8,3,4,5,6
116671 337223 17A SEAT POST BUSHING No Model Compatibility List $5.12 / Each

8,12,13,14
116679 337224 28 CHAIN No Model Compatibility List $30.43 / Each

1
116682 337225 32 CRANK CAP No Model Compatibility List $4.65 / Each

8,9
116687 337226 38 CHAIN TENSIONER No Model Compatibility List $2.79 / Each

1
134361 337553 49 M10 THIN NUT No Model Compatibility List $2.79 / Each

2
116672 337582 19 CARRIAGE CAP No Model Compatibility List $2.79 / Each

9
153844 341556 # USER'S MANUAL, FCA No Model Compatibility List $9.22 / Each

1
153845 354167 # USER'S MANUAL,SPNSH,SP7 No Model Compatibility List $6.42 / Each

1
116694 355384 17B SMALL FRAME BUSHING No Model Compatibility List $8.87 / Each

8,3
116678 368629 26 CALIPER BRAKE ASSEMBLY No Model Compatibility List $118.21 / Each

1
M6 Split Washer Lock 1019810 012142 79 4 M6 Split Washer Lock No Model Compatibility List $1.79 / Each

2
M6 Flat Washer (Used) 1020703 014033 36 1 M6 Flat Washer (Used) Yes Model Compatibility List $2.02 / Each

1
Screw M8 X 16MM 1003998 214070 105 1 Screw M8 X 16MM No Model Compatibility List $1.06 / Each

1,2
#8 X 3/4 1004394 013322 0 1 #8 X 3/4" Foot Pedal Screw No Model Compatibility List $5.99 / Each

1
M8 Locknut 1011772 012042 102B 1 M8 Locknut Yes Model Compatibility List $11.99 / Each

1
Idler Washer M6 1011790 014033 0 1 Idler Washer M6 Yes Model Compatibility List $12.99 / Each

1
Flange Nut M10 1011829 195728 95 1 Flange Nut M10 Yes Model Compatibility List $2.38 / Each

1,2
