ProForm - 400 SPX

Repair Parts for ProForm 400 SPX PFEX028170

Brand: ProForm

Category: Residential Upright Bikes

Type: Stationary Bikes

Model Name: 400 SPX

Exploded Diagrams

Other Languages Available

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Crank/flywheel
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
M6 LOCKNUT 107288 012022 53 M6 LOCKNUT No Model Compatibility List $0.56 / Each

114977 012150 54 M8 NUT No Model Compatibility List $0.81 / Each

2
100828 140069 # SNAP RING PLIERS, 1" EXT No Model Compatibility List $143.47 / Each

2,1
117345 144681 2 M8 FLANGE NUT No Model Compatibility List $0.78 / Each

2
FLOOR MAT 36X72 100097 146119 # FLOOR MAT 36X72" No Model Compatibility List $42.90 / Each

1,3
133510 161748 57 3/8" HEX NUT No Model Compatibility List $2.79 / Each

2
153852 239424 56 M8 X 40MM BOLT No Model Compatibility List $1.29 / Each

2
149417 261807 60 M5 X 16MM BUTTON SCREW No Model Compatibility List $0.38 / Each

2
151692 266106 17 M5 LOCKNUT No Model Compatibility List $0.45 / Each

2
129653 281874 3 M8 X 16MM WASHER No Model Compatibility List $2.32 / Each

2
116117 290295 # DECAL, MAX WT WARNING No Model Compatibility List $4.93 / Each

7,3,1
101953 291546 # TOOL, ALLEN WRENCH No Model Compatibility List $2.52 / Each

2
101954 291547 # TOOL, WRENCH / PHILLIPS No Model Compatibility List $7.99 / Each

2
101955 299149 # DECAL, CAUTION No Model Compatibility List $5.05 / Each

7,3
107512 300328 62 M6 SMALL WASHER No Model Compatibility List $0.69 / Each

2
133509 308852 55 LEVELING FOOT No Model Compatibility List $8.60 / Each

9
116680 308855 48 BOTTOM BRACKET No Model Compatibility List $91.85 / Each

2,3,4,5,6
134428 309114 15 ADJUSTMENT KNOB No Model Compatibility List $19.61 / Each

1
153847 310014 18 M5 WASHER No Model Compatibility List $0.23 / Each

2
3/8 133482 310608 61 3/8" SQUARE NUT No Model Compatibility List $4.18 / Each

2
116693 310618 46 CRANK ARM SCREW No Model Compatibility List $5.58 / Each

2,8,3
SPACER 133483 310623 28 SPACER No Model Compatibility List $15.50 / Each

2,3
116139 317155 8 WATER BOTTLE HOLDER No Model Compatibility List $29.25 / Each

1
116607 318053 25 CARRIAGE SLEEVE No Model Compatibility List $12.78 / Each

3
116608 318063 45 CRANK CAP No Model Compatibility List $4.80 / Each

8,9
116629 318087 29 POST CAP No Model Compatibility List $4.18 / Each

9,12,13,14
153851 331893 50 M6 X 40MM BOLT No Model Compatibility List $1.86 / Each

2
116675 352856 31 SEAT No Model Compatibility List $88.65 / Each

12,13,14
116696 355386 30 CLAMP No Model Compatibility List $5.75 / Each

4,5,6
116698 355389 64 WIRE GUIDE HOLDER, WHITE No Model Compatibility List $14.95 / Each

4,5,6
116697 355390 20 MAGNET No Model Compatibility List $4.31 / Each

8
RESISTANCE BRAKE PAD 116648 356462 16 RESISTANCE BRAKE PAD No Model Compatibility List $43.06 / Each

10,12,13,14
116649 356463 21 PAD BRACKET No Model Compatibility List $16.97 / Each

2,3,4,5,6,12,13,14
134372 363335 6 SADDLE POST No Model Compatibility List $80.41 / Each

12,13,14
153846 363343 14 M4.2X20MM SCREW, NOTE: No Model Compatibility List $2.40 / Each

2
RESISTANCE KNOB 134380 363353 24 RESISTANCE KNOB No Model Compatibility List $22.51 / Each

10
134381 363354 27 SQUARE SPACER No Model Compatibility List $1.67 / Each

2,3,4,5,6
134382 363355 26 SPRING No Model Compatibility List $2.64 / Each

2
134384 363361 32 SADDLE CARRIAGE No Model Compatibility List $85.24 / Each

1
134385 363362 33 3/8" ACORN NUT No Model Compatibility List $3.36 / Each

2,4,5,6
134378 363366 22 M10 LARGE WASHER No Model Compatibility List $0.96 / Each

2
134375 363367 13 M10 FLANGE NUT No Model Compatibility List $1.44 / Each

2
134387 363369 38 #10 X 12MM SCREW No Model Compatibility List $0.47 / Each

2
134389 363371 40 CHAIN No Model Compatibility List $30.76 / Each

1
134392 363374 43 #12 X 15MM SCREW No Model Compatibility List $2.64 / Each

2
134396 363382 51 FRAME SLEEVE No Model Compatibility List $10.38 / Each

3
116650 363755 44 ISOLATOR No Model Compatibility List $10.38 / Each

3
134399 369511 59 REED SWITCH/WIRE No Model Compatibility List $19.07 / Each

4,5,6
134398 376344 58 CONSOLE No Model Compatibility List $87.20 / Each

7
148125 378272 9 M10X55MM SHLDR BOLT,NOTE: No Model Compatibility List $2.87 / Each

2
134443 393322 47 LEFT CRANK ARM No Model Compatibility List $42.21 / Each

8,3
153850 393323 49 RIGHT CRANK ARM/SPROCKET No Model Compatibility List $70.99 / Each

8,3
134422 393324 7 HANDLEBAR No Model Compatibility List $208.79 / Each

11
134431 393326 23 BRAKE COVER No Model Compatibility List $21.77 / Each

9
134438 393327 39 OUTER GUARD No Model Compatibility List $68.65 / Each

9,3
134441 393328 42 INNER GUARD No Model Compatibility List $11.52 / Each

9,3
134440 393329 41 DRIVE BELT GUARD COVER No Model Compatibility List $21.77 / Each

9,15,3,10
134420 393356 4 FRONT STABILIZER No Model Compatibility List $138.93 / Each

1
134421 393357 5 REAR STABILIZER No Model Compatibility List $117.41 / Each

1
134424 393358 10 CONSOLE BRACKET No Model Compatibility List $11.52 / Each

7,2,3,4,5,6
134446 393361 52 WHEEL No Model Compatibility List $16.66 / Each

8

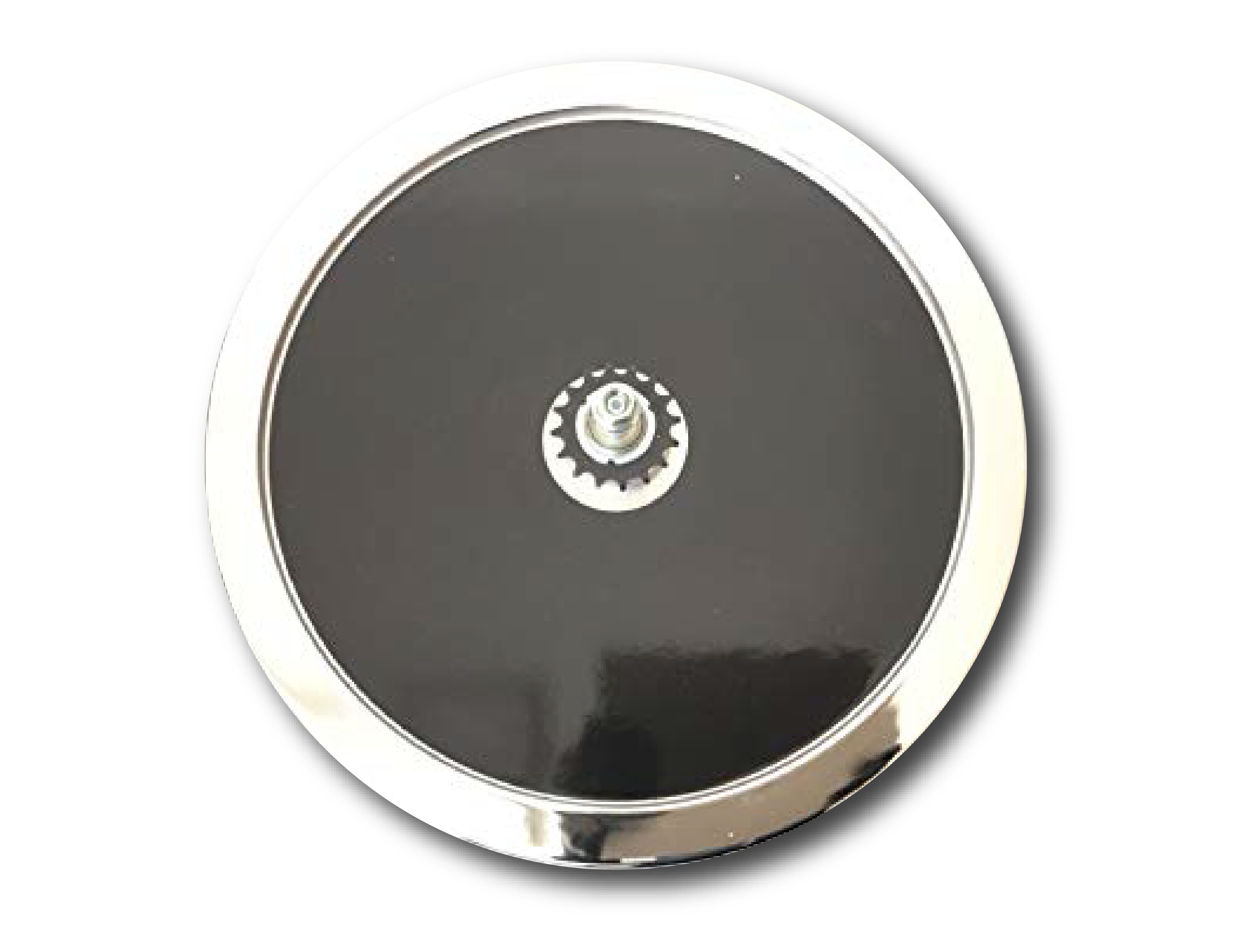

FLYWHEEL 153849 393363 37 FLYWHEEL No Model Compatibility List $632.17 / Each

8
134426 393364 12 LEFT PEDAL No Model Compatibility List $44.54 / Each

8,9

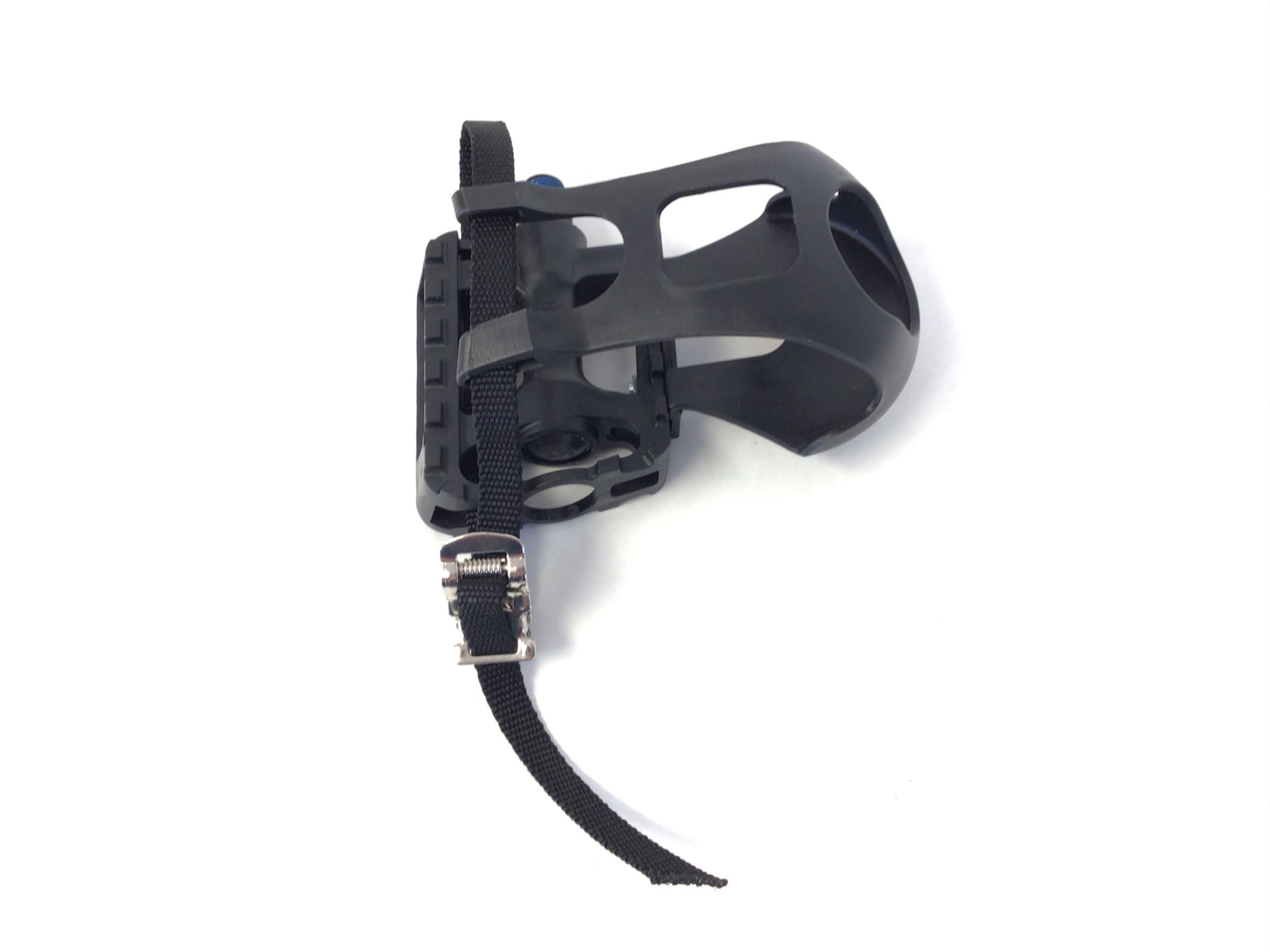

RIGHT PEDAL 134425 393365 11 RIGHT PEDAL No Model Compatibility List $44.54 / Each

8,9
153859 393366 # HARDWARE KIT NOTE: No Model Compatibility List $56.01 / Each

1
153855 395655 # USER'S MANUAL No Model Compatibility List $0.00 / Each
Out Of Stock 		1
153858 395701 # LITPAC NOTE: No Model Compatibility List $70.99 / Each

4,5,6
153854 397510 63 CONSOLE BRACKET SCREW No Model Compatibility List $2.55 / Each

7,2,3,4,5,6
153848 397511 19 M5 X 30MM BOLT No Model Compatibility List $2.78 / Each

2
153856 402266 # USER'S MANUAL,SPG No Model Compatibility List $0.00 / Each
Out Of Stock 		1
153857 402503 # USER'S MANUAL,PRB3 No Model Compatibility List $0.00 / Each
Out Of Stock 		1

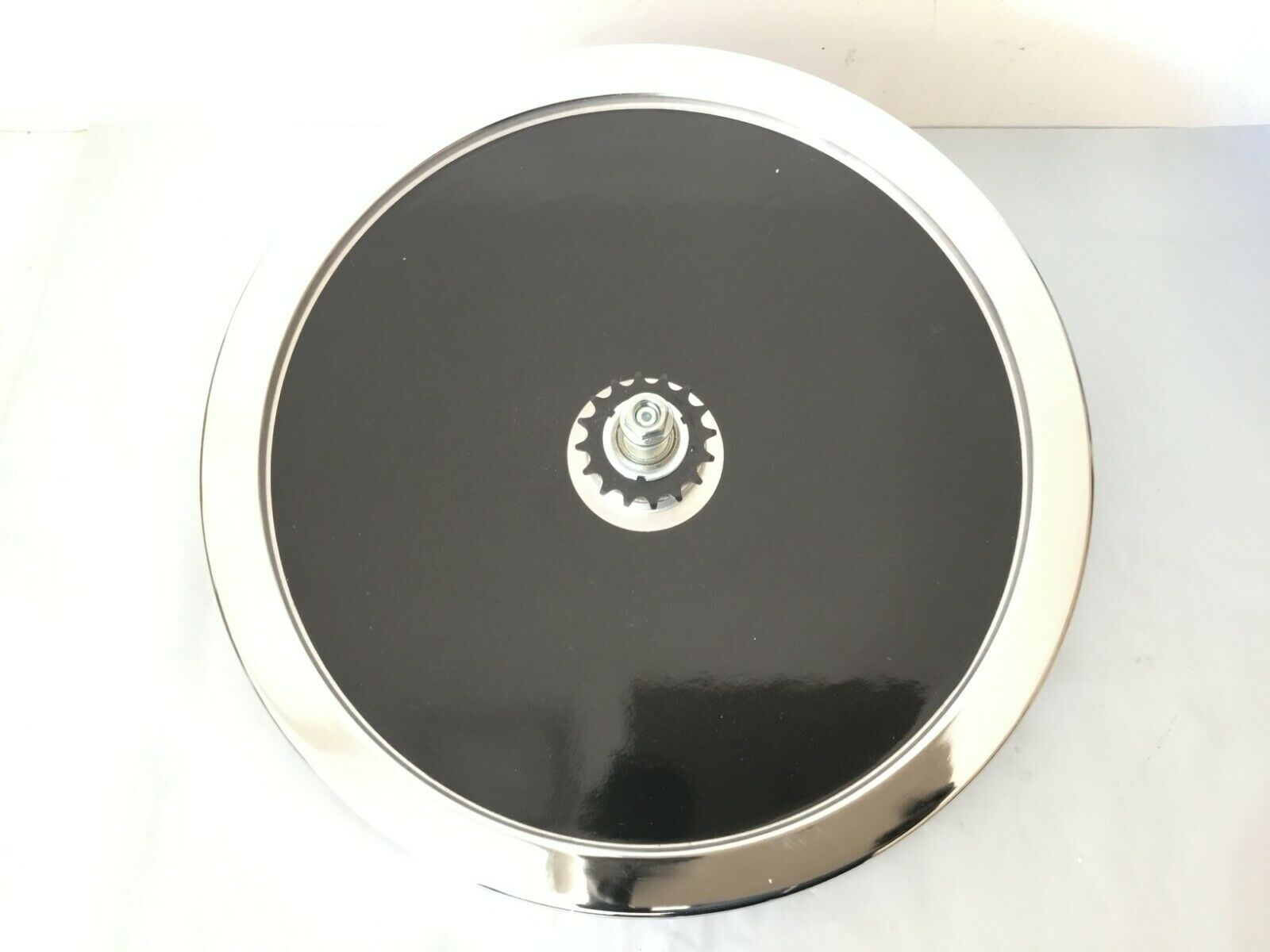

Resistance Friction Brake Flywheel Mechanism 1008629 393363 0 1 Resistance Friction Brake Flywheel Mechanism No Model Compatibility List $589.99 / Each

35
View Drawing
