ProForm - 495 PI

Exploded Diagrams

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry used@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Wire/cables
  • Motor
  • Frame Related
  • Rollers and Rotating Parts
  • Sensors
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
101630 100126 101630 . 5/16" STAR WASHER No Model Compatibility List $0.16 / Each

2
104838 100396 104838 . LUBE, GREASE No Model Compatibility List $6.19 / Each

1,15
113842 100081 113842 67 ROLLER MAGNET Yes Model Compatibility List $2.75 / Each

8,1
114011 102281 114011 # 4 Yes Model Compatibility List $4.87 / Each

4,5,6
114012 102280 114012 # 4 No Model Compatibility List $2.74 / Each

4,5,6
116926 100064 116926 90 RELEASABLE WIRE TIE No Model Compatibility List $2.45 / Each

2,4,5,6
116927 100262 116927 49 TIE CLAMP HOLDER - SCREW MOUNT No Model Compatibility List $2.49 / Each

2,4,5,6
117332 113294 117332 5 SCREW,Hex,3/8-16X.75" No Model Compatibility List $2.02 / Each

2
119425 100031 119425 54 3/8" HEX JAM NUT Yes Model Compatibility List $1.65 / Each

2
120867 104004 120867 60 SEAT RAIL FLANGE NUT No Model Compatibility List $3.75 / Each

2,9,12,13,14
012149 100136 012149 . 3/8" HEX LOCK NUT No Model Compatibility List $1.79 / Each

2
100088 123945 # TECH SHEET ENVELOPE No Model Compatibility List $0.94 / Each

1
124123 117424 124123 . 3/8" X 2 1/4" BOLT No Model Compatibility List $4.71 / Each

2
126146 100112 126146 # 4" BLU WIRE F/F, DR MOTOR No Model Compatibility List $2.43 / Each

4,5,6
126650 106102 126650 37 RUBBER BUMPER Yes Model Compatibility List $3.01 / Each

3
128457 100190 128457 . 3/16-7/32" ALLEN WRENCH No Model Compatibility List $9.99 / Each

2,1
131090 100079 131090 63 RSW CLAMP Yes Model Compatibility List $0.46 / Each

4,5,6,2,1,47
100073 132315 91 WIRE TIE No Model Compatibility List $0.56 / Each

2,4,5,6,1
013300 100149 013300 38 #8 X 3/4" WASHER HD SCREW Yes Model Compatibility List $1.28 / Each

2
013501 104188 013501 . WHEEL BOLT No Model Compatibility List $3.67 / Each

2,8
136012 100252 136012 76 PLATFORM NUT No Model Compatibility List $1.47 / Each

2
136728 100137 136728 71 #8 X 1/2" SCREW Yes Model Compatibility List $0.30 / Each

2
137224 100253 137224 66 PLATFORM BOLT, REAR No Model Compatibility List $2.20 / Each

2
138853 100290 138853 69 HANDRAIL COVER FASTENER No Model Compatibility List $1.55 / Each

3,9
139090 100151 139090 . WHEEL Yes Model Compatibility List $6.51 / Each

8,45
014117 102446 014117 . 3/8" CONSOLE SUPPORT No Model Compatibility List $1.32 / Each

2
117380 141173 24 FRAME SPACER No Model Compatibility List $2.58 / Each

2,3,4,5,6
014132 100263 014132 . IDLER WHEEL WASHER No Model Compatibility List $2.43 / Each

2,8
014157 100141 014157 12 #8 STAR WASHER Yes Model Compatibility List $1.17 / Each

2
157295 104329 157295 . FRAME PIVOT SPACER No Model Compatibility List $3.55 / Each

2,3,4,5,6,8
118592 159152 65 MOTOR PIVOT BOLT No Model Compatibility List $4.11 / Each

2,8
016057 100063 016057 92 8" CABLE TIE No Model Compatibility List $1.30 / Each

2,1,4
168267 101004 168267 15 M4 X 12MM SCREW Yes Model Compatibility List $0.22 / Each

2,1
174801 102653 174801 . 1/2" X 1/2" SCREW No Model Compatibility List $0.52 / Each

2
104279 174802 . BELT TENSION BOLT No Model Compatibility List $1.20 / Each
Out Of Stock
2,15
179767 100134 179767 57 3/8"X1 3/4" BOLT INC TOP Yes Model Compatibility List $2.87 / Each

2
109927 181979 58 3/8" X 1 1/4" SCREW No Model Compatibility List $2.37 / Each

2
185207 100080 185207 62 REED SWITCH WIRE Yes Model Compatibility List $13.34 / Each

4,5,6,47
186726 100201 186726 # POWER SWITCH Yes Model Compatibility List $20.45 / Each

4,5,6,1
186819 100120 186819 . #8 X 1/2" SCREW Yes Model Compatibility List $0.42 / Each

2
100444 189861 . REAR ROLLER STAR WASHER No Model Compatibility List $0.12 / Each

2,8
113323 194526 # CONTROLLER GROUND WIRE No Model Compatibility List $2.33 / Each

7,8,4,5,6
198640 100040 198640 68 BELT GUIDE No Model Compatibility List $16.59 / Each

15,40
203982 113296 203982 14 FILTER WIRE Yes Model Compatibility List $20.16 / Each

4,5,6
207753 104354 207753 78 3.5" BOLT Yes Model Compatibility List $6.38 / Each

2
208603 100072 208603 . KEY/CLIP Yes Model Compatibility List $17.98 / Each

2,9,1
215360 111182 215360 8 MOTOR BOLT No Model Compatibility List $3.28 / Each

2
223505 100285 223505 . STOP BRACKET SPACER Yes Model Compatibility List $8.22 / Each

2,3,4,5,6
142495 226429 59 LIFT FRAME No Model Compatibility List $83.19 / Each

3,10
118588 226439 50 BELLY PAN No Model Compatibility List $75.55 / Each

1
226441 117371 226441 17 HANDRAIL ENDCAP Yes Model Compatibility List $3.73 / Each

3,4,5,6,9
226447 117435 226447 83 LEFT REAR FOOT Yes Model Compatibility List $9.48 / Each

9
226448 117434 226448 80 RIGHT REAR FOOT Yes Model Compatibility List $10.58 / Each

9
118581 226450 13 POWER CORD ASSEMBLY No Model Compatibility List $94.19 / Each

4,5,6
156792 226458 # TECH SHEET No Model Compatibility List $0.87 / Each

1
156793 226459 # HOOD DECAL No Model Compatibility List $6.67 / Each

7,9,3
118607 226462 . HARDWARE KIT No Model Compatibility List $43.73 / Each

1
118585 226463 . LATCH PIN ASSEMBLY No Model Compatibility List $6.86 / Each
Out Of Stock
12,13,14
117428 226650 56 STOP BRACKET No Model Compatibility List $1.28 / Each

2,3,4,5,6
142514 227026 # PROSOFT DECAL No Model Compatibility List $5.55 / Each

7,3
142498 227062 42 CONSOLE SUPPORT BRACKET No Model Compatibility List $32.05 / Each

7,2,3,4,5,6
117728 227096 35 BASE CAP No Model Compatibility List $1.29 / Each

9,3
124302 227178 61 MOTOR BELT No Model Compatibility List $21.63 / Each

15
227198 100486 227198 84 FRONT ROLLER GROUND WIRE No Model Compatibility List $3.84 / Each

4
228101 117358 228101 . LATCH INSERT Yes Model Compatibility List $9.93 / Each

1
230327 112105 230327 82 1/4" X 2 1/4" SCREW No Model Compatibility List $1.91 / Each

2
102835 231085 53 3/8" X 2 1/4" BOLT No Model Compatibility List $3.74 / Each

2
118590 233360 # ROLLER BUSHING No Model Compatibility List $0.82 / Each

8
142529 234876 26 CONSOLE BASE No Model Compatibility List $106.24 / Each
Out Of Stock
7,3
234882 118596 234882 79 REAR ROLLER No Model Compatibility List $54.11 / Each

8
234963 117418 234963 28 UPRIGHT WIRE Yes Model Compatibility List $75.14 / Each

3,4,5,6
118395 235097 72 WALKING BELT No Model Compatibility List $115.25 / Each

15
156791 235157 48 BASE No Model Compatibility List $163.54 / Each

3
156798 235919 # USER'S MANUAL No Model Compatibility List $25.14 / Each

1
156789 238941 31 LEFT UPRIGHT No Model Compatibility List $109.30 / Each

3
156790 238942 36 RIGHT UPRIGHT No Model Compatibility List $109.30 / Each

3
241040 113290 241040 10 MOTOR BRACKET Yes Model Compatibility List $10.52 / Each
2,3,4,5,6
241262 117415 241262 18 HANDRAIL Yes Model Compatibility List $32.42 / Each
3,9
156797 241581 1 HOOD, OM HAS FOOTRAIL CVR No Model Compatibility List $90.85 / Each

9
408938 102317 408938 51 CONTROLLER Yes Model Compatibility List $197.44 / Each
Out Of Stock
7,8
251607 102772 251607 4 #12 X 1 1/4" No Model Compatibility List $1.67 / Each

2
100178 252433 41 WARNING DECAL No Model Compatibility List $0.47 / Each

7,3,1
100280 256836 43 LATCH WRNG DECAL, ENGLISH No Model Compatibility List $1.50 / Each

7,3
142502 260840 75 RIGHT FOOT RAIL No Model Compatibility List $38.31 / Each

9
405691 117355 405691 9 MOTOR ASSY Yes Model Compatibility List $218.90 / Each

1
100094 356520 # ACCESSORY KIT No Model Compatibility List $42.89 / Each

4,5,6,1
045023 100191 045023 . 1 5/32" ALLEN WRENCH No Model Compatibility List $4.62 / Each

2,1

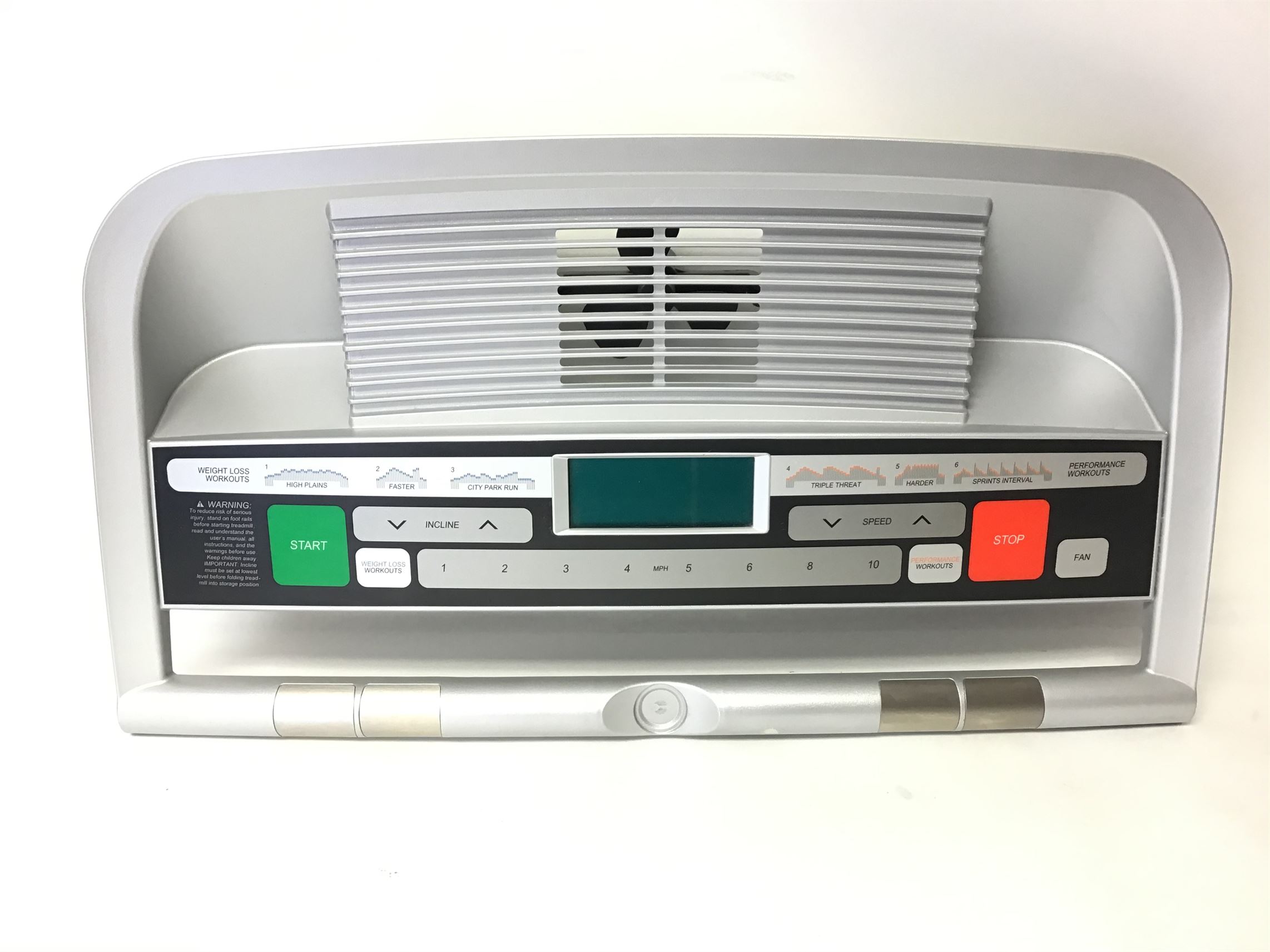

234702 1017424 234702 # 1 ETPF39009 Console (Used) Yes Model Compatibility List $207.90 / Each

7
297197 1003221 297197 0 1 Motor Drive Yes Model Compatibility List $238.99 / Each

28
013322 1004394 013322 0 1 #8 X 3/4" Foot Pedal Screw No Model Compatibility List $5.99 / Each

1
