ProForm - 585 EX

Repair Parts for ProForm 585 EX PFTL58581

Brand: ProForm

Category: Residential Treadmills

Type: Folding Treadmill

Model Name: 585 EX

Exploded Diagrams

Other Languages Available

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry [email protected]

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
REAR ROLLER ADJ BOLT 104339 105444 79 REAR ROLLER ADJ BOLT Yes Model Compatibility List $2.95 / Each

1
103681 106334 51 #10 COTTER PIN No Model Compatibility List $0.11 / Each

12,13,14
MOTOR BOLT 3/8-16X5 117640 107503 67 MOTOR BOLT 3/8-16X5" Yes Model Compatibility List $6.51 / Each

1
CIRCUIT BREAKER 103130 109382 81 CIRCUIT BREAKER Yes Model Compatibility List $11.52 / Each

1
4 100115 109407 # 4" BLK WIRE F/F, POWER Yes Model Compatibility List $2.93 / Each

1
ROLLER MAGNET 100081 113842 9 ROLLER MAGNET Yes Model Compatibility List $1.10 / Each

8,1
40MM X 50MM INT ENDCAP 106302 117544 61 40MM X 50MM INT ENDCAP Yes Model Compatibility List $3.12 / Each

1
KEY/CLIP 104349 119038 . KEY/CLIP Yes Model Compatibility List $9.89 / Each

1
1.25 104342 119445 . 1.25" TEK SCREW No Model Compatibility List $1.46 / Each

2
122035 120354 18 WHEEL BOLT No Model Compatibility List $1.89 / Each
Out Of Stock 		2,8
SEAT RAIL FLANGE NUT 104004 120867 68 SEAT RAIL FLANGE NUT Yes Model Compatibility List $3.75 / Each

1
3/8 100136 012149 37 3/8" HEX LOCK NUT No Model Compatibility List $1.79 / Each

SPRING NUT 100424 121576 58 SPRING NUT Yes Model Compatibility List $0.34 / Each

2
MOTOR WASHER 113293 122812 70 MOTOR WASHER No Model Compatibility List $1.53 / Each

2
121973 123898 # 8" WHITE WIRE, 2M/F No Model Compatibility List $9.04 / Each

4,5,6
100088 123945 # TECH SHEET ENVELOPE No Model Compatibility List $0.94 / Each

1
WIRE HARNESS GROMMET 117665 124695 83 WIRE HARNESS GROMMET No Model Compatibility List $4.12 / Each

4,5,6
SHORT HOOD BRACKET 118533 125677 80 SHORT HOOD BRACKET No Model Compatibility List $3.56 / Each

1
118213 125708 38 1/4" CAGE NUT No Model Compatibility List $1.78 / Each

2,3
117645 126040 . ALLEN WRENCH 3/16" No Model Compatibility List $1.29 / Each

2
RUBBER BUMPER 106102 126650 55 RUBBER BUMPER Yes Model Compatibility List $3.01 / Each

1
PLASTIC FASTENER 111183 127597 104 PLASTIC FASTENER No Model Compatibility List $3.48 / Each

1,9
PLATFORM BOLT, FRONT 1/4 100221 128272 6 PLATFORM BOLT, FRONT 1/4" X1.25" Yes Model Compatibility List $7.04 / Each

2
BELT GUIDE BOLT 103160 128643 . BELT GUIDE BOLT Yes Model Compatibility List $0.28 / Each

2,15
ROUND GROMMET 101035 129004 36 ROUND GROMMET No Model Compatibility List $1.44 / Each

1
121910 129168 19 SAFETY COVER SCREW No Model Compatibility List $0.26 / Each

2,9
BATTERY COVER 2.38x3.25 121298 129639 23 BATTERY COVER 2.38x3.25"L Yes Model Compatibility List $9.63 / Each
9
103843 130459 43 COVER PLATE SCREW No Model Compatibility List $0.21 / Each

2,9
RSW CLAMP 100079 131090 96 RSW CLAMP Yes Model Compatibility List $0.46 / Each

4,5,6,2,1,47
M4 X 13MM SCREW 101030 013162 98 M4 X 13MM SCREW Yes Model Compatibility List $1.26 / Each

121619 131826 106 1/4" X 5/8" BOLT No Model Compatibility List $0.63 / Each

2
INCLINE BASE PIVOT BOLT HEX M10-1.5 x 50 MM 104345 132449 39 INCLINE BASE PIVOT BOLT HEX M10-1.5 x 50 MM Yes Model Compatibility List $3.26 / Each

2
122826 132456 87 INCLINE LEG SPACER No Model Compatibility List $2.90 / Each

2,3,4,5,6,10
#8 X 3/4 100149 013300 54 #8 X 3/4" WASHER HD SCREW Yes Model Compatibility List $1.28 / Each

1
3/8 106621 013375 48 3/8" BOLT No Model Compatibility List $4.17 / Each

ISOLATOR 124104 134300 17 ISOLATOR Yes Model Compatibility List $11.18 / Each
3
BELLY PAN SCREW 118349 134594 15 BELLY PAN SCREW No Model Compatibility List $1.38 / Each

2
5/16 101724 013484 . 5/16" X 1/2" BUTTON SCREW Yes Model Compatibility List $1.26 / Each

1
IDLER ARM BOLT 100450 013547 71 IDLER ARM BOLT No Model Compatibility List $2.89 / Each

M10 - 3/8-16 X 2.25 104347 013578 53 M10 - 3/8-16 X 2.25" HEX EAD WHEEL BOLT Yes Model Compatibility List $7.28 / Each

#8 X 1/2 100137 136728 78 #8 X 1/2" SCREW Yes Model Compatibility List $0.30 / Each

2
142895 137389 # 8" BLUE PIGTAIL WIRE No Model Compatibility List $5.51 / Each
Out Of Stock 		4,5,6
REED SWITCH 121968 138680 97 REED SWITCH Yes Model Compatibility List $14.49 / Each
4,5,6
121974 139833 # 6" BLUE WIRE, 2F/F No Model Compatibility List $5.53 / Each

4,5,6
121931 139834 # 6" WHITE WIRE, 2F/M No Model Compatibility List $5.42 / Each

4,5,6
1/4 100042 014063 . 1/4" FLAT WASHER No Model Compatibility List $1.03 / Each

3/8 102446 014117 69 3/8" CONSOLE SUPPORT No Model Compatibility List $1.32 / Each

144984 146373 # TECH SHEET No Model Compatibility List $0.44 / Each

1
144983 146414 # HOOD DECAL No Model Compatibility List $10.20 / Each

7,9,3
BOOK RACK 144977 146602 22 BOOK RACK Yes Model Compatibility List $12.68 / Each

4,5,6
158237 148185 85 OUTLET BRACKET No Model Compatibility List $2.75 / Each

2,3,4,5,6
144990 148489 . CN-ASSY UPDATE No Model Compatibility List $0.50 / Each

1
142000 148586 47 INCLINE BRACKET No Model Compatibility List $3.30 / Each
Out Of Stock 		2,3,4,5,6,10
158238 149299 . USER-S MANUAL No Model Compatibility List $6.27 / Each

1
158235 149536 # FIXKIT, WLK BRD No Model Compatibility List $19.64 / Each

1
144980 159514 50 INCLINE COVER No Model Compatibility List $38.54 / Each

9,10
ADHESIVE CLIP 118356 016028 . ADHESIVE CLIP No Model Compatibility List $2.23 / Each

8 100063 016057 75 8" CABLE TIE No Model Compatibility List $1.30 / Each

1
FRONT ROLLER ADJ BOLT 118357 162741 92 FRONT ROLLER ADJ BOLT No Model Compatibility List $1.91 / Each

1
WALKING BELT W/FASTENERS 124106 184542 11 WALKING BELT W/FASTENERS Yes Model Compatibility List $112.32 / Each

1
CHOKE 104353 185582 95 CHOKE Yes Model Compatibility List $76.47 / Each

1
MOTOR BELT 100426 216749 72 MOTOR BELT Yes Model Compatibility List $21.99 / Each

23
3 TUBE LUBE KIT 100096 219170 # 3 TUBE LUBE KIT No Model Compatibility List $28.18 / Each

1
100280 256836 24 LATCH WRNG DECAL, ENGLISH No Model Compatibility List $1.50 / Each

7,3
100094 356520 # ACCESSORY KIT No Model Compatibility List $42.89 / Each

1,4,5,6
WHEEL 115252 052012 65 WHEEL Yes Model Compatibility List $4.49 / Each

Handlebar Sacer 1019311 134388 # 4 Handlebar Sacer Yes Model Compatibility List $7.79 / Each

9
ATR PB09 Power Adaptor Supply (Used) 1019520 129345 0 1 ATR PB09 Power Adaptor Supply (Used) Yes Model Compatibility List $29.99 / Each

6
80LB Lift Shock (Used) 1019518 134331 0 1 80LB Lift Shock (Used) Yes Model Compatibility List $38.99 / Each

3

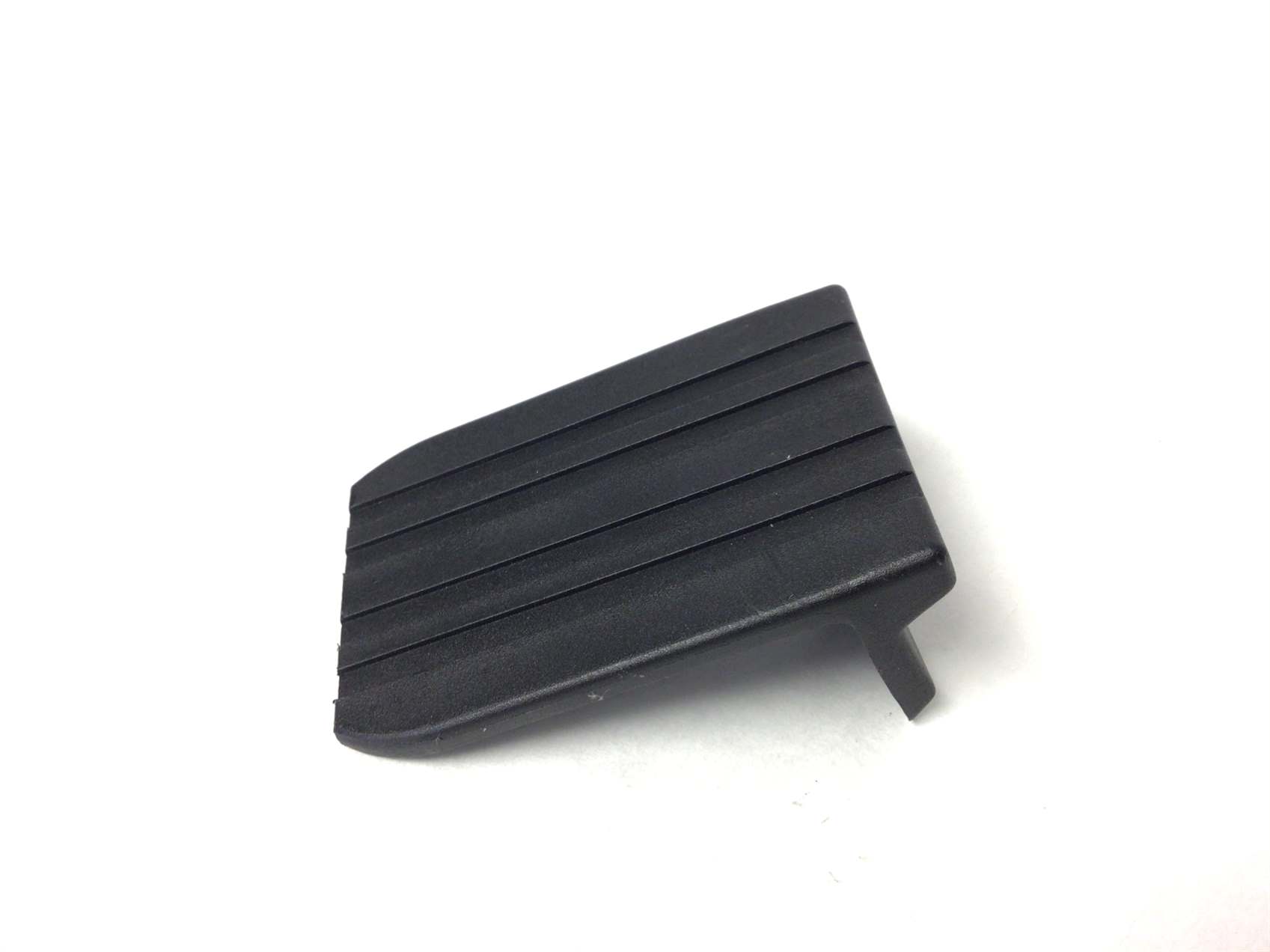

FOLDING LATCH,CATCH,Black H01083CC 1020089 146704 0 1 FOLDING LATCH,CATCH,Black H01083CC No Model Compatibility List $8.99 / Each

9
Belt Guide Bracket - Used 1021177 153321 0 1 Belt Guide Bracket - Used Yes Model Compatibility List $9.99 / Each

3
PLATE LATCH 1.25X1.5 1021860 137944 - b 93 1 PLATE LATCH 1.25X1.5" (Used) Yes Model Compatibility List $10.19 / Each

1
Hood Front Black (Used) 1021957 132219 20 1 Hood Front Black (Used) No Model Compatibility List $35.99 / Each

1

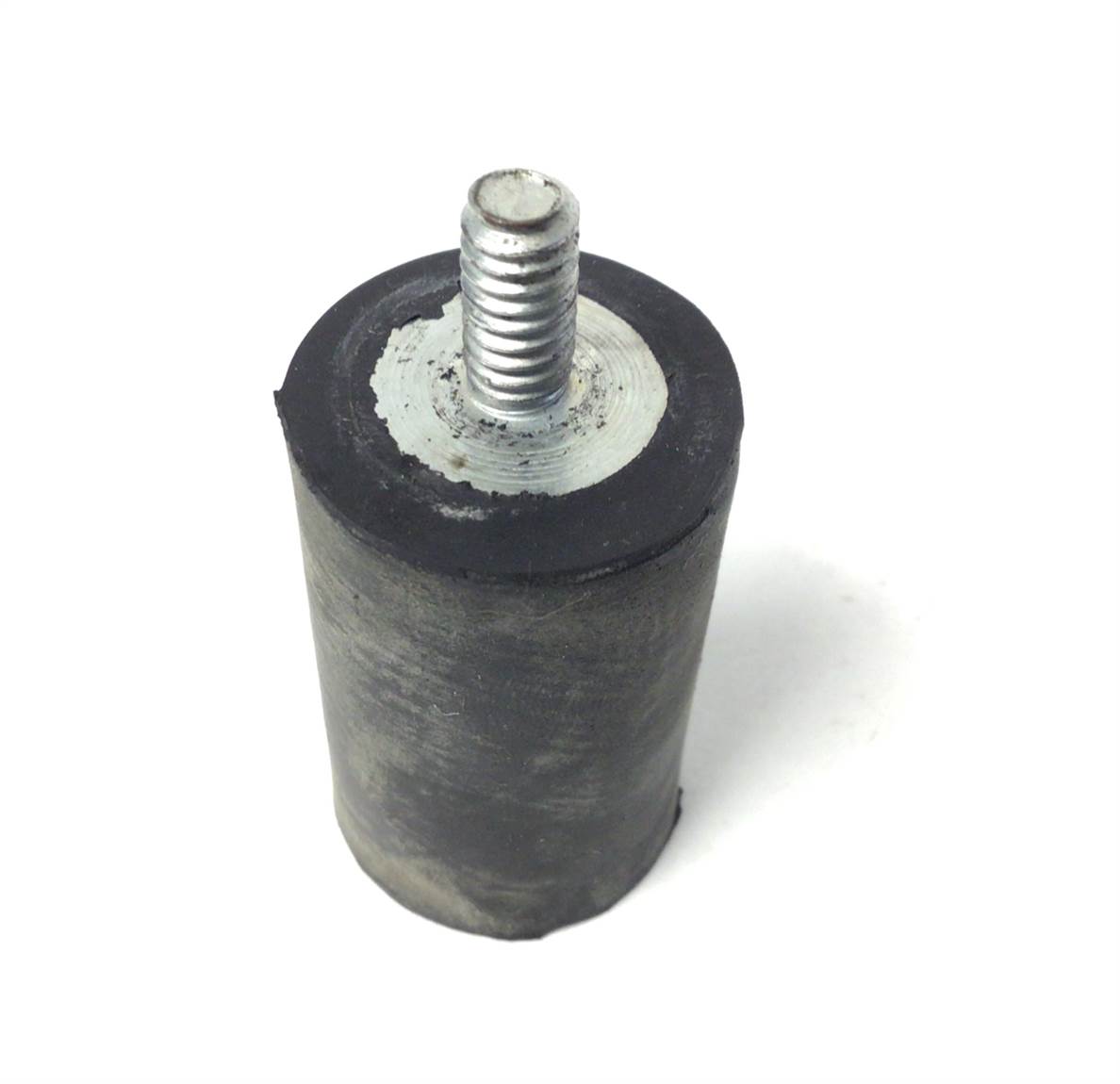

Spring Deck (Used) 1021971 149031 17 1 Spring Deck (Used) No Model Compatibility List $16.19 / Each

1
Switch Lift (Used) 1024053 031108 25 1 Switch Lift (Used) No Model Compatibility List $12.59 / Each
Out Of Stock 		1
Switch Key holder (Used) 1024054 154015 1005 1 Switch Key holder (Used) No Model Compatibility List $13.19 / Each
Out Of Stock 		1

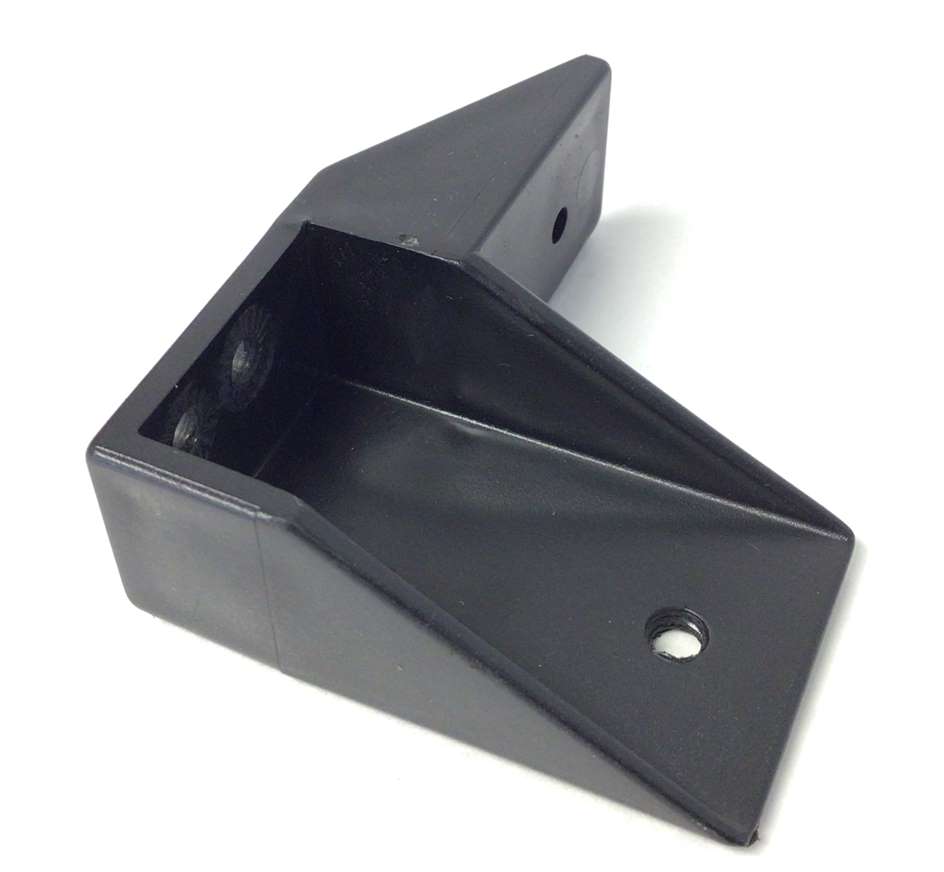

Bracket Cover (Used) 1024450 132394 47 1 Bracket Cover (Used) No Model Compatibility List $2.99 / Each

1
Hood Anchor 013353 125677 0 1 Hood Anchor No Model Compatibility List $12.99 / Each

1

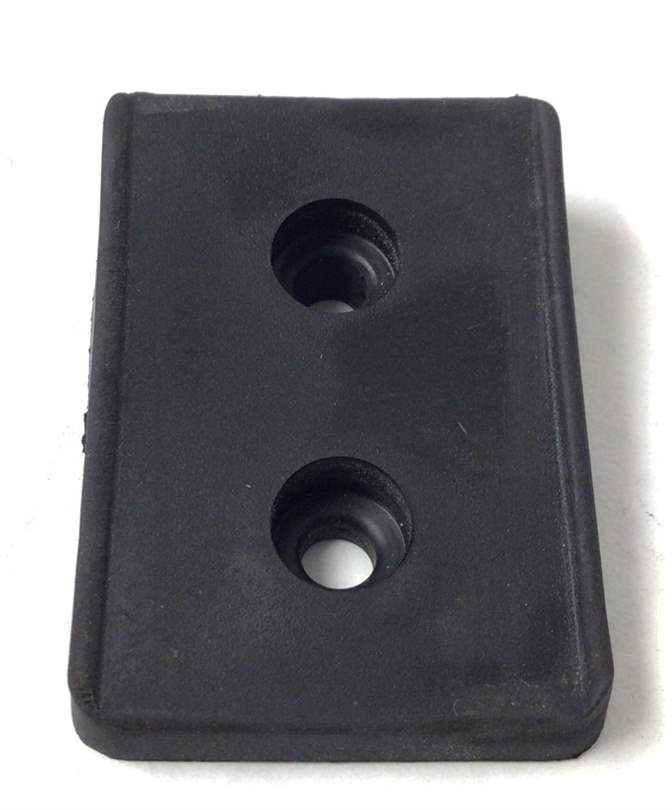

Plate (Used) 1025331 132031 111 1 Plate (Used) No Model Compatibility List $1.19 / Each

1
OEM Walking Running Belt Treadbelt 1000211 184542 0 1 OEM Walking Running Belt Treadbelt Yes Model Compatibility List $102.11 / Each

1
Power Cord 1002864 31229 78A 1 Power Cord No Model Compatibility List $36.95 / Each

6
Endcap Foot Right (Used) 1028296 135665 0 1 Endcap Foot Right (Used) No Model Compatibility List $9.59 / Each

1
Cover Endcap (Used) 1028300 136203 103 1 Cover Endcap (Used) Yes Model Compatibility List $49.00 / Each

18

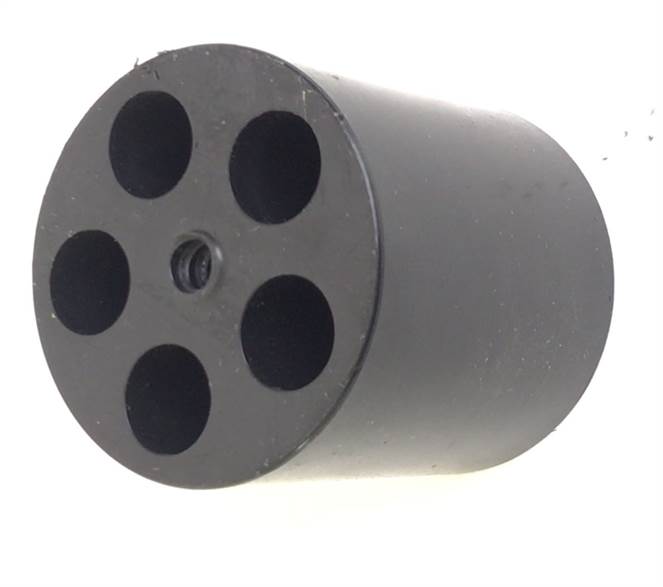

ASSY FIXKIT WLK BRD Spacer (Used) 1028297 161320 1011 1 ASSY FIXKIT WLK BRD Spacer (Used) Yes Model Compatibility List $20.00 / Each

1
Screw #8 X 1/2 1004209 013576 5 1 Screw #8 X 1/2" Yes Model Compatibility List $1.99 / Each

1
#8 X 3/4 1004394 013322 0 1 #8 X 3/4" Foot Pedal Screw No Model Compatibility List $5.99 / Each

Power Entry On Off Switch 1007949 144244 0 1 Power Entry On Off Switch Yes Model Compatibility List $17.99 / Each

6
Magnet 1009452 113842 137 1 Magnet Yes Model Compatibility List $1.10 / Each

1,8
Idler Pulley Nut 1010877 100427 12 1 Idler Pulley Nut Yes Model Compatibility List $0.46 / Each

2,40
Clamp Screw 1011778 013162 0 1 Clamp Screw Yes Model Compatibility List $11.99 / Each

Reed Switch Cable Retainer Clamp 1011798 131090 114 1 Reed Switch Cable Retainer Clamp Yes Model Compatibility List $0.46 / Each

4,5,6,2,1,47
Power Entry Circuit Breaker 1000167 109382 Power Entry Circuit Breaker Yes Model Compatibility List $2.66 / Each

1
Power Entry On Off Switch 1000189 144244 Power Entry On Off Switch Yes Model Compatibility List $3.99 / Each

6
Power Supply Internal AC Adapter 1001639 PB09 - 1 Power Supply Internal AC Adapter Yes Model Compatibility List $11.99 / Each

Speed RPM Sensor Reed Switch 1002918 138680 Speed RPM Sensor Reed Switch Yes Model Compatibility List $21.99 / Each

4,5,6
Speed Sensor Reed Switch 1002671 138680 Speed Sensor Reed Switch Yes Model Compatibility List $17.99 / Each

4,5,6
Power Supply Line Cord 1002865 31229 78A Power Supply Line Cord Yes Model Compatibility List $11.99 / Each

6

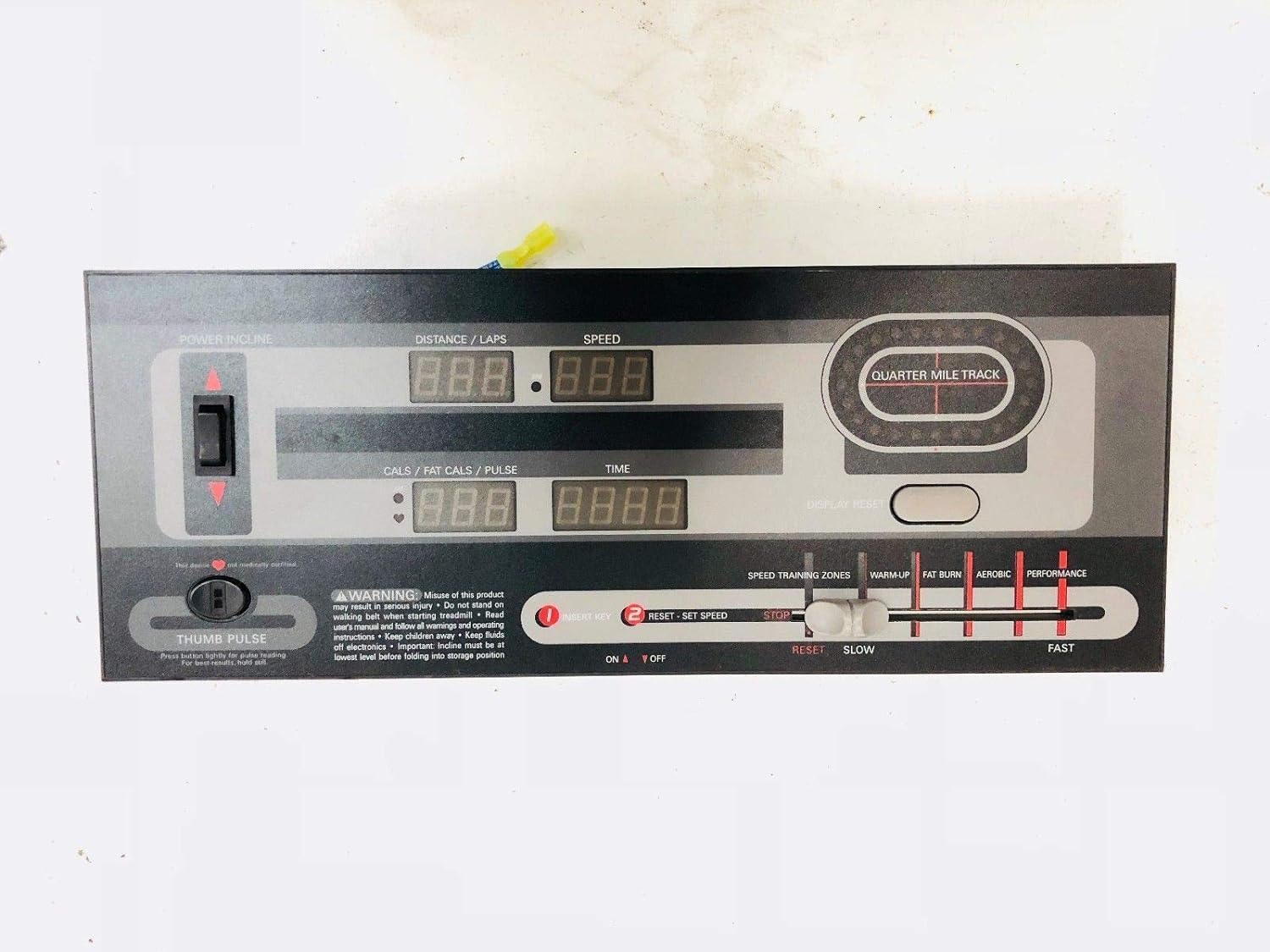

Display Console 1002285 ET-1718 or ET1718 Display Console Yes Model Compatibility List $99.00 / Each

15 Amp Circuit Breaker 1002255 109382 15 Amp Circuit Breaker Yes Model Compatibility List $5.99 / Each

1
Motor Choke Transformer 1002606 185582 or 130993 Motor Choke Transformer Yes Model Compatibility List $38.00 / Each
Out Of Stock
Allen Tool Clamp (New) 1013015 016028 Allen Tool Clamp (New) No Model Compatibility List $12.99 / Each

MC-60 Control Board (Used) 1038799 129006 MC-60 Control Board (Used) Yes Model Compatibility List $167.36 / Each

48

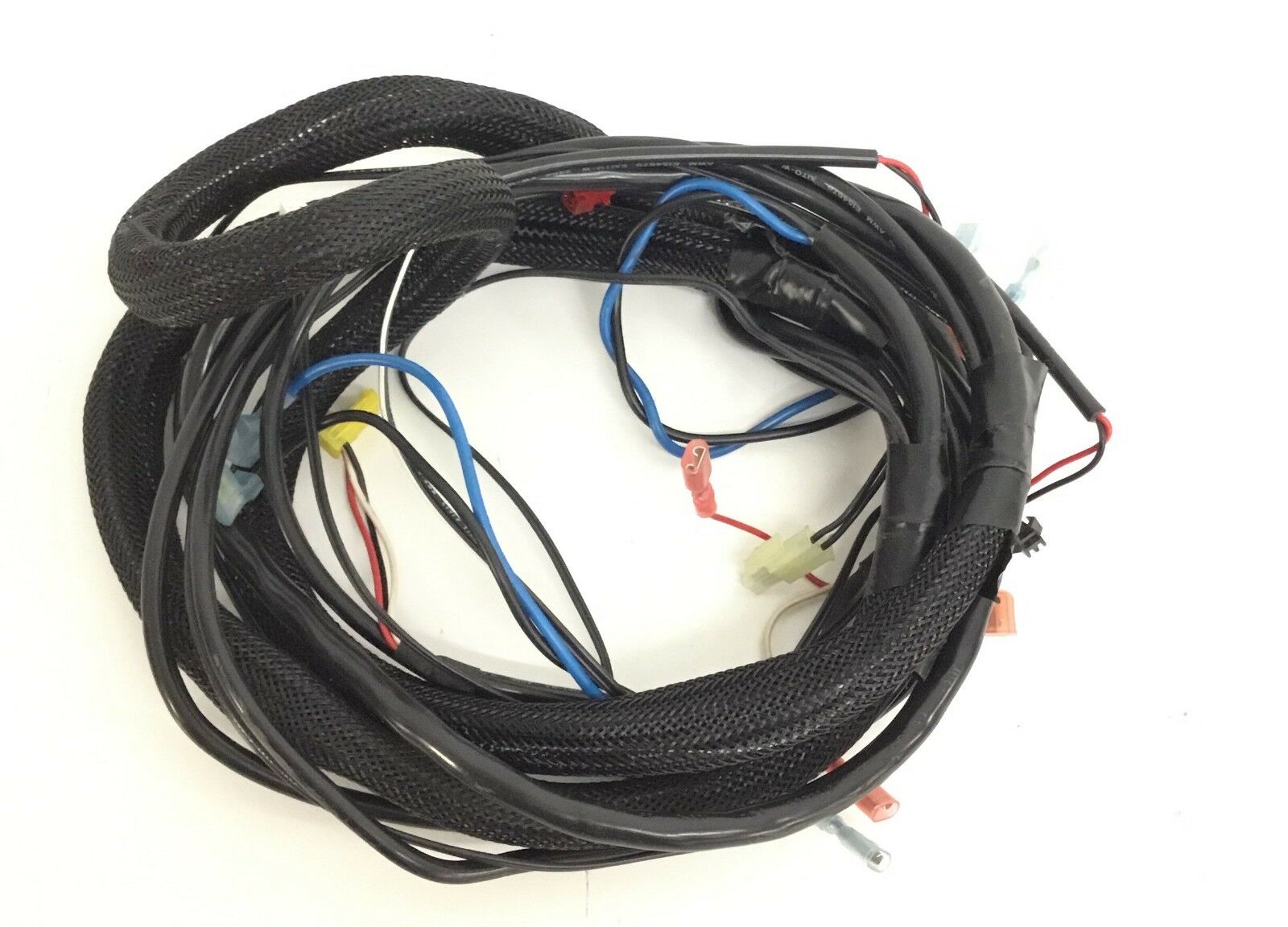

Wire Harness Cable Interconnect Set (Used) 1006451 51-cble-001 Wire Harness Cable Interconnect Set (Used) Yes Model Compatibility List $17.99 / Each

5
