ProForm - 6.0 CE

Exploded Diagrams

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry used@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Rollers and Rotating Parts
  • Covers and Plastics
  • Sensors
  • Resistance Parts
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
104838 100396 104838 # LUBE, GREASE No Model Compatibility List $6.19 / Each

1,15
113842 100081 113842 41 ROLLER MAGNET Yes Model Compatibility List $2.75 / Each

8,1
100186 116566 # 15 1/2" CABLE TIE No Model Compatibility List $0.76 / Each

2,4,5,6,1
116926 100064 116926 # RELEASABLE WIRE TIE No Model Compatibility List $2.45 / Each

2,4,5,6
131090 100079 131090 57 RSW CLAMP Yes Model Compatibility List $0.46 / Each

4,5,6,2,1,47
013162 101030 013162 36B M4 X 13MM SCREW Yes Model Compatibility List $1.26 / Each

2
013423 100258 013423 53 1/2" TAP SCREW No Model Compatibility List $1.24 / Each

2
139703 100657 139703 38 BEARING Yes Model Compatibility List $27.76 / Each

1,45
100828 140069 # SNAP RING PLIERS, 1" EXT No Model Compatibility List $85.64 / Each

2,1
146119 100097 146119 # FLOOR MAT 36X72" No Model Compatibility List $75.90 / Each

1
102047 153770 76 M8 X 40MM BUTTON SCREW No Model Compatibility List $10.57 / Each

2
168267 101004 168267 55 M4 X 12MM SCREW Yes Model Compatibility List $0.22 / Each

2,1
177034 108804 177034 78 M10 SPLIT WASHER No Model Compatibility List $2.27 / Each

2
147535 180220 75 M10 X 45MM BUTTON SCREW No Model Compatibility List $15.76 / Each

2
109379 018030 29 MEDIUM ROLLER No Model Compatibility List $14.10 / Each

8
108634 184363 62 M6 X 16MM SCREW No Model Compatibility List $3.73 / Each

2
186070 100953 186070 58 REED SWITCH/WIRE Yes Model Compatibility List $27.83 / Each

4,5,6
193223 100647 193223 54 RESISTANCE MOTOR Yes Model Compatibility List $106.74 / Each

10,49
100497 194020 # PULSE RECIEVER SCREW No Model Compatibility List $0.32 / Each

2,12,13,14
195562 100586 195562 36C M4 X 16MM SCREW Yes Model Compatibility List $1.44 / Each

2
208163 101001 208163 56 PIVOT SCREW Yes Model Compatibility List $1.20 / Each

2,8
208817 101187 208817 36D M4 X 16MM SCREW No Model Compatibility List $1.56 / Each

2,1
215823 100197 215823 # AUDIO WIRE,18 Yes Model Compatibility List $8.87 / Each

4,5,6
109110 223168 80 CAM SCREW No Model Compatibility List $4.25 / Each

2
109119 224832 35E PULSE SENSOR PLATE No Model Compatibility List $16.47 / Each

12,13,14
109666 224836 35C PULSE SENSOR COVER TOP No Model Compatibility List $12.29 / Each

9,12,13,14
109665 224837 35D PULSE SENSOR CVR BOTTOM No Model Compatibility List $12.29 / Each

9,12,13,14
109120 224839 35H PULSE GRIP CAP No Model Compatibility List $1.40 / Each

9,12,13,14,11
115583 230444 10 FOAM GRIP No Model Compatibility List $29.41 / Each

11
101865 234235 36A M4.2 X 18MM SCREW No Model Compatibility List $0.34 / Each

2
100185 240351 # ANCHORED CABLE TIE No Model Compatibility List $0.74 / Each

2,4,5,6,1
242965 115615 242965 81 M10 X 85MM SCREW Yes Model Compatibility List $5.91 / Each

2
101519 244298 # TWIST TIE No Model Compatibility List $0.16 / Each

2,1,4
115169 245941 74 M4 X 12MM FLANGE SCREW No Model Compatibility List $0.96 / Each

2
115020 246303 11 SMALL UPPER BODY ARM CAP No Model Compatibility List $0.52 / Each

9,3,46
247329 109399 247329 65 M8 X 18MM BOLT No Model Compatibility List $2.16 / Each

2
248334 101417 248334 79 M10 X 20MM PATCH SCREW Yes Model Compatibility List $3.83 / Each

2
248512 100830 248512 # POWER SUPPLY Yes Model Compatibility List $21.95 / Each

4,5,6
101431 251978 63 M10 SHOULDER SCREW No Model Compatibility List $9.58 / Each

2
115410 252110 67 M6 X 10MM SET SCREW No Model Compatibility List $1.23 / Each

2
115535 256148 40 CRANK SPCR, NOTE: OM No Model Compatibility List $0.66 / Each

8
256295 101392 256295 17 LIFT BUSHING No Model Compatibility List $4.64 / Each

8,10
256446 100030 256446 77 M8 NUT No Model Compatibility List $0.72 / Each

2
100823 258868 # DECAL, GENERAL WARNING No Model Compatibility List $0.24 / Each

7,3
261150 101053 261150 33 M8 X 25MM WASHER No Model Compatibility List $2.64 / Each

2
272391 101459 272391 28A RIGHT PULSE WIRE Yes Model Compatibility List $14.98 / Each

4,5,6,12,13,14
272392 101460 272392 28B LEFT PULSE WIRE Yes Model Compatibility List $14.98 / Each

4,5,6,12,13,14
277369 101387 277369 64 PULLEY Yes Model Compatibility List $178.75 / Each

8,1
115522 281020 23 PEDAL ARM BUSHING No Model Compatibility List $4.88 / Each

8,9,3
281149 101436 281149 72 BELT ADJUSTMENT SCREW Yes Model Compatibility List $4.87 / Each

2,15
281150 101010 281150 66 IDLER SCREW Yes Model Compatibility List $3.36 / Each

2,8
115398 281557 68 M8 X 44MM BOLT No Model Compatibility List $3.26 / Each

2
115403 281558 61 M8 LOCKNUT CLASS 12.9 No Model Compatibility List $2.32 / Each

2
281559 100991 281559 60 KEY No Model Compatibility List $2.86 / Each

9
115601 283862 39 HANDLEBAR No Model Compatibility List $59.17 / Each

11
115040 284963 35A LEFT SENSOR/WIRE No Model Compatibility List $48.75 / Each

4,5,6
115039 284964 35B RIGHT SENSOR/WIRE No Model Compatibility List $48.75 / Each

4,5,6
286527 101022 286527 18A MOUNT No Model Compatibility List $1.91 / Each

2,1
101100 301390 # TREE FASTENER No Model Compatibility List $0.46 / Each

1
115405 305948 27 CRANK SPACER No Model Compatibility List $12.29 / Each

2,8,3,4,5,6
306492 115605 306492 46 DRIVE BELT Yes Model Compatibility List $48.09 / Each

10,15
110219 310739 59 M8 X 10MM BOLT No Model Compatibility List $2.09 / Each

2
115402 314017 18B MUSHROOM FASTENER SCREW No Model Compatibility List $0.23 / Each

2,12,13,14
115612 314149 73 FRONT STABILIZER No Model Compatibility List $101.41 / Each

1
115611 314152 70 REAR STABILIZER No Model Compatibility List $101.51 / Each

1
115616 314155 7 LEFT CRANK ARM No Model Compatibility List $126.89 / Each

8,3
115594 314159 25 RIGHT CRANK ARM No Model Compatibility List $126.89 / Each

8,3
109109 314166 # PEDAL SPRING No Model Compatibility List $3.02 / Each

2,8,9
115396 314681 43 M6 WASHER No Model Compatibility List $0.94 / Each

2
115597 314745 31 BOLT SET No Model Compatibility List $14.75 / Each

2
115610 314749 # M10 X 104MM SCREW No Model Compatibility List $12.29 / Each

2
314900 147568 314900 # LT BATTERY DOOR No Model Compatibility List $7.19 / Each

1
147569 314901 # RT BATTERY DOOR No Model Compatibility List $7.19 / Each
Out Of Stock
1
149606 315404 32 FRONT CONSOLE COVER No Model Compatibility List $57.33 / Each

7,9
149611 315407 34 REAR CONSOLE COVER No Model Compatibility List $27.69 / Each

7,9
149598 315409 6 UPPER BODY LEG No Model Compatibility List $90.09 / Each

1
315411 149601 315411 12 LEFT PEDAL Yes Model Compatibility List $91.93 / Each

8,9
315412 149602 315412 13 RIGHT PEDAL No Model Compatibility List $98.53 / Each

8,9
149603 316992 14 LEFT PEDAL ARM No Model Compatibility List $125.49 / Each

8,9,3
149610 316993 49 RIGHT PEDAL ARM No Model Compatibility List $125.49 / Each

8,9,3
149604 316994 15 PEDAL BRACKET No Model Compatibility List $33.54 / Each

2,8,9,3,4,5,6
149608 316995 44 LEFT SHIELD No Model Compatibility List $147.17 / Each

3
149609 316996 45 RIGHT SHIELD No Model Compatibility List $147.17 / Each

3
148246 316998 19 PIVOT COVER A No Model Compatibility List $14.26 / Each

8,9
148249 316999 22 PIVOT COVER B No Model Compatibility List $15.23 / Each

8,9
132302 317000 16 FRONT UPRIGHT COVER No Model Compatibility List $50.70 / Each

9,3
132292 317001 3 REAR UPRIGHT COVER No Model Compatibility List $29.25 / Each

9,3
148247 317002 20 FRONT LEG COVER No Model Compatibility List $33.15 / Each

9
148248 317003 21 REAR LEG COVER No Model Compatibility List $20.35 / Each

9
132310 317004 30 PEDAL ARM CAP No Model Compatibility List $1.63 / Each

8,9,3
317005 148255 317005 48 STABILIZER CAP Yes Model Compatibility List $12.04 / Each

9
115508 317006 5 ACCESSORY TRAY No Model Compatibility List $17.02 / Each

4,5,6
121168 317007 50 WHEEL No Model Compatibility List $20.35 / Each

8
149596 317014 2 UPRIGHT No Model Compatibility List $206.49 / Each
Out Of Stock
3
317078 110324 317078 47 LEVELING FOOT Yes Model Compatibility List $20.30 / Each

9
149599 317214 8 LEFT UPPER BODY ARM No Model Compatibility List $113.10 / Each

3
149600 317215 9 RIGHT UPPER BODY ARM No Model Compatibility List $113.10 / Each

3
149605 317407 26 PEDAL DISC No Model Compatibility List $105.74 / Each

8,9
149597 317462 4 CONSOLE No Model Compatibility List $218.10 / Each
Out Of Stock
7
149607 317463 37 SHIELD COVER No Model Compatibility List $109.97 / Each

9,3
321678 101866 321678 51E RESISTANCE CABLE Yes Model Compatibility List $18.30 / Each

4,5,6,10
115517 321734 71 #10 X 16MM SCREW No Model Compatibility List $0.69 / Each

2

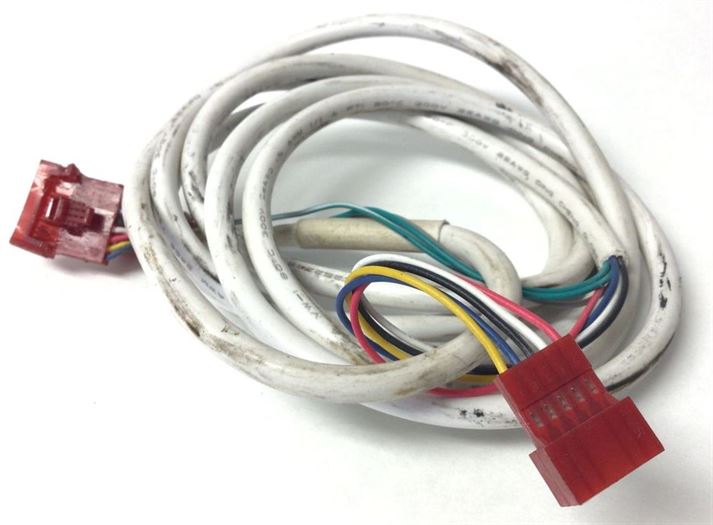

322072 115602 322072 42 MAIN WIRE Yes Model Compatibility List $43.63 / Each

4,5,6
149614 328594 18C PEDAL DISC MNT SCREW,10MM No Model Compatibility List $0.23 / Each

2,8,9
109632 330128 82 MECHANISM SPACER No Model Compatibility List $1.44 / Each

2,3,4,5,6
115523 343880 24 CRANK No Model Compatibility List $90.46 / Each

8
149617 345257 # USER'S MANUAL No Model Compatibility List $0.00 / Each
Out Of Stock
1
346386 101086 346386 51D Mechanism Spacer Yes Model Compatibility List $17.52 / Each

2
109125 362821 51A EDDY MECHANISM No Model Compatibility List $364.56 / Each

8
363093 100939 363093 52 IDLER Yes Model Compatibility List $58.30 / Each

8
109405 366951 35F M2.6 X 33MM SCREW No Model Compatibility List $0.72 / Each

2
109406 366952 35G M2.6 NUT No Model Compatibility List $0.47 / Each

2
045008 100604 045008 # 5MM ALLEN WRENCH No Model Compatibility List $3.85 / Each

2
045021 100541 045021 # 6MM ALLEN WRENCH No Model Compatibility List $5.28 / Each

2,1
