ProForm - 675 CARDIO CROSS TRAINER

Exploded Diagrams

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry used@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Belt Related
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
104838 100396 104838 # LUBE, GREASE No Model Compatibility List $6.19 / Each

1,15
113842 100081 113842 58 ROLLER MAGNET Yes Model Compatibility List $2.75 / Each

8
012022 107288 012022 66 M6 LOCKNUT No Model Compatibility List $0.56 / Each

121519 101359 121519 45 M10 SPLIT WASHER No Model Compatibility List $4.44 / Each

2
131090 100079 131090 54 RSW CLAMP Yes Model Compatibility List $0.46 / Each

4,5,6
106162 132139 64 M4 X 25MM SCREW No Model Compatibility List $0.59 / Each

2
139703 100657 139703 31 BEARING Yes Model Compatibility List $27.76 / Each

1
014061 101800 014061 35 M10 WASHER No Model Compatibility List $1.51 / Each

2
014172 100681 014172 55 M8 X 23MM WASHER No Model Compatibility List $1.44 / Each

2
014174 100665 014174 28 M8 SPLIT WASHER No Model Compatibility List $2.48 / Each

2
143742 100654 143742 30 LARGE SNAP RING Yes Model Compatibility List $1.84 / Each

2
144985 100668 144985 59 M4 X 16MM SCREW No Model Compatibility List $1.32 / Each

2
106314 144995 34 M10 X 74MM CARRIAGE BOLT No Model Compatibility List $15.20 / Each

2
148710 100540 148710 33 M10 LOCKNUT No Model Compatibility List $2.67 / Each

2
154848 101799 154848 65 M4 X 52MM SCREW No Model Compatibility List $1.23 / Each

2
115000 158068 19 DRIVE BELT No Model Compatibility List $104.64 / Each

15,10
170205 100752 170205 53 REED SWITCH/WIRE No Model Compatibility List $15.46 / Each

4,5,6
174916 119860 174916 20 REAR ENDCAP Yes Model Compatibility List $18.16 / Each

9,4,5,6
115027 175592 60 FRONT PEDAL ARM BUSHING No Model Compatibility List $37.39 / Each

8,9,3
119864 176348 32 PEDAL AXLE No Model Compatibility List $44.86 / Each
Out Of Stock
8,9
119857 176350 15 PEDAL DISC No Model Compatibility List $140.98 / Each
Out Of Stock
8,9
120893 177037 3 LEFT SIDESHIELD No Model Compatibility List $158.32 / Each

3
119858 177057 16 DISC CROSSBAR No Model Compatibility List $112.79 / Each

1
101794 180147 27 M8 X 52MM BUTTON BOLT No Model Compatibility List $10.57 / Each

2
102046 181791 25 BOLT SET No Model Compatibility List $20.39 / Each

2
115442 181792 57 FLYWHEEL AXLE No Model Compatibility List $20.95 / Each

8
120909 181903 43 RESISTANCE CABLE No Model Compatibility List $34.83 / Each

4,5,6,10
115446 181908 22 IDLER No Model Compatibility List $49.71 / Each

8
119866 183632 40 M10 X 27MM PATCH SCREW No Model Compatibility List $4.47 / Each

2
119870 183635 70 M6 X 30MM SCREW No Model Compatibility List $4.84 / Each

2
120904 184380 67 M5 X 14MM SCREW No Model Compatibility List $2.57 / Each

2
186409 102049 186409 56 M8 X 25MM PATCH SCREW No Model Compatibility List $2.32 / Each

2
189558 101655 189558 44 UPPER BODY ENDCAP Yes Model Compatibility List $5.11 / Each

4,5,6,9
191629 101258 191629 29 WATER BOTTLE HOLDER Yes Model Compatibility List $21.45 / Each

1
100796 193109 71 M8 SMALL WASHER No Model Compatibility List $1.82 / Each

2
195562 100586 195562 52 M4 X 16MM SCREW Yes Model Compatibility List $1.44 / Each

2
115450 195929 39 M10 WASHER No Model Compatibility List $0.52 / Each

2
141896 196249 37A INSIDE PEDAL ARM BSHG No Model Compatibility List $56.55 / Each
Out Of Stock
8,9,3
115303 197610 24 FOAM GRIP No Model Compatibility List $55.41 / Each

11
141806 197749 # "PROFORM" SDSHLD DECAL No Model Compatibility List $18.82 / Each

7,3
141804 197753 # "PF" LOGO DECAL No Model Compatibility List $11.18 / Each

7,3
114999 198568 18 SHIELD BRACKET No Model Compatibility List $6.60 / Each

2,3,4,5,6
115306 199986 41 M6 X 18MM BOLT No Model Compatibility List $0.52 / Each

2
204489 101362 204489 72 WAVE WASHER No Model Compatibility List $2.99 / Each

2,4,5,6
106289 208580 7 M10 X 75MM BOLT No Model Compatibility List $10.49 / Each

2
141848 208862 51 M6 X 26MM FLAT SCREW No Model Compatibility List $2.01 / Each

2
208938 100779 208938 62 M10 X 60MM BUTTON SCREW Yes Model Compatibility List $4.51 / Each

2
120297 212304 13 LEFT PEDAL No Model Compatibility List $47.15 / Each
Out Of Stock
8,9
120296 212305 14 RIGHT PEDAL No Model Compatibility List $62.06 / Each

8,9
212500 113421 212500 50 M8-1.25 X 45MM Button Head Screw Yes Model Compatibility List $3.83 / Each

2
212598 120301 212598 47 HANDLEBAR SPACER Yes Model Compatibility List $12.62 / Each

2,9,11
212601 120300 212601 46 HANDLEBAR CAP Yes Model Compatibility List $6.71 / Each
Out Of Stock
9,11
115266 212821 26 PIVOT AXLE No Model Compatibility List $55.66 / Each

8
213148 100797 213148 69 WAVE WASHER No Model Compatibility List $1.65 / Each

2
141892 213631 5 HANDLEBAR LEG No Model Compatibility List $92.94 / Each

11
141893 213633 9 REAR STABILIZER No Model Compatibility List $18.16 / Each

1
141897 213634 37B OUTSIDE PEDAL ARM BSHG No Model Compatibility List $81.32 / Each
Out Of Stock
8,9,3
141900 213635 # USER'S MANUAL-PFEL29240 No Model Compatibility List $18.80 / Each

1
141899 214029 68 EXTENSION WIRE No Model Compatibility List $17.67 / Each

4,5,6
141891 218814 2 UPRIGHT No Model Compatibility List $116.55 / Each

3
220047 112958 220047 36 M3 X 12MM SCREW No Model Compatibility List $2.13 / Each

2
141898 221247 63 M4 X 22MM SCREW No Model Compatibility List $0.52 / Each

2
141894 233584 11 LEFT PEDAL LEG No Model Compatibility List $219.35 / Each

8,9
141895 233585 12 RIGHT PEDAL LEG No Model Compatibility List $195.44 / Each

8,9
249938 100677 249938 61 FLANGE SCREW No Model Compatibility List $47.34 / Each

2
256295 101392 256295 49 LIFT BUSHING No Model Compatibility List $4.64 / Each

8,10
100823 258868 # DECAL, GENERAL WARNING No Model Compatibility List $0.24 / Each

7,3
045008 100604 045008 # 5MM ALLEN WRENCH No Model Compatibility List $3.85 / Each

2
045021 100541 045021 # 6MM ALLEN WRENCH No Model Compatibility List $5.28 / Each

2
212604 1019375 212604 26 2 Inner Handlebar Cover Yes Model Compatibility List $12.99 / Each

9
175580 1022562 175580 25 Cover Handlebar (Used) No Model Compatibility List $14.04 / Each

1

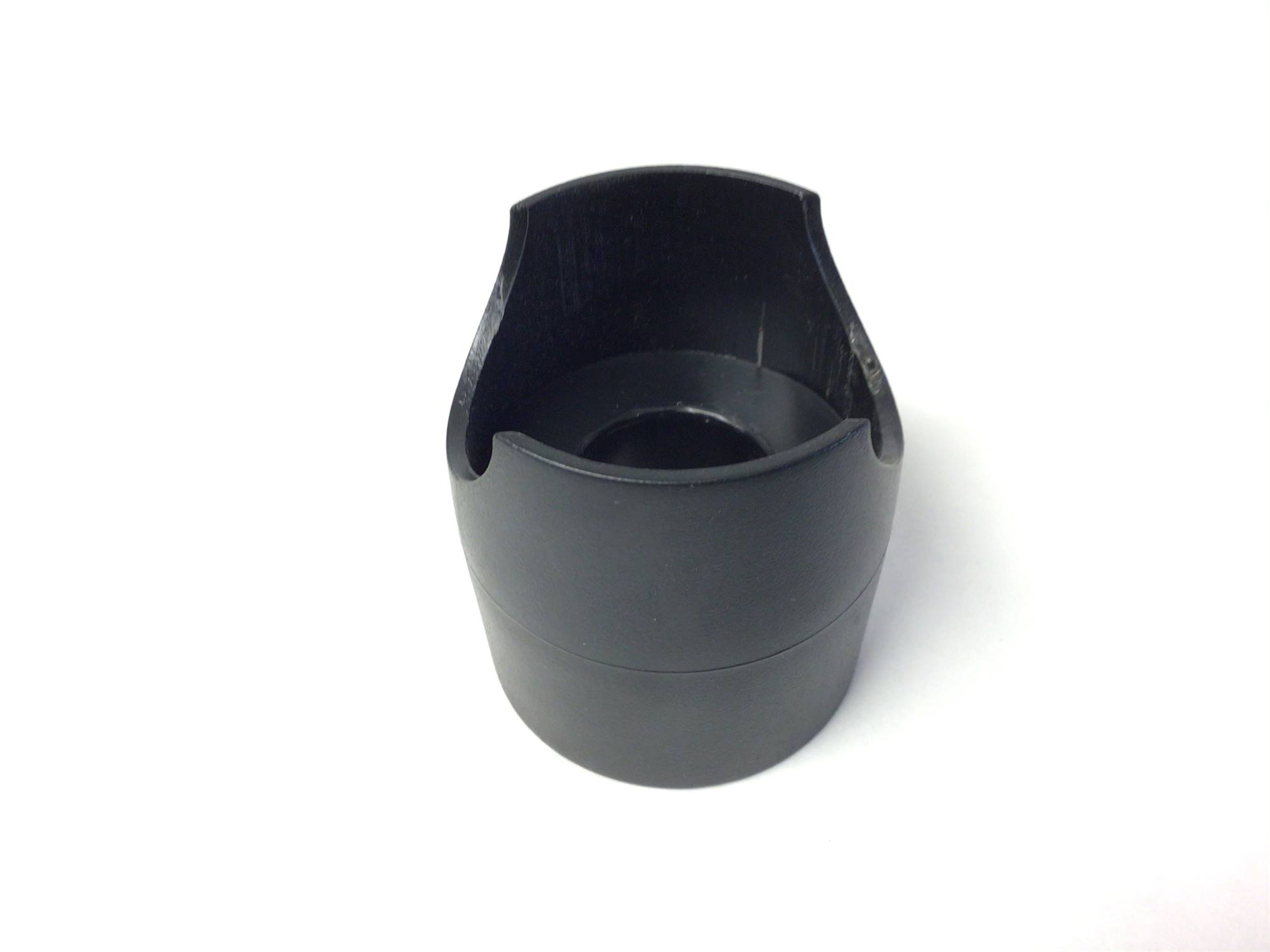

151265 1023065 151265 21 1 Endcap Round External (Used) No Model Compatibility List $23.36 / Each

1
