ProForm - 725

Exploded Diagrams

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry used@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
100427 100139 100427 88 5/16" NUT Yes Model Compatibility List $1.56 / Each

2
100691 102620 100691 3 #12 X 1.25" SCREW No Model Compatibility List $1.32 / Each

2
122829 101799 # 9" BLACK WIRE, M/F No Model Compatibility List $4.06 / Each

4,5,6
101897 101675 101897 # WHITE JUMPER WIRE 14" No Model Compatibility List $7.19 / Each

4,5,6
102073 124108 102073 7 Hex Bolt 5/16-18X1.75 No Model Compatibility List $3.99 / Each

2
102634 100111 102634 # 8" GRN WIRE F/R, POWER No Model Compatibility List $4.75 / Each

4,5,6
102955 104351 102955 114 INCLINE SENSOR SWITCH No Model Compatibility List $16.73 / Each

4,5,6,10
102959 104355 102959 120 SMALL BOLT No Model Compatibility List $1.28 / Each

2
103833 101902 103833 23 POST CAP No Model Compatibility List $4.69 / Each

9,12,13,14
104725 118653 104725 62 5/16"-18 X 4" HEX HEAD BOLT Yes Model Compatibility List $4.11 / Each

2
107503 117640 107503 39 MOTOR BOLT 3/8-16X5" Yes Model Compatibility List $6.51 / Each

2
107771 102884 107771 # 8 No Model Compatibility List $4.41 / Each

4,5,6
109370 104346 109370 115 INCLINE DISK Yes Model Compatibility List $5.31 / Each

10
109382 103130 109382 35 CIRCUIT BREAKER Yes Model Compatibility List $11.52 / Each

4,5,6
109407 100115 109407 # 4" BLK WIRE F/F, POWER No Model Compatibility List $2.93 / Each

4,5,6
112083 100300 112083 # 8" BLUE WIRE, 2F No Model Compatibility List $5.46 / Each

4,5,6
113842 100081 113842 37 ROLLER MAGNET Yes Model Compatibility List $2.75 / Each

8
114261 121827 114261 67 ROLLER GROUND WIRE No Model Compatibility List $7.77 / Each

4,5,6,8
116926 100064 116926 103 RELEASABLE WIRE TIE No Model Compatibility List $2.45 / Each

2,4,5,6
116927 100262 116927 102 TIE CLAMP HOLDER - SCREW MOUNT No Model Compatibility List $2.49 / Each

2,4,5,6
112397 117395 44 #10 NUT No Model Compatibility List $0.15 / Each

2
112273 118201 # 8" RED WIRE JUMPER, M/F No Model Compatibility List $3.41 / Each

4,5,6
119038 104349 119038 . KEY/CLIP Yes Model Compatibility List $9.89 / Each

2,9
118346 119070 116 SPEED DISK No Model Compatibility List $0.13 / Each

1
119425 100031 119425 22 3/8" HEX JAM NUT No Model Compatibility List $1.65 / Each

2
100237 119439 57 ELECTRONIC BRACKET NUT No Model Compatibility List $0.18 / Each

2,3,4,5,6
119445 104342 119445 # 1.25" TEK SCREW No Model Compatibility List $1.46 / Each

2
101661 012056 . 5/16" NYLON LOCKNUT No Model Compatibility List $0.48 / Each

2
120630 103901 120630 94 CONSOLE GROUND SCREW No Model Compatibility List $1.19 / Each

2,7
120867 104004 120867 110 SEAT RAIL FLANGE NUT No Model Compatibility List $3.75 / Each

2,9,12,13,14
012149 100136 012149 40 3/8" HEX LOCK NUT No Model Compatibility List $1.79 / Each

2
122812 113293 122812 45 MOTOR WASHER No Model Compatibility List $1.53 / Each

2
100088 123945 # TECH SHEET ENVELOPE No Model Compatibility List $0.94 / Each

1
124695 117665 124695 32 WIRE HARNESS GROMMET No Model Compatibility List $4.12 / Each

4,5,6
125819 101014 125819 79 LARGE STANDOFF Yes Model Compatibility List $0.34 / Each

2
126146 100112 126146 # 4" BLU WIRE F/F, DR MOTOR No Model Compatibility List $2.43 / Each

4,5,6
126650 106102 126650 89 RUBBER BUMPER No Model Compatibility List $3.01 / Each

3
126911 104352 126911 15 20" WIRE HARNESS Yes Model Compatibility List $12.17 / Each

4,5,6
108062 126960 112 1" HOLE PLUG No Model Compatibility List $0.41 / Each

1
127860 118677 127860 # FASTENER No Model Compatibility List $1.28 / Each

1
128272 100221 128272 17 PLATFORM BOLT, FRONT 1/4" X1.25" Yes Model Compatibility List $7.04 / Each

2
128457 100190 128457 . 3/16-7/32" ALLEN WRENCH No Model Compatibility List $9.99 / Each

2
129004 101035 129004 75 ROUND GROMMET No Model Compatibility List $3.64 / Each

2
129639 121298 129639 123 BATTERY COVER 2.38x3.25"L Yes Model Compatibility List $9.63 / Each
9
013028 100265 013028 # 1" SCREW No Model Compatibility List $1.40 / Each

2,4,5,6
103843 130459 74 COVER PLATE SCREW No Model Compatibility List $0.21 / Each

2,9
130868 121971 130868 96 PIVOT BOLT 3/8-16X1.75X.5 Yes Model Compatibility List $2.07 / Each

2,8
121972 132314 97 WHEEL No Model Compatibility List $1.12 / Each

8
013250 106114 013250 . 5/16" X 1.75" BUTTON HEAD SCREW No Model Compatibility List $4.27 / Each

2
121927 013275 61 FRAME PIVOT BOLT No Model Compatibility List $0.40 / Each

2,8,3
100184 013282 129 #10 HANDLEBAR SCREW No Model Compatibility List $0.21 / Each

2,11
013300 100149 013300 125 #8 X 3/4" WASHER HD SCREW Yes Model Compatibility List $1.28 / Each

2
013324 102765 013324 77 #10 X 3/4" SCREW No Model Compatibility List $1.35 / Each

2
133333 100032 133333 126 #8 HOOD CLIP No Model Compatibility List $0.65 / Each

2,9
013342 121869 013342 56 REAR ROLLER ADJ SCREW No Model Compatibility List $3.52 / Each

2,8
013375 106621 013375 87 3/8" BOLT No Model Compatibility List $4.17 / Each

2
102838 013444 109 1/4" X 1 1/4" BOLT No Model Compatibility List $0.54 / Each

2
134690 118521 134690 14 8" POWER WIRE Yes Model Compatibility List $8.89 / Each

4,5,6
013484 101724 013484 . 5/16" X 1/2" BUTTON SCREW Yes Model Compatibility List $1.26 / Each

2
013547 100450 013547 11 IDLER ARM BOLT No Model Compatibility List $2.89 / Each

2,3,8
136728 100137 136728 21 #8 X 1/2" SCREW Yes Model Compatibility List $0.30 / Each

2
137109 118936 137109 53 BELLYPAN SPACER Yes Model Compatibility List $8.96 / Each

3
138853 100290 138853 47 HANDRAIL COVER FASTENER No Model Compatibility List $1.55 / Each

3,9
124066 140444 108 CUSHION PLATE No Model Compatibility List $3.70 / Each

3
124067 140447 81 ADJUSTABLE DECK CUSHION No Model Compatibility List $17.64 / Each
Out Of Stock
3
014063 100042 014063 36 1/4" FLAT WASHER No Model Compatibility List $1.03 / Each

2
014073 100472 014073 52 5/16" WASHER Yes Model Compatibility List $1.25 / Each

2
014117 102446 014117 46 3/8" CONSOLE SUPPORT No Model Compatibility List $1.32 / Each

2
014132 100263 014132 86 IDLER WHEEL WASHER No Model Compatibility List $2.43 / Each

2,8
161845 141477 # TECH SHEET No Model Compatibility List $0.32 / Each

1
014157 100141 014157 124 #8 STAR WASHER Yes Model Compatibility List $1.17 / Each

2
141758 142972 141758 2 REAR ISOLATOR Yes Model Compatibility List $17.47 / Each
3
141760 121929 141760 16 FRONT ROLLER/PULLEY Yes Model Compatibility List $132.76 / Each

8
142401 139473 142401 59 WALKING BELT W/FASTENER No Model Compatibility List $124.82 / Each

15
143049 104330 143049 76 WIRE HARNESS Yes Model Compatibility List $65.82 / Each

4
161815 143580 # BUMPON FIXKIT No Model Compatibility List $7.27 / Each

1

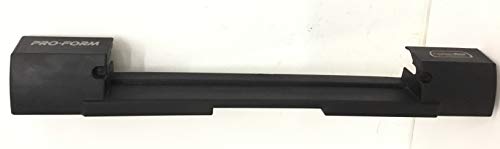

143582 158229 143582 54 REAR ENDCAP No Model Compatibility List $77.76 / Each

4,5,6,9
121754 143908 122 INCLINE WARNING DECAL No Model Compatibility List $0.66 / Each

7,3,10
161849 145204 . USER'S MANUAL No Model Compatibility List $10.57 / Each

1
122827 145655 # FIXKIT, CHEST PULSE No Model Compatibility List $217.87 / Each
Out Of Stock
12,13,14
016028 118356 016028 . ADHESIVE CLIP No Model Compatibility List $2.23 / Each

2
016057 100063 016057 101 8" CABLE TIE No Model Compatibility List $1.30 / Each

2
100485 165831 . CHEST PULSE STRAP No Model Compatibility List $14.07 / Each

12,13,14
174320 100135 174320 25 3/8"-16X1 1/2" HEX BOLT Yes Model Compatibility List $4.29 / Each

2
185582 104353 185582 29 CHOKE Yes Model Compatibility List $76.47 / Each

1
161844 192110 6 ISOLATOR KIT No Model Compatibility List $16.71 / Each

3
105225 195463 13 CABLE TIE, 23" No Model Compatibility List $2.42 / Each

2,4,5,6
198640 100040 198640 48 BELT GUIDE No Model Compatibility List $6.59 / Each

15
224019 104319 224019 42 MOTOR BELT Yes Model Compatibility List $21.99 / Each

15
237858 100316 237858 . CHEST PULSE KIT No Model Compatibility List $166.63 / Each

12,13,14
100280 256836 55 LATCH WRNG DECAL, ENGLISH No Model Compatibility List $1.50 / Each

7,3
100094 356520 # ACCESSORY KIT No Model Compatibility List $42.89 / Each

4,5,6
031229a KV5-DWY-57F 031229a 031229 Power Cord Yes Model Compatibility List $32.99 / Each

5,6

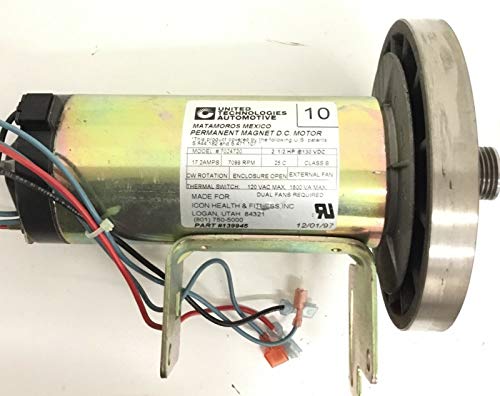

139945 1001856-R 139945 Drive Motor - United Technologies Yes Model Compatibility List $141.90 / Each
Out Of Stock
10

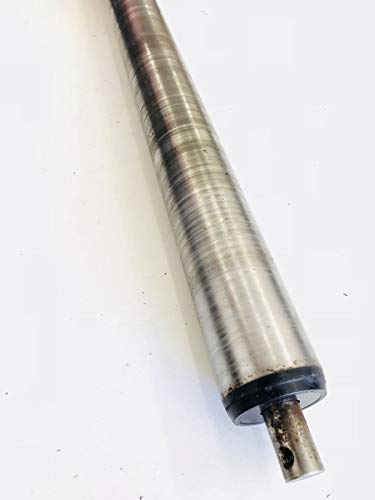

143053 1002447 143053 Idler Rear Roller - Used No Model Compatibility List $64.90 / Each

8

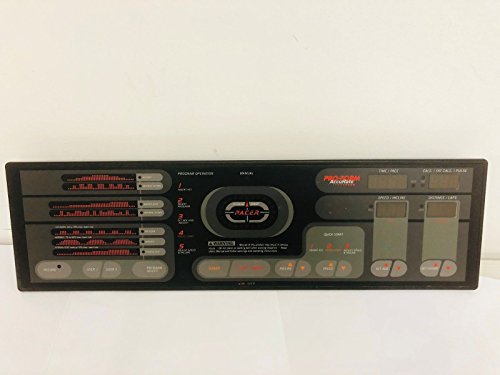

139193 1001493 139193 1 Display Console - Used Only No Model Compatibility List $108.90 / Each

7
141970 1014517 141970 # 1 Incline Stop Bracket (used) Yes Model Compatibility List $5.49 / Each

10
113961 1002402 113961 # 1 1" Safety Key Yes Model Compatibility List $10.99 / Each

9
138732 1017193 138732 # 1 Latch Catch(Used) Yes Model Compatibility List $10.99 / Each

9
124669 1000884 124669 # 1 Hardwired Power Cord (Used Yes Model Compatibility List $16.49 / Each

6
130251 1017812 130251 # 1 Frame Guide Yes Model Compatibility List $6.99 / Each

9
146284 1017818 146284 1 1 Upright Latch (Used) No Model Compatibility List $16.49 / Each

3,9
137858 1018190 137858 # 1 MC-60 CONTROLLER - Refurb Only Yes Model Compatibility List $119.90 / Each

7
144244 1019077 144244 # 1 On Off Rocker Switch Yes Model Compatibility List $7.69 / Each

6
142400 1019127 142400 # 1 19 3/4" Gas Shock (Used) Yes Model Compatibility List $32.99 / Each

3
134388 1019311 134388 # 4 Handlebar Sacer Yes Model Compatibility List $5.50 / Each

9
137625 1019298 137625 0 2 SPACER,PLASTIC,.39X2.0X.38" Used No Model Compatibility List $4.40 / Each

9
139956 1019249 139956 0 2 Endcap, Handrail Used Yes Model Compatibility List $13.19 / Each

9
140497 1019236 140497 0 1 Handlebar, Right Yes Model Compatibility List $28.59 / Each

9
140496 1019235 140496 0 1 Handlebar, Left Used Yes Model Compatibility List $27.49 / Each

9
141969 1019299 141969 0 2 Hood Bracket Used Yes Model Compatibility List $10.99 / Each

3
141968 1019286 141968 0 2 Hood Bracket Front Used Yes Model Compatibility List $6.59 / Each

3
141708 1019273 141708 49 2 Rear Endcap Bracket (Used) Yes Model Compatibility List $10.99 / Each

3
139944 1020048 139944 0 1 Rear Endcap (Used) Yes Model Compatibility List $59.00 / Each
Out Of Stock
9
142395 1021944 142395 45 1 Motor Incline (Used) Yes Model Compatibility List $120.35 / Each
1,10
View Drawing
