ProForm - 928L

Exploded Diagrams

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry used@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Belt Related
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
105434 100755 105434 44 SPRING No Model Compatibility List $1.65 / Each

2
119586 107094 46 MAGNET No Model Compatibility List $2.08 / Each
Out Of Stock
8
120195 012009 45 M5 NUT No Model Compatibility List $0.18 / Each

2
104626 120733 32 25MM ROUND INNER CAP No Model Compatibility List $1.63 / Each

9
012111 100663 012111 27 M6 NUT Yes Model Compatibility List $3.31 / Each

2
102372 123325 8 #8 BELT GUIDE SCREW No Model Compatibility List $0.30 / Each

2,15
013028 100265 013028 15 1" SCREW No Model Compatibility List $1.40 / Each

2,4,5,6
131090 100079 131090 34 RSW CLAMP Yes Model Compatibility List $0.46 / Each

4,5,6
124544 013137 38 BOLT No Model Compatibility List $6.89 / Each

2
100326 013540 30 HANDLE SCREW No Model Compatibility List $0.12 / Each

2,11
102276 014041 47 IDLER ARM WASHER No Model Compatibility List $0.12 / Each

2,8,3
101727 014067 43 5/16" SPLIT WASHER No Model Compatibility List $0.12 / Each

2
147503 144529 20 CRANK/PULLEY No Model Compatibility List $165.42 / Each

8
147746 115539 147746 23 DRIVE BELT No Model Compatibility List $97.25 / Each

10,15
161482 149766 # WARNING DECAL No Model Compatibility List $2.04 / Each

7,3
124778 153250 25 RESISTANCE KNOB No Model Compatibility List $10.87 / Each

10
161474 153420 17 RESISTANCE STRAP No Model Compatibility List $97.49 / Each

10
102047 153770 14 M8 X 40MM BUTTON SCREW No Model Compatibility List $10.57 / Each

2
161481 156579 5 STABILIZER No Model Compatibility List $45.25 / Each

1
161483 157478 # USER'S MANUAL No Model Compatibility List $4.27 / Each

1
121291 163823 42 CLAMP BOLT No Model Compatibility List $17.36 / Each

2,4,5,6
124682 179517 26 FLYWHEEL AXLE No Model Compatibility List $10.87 / Each

8

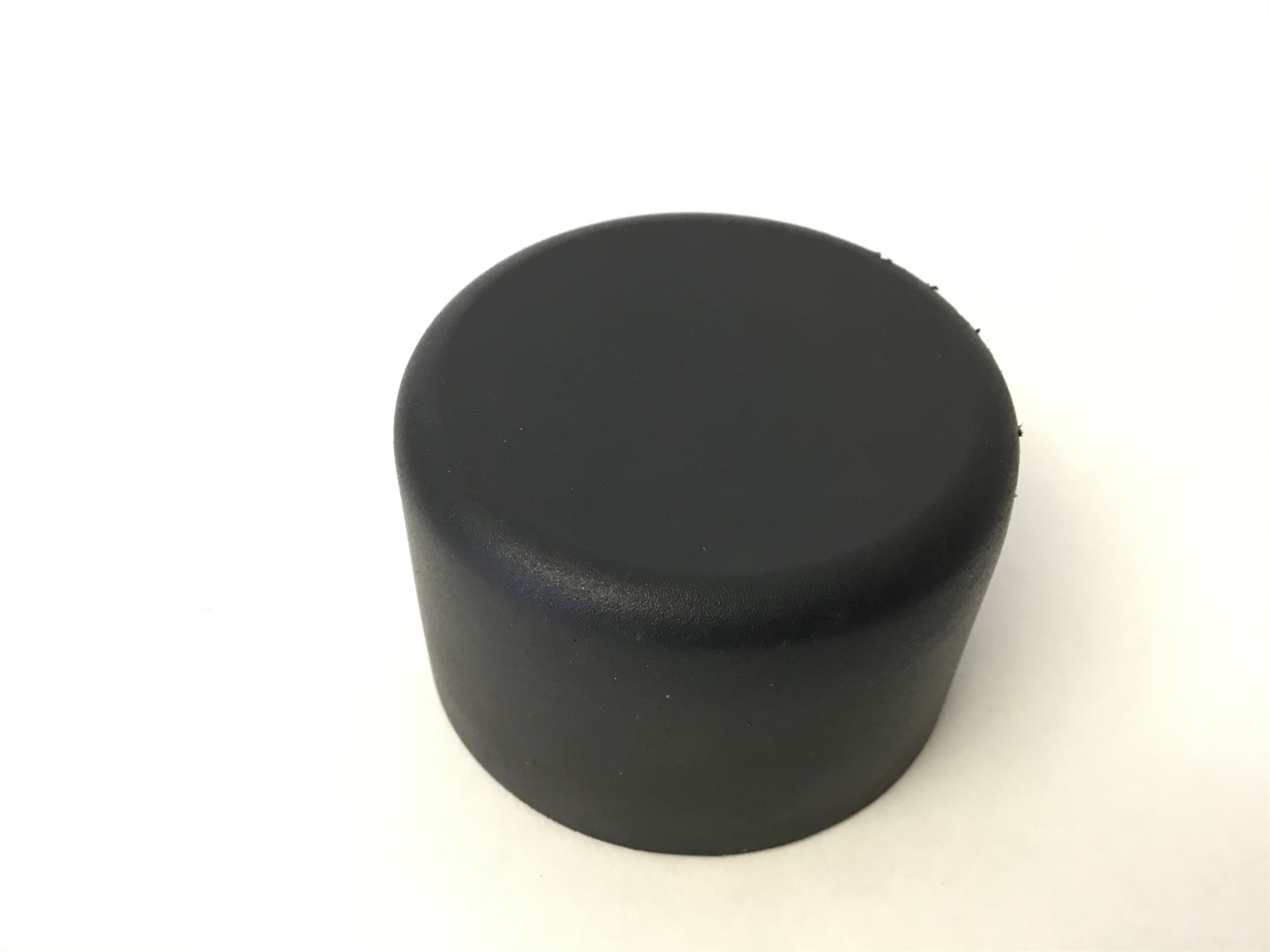

185674 152377 185674 6 STABILIZER ENDCAP Yes Model Compatibility List $14.86 / Each

9
224431 116072 224431 28 EYEBOLT M6 No Model Compatibility List $2.97 / Each

2
295560 115067 295560 19 CRANK BEARING SET Yes Model Compatibility List $54.00 / Each

8
