ProForm - 980 ZLW

Repair Parts for ProForm 980 ZLW PIRW340080

Brand: ProForm

Category: SMITH MACHI

Type: Strength Systems

Model Name: 980 ZLW

Exploded Diagrams

Other Languages Available

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
3/8-16X4 117344 101263 67 3/8-16X4" Hex Bolt No Model Compatibility List $3.55 / Each

2
4MM ALLEN WRENCH 100086 119894 # 4MM ALLEN WRENCH No Model Compatibility List $1.58 / Each

2,1
101666 012002 73 M8 NYLON LOCKNUT No Model Compatibility List $0.46 / Each

2
M6 LOCKNUT 107288 012022 33 M6 LOCKNUT No Model Compatibility List $0.56 / Each

117318 012024 60 M3 NUT No Model Compatibility List $0.94 / Each

2
124714 013001 36 CLAMP BOLT No Model Compatibility List $1.50 / Each

2,4,5,6
119570 013043 35 SEAT KNOB BOLT No Model Compatibility List $6.01 / Each

2,12,13,14
119569 013118 86 M8 X 16MM SEAT BOLT No Model Compatibility List $1.02 / Each

2,12,13,14
137562 013128 83 SCREW No Model Compatibility List $1.49 / Each

2
114223 132283 # 3MM HEX KEY No Model Compatibility List $12.99 / Each

9
3/8 103373 133945 66 3/8" HEX LOCK NUT Yes Model Compatibility List $0.34 / Each

2
116624 014015 24 20MM WASHER No Model Compatibility List $0.67 / Each

2
115453 014017 76 M8 X 23MM WASHER No Model Compatibility List $0.40 / Each

2
133510 161748 30 3/8" HEX NUT No Model Compatibility List $2.79 / Each

2
160494 209657 37 M8 X 63MM CARRIAGE BOLT No Model Compatibility List $4.31 / Each

2
100175 239057 70 ROUND HANDRAIL CAP No Model Compatibility List $0.69 / Each

9,3
100789 250181 65A M4 X 16MM RND HEAD SCRW No Model Compatibility List $0.46 / Each

1,2
160469 280488 1 FRAME No Model Compatibility List $285.21 / Each

3
160472 280491 4 RIGHT SHIELD COVER No Model Compatibility List $25.91 / Each

9,3
160473 280492 5 LEFT SHIELD COVER No Model Compatibility List $25.91 / Each

9,3
160474 280493 6 LOCK KNOB No Model Compatibility List $14.75 / Each

1
160476 280494 8 RESISTANCE CONTROL/CABLE No Model Compatibility List $60.46 / Each

7,4,5,6,10
160478 280496 10 FOAM GRIP No Model Compatibility List $6.97 / Each

11
160479 280497 11 HANDLE No Model Compatibility List $14.75 / Each

11
160481 280499 13 HANDLE REST No Model Compatibility List $14.75 / Each

11
160482 280500 14 FAN No Model Compatibility List $184.81 / Each

8
160484 280502 16 DRIVE BELT No Model Compatibility List $46.80 / Each

15,10
160485 280504 18 ELASTIC ROPE No Model Compatibility List $22.20 / Each
Out Of Stock 		1
160486 280505 19B ROLLER No Model Compatibility List $6.97 / Each
Out Of Stock 		8
160487 280506 20 BEARING No Model Compatibility List $6.97 / Each

1
160488 280507 22 BUSHING No Model Compatibility List $6.97 / Each

8
160490 280508 26 IDLER ARM No Model Compatibility List $20.35 / Each

8,3
160491 280509 27 TENSION SPRING No Model Compatibility List $6.97 / Each

2
160492 280510 31 LARGE PLASTIC ROLLER No Model Compatibility List $6.24 / Each

8,9
160493 280511 32 SMALL PLASTIC ROLLER No Model Compatibility List $2.32 / Each

8,9
160500 280513 44 FRONT STABILIZER No Model Compatibility List $22.20 / Each

1
160501 280514 45 FRONT STABILIZER CAP No Model Compatibility List $9.83 / Each

9
160502 280515 46 FOOTREST BRACKET No Model Compatibility List $66.31 / Each

2,9,3,4,5,6
160503 280516 47 EVA PLATE No Model Compatibility List $4.65 / Each

1
160504 280517 48 FOOTREST BRACKET COVER No Model Compatibility List $25.91 / Each

2,9,3,4,5,6
160506 280519 50 PLATE No Model Compatibility List $17.20 / Each

1
160507 280520 51 FOAM BLOCK No Model Compatibility List $2.32 / Each

1
160508 280521 52 SEAT No Model Compatibility List $76.05 / Each

12,13,14
160509 280522 53 SEAT CARRIAGE No Model Compatibility List $31.21 / Each

12,13,14
160511 280523 56 CARRIAGE WHEEL No Model Compatibility List $14.75 / Each

8
160512 280524 57 CARRIAGE BUSHING No Model Compatibility List $2.32 / Each

8
160514 280525 59 SEAT MAGNET No Model Compatibility List $6.97 / Each

8,12,13,14
160515 280526 61 REAR STABILIZER BRACKET No Model Compatibility List $12.29 / Each

2,3,4,5,6
160516 280527 62 REAR STABILIZER No Model Compatibility List $33.15 / Each

1
160517 280528 63 REAR STABILIZER CAP No Model Compatibility List $14.75 / Each

9
160518 280529 64 STABILIZER PIN No Model Compatibility List $12.29 / Each

12,13,14
160519 280530 68 FOOTREST AXLE No Model Compatibility List $31.21 / Each

8,9
160520 280531 69 REST BAR No Model Compatibility List $12.29 / Each

1
160489 280532 23 ACORN NUT No Model Compatibility List $2.32 / Each

2,4,5,6
160521 280533 71 FOOTREST No Model Compatibility List $24.05 / Each

9
160522 280534 72 CONSOLE No Model Compatibility List $114.20 / Each

7
160526 280535 79 PLASTIC BUSHING No Model Compatibility List $2.32 / Each

8,9
160527 280536 80 BUMPER No Model Compatibility List $2.32 / Each

1
160528 280537 81 REST PAD No Model Compatibility List $2.32 / Each

12,13,14
160531 280538 87 FRAME PIN No Model Compatibility List $14.75 / Each

3,12,13,14
160533 280539 89 RAIL CAP No Model Compatibility List $6.97 / Each

9
160475 281862 7 KNOB WASHER No Model Compatibility List $2.32 / Each

2
160480 281863 12 HANDLE CAP No Model Compatibility List $2.32 / Each

9,11
FLYWHEEL SNAP RING 101928 281865 25 FLYWHEEL SNAP RING Yes Model Compatibility List $2.32 / Each

2,8
160495 281866 38 M6 X 70MM BOLT No Model Compatibility List $2.32 / Each

2
160496 281867 39 M4 X 16MM SCREW No Model Compatibility List $2.32 / Each

2
160530 281869 85 M5 X 20MM SCREW No Model Compatibility List $2.32 / Each

2
160510 281870 55 M8 X 28MM BOLT No Model Compatibility List $2.32 / Each

2
160498 281871 42 M3 X 12MM SCREW No Model Compatibility List $2.32 / Each

2
160513 281872 58 M3 X 10MM BOLT No Model Compatibility List $2.32 / Each

2
160523 281873 74 M8 CURVED WASHER No Model Compatibility List $2.32 / Each

2
129653 281874 75 M8 X 16MM WASHER No Model Compatibility List $2.32 / Each

2
160524 281875 77 M8 X 26MM WASHER No Model Compatibility List $2.32 / Each

2
160525 281876 78 JAM NUT No Model Compatibility List $2.32 / Each

2
160529 281877 82 M8 CARRIAGE BOLT No Model Compatibility List $2.32 / Each

2
160532 281879 88 1/2" X 127MM HEX BOLT No Model Compatibility List $12.29 / Each

2
160536 282334 # DECAL, GENERAL WARNING No Model Compatibility List $3.49 / Each

7,3
160505 282372 49 RAIL No Model Compatibility List $136.91 / Each

9
160470 282373 2 RIGHT SHIELD No Model Compatibility List $117.01 / Each

3
160471 282374 3 LEFT SHIELD No Model Compatibility List $117.01 / Each

3
160537 282415 # USER'S MANUAL No Model Compatibility List $0.00 / Each
Out Of Stock 		1
151691 283471 84 M4 X 25MM SCREW No Model Compatibility List $0.45 / Each

2
160497 290346 41 REED SWITCH/WIRE No Model Compatibility List $15.98 / Each

4,5,6
160534 290347 90 EXTENSION WIRE No Model Compatibility List $11.99 / Each

4,5,6
160477 298234 9A IDLER ROLLER No Model Compatibility List $31.21 / Each

8
160499 298237 43A 30MM WASHER No Model Compatibility List $2.32 / Each

2
160483 300597 15 PULLEY WITH STRAP No Model Compatibility List $117.01 / Each

8

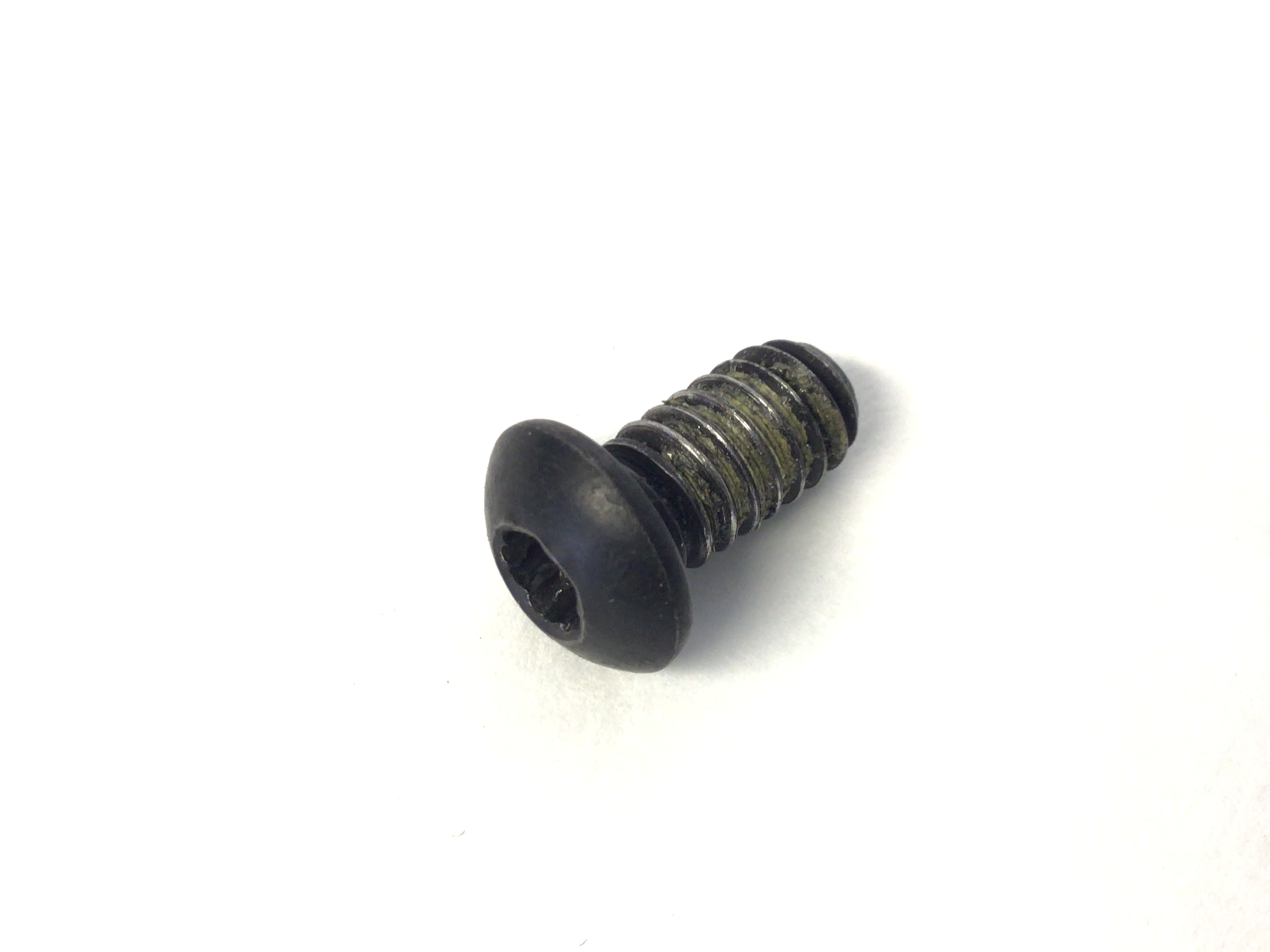

1/4 103608 GZ1012-20 54 1/4" X 1/2" BUTTON SCREW Yes Model Compatibility List $0.79 / Each

2
Flywheel Snap Ring 1010432 281865 0 1 Flywheel Snap Ring Yes Model Compatibility List $14.99 / Each

1
Nylock Nut 1010890 119425 38 1 Nylock Nut Yes Model Compatibility List $0.55 / Each

1,2
Nylock Jam Nut 3/8 1011523 133945 0 1 Nylock Jam Nut 3/8" Yes Model Compatibility List $11.99 / Each

1
