ProForm - BODY LIFT

Exploded Diagrams

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry used@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Covers and Plastics
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
105688 103025 81 1/4" X 1/2" BOLT No Model Compatibility List $0.30 / Each

2
100886 103087 71 CABLE CLIP No Model Compatibility List $15.20 / Each

2,4,5,6,1
208378 117166 208378 24 FOAM PAD, 3" X 5 1/2" No Model Compatibility List $28.78 / Each

3,12
101849 104794 . CARRIAGE CAP No Model Compatibility List $1.25 / Each

9,46
104631 108778 34 BRACKET RETAINER No Model Compatibility List $0.88 / Each

2,3,4,5,6
112001 114771 112001 45 3/8" X 3" HEX BOLT Yes Model Compatibility List $1.65 / Each

2
112488 116081 112488 56 PUSH NUT Yes Model Compatibility List $1.92 / Each

2

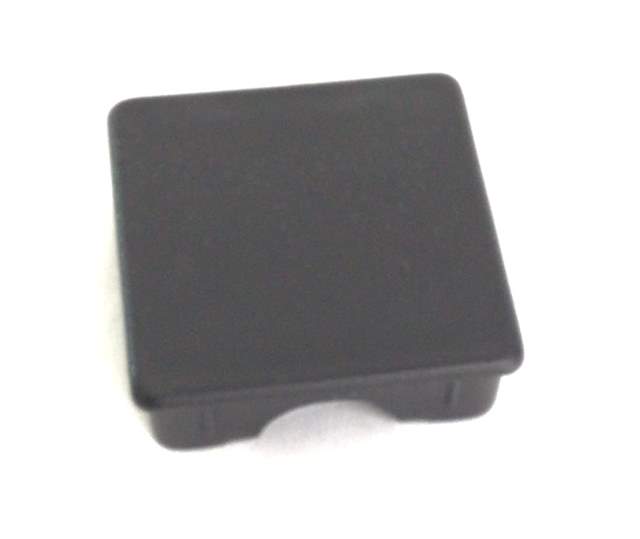

102151 113666 . 1 3/4" SQUARE INNER CAP No Model Compatibility List $1.23 / Each

9
120235 114009 . 3/8" X 2.75" BOLT No Model Compatibility List $1.68 / Each

2
104529 115177 68 HANDLE No Model Compatibility List $40.40 / Each

11
100814 115366 . TRANSPORT HANDLE ENDCAP No Model Compatibility List $0.55 / Each

9,4,5,6,11
106106 116185 . 1/4" X 2.5" BOLT No Model Compatibility List $0.74 / Each

2
123693 119377 . 5/16" X 2.75" BOLT No Model Compatibility List $1.19 / Each

2
119425 100031 119425 . 3/8" HEX JAM NUT Yes Model Compatibility List $1.65 / Each

2
110001 120003 . 3/8" X 2" WHEEL BOLT No Model Compatibility List $1.95 / Each

2,8
101661 012056 . 5/16" NYLON LOCKNUT No Model Compatibility List $0.48 / Each

2
106584 120696 . FRAME CROSSBAR ENDCAP No Model Compatibility List $3.33 / Each

9,3,4,5,6
104626 120733 . 25MM ROUND INNER CAP No Model Compatibility List $1.63 / Each

9
114759 120808 74 CURL BAR CAP No Model Compatibility List $1.20 / Each

9
124658 121125 . 1/4" X 3/4" SCREW No Model Compatibility List $0.67 / Each
Out Of Stock
2
117636 121421 51 PULSE BAR BOLT No Model Compatibility List $1.36 / Each

2,12,13,14
121628 121422 . 1/4" X 2.5" CARRIAGE BOLT No Model Compatibility List $3.33 / Each
Out Of Stock
2
012149 100136 012149 . 3/8" HEX LOCK NUT No Model Compatibility List $1.79 / Each

2
013300 100149 013300 82 #8 X 3/4" WASHER HD SCREW Yes Model Compatibility List $1.28 / Each

2
013399 117633 013399 . FRAME PIVOT BOLT Yes Model Compatibility List $1.65 / Each

2,8,3
013578 104347 013578 42 M10 - 3/8-16 X 2.25" HEX EAD WHEEL BOLT Yes Model Compatibility List $7.28 / Each

2,8
100339 013581 . IDLER ARM BOLT No Model Compatibility List $1.36 / Each

2,8,3
013601 106107 013601 87 3/8" X 2" BOLT Yes Model Compatibility List $6.95 / Each

2
014063 100042 014063 . 1/4" FLAT WASHER No Model Compatibility List $1.03 / Each

2
014073 100472 014073 66 5/16" WASHER Yes Model Compatibility List $1.25 / Each

2
014132 100263 014132 . IDLER WHEEL WASHER No Model Compatibility List $2.43 / Each

2,8
119486 019173 . CNSL FRAME BUMPON No Model Compatibility List $2.17 / Each

7,3
104632 230475 . SMALL PULLEY No Model Compatibility List $71.96 / Each

8
115260 1020328 115260 10 1 Hex Head Bolt Screw 3/8-16X 6.5" (Used) No Model Compatibility List $14.99 / Each

2
View Drawing
