ProForm - CROSSTRAINER

Repair Parts for ProForm CROSSTRAINER 831.297470

Brand: ProForm

Category: Residential Treadmills

Type: Folding Treadmill

Model Name: CROSSTRAINER

Exploded Diagrams

Other Languages Available

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Frame Related
  • Rollers and Rotating Parts
  • Covers and Plastics
  • Sensors
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
LOCK KNOB SPRING 121977 100076 . LOCK KNOB SPRING Yes Model Compatibility List $5.97 / Each

2
114543 100290 18 50MM ROUND OUTER CAP Yes Model Compatibility List $6.75 / Each

9
5/16 100139 100427 122 5/16" NUT Yes Model Compatibility List $0.46 / Each

2,40
SNAP RING 100630 100488 . SNAP RING No Model Compatibility List $2.71 / Each

2
#12 X 1.25 102620 100691 33 #12 X 1.25" SCREW No Model Compatibility List $1.32 / Each

2
14 101456 103823 # 14" WHITE WIRE, M/F Yes Model Compatibility List $4.22 / Each

4,5,6
100289 104345 138 TV CABLE STAR WASHER No Model Compatibility List $0.20 / Each

2,4,5,6
REAR ROLLER ADJ BOLT 104339 105444 27 REAR ROLLER ADJ BOLT Yes Model Compatibility List $2.95 / Each

2,8
MOTOR BOLT 3/8-16X5 117640 107503 101 MOTOR BOLT 3/8-16X5" Yes Model Compatibility List $6.51 / Each

2
123759 108080 74 SCREW No Model Compatibility List $0.26 / Each

2
CIRCUIT BREAKER 103130 109382 114 CIRCUIT BREAKER Yes Model Compatibility List $11.52 / Each

4,5,6
CAGE NUT 102934 111869 50 CAGE NUT No Model Compatibility List $4.20 / Each

2,3
121908 112609 51 FRONT ROLLER ADJ BOLT No Model Compatibility List $0.43 / Each

2,8
ROLLER MAGNET 100081 113842 44 ROLLER MAGNET Yes Model Compatibility List $1.10 / Each

8,1
ROLLER GROUND WIRE 121827 114261 47 ROLLER GROUND WIRE Yes Model Compatibility List $7.77 / Each

4,5,6,8
100186 116566 . 15 1/2" CABLE TIE No Model Compatibility List $0.76 / Each

2,4,5,6,1
RELEASABLE WIRE TIE 100064 116926 75 RELEASABLE WIRE TIE No Model Compatibility List $0.25 / Each

2,4,5,6
TIE CLAMP HOLDER - SCREW MOUNT 100262 116927 73 TIE CLAMP HOLDER - SCREW MOUNT No Model Compatibility List $2.49 / Each

2,4,5,6
38MM ROUND INNER CAP 114216 116980 88 38MM ROUND INNER CAP Yes Model Compatibility List $2.11 / Each

9,46
WHEEL BOLT 118348 117806 109 WHEEL BOLT Yes Model Compatibility List $5.86 / Each
2,8
124897 118202 136 SHOCK RELEASE No Model Compatibility List $9.27 / Each

1
KEY/CLIP 104349 119038 . KEY/CLIP Yes Model Compatibility List $9.89 / Each

2,9
3/8 100031 119425 3 3/8" HEX JAM NUT Yes Model Compatibility List $0.55 / Each

2
1.25 104342 119445 # 1.25" TEK SCREW No Model Compatibility List $1.46 / Each

2
5/16" NYLON LOCKNUT 101661 012056 111 5/16" NYLON LOCKNUT No Model Compatibility List $0.48 / Each

SEAT RAIL FLANGE NUT 104004 120867 107 SEAT RAIL FLANGE NUT No Model Compatibility List $3.75 / Each

2,9,12,13,14
3/8 100136 012149 137 3/8" HEX LOCK NUT No Model Compatibility List $1.79 / Each

MOTOR WASHER 113293 122812 105 MOTOR WASHER No Model Compatibility List $1.53 / Each

2
3/8 106105 123494 20 3/8" X 3 1/2" BUTTON HEAD SCREW BOLT Yes Model Compatibility List $9.33 / Each

2
100088 123945 # TECH SHEET ENVELOPE No Model Compatibility List $0.94 / Each

1
WIRE HARNESS GROMMET 117665 124695 115 WIRE HARNESS GROMMET No Model Compatibility List $4.12 / Each

4,5,6
SHORT HOOD BRACKET 118533 125677 34 SHORT HOOD BRACKET No Model Compatibility List $3.56 / Each

2,3,4,5,6,9
RUBBER BUMPER 106102 126650 117 RUBBER BUMPER Yes Model Compatibility List $3.01 / Each

3
121978 126996 90 CONSOLE BASE SCREW No Model Compatibility List $0.25 / Each

7,2,3
FASTENER 118677 127860 # FASTENER No Model Compatibility List $1.28 / Each

1
PLATFORM BOLT, FRONT 1/4 100221 128272 41 PLATFORM BOLT, FRONT 1/4" X1.25" Yes Model Compatibility List $7.04 / Each

2
3/16-7/32 100190 128457 . 3/16-7/32" ALLEN WRENCH No Model Compatibility List $18.74 / Each

2,1
BATTERY COVER 2.38x3.25 121298 129639 95 BATTERY COVER 2.38x3.25"L Yes Model Compatibility List $9.63 / Each
9
102322 130285 146 LIFT FRAME WASHER No Model Compatibility List $0.14 / Each

2,3,10
PIVOT BOLT 3/8-16X1.75X.5 121971 130868 67 PIVOT BOLT 3/8-16X1.75X.5 Yes Model Compatibility List $2.07 / Each

2,8
RSW CLAMP 100079 131090 46 RSW CLAMP Yes Model Compatibility List $0.46 / Each

4,5,6,2,1,47
124878 131635 28 REAR ROLLER COVER No Model Compatibility List $47.05 / Each

8,9
157864 132648 85 INCLINE KNOB BRACKET No Model Compatibility List $10.09 / Each

2,3,4,5,6,10
#8 X 3/4 100149 013300 128 #8 X 3/4" WASHER HD SCREW Yes Model Compatibility List $1.28 / Each

REAR ROLLER ADJ SCREW 121869 013342 24 REAR ROLLER ADJ SCREW No Model Compatibility List $3.52 / Each

REAR ROLLER 121987 133845 36 REAR ROLLER Yes Model Compatibility List $116.75 / Each

8
FRAME PIVOT BOLT 117633 013399 66 FRAME PIVOT BOLT Yes Model Compatibility List $1.65 / Each

1/4 120019 013468 2 1/4"-20 X 5/8" HEX HEAD BOLT SCREW Yes Model Compatibility List $4.48 / Each

100326 013540 . HANDLE SCREW No Model Compatibility List $0.12 / Each

3/8 100017 013544 121 3/8" BOLT No Model Compatibility List $2.87 / Each

IDLER ARM BOLT 100450 013547 54 IDLER ARM BOLT No Model Compatibility List $2.89 / Each

M10 - 3/8-16 X 2.25 104347 013578 11 M10 - 3/8-16 X 2.25" HEX EAD WHEEL BOLT Yes Model Compatibility List $7.28 / Each

100339 013581 118 IDLER ARM BOLT No Model Compatibility List $1.36 / Each

#8 X 1/2 100137 136728 53 #8 X 1/2" SCREW Yes Model Compatibility List $0.30 / Each

2
REED SWITCH 121968 138680 45 REED SWITCH Yes Model Compatibility List $14.49 / Each
4,5,6
HANDRAIL COVER FASTENER 100290 138853 17 HANDRAIL COVER FASTENER No Model Compatibility List $1.55 / Each

3,9
WHEEL 100151 139090 110 WHEEL Yes Model Compatibility List $2.11 / Each

8,45
143034 139429 79 2LB WEIGHT No Model Compatibility List $14.65 / Each

3
WALKING BELT W/FASTENER 142916 140507 39 WALKING BELT W/FASTENER No Model Compatibility List $98.48 / Each

15
1/4 100042 014063 25 1/4" FLAT WASHER No Model Compatibility List $1.03 / Each

M8 SPLIT WASHER 115286 014066 135B M8 SPLIT WASHER No Model Compatibility List $1.28 / Each

100561 014086 48 M10 WASHER No Model Compatibility List $0.36 / Each

3/8 102446 014117 106 3/8" CONSOLE SUPPORT No Model Compatibility List $1.32 / Each

IDLER WHEEL WASHER 100263 014132 119 IDLER WHEEL WASHER No Model Compatibility List $2.43 / Each

100025 014140 60 #8 FLAT WASHER No Model Compatibility List $0.04 / Each

161799 141842 # TECH SHEET No Model Compatibility List $0.88 / Each

1
161800 141845 . USER-S MANUAL No Model Compatibility List $6.40 / Each

1
142915 144391 23 BENCH BOTTOM No Model Compatibility List $77.85 / Each

1
ADHESIVE CLIP 118356 016028 . ADHESIVE CLIP No Model Compatibility List $2.23 / Each

8 100063 016057 76 8" CABLE TIE No Model Compatibility List $1.30 / Each

GROMMET 100061 173169 115A GROMMET Yes Model Compatibility List $0.94 / Each

2,1
CHOKE 104353 185582 112 CHOKE Yes Model Compatibility List $76.47 / Each

1
BELT GUIDE 100040 198640 52 BELT GUIDE Yes Model Compatibility List $18.62 / Each

15,40
3 TUBE LUBE KIT 100096 219170 # 3 TUBE LUBE KIT No Model Compatibility List $28.18 / Each

1,3,15
MOTOR BELT 104319 224019 89 MOTOR BELT Yes Model Compatibility List $21.99 / Each

15
100280 256836 29 LATCH WRNG DECAL, ENGLISH No Model Compatibility List $1.50 / Each

7,3
100094 356520 # ACCESSORY KIT No Model Compatibility List $42.89 / Each

4,5,6,1
Latch Pin Assembly - Used 1019547 100076-A 0 1 Latch Pin Assembly - Used Yes Model Compatibility List $29.99 / Each

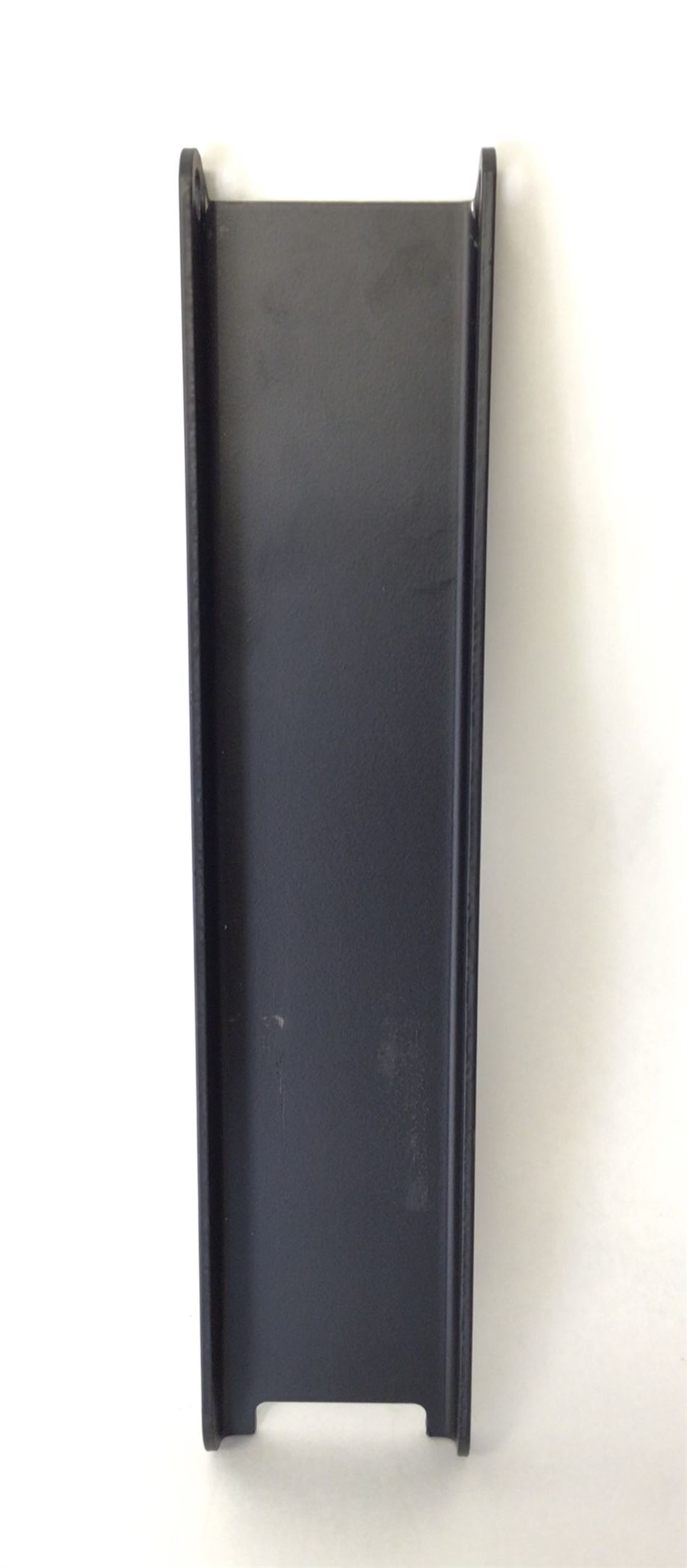

SUPPORT SEAT BACK G01763CC (Used) 1020342 139256 12 1 SUPPORT SEAT BACK G01763CC (Used) No Model Compatibility List $9.22 / Each

Hex Head Bolt Screw 3/8-16X 6.5 1020328 115260 10 1 Hex Head Bolt Screw 3/8-16X 6.5" (Used) No Model Compatibility List $14.99 / Each

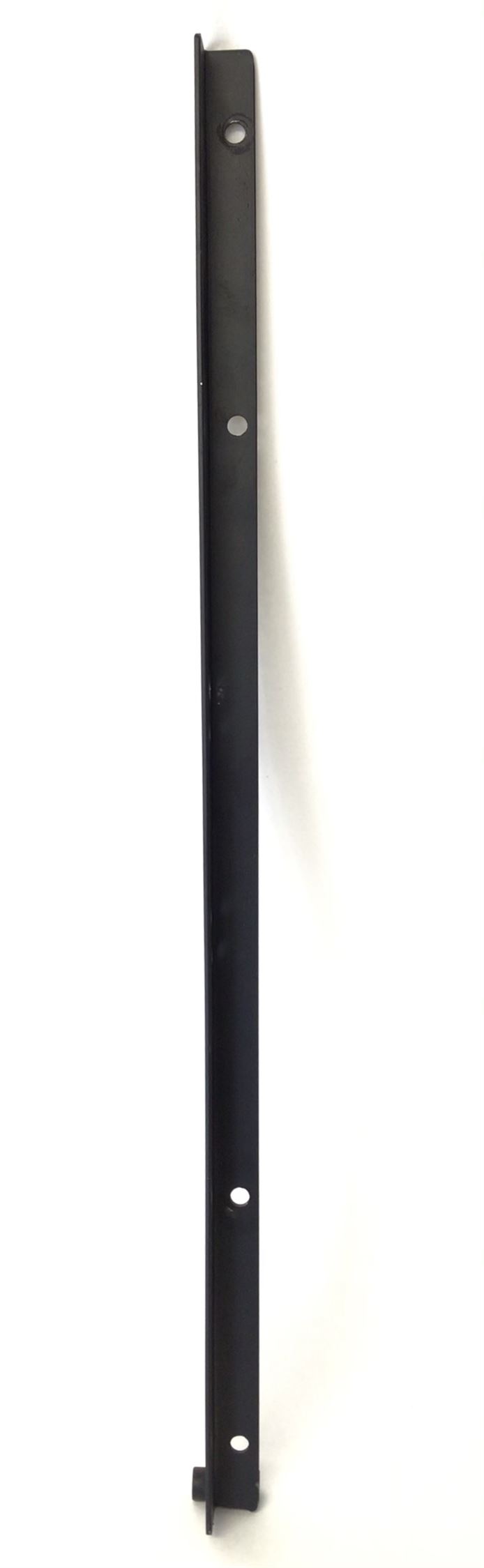

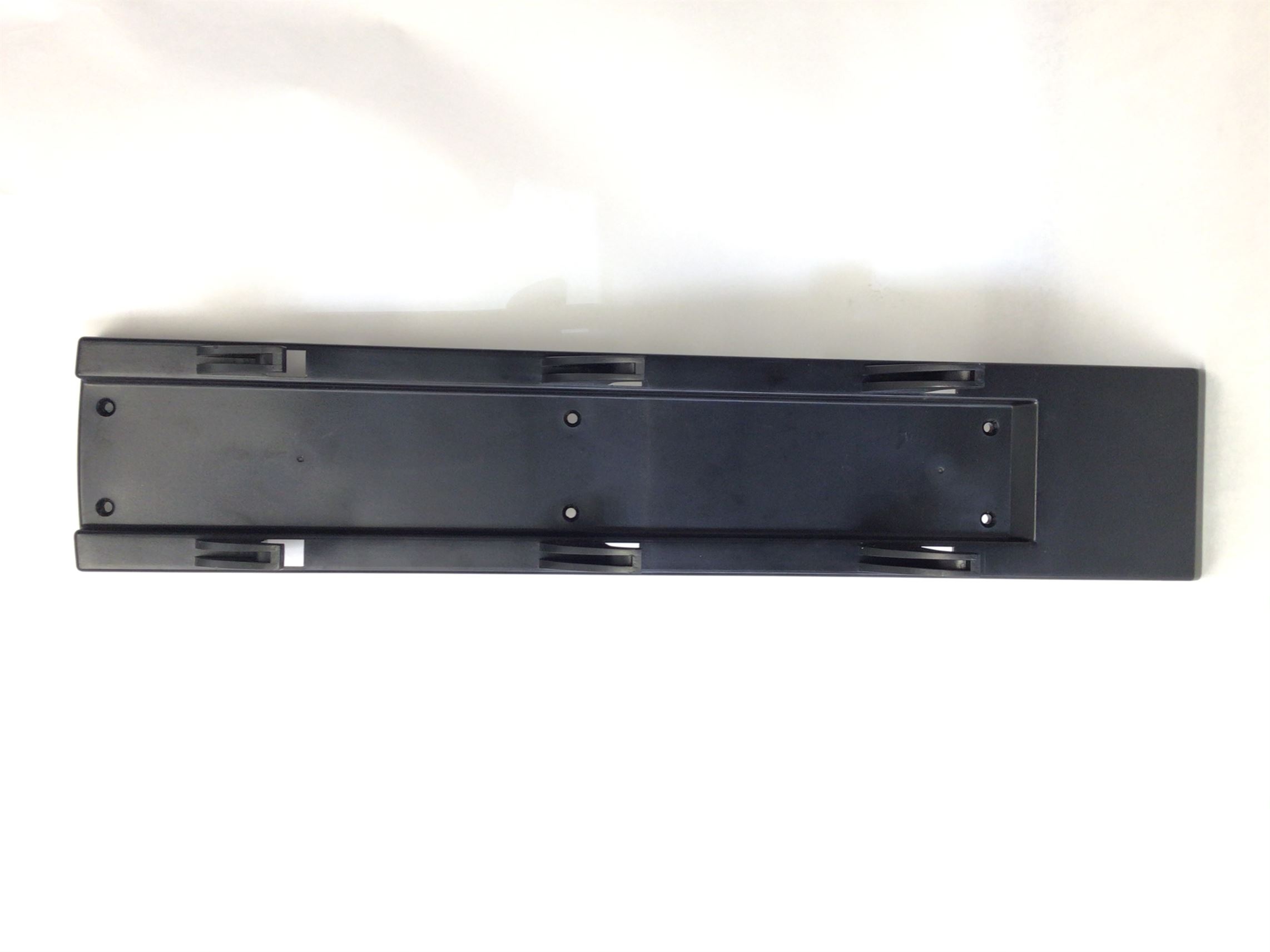

Left Rail (Used) 1020343 139260 5 1 Left Rail (Used) No Model Compatibility List $53.03 / Each

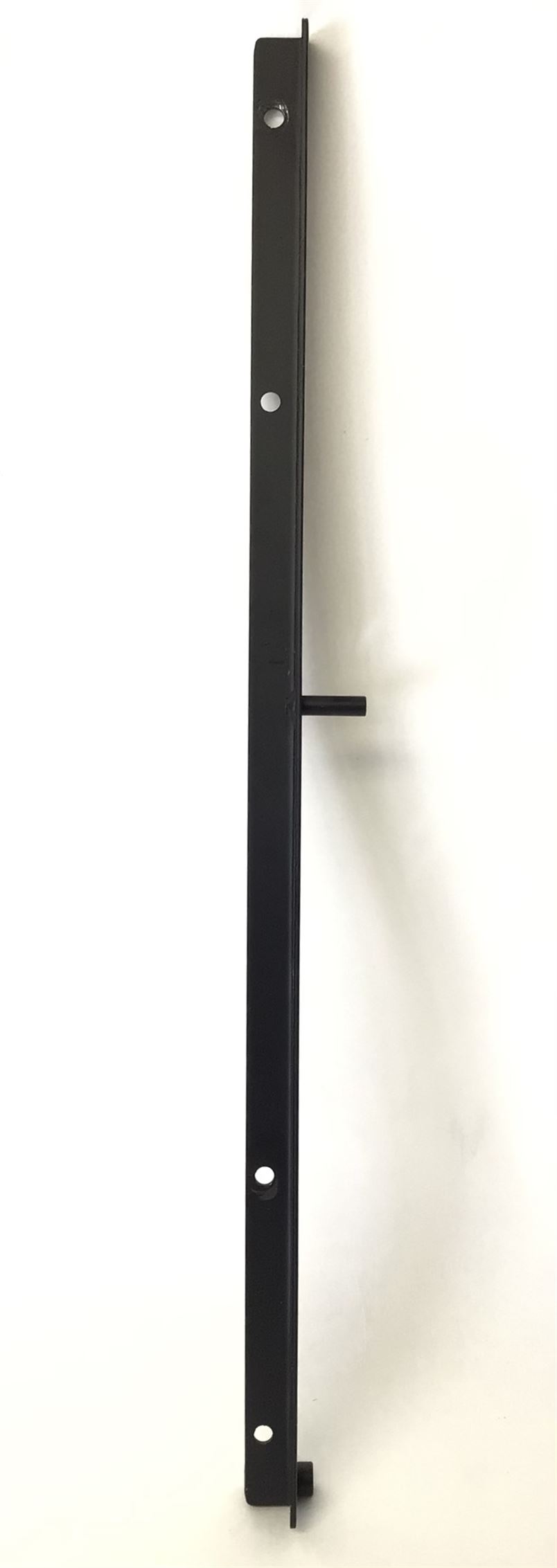

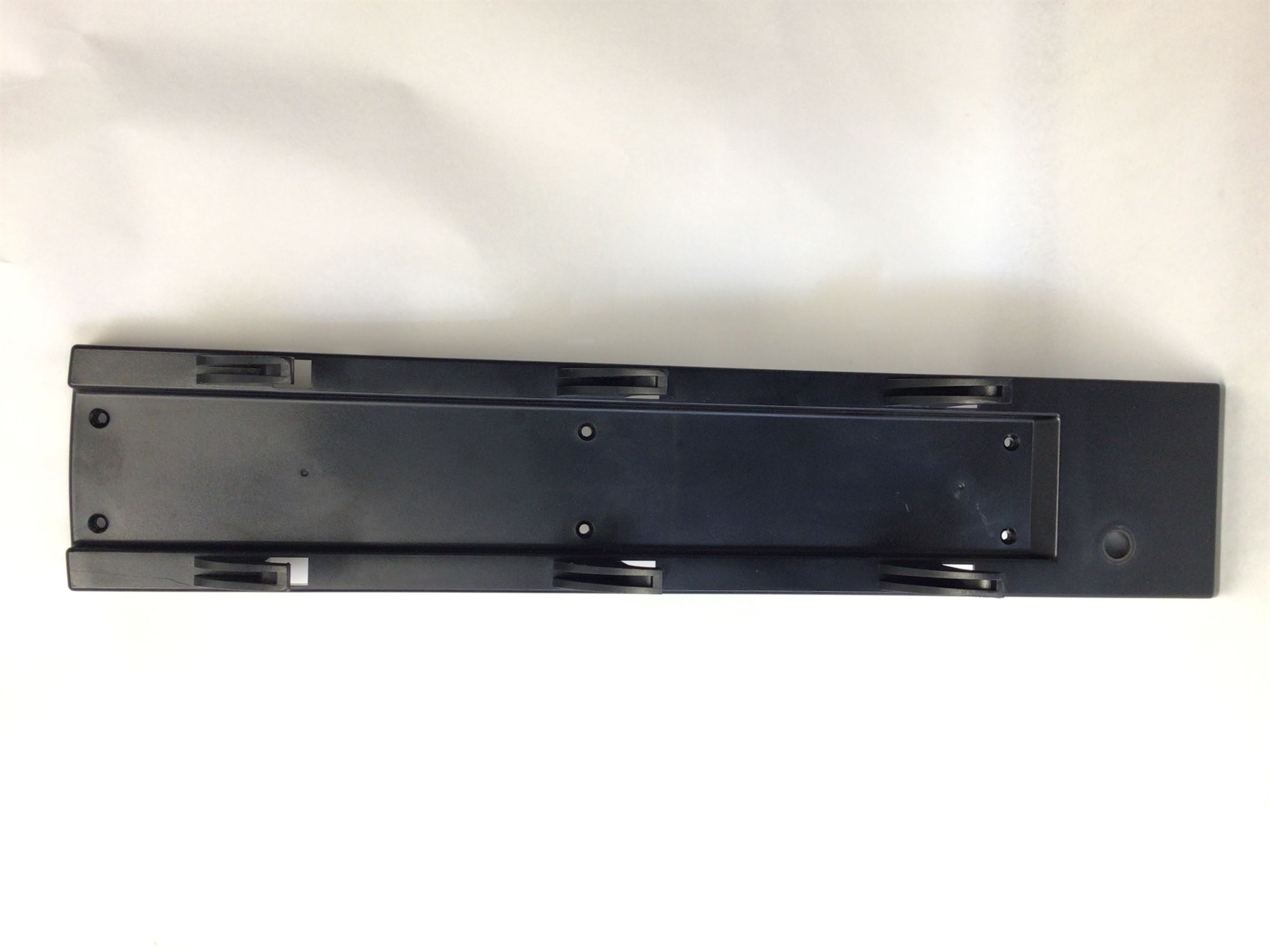

Right Rail (Used) 1020330 139264 6 1 Right Rail (Used) No Model Compatibility List $53.03 / Each

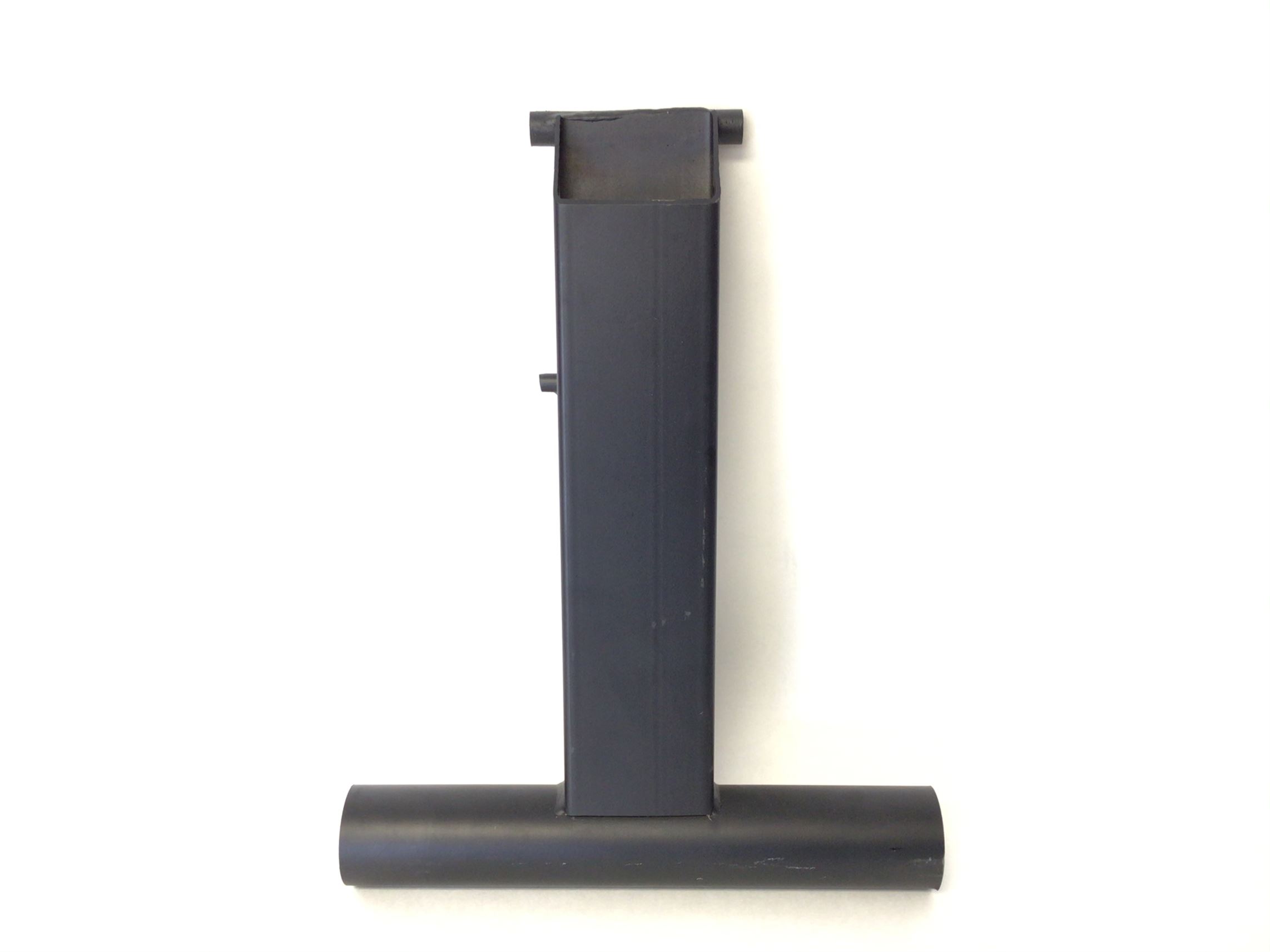

Leg Bench (Used) 1020356 139275 9 1 Leg Bench (Used) No Model Compatibility List $26.52 / Each

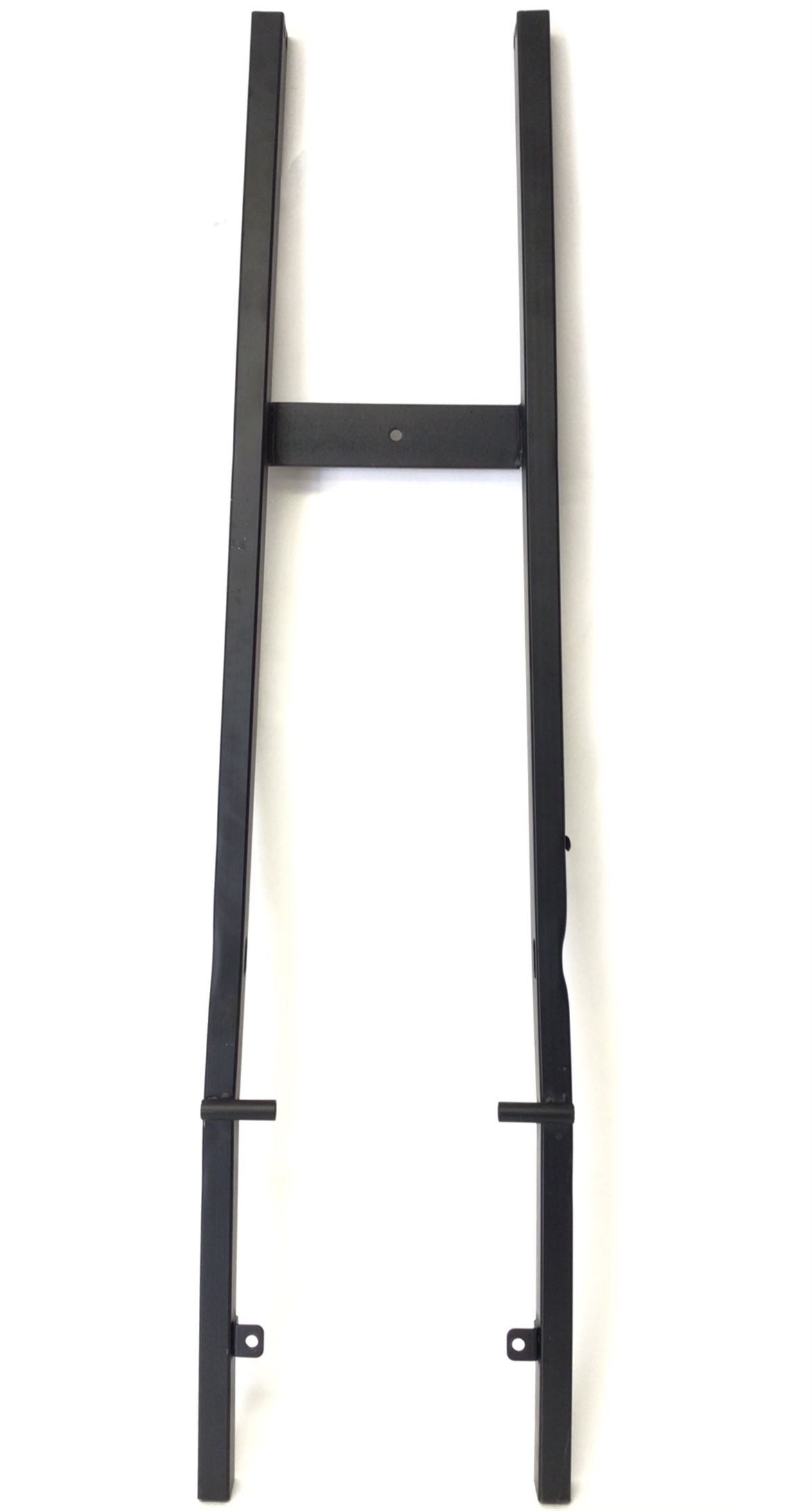

Seat Frame G01748CC (Used) 1020331 139290 16 1 Seat Frame G01748CC (Used) No Model Compatibility List $69.99 / Each

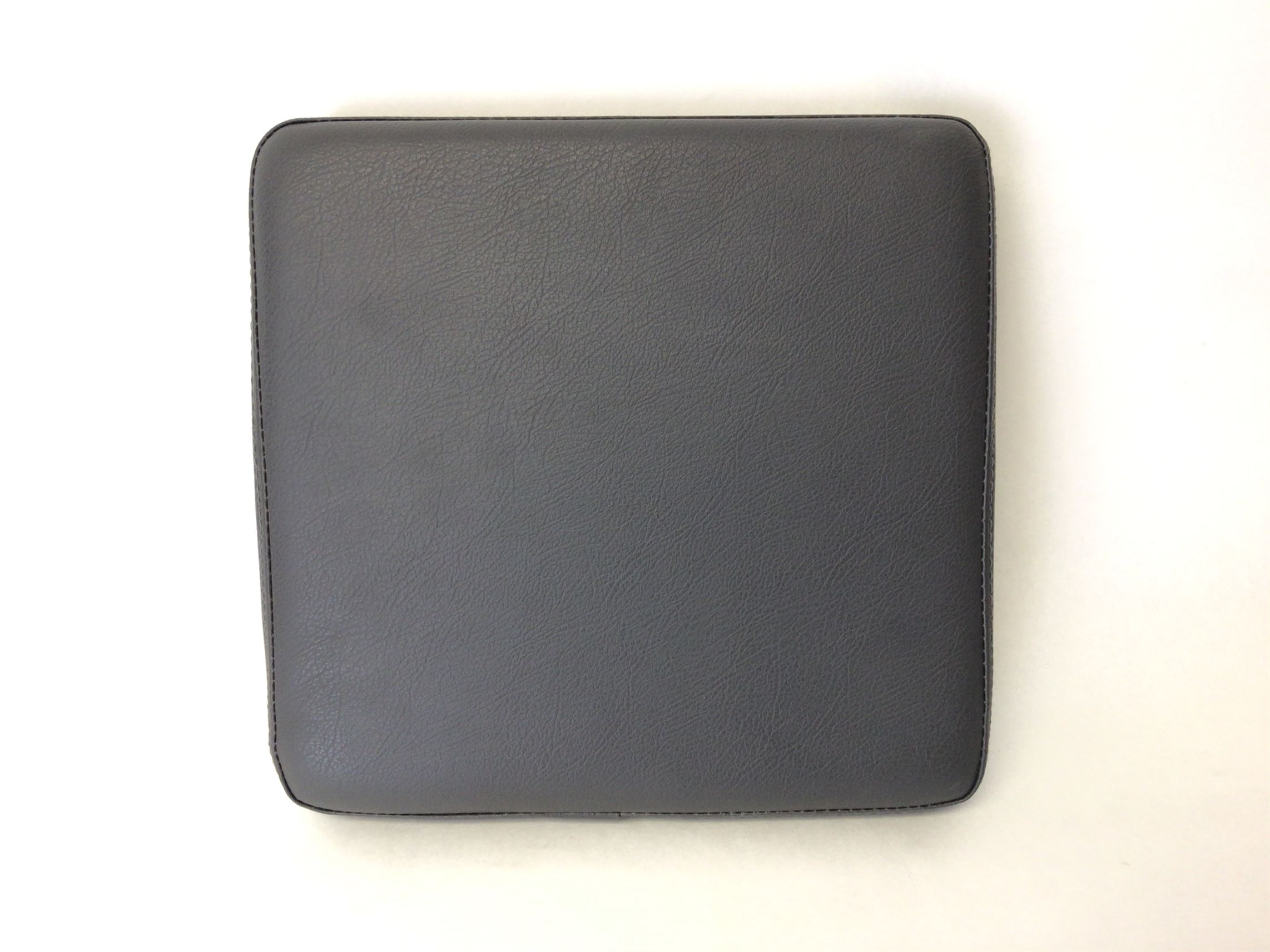

Pad Cushion (Used) 1020344 139529 14 1 Pad Cushion (Used) No Model Compatibility List $49.99 / Each

Bracket Leg Locking (Used) 1020341 140527 132 1 Bracket Leg Locking (Used) No Model Compatibility List $49.99 / Each

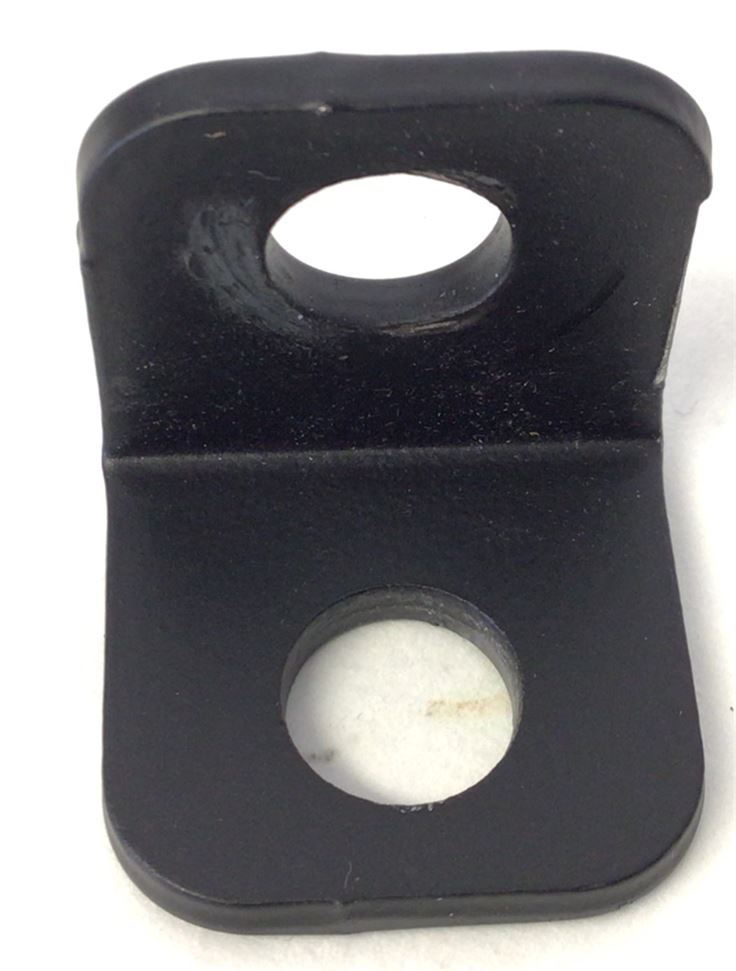

Seat Bracket Bottom (Used) 1020303 140609 133 1 Seat Bracket Bottom (Used) No Model Compatibility List $9.99 / Each

Wheel .38 X 2.75 (Used) 1020322 139095 68 1 Wheel .38 X 2.75 (Used) No Model Compatibility List $6.72 / Each

Rack Left (Used) 1020361 139387 82 1 Rack Left (Used) No Model Compatibility List $49.00 / Each

Rack Right (Used) 1020362 139388 99 1 Rack Right (Used) No Model Compatibility List $49.00 / Each

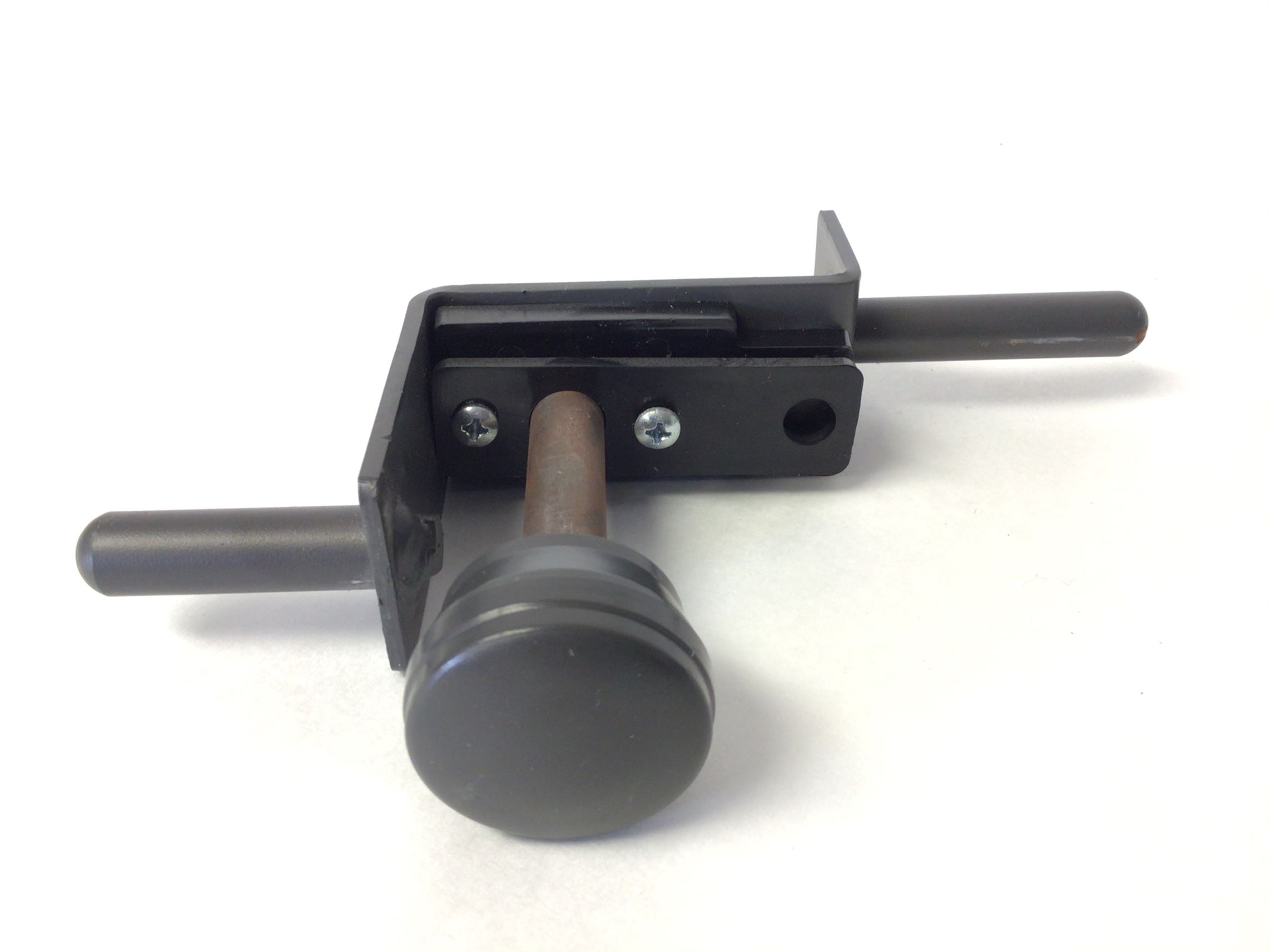

Bench Release Knob Assembly (Used) 1020334 139783 55 1 Bench Release Knob Assembly (Used) No Model Compatibility List $39.00 / Each

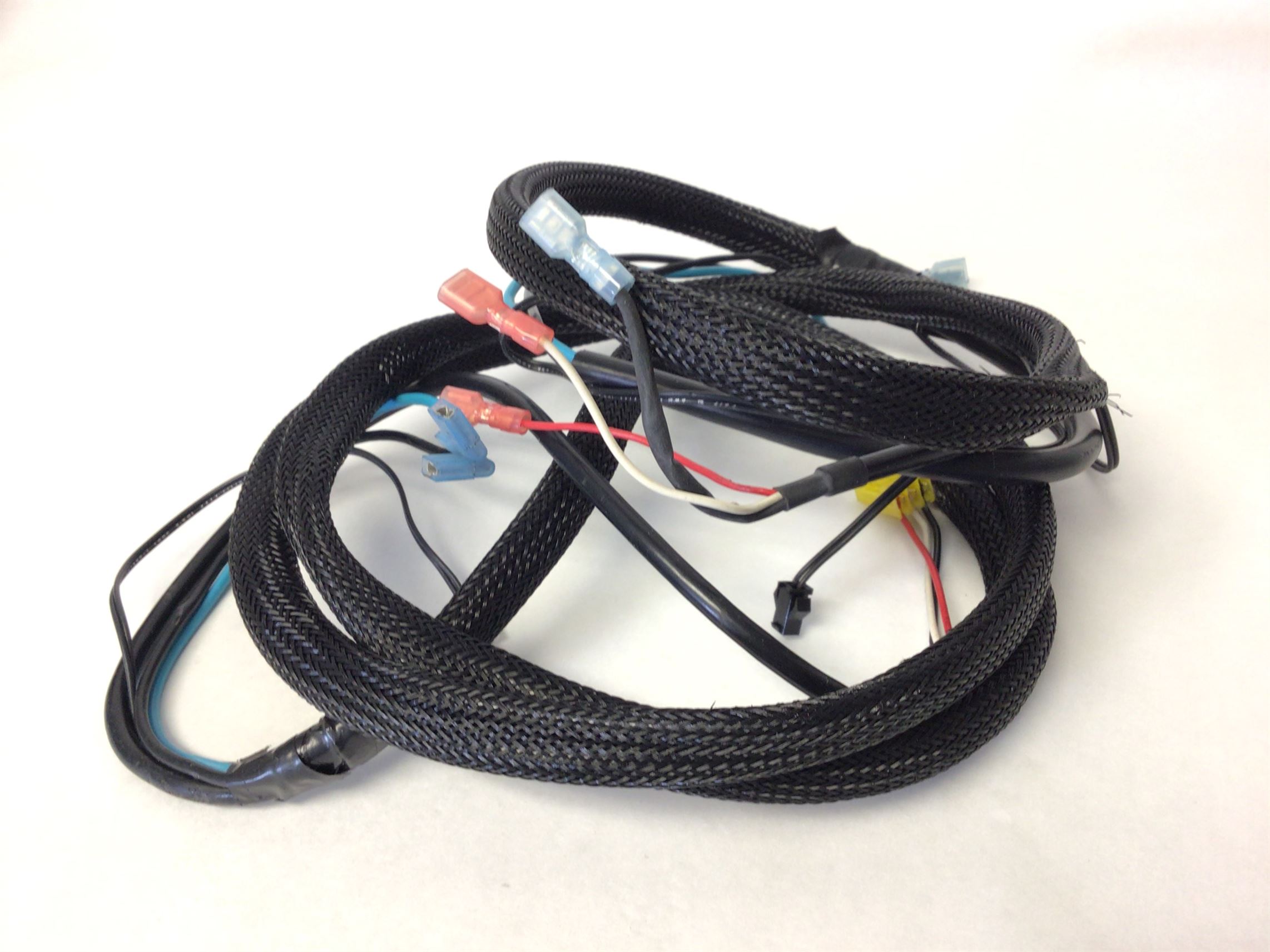

Main Wire Harness (Used) 1020347 142424 108 1 Main Wire Harness (Used) No Model Compatibility List $43.92 / Each

Incline Actuator Button (Used) 1020360 730-IAB 55 1 Incline Actuator Button (Used) No Model Compatibility List $14.99 / Each

Front Roller/Pulley (Used) 1021235 131704 90 1 Front Roller/Pulley (Used) No Model Compatibility List $116.55 / Each

Plate (Used) 1025331 132031 111 1 Plate (Used) No Model Compatibility List $34.93 / Each

Power Entry Circuit Breaker 1000167 109382 Power Entry Circuit Breaker Yes Model Compatibility List $14.66 / Each

4,5,6
Speed RPM Sensor Reed Switch 1002918 138680 Speed RPM Sensor Reed Switch Yes Model Compatibility List $21.99 / Each

4,5,6
Speed Sensor Reed Switch 1002671 138680 Speed Sensor Reed Switch Yes Model Compatibility List $17.99 / Each

4,5,6
Rear Idler Roller 1003444 133845 Rear Idler Roller Yes Model Compatibility List $59.00 / Each

8
15 Amp Circuit Breaker 1002255 109382 15 Amp Circuit Breaker Yes Model Compatibility List $5.99 / Each

4,5,6
Motor Choke Transformer 1002606 185582 or 130993 Motor Choke Transformer Yes Model Compatibility List $38.00 / Each

Allen Tool Clamp (New) 1013015 016028 Allen Tool Clamp (New) No Model Compatibility List $12.99 / Each

Folding Storage Safety Latch Shock 1008261 fld-strg-61 Folding Storage Safety Latch Shock Yes Model Compatibility List $53.99 / Each
