ProForm - CROSSTRAINER 970

Exploded Diagrams

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry used@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
100128 116059 100128 59 ADJUSTMENT BRACKET No Model Compatibility List $2.29 / Each

2,3,4,5,6
102457 100553 . 1/2" NUT No Model Compatibility List $0.99 / Each

2
103833 101902 103833 50 POST CAP No Model Compatibility List $4.69 / Each

9,12,13,14
113842 100081 113842 38 ROLLER MAGNET Yes Model Compatibility List $2.75 / Each

8
119894 100086 119894 # 4MM ALLEN WRENCH No Model Compatibility List $1.58 / Each

2
012033 102045 012033 66 M10 NYLON LOCKNUT No Model Compatibility List $2.22 / Each

2
012111 100663 012111 60 M6 NUT Yes Model Compatibility List $3.31 / Each

2
121519 101359 121519 77 M10 SPLIT WASHER No Model Compatibility List $4.44 / Each

2
116957 127551 88 M6 X 23MM BOLT No Model Compatibility List $0.69 / Each

2
131090 100079 131090 82 RSW CLAMP Yes Model Compatibility List $0.46 / Each

4,5,6
113902 013265 67 M8 X 5MM BOLT No Model Compatibility List $4.00 / Each

2
100556 132658 69 M6 X 50MM SCREW No Model Compatibility List $5.12 / Each

2
124787 013417 70 M5 X 7MM SCREW No Model Compatibility List $2.22 / Each

2
119875 013424 81 M5 X 12MM SCREW No Model Compatibility List $3.77 / Each

2
013529 102048 013529 75 M4 X 38MM SCREW No Model Compatibility List $1.46 / Each

2
114549 140208 87 M6 X 16MM SCREW No Model Compatibility List $2.32 / Each

2
100679 014030 62 M8 X 16MM WASHER No Model Compatibility List $0.66 / Each

2
116174 014038 85 M10 SPLIT WASHER No Model Compatibility List $0.43 / Each

2
116242 014101 . M12 LARGE WASHER No Model Compatibility List $0.55 / Each

2
154279 141986 . SCREW No Model Compatibility List $17.17 / Each

2
116237 142050 58 EYE BOLT No Model Compatibility List $5.81 / Each

2
116052 142255 57 CRANK ARM No Model Compatibility List $108.00 / Each

8,3
106039 144379 76 M10 X 25MM BUTTON BOLT No Model Compatibility List $1.44 / Each

2
144520 102054 144520 78 M5 NUT No Model Compatibility List $1.77 / Each

2
144524 106168 144524 68 M10 X 50MM BTTNHEAD SCREW Yes Model Compatibility List $13.63 / Each

2
144985 100668 144985 73 M4 X 16MM SCREW No Model Compatibility List $1.32 / Each

2
148710 100540 148710 63 M10 LOCKNUT No Model Compatibility List $2.67 / Each

2
149349 100698 149349 46 RESISTANCE CABLE Yes Model Compatibility List $17.39 / Each

4,5,6,10
121085 150321 79 M6 X 25.4MM BUTTON SCREW No Model Compatibility List $1.44 / Each

2
150327 100690 150327 86 M5 NYLON LOCKNUT No Model Compatibility List $1.17 / Each

2
120209 150716 89 DRIVE BELT No Model Compatibility List $29.38 / Each

15,10
152522 151826 # WEIGHT WARNING DECAL No Model Compatibility List $0.89 / Each

7,3
153280 100684 153280 33 FRAME CUSHION Yes Model Compatibility List $13.94 / Each

3
154848 101799 154848 72 M4 X 52MM SCREW No Model Compatibility List $1.23 / Each

2
163977 114623 163977 55 M10 X 25MM FLTHD SCREW No Model Compatibility List $6.66 / Each

2
104441 166039 28 CURL POST KNOB No Model Compatibility List $20.26 / Each

12,13,14
175584 119992 175584 31 LEFT FRONT ENDCAP No Model Compatibility List $16.36 / Each

9,4,5,6
175585 120000 175585 32 RIGHT FRONT ENDCAP No Model Compatibility List $18.56 / Each

4,5,6,9
147528 176478 4 SEAT CARRIAGE No Model Compatibility List $109.48 / Each

12,13,14
147529 176479 5 BACKREST FRAME No Model Compatibility List $189.31 / Each

3,4,5,6,12,13,14
141782 176540 6 SEAT FRAME No Model Compatibility List $73.74 / Each

3,12,13,14
147532 176541 13 UPRIGHT No Model Compatibility List $85.80 / Each

3
141779 176544 3 FRAME EXTENSION No Model Compatibility List $124.72 / Each

3
141788 176545 17 LEFT SIDESHIELD No Model Compatibility List $101.28 / Each

3
141789 176546 18 RIGHT SIDESHIELD No Model Compatibility List $101.28 / Each

3
121088 176547 42 LEFT CRANK ARM No Model Compatibility List $119.42 / Each

8,3
141786 176552 14 UPRIGHT BUSHING No Model Compatibility List $24.53 / Each

8,3
141797 176553 54 PULLEY/CRANK No Model Compatibility List $157.96 / Each
Out Of Stock
8
147531 176554 11 HEADREST No Model Compatibility List $29.09 / Each

1
147530 176555 10 SEAT BACK No Model Compatibility List $86.21 / Each

4,5,6,12,13,14
141784 176556 12 SEAT No Model Compatibility List $71.11 / Each

12,13,14
119879 176564 # CUP HOLDER No Model Compatibility List $20.45 / Each

1
176565 119880 176565 # BOOK RACK Yes Model Compatibility List $4.37 / Each

4,5,6
147534 176715 29 ADJUSTMENT PIN No Model Compatibility List $14.40 / Each

12,13,14

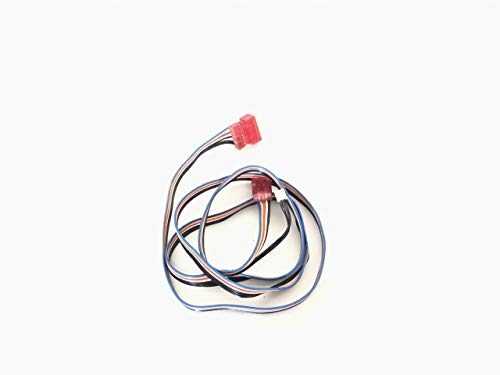

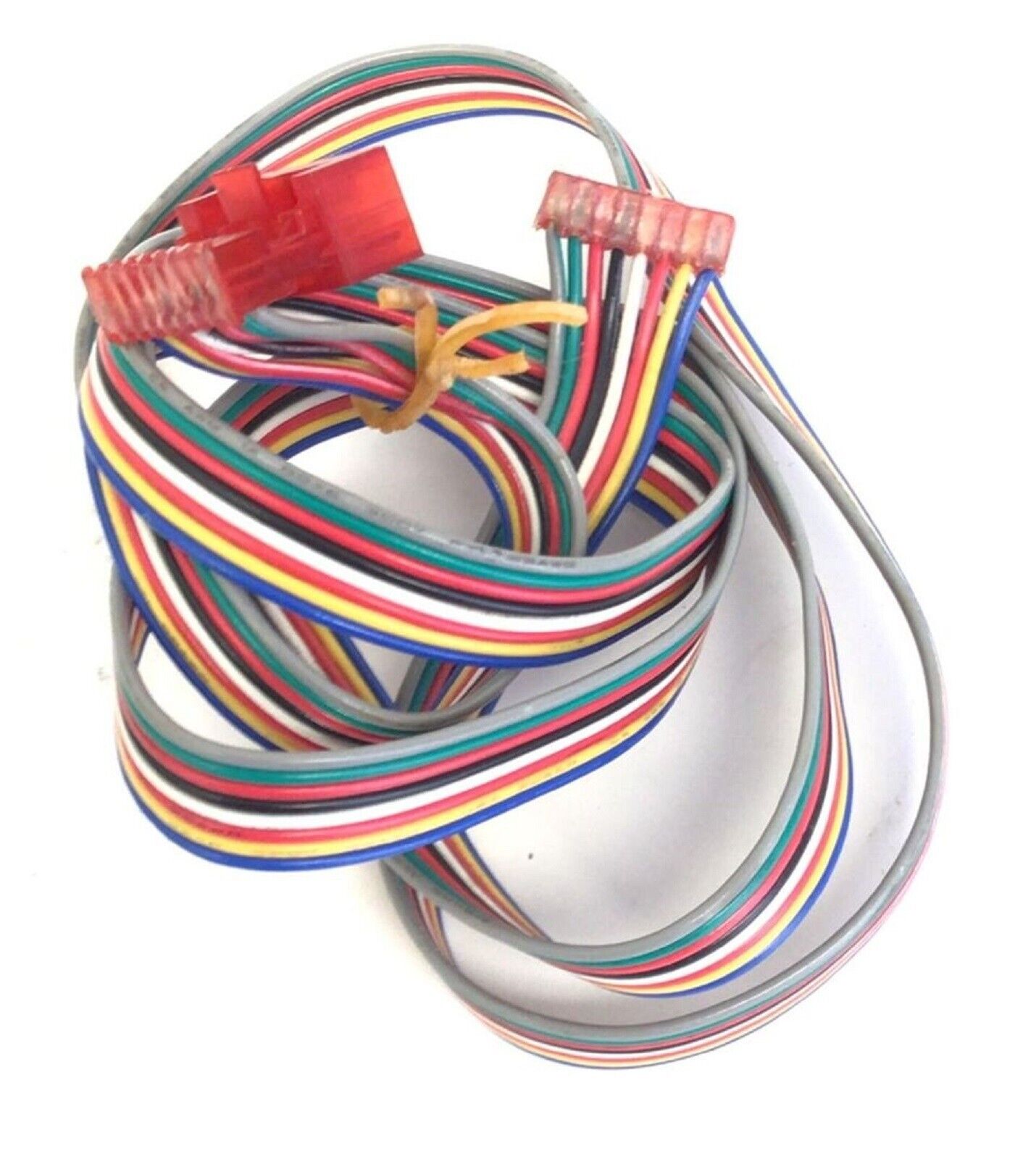

176717 120027 176717 36 LOWER WIRE HARNESS Yes Model Compatibility List $66.31 / Each

4,5,6
147533 176823 23 LARGE HAND WEIGHT No Model Compatibility List $116.38 / Each

3
152523 176830 # CAUTION DO NOT SIT DECAL No Model Compatibility List $2.57 / Each

7,3
152521 176831 # CAUTION SEAT ADJ DECAL No Model Compatibility List $2.57 / Each

7,3,12,13,14
177035 101781 177035 40 FLYWHEEL BEARING No Model Compatibility List $63.94 / Each

8
161407 179370 # USER'S MANUAL No Model Compatibility List $7.41 / Each

1
141796 180016 # SEAT BUSHING No Model Compatibility List $2.57 / Each

8,12,13,14
154277 180017 . CN-ASSY UPDATE, STEP 4 No Model Compatibility List $0.00 / Each
Out Of Stock
1
147535 180220 74 M10 X 45MM BUTTON SCREW No Model Compatibility List $15.76 / Each

2
121084 180221 80 M6 X 72MM BUTTON SCREW No Model Compatibility List $2.06 / Each

2
121091 180222 65 M10 X 112MM CARRIAGE BOLT No Model Compatibility List $9.50 / Each

2
119969 180223 56 5/16" X 25MM FLANGE SCREW No Model Compatibility List $3.49 / Each

2
120031 180513 CN-BOOK RACK INSTALL No Model Compatibility List $0.00 / Each
Out Of Stock
4,5,6
154278 180518 # FIXKIT, SEAT FRAME No Model Compatibility List $32.26 / Each

3,12,13,14
180949 121081 180949 24 LEFT PEDAL W/STRAP Yes Model Compatibility List $61.42 / Each

8,9
180950 121083 180950 26 RIGHT PEDAL W/STRAP Yes Model Compatibility List $61.42 / Each

8,9
121082 180951 25 PEDAL STRAP No Model Compatibility List $19.17 / Each

8,9
100085 181248 # 6MM ALLEN WRENCH No Model Compatibility List $5.03 / Each

2
120928 181488 43 REED SWITCH No Model Compatibility List $12.22 / Each

4,5,6
120030 181561 CN-CNSL DISP/FAT CAL No Model Compatibility List $0.00 / Each
Out Of Stock
7
100829 181563 # CHEST PULSE KIT No Model Compatibility List $176.56 / Each

12,13,14
141795 182549 47 RETURN SPRING No Model Compatibility List $3.78 / Each

2
102061 183765 # CD, ROCK 20 MIN, LEVEL 1 No Model Compatibility List $19.96 / Each

1
102062 183766 # CD, ROCK 30 MIN, LEVEL 2 No Model Compatibility List $19.96 / Each

1
102063 183767 # CD, ROCK 45 MIN, LEVEL 3 No Model Compatibility List $19.96 / Each

1
102064 183768 # CD, WORLDBEAT,20 MIN,LVL1 No Model Compatibility List $19.96 / Each

1
102065 183769 # CD, WORLDBEAT,30 MIN,LVL2 No Model Compatibility List $19.96 / Each

1
102066 183770 # CD, WORLDBEAT 45 MIN,LVL3 No Model Compatibility List $19.96 / Each

1
184688 119962 184688 37 FLYWHEEL Yes Model Compatibility List $424.39 / Each

8
147537 184869 # BKRST/SEAT POSITION DECAL No Model Compatibility List $1.02 / Each

7,3,12,13,14
193223 100647 193223 34 RESISTANCE MOTOR Yes Model Compatibility List $106.74 / Each

10
295560 115067 295560 44 CRANK BEARING SET Yes Model Compatibility List $54.00 / Each

8
103159 045009 . 5/16" ALLEN WRENCH No Model Compatibility List $4.80 / Each

2
176718 1023092 176718 1006 1 Cover Battery Console (Used) No Model Compatibility List $7.81 / Each
Out Of Stock
1
