ProForm - CROSSWALK 325X

Exploded Diagrams

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry used@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
101896 101061 101896 # 4" WHITE WIRE, M/F No Model Compatibility List $4.88 / Each

4,5,6
118360 102246 # 8" WHITE WIRE, 2F No Model Compatibility List $3.32 / Each

4,5,6
102973 109942 102973 76 3/8" THRUST WASHER No Model Compatibility List $5.09 / Each

2,12,13,14
105444 104339 105444 83 REAR ROLLER ADJ BOLT Yes Model Compatibility List $2.95 / Each

2,8
105500 118659 105500 112 SMALL FOAM GRIP No Model Compatibility List $7.73 / Each
Out Of Stock
11
119587 106896 117 THRUST BEARING No Model Compatibility List $3.29 / Each

12,13,14
107503 117640 107503 27 MOTOR BOLT 3/8-16X5" Yes Model Compatibility List $6.51 / Each

2
112083 100300 112083 # 8" BLUE WIRE, 2F No Model Compatibility List $5.46 / Each

4,5,6
124165 112825 18 PULY/FLWH/FAN No Model Compatibility List $71.74 / Each

8
113842 100081 113842 45 ROLLER MAGNET Yes Model Compatibility List $2.75 / Each

8
114012 102280 114012 # 4 No Model Compatibility List $2.74 / Each

4,5,6
116926 100064 116926 63 RELEASABLE WIRE TIE No Model Compatibility List $2.45 / Each

2,4,5,6
116927 100262 116927 61 TIE CLAMP HOLDER - SCREW MOUNT No Model Compatibility List $2.49 / Each

2,4,5,6
117806 118348 117806 77 WHEEL BOLT Yes Model Compatibility List $5.86 / Each
2,8
119038 104349 119038 . KEY/CLIP Yes Model Compatibility List $9.89 / Each

2,9
119425 100031 119425 38 3/8" HEX JAM NUT No Model Compatibility List $1.65 / Each

2
119445 104342 119445 81 1.25" TEK SCREW No Model Compatibility List $1.46 / Each

2
101661 012056 79 5/16" NYLON LOCKNUT No Model Compatibility List $0.48 / Each

2
120867 104004 120867 28 SEAT RAIL FLANGE NUT No Model Compatibility List $3.75 / Each

2,9,12,13,14
012149 100136 012149 17 3/8" HEX LOCK NUT No Model Compatibility List $1.79 / Each

2
122812 113293 122812 30 MOTOR WASHER No Model Compatibility List $1.53 / Each

2
100088 123945 # TECH SHEET ENVELOPE No Model Compatibility List $0.94 / Each

1
125198 103818 125198 35 HANDRAIL COVER CAGE NUT Yes Model Compatibility List $3.25 / Each

2,3,9
125819 101014 125819 91 LARGE STANDOFF Yes Model Compatibility List $0.34 / Each

2
126146 100112 126146 # 4" BLU WIRE F/F, DR MOTOR No Model Compatibility List $2.43 / Each

4,5,6
126644 141989 126644 121 RESISTANCE BOLT Yes Model Compatibility List $7.22 / Each

2,10
119591 126827 119 RESISTANCE SLEEVE No Model Compatibility List $3.26 / Each

3,10
119583 126843 115 THEM THE 137432. No Model Compatibility List $9.77 / Each
Out Of Stock
1
127860 118677 127860 # FASTENER No Model Compatibility List $1.28 / Each

1
122690 128005 116 SPRING WASHER No Model Compatibility List $0.69 / Each

2
128457 100190 128457 . 3/16-7/32" ALLEN WRENCH No Model Compatibility List $9.99 / Each

2
129004 101035 129004 72 ROUND GROMMET No Model Compatibility List $3.64 / Each

2
129639 121298 129639 4 BATTERY COVER 2.38x3.25"L Yes Model Compatibility List $9.63 / Each
9
131090 100079 131090 43 RSW CLAMP Yes Model Compatibility List $0.46 / Each

4,5,6
013162 101030 013162 33 M4 X 13MM SCREW Yes Model Compatibility List $1.26 / Each

2
100073 132315 95 WIRE TIE No Model Compatibility List $0.56 / Each

2,4,5,6
132449 104345 132449 3 INCLINE BASE PIVOT BOLT HEX M10-1.5 x 50 MM Yes Model Compatibility List $3.26 / Each

2
013300 100149 013300 25 #8 X 3/4" WASHER HD SCREW Yes Model Compatibility List $1.28 / Each

2
013423 100258 013423 . 1/2" TAP SCREW No Model Compatibility List $1.24 / Each

2
134690 118521 134690 100 8" POWER WIRE Yes Model Compatibility List $8.89 / Each

4,5,6
013470 113413 013470 . 5/16" X 5/8" BUTTON HEAD HEX SCREW Yes Model Compatibility List $3.14 / Each

2
013492 102272 013492 . ISOLATOR BOLT, BOTTOM No Model Compatibility List $1.76 / Each

2,3
013547 100450 013547 31 IDLER ARM BOLT No Model Compatibility List $2.89 / Each

2,3,8
013607 100132 013607 87 #8 X 3/4" TRUSS HEAD SCRW No Model Compatibility List $0.22 / Each

2
136728 100137 136728 22 #8 X 1/2" SCREW Yes Model Compatibility List $0.30 / Each

2
124869 137873 60 MOTOR BELLY PAN No Model Compatibility List $17.00 / Each

1
014063 100042 014063 . 1/4" FLAT WASHER No Model Compatibility List $1.03 / Each

2
014117 102446 014117 29 3/8" CONSOLE SUPPORT No Model Compatibility List $1.32 / Each

2
014132 100263 014132 57 IDLER WHEEL WASHER No Model Compatibility List $2.43 / Each

2,8
142035 141791 # KNOB ADJUST DECAL No Model Compatibility List $0.64 / Each
Out Of Stock
7,3
143024 117600 143024 80 FRONT ROLLER GROUND WIRE No Model Compatibility List $2.18 / Each

4,5,6,8
117650 155353 59 LATCH WARNING DECAL No Model Compatibility List $58.00 / Each

7,3
142024 155489 23 MOTOR HOOD No Model Compatibility List $76.71 / Each

9
157360 123830 157360 66 Push FASTENER No Model Compatibility List $0.26 / Each

2
157498 100332 157498 48 REAR PLATFORM SCREW Yes Model Compatibility List $1.47 / Each

2
157600 100076 157600 40 BASE PAD Yes Model Compatibility List $6.83 / Each

3,12,13,14
160068 112269 160068 44 REED SWITCH WIRE No Model Compatibility List $12.45 / Each

4,5,6
016057 100063 016057 16 8" CABLE TIE No Model Compatibility List $1.30 / Each

2
162742 118507 162742 51 FRONT ROLLER BOLT No Model Compatibility List $1.82 / Each

2,8
165009 100369 165009 37 FRONT WHEEL Yes Model Compatibility List $5.07 / Each

8
165162 142031 165162 102 3" BOLT Yes Model Compatibility List $1.14 / Each

2
103115 165932 # FRAME INSERT No Model Compatibility List $2.31 / Each
Out Of Stock
3
100368 166492 58 LIFT PIVOT BOLT No Model Compatibility List $1.89 / Each

2,8,10
121997 167854 82 INCLINE LEG No Model Compatibility List $99.53 / Each

10
169403 122897 169403 . LATCH HOUSING Yes Model Compatibility List $10.00 / Each

1
142025 169721 36 WHEEL BOLT No Model Compatibility List $2.27 / Each

2,8
173169 100061 173169 55 GROMMET Yes Model Compatibility List $0.94 / Each

2
142001 173368 98 BELLYPAN SCREW No Model Compatibility List $0.40 / Each

2,9
174320 100135 174320 86 3/8"-16X1 1/2" HEX BOLT Yes Model Compatibility List $4.29 / Each

2
142030 174651 89 MOTOR BELT SHIELD No Model Compatibility List $9.40 / Each

15,3
104042 180917 70 GROUND WIRE SCREW No Model Compatibility List $0.12 / Each

2,4,5,6
103169 183824 . ELECTRONICS SCREW No Model Compatibility List $0.19 / Each

2
185582 104353 185582 64 CHOKE Yes Model Compatibility List $76.47 / Each

1
186726 100201 186726 56 POWER SWITCH Yes Model Compatibility List $20.45 / Each

4,5,6

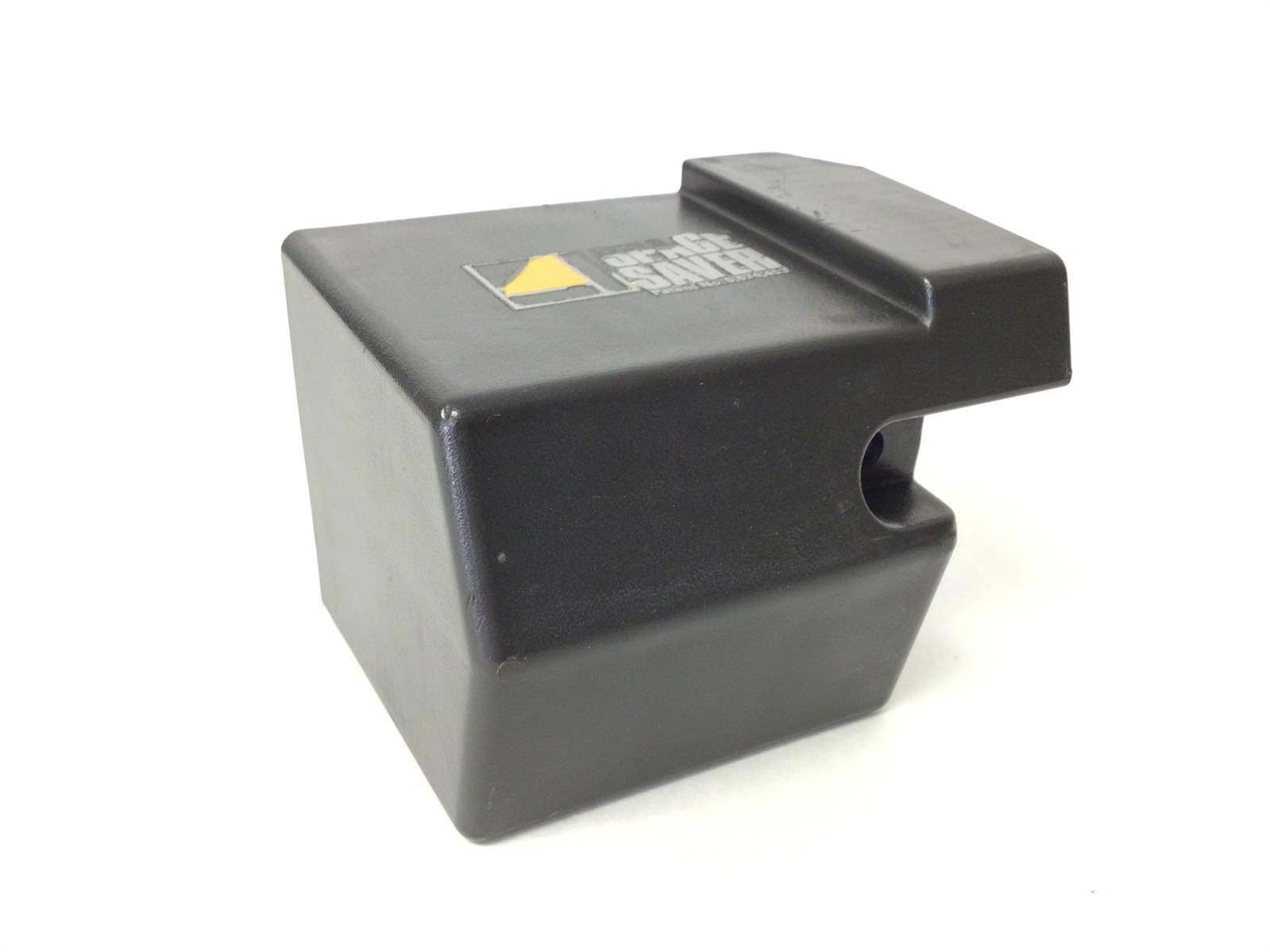

142028 187204 84 LEFT REAR ENDCAP No Model Compatibility List $17.98 / Each
Out Of Stock
9,4,5,6

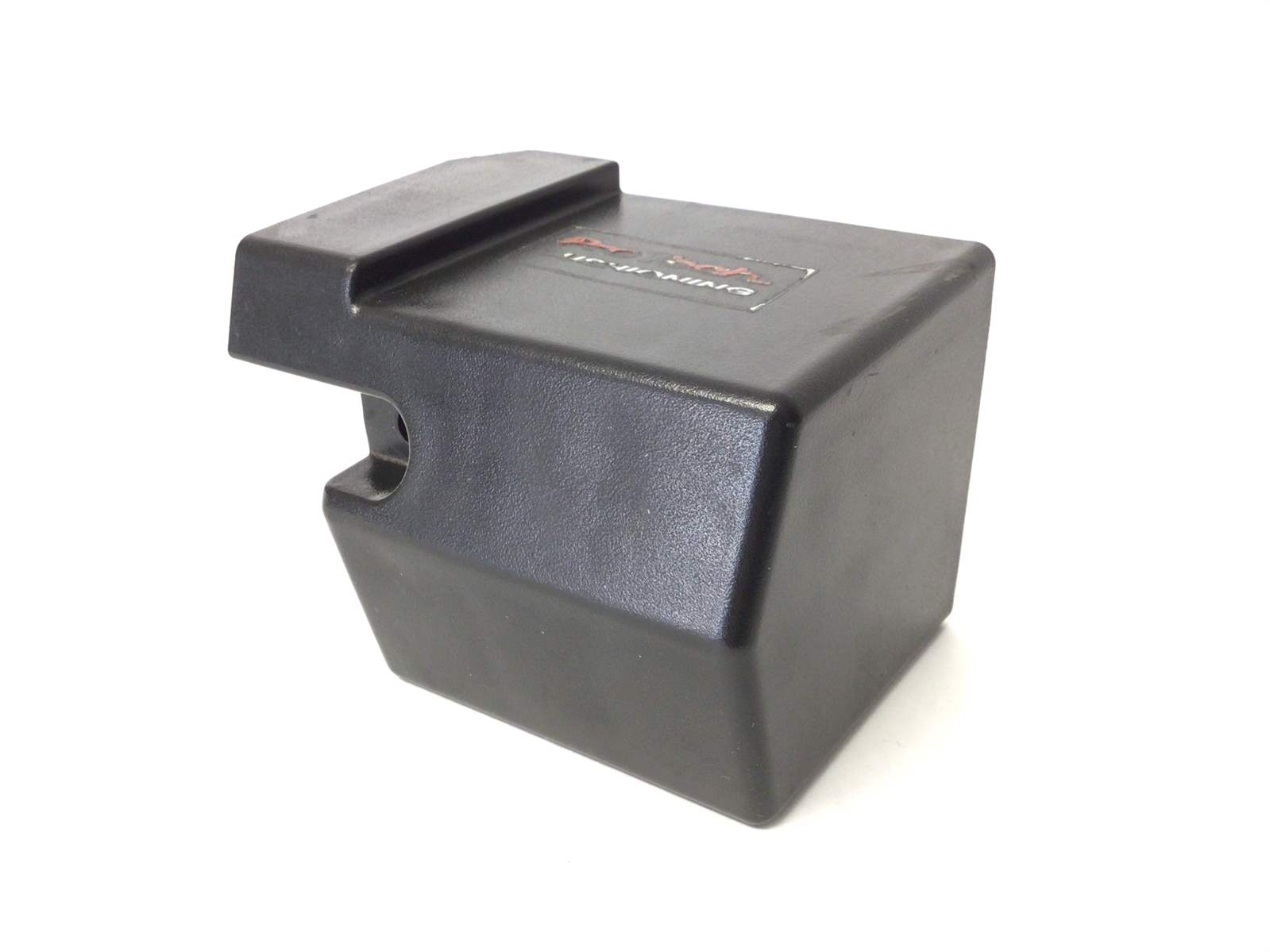

142029 187205 85 RIGHT REAR ENDCAP No Model Compatibility List $17.98 / Each

9,4,5,6

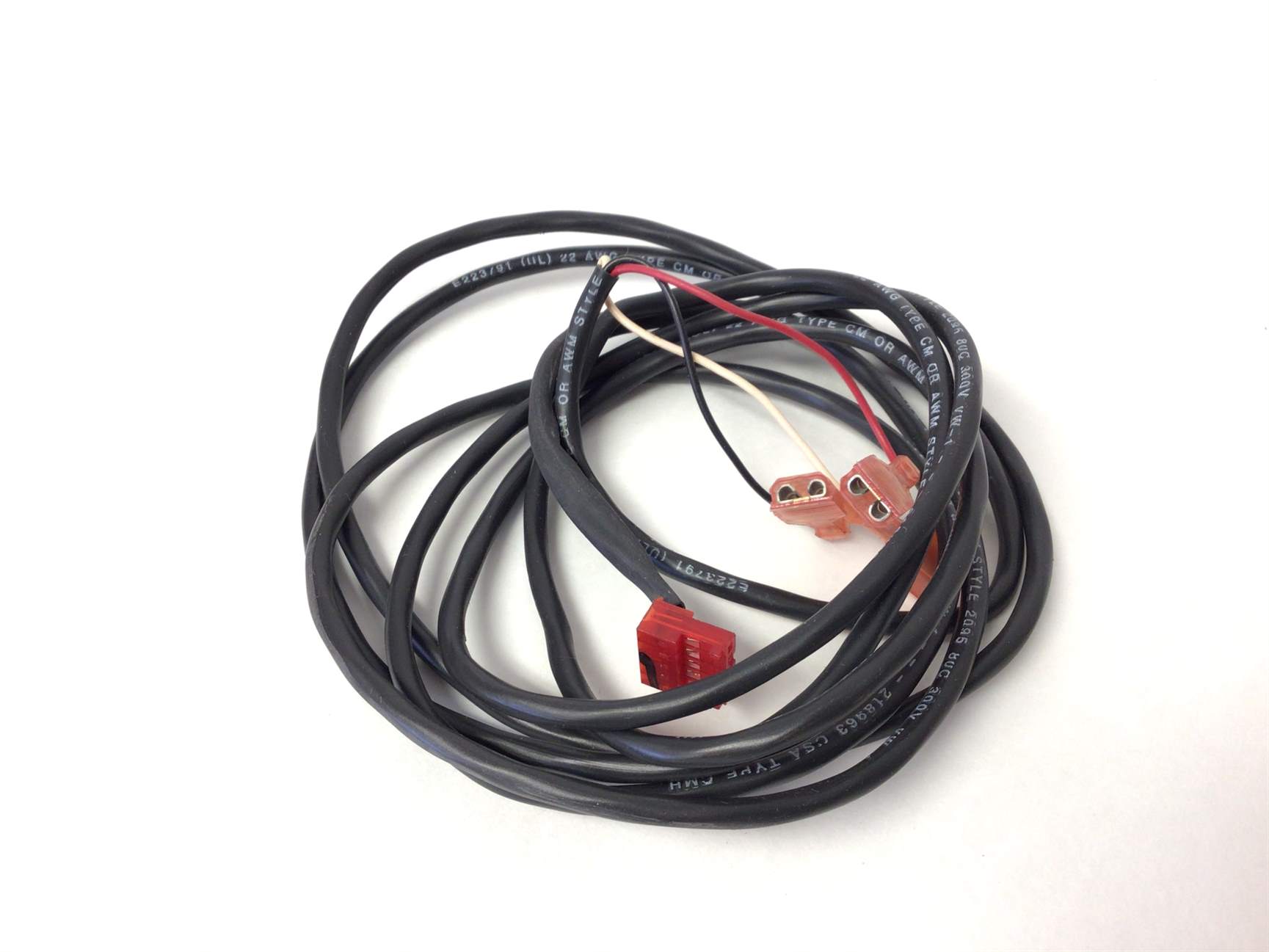

187260 142027 187260 71 INCLINE WIRE HARNESS 85" Yes Model Compatibility List $30.13 / Each

4,6,10
122002 187286 99 HOLE PLUG No Model Compatibility List $2.24 / Each

1
122001 188151 92 WARNING DECAL No Model Compatibility List $0.51 / Each

7,3
142032 188617 # TECH SHEET No Model Compatibility List $0.54 / Each

1
161564 188621 . USER'S MANUAL No Model Compatibility List $6.01 / Each

1
142034 188691 . HARDWARE KIT No Model Compatibility List $58.26 / Each

1
124179 189923 # INCLINE WARNING DECAL No Model Compatibility List $8.46 / Each

7,3,10

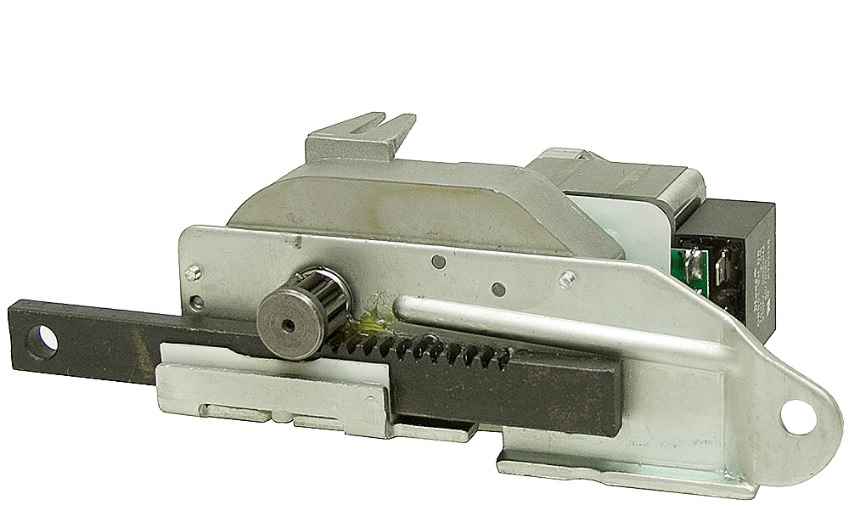

190074 142022 190074 6 LIFT MOTOR You may have to reuse your existing wire harnessing, be advised. No Model Compatibility List $135.06 / Each

10
190075 124224 190075 7 REAR ROLLER Yes Model Compatibility List $124.25 / Each

8
190077 142023 190077 21 WIRE HARNESS Yes Model Compatibility List $106.99 / Each

4,5,6

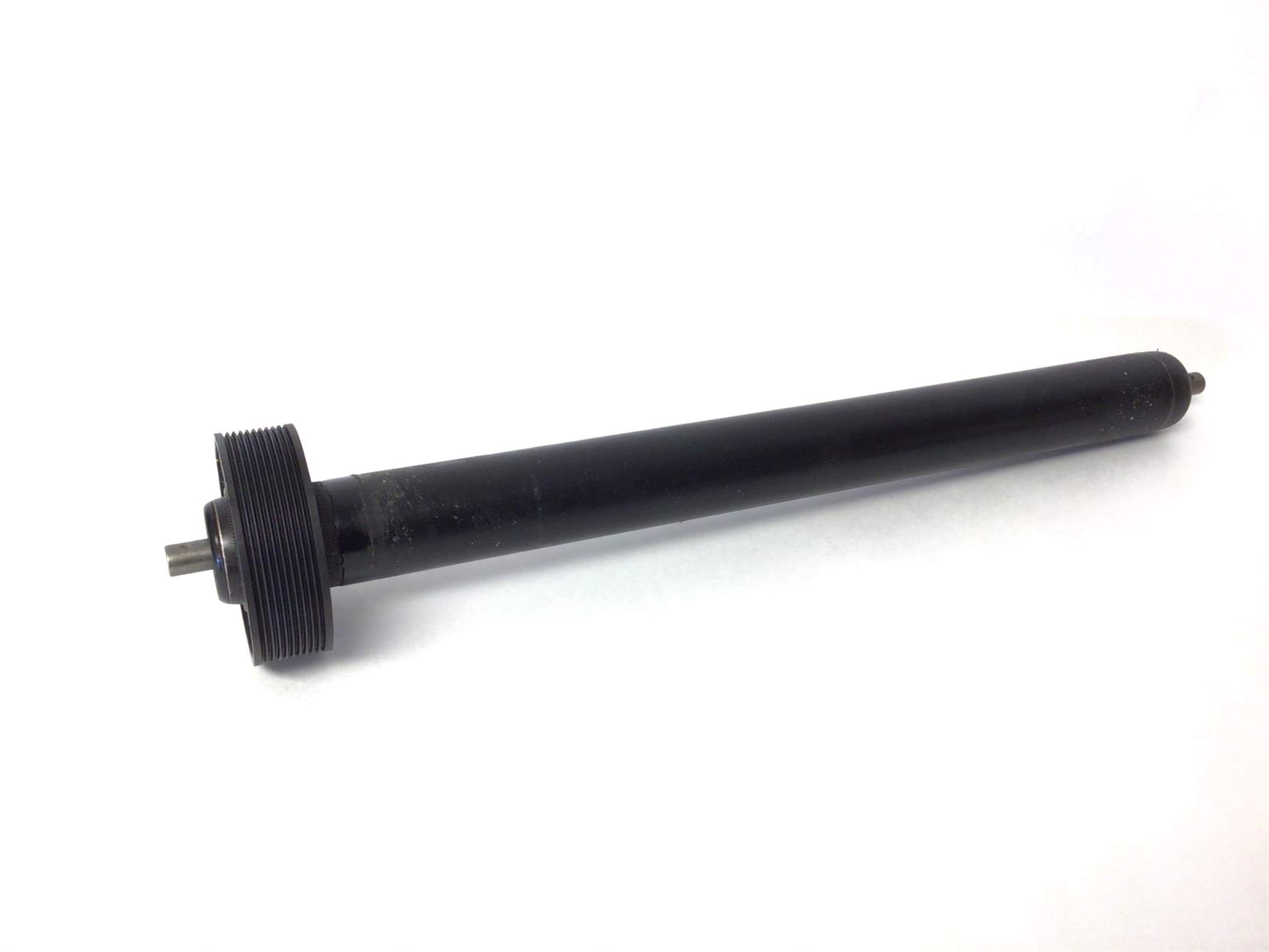

190092 142026 190092 50 FRONT ROLLER/PULLEY Yes Model Compatibility List $128.38 / Each

8
142005 190138 # WARNING DECAL,CNSL UNPLUG No Model Compatibility List $1.00 / Each
Out Of Stock
7,3
142015 190386 # INCLINE WARNING DECAL No Model Compatibility List $0.40 / Each

7,3,10
198640 100040 198640 65 BELT GUIDE No Model Compatibility List $6.59 / Each

15
142050 210775 # X-WALK ARM RND INT ENDCAP No Model Compatibility List $1.55 / Each

9,3,4,5,6
219170 100096 219170 # 3 TUBE LUBE KIT No Model Compatibility List $30.38 / Each

1,3,15
224019 104319 224019 12 MOTOR BELT Yes Model Compatibility List $21.99 / Each

15
316450 113317 316450 120 RESISTANCE ASSEMBLY Yes Model Compatibility List $64.91 / Each
10
100094 356520 # ACCESSORY KIT No Model Compatibility List $42.89 / Each

4,5,6
045023 100191 045023 . 1 5/32" ALLEN WRENCH No Model Compatibility List $4.62 / Each

2
190097 1013787 190097 # 1 Power Board (Used) Yes Model Compatibility List $65.99 / Each
Out Of Stock
7
192297 1018837 192297 0 4 Red Deck Cushion Isolator (Used) Yes Model Compatibility List $16.49 / Each

3
126773 1022107 126773 66 1 Bracket (Used) No Model Compatibility List $29.25 / Each

1
126828 1022106 126828 60 1 Bushing (Used) No Model Compatibility List $18.04 / Each

1
