ProForm - CROSSWALK 390

Repair Parts for ProForm CROSSWALK 390 831.248230

Brand: ProForm

Category: Residential Treadmills

Type: Folding Treadmill

Model Name: CROSSWALK 390

Exploded Diagrams

Other Languages Available

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Wire/cables
  • Motor
  • Frame Related
  • Fasteners and Brackets
  • Covers and Plastics
  • Sensors
  • Maintenance
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
3/8-16X4 117344 101263 26 3/8-16X4" Hex Bolt No Model Compatibility List $3.55 / Each

2
8 100300 112083 # 8" BLUE WIRE, 2F Yes Model Compatibility List $3.26 / Each

4,5,6
ROLLER MAGNET 100081 113842 42 ROLLER MAGNET Yes Model Compatibility List $1.10 / Each

1,8,3
RELEASABLE WIRE TIE 100064 116926 94 RELEASABLE WIRE TIE No Model Compatibility List $0.25 / Each

2,3,4,5,6
SCREW,Hex,3/8-16X.75 113294 117332 25 SCREW,Hex,3/8-16X.75" No Model Compatibility List $2.02 / Each

2
3/8 100031 119425 31 3/8" HEX JAM NUT Yes Model Compatibility List $0.55 / Each

2
4MM ALLEN WRENCH 100086 119894 105 4MM ALLEN WRENCH No Model Compatibility List $1.58 / Each

2,1
SEAT RAIL FLANGE NUT 104004 120867 32 SEAT RAIL FLANGE NUT No Model Compatibility List $3.75 / Each

2,9,12,13,14
3/8 100136 012149 36 3/8" HEX LOCK NUT No Model Compatibility List $1.79 / Each

2
MOTOR WASHER 113293 122812 107 MOTOR WASHER No Model Compatibility List $1.53 / Each

2
100088 123945 # TECH SHEET ENVELOPE No Model Compatibility List $0.94 / Each

1
104109 126970 4 RESISTOR BOX SCREW No Model Compatibility List $1.82 / Each

2
3/16-7/32 100190 128457 101 3/16-7/32" ALLEN WRENCH No Model Compatibility List $18.74 / Each

1,2
RSW CLAMP 100079 131090 55 RSW CLAMP Yes Model Compatibility List $0.46 / Each

1,2,4,5,6,47,3
WIRE TIE 100073 132315 92 WIRE TIE No Model Compatibility List $0.56 / Each

1,2,3,4,5,6
HOOD SCREW 100354 013316 74 HOOD SCREW No Model Compatibility List $1.42 / Each

2,9
#8 HOOD CLIP 100032 133333 37 #8 HOOD CLIP Yes Model Compatibility List $0.65 / Each

1,2,3,9,46
UPRIGHT BOLT 102932 013438 20 UPRIGHT BOLT Yes Model Compatibility List $2.11 / Each

2,3
101333 014018 29 M6 SPLIT WASHER No Model Compatibility List $0.28 / Each

2
1/4 100042 014063 9 1/4" FLAT WASHER No Model Compatibility List $1.03 / Each

2
3/8 102446 014117 7 3/8" CONSOLE SUPPORT No Model Compatibility List $1.32 / Each

2
117345 144681 35 M8 FLANGE NUT No Model Compatibility List $0.78 / Each

2
M10 LOCKNUT 100540 148710 33 M10 LOCKNUT No Model Compatibility List $1.57 / Each

2
M8 X 25MM SCREW 109288 153274 6 M8 X 25MM SCREW Yes Model Compatibility List $2.32 / Each

2
102848 155433 57 DRIVE ROLLER GROUND WIRE No Model Compatibility List $1.89 / Each

8,4,5,6,10
102791 156526 102 LIFT FRAME GROUND WIRE No Model Compatibility List $2.02 / Each

3,4,5,6,10
BASE PAD 100076 157600 81 BASE PAD Yes Model Compatibility List $1.33 / Each

1,3,12,13,14,46
8 100063 016057 95 8" CABLE TIE No Model Compatibility List $1.30 / Each

2,1,4
PAD SPACER 100247 161411 104 PAD SPACER Yes Model Compatibility List $3.72 / Each

3,9
REED SWITCH 102795 165798 54 REED SWITCH Yes Model Compatibility List $14.41 / Each

4,5,6
GROMMET 100061 173169 67 GROMMET Yes Model Compatibility List $0.94 / Each

1,2,3,6
3/8 100135 174320 19 3/8"-16X1 1/2" HEX BOLT Yes Model Compatibility List $2.29 / Each

2
100085 181248 34 6MM ALLEN WRENCH No Model Compatibility List $5.03 / Each

2,1
3/8 106813 181980 18 3/8" X 1 1/2" BOLT Yes Model Compatibility List $2.39 / Each

2
117341 182860 16 M10 X 30MM BOLT No Model Compatibility List $2.27 / Each

2
POWER SWITCH 100201 186726 68 POWER SWITCH Yes Model Compatibility List $16.42 / Each

1,4,5,6
#8 X 1/2 100120 186819 22 #8 X 1/2" SCREW Yes Model Compatibility List $0.42 / Each

2
INCLINE MOTOR WIRE 102501 191554 98 INCLINE MOTOR WIRE Yes Model Compatibility List $15.75 / Each

4,5,6,10
103179 198081 # 6" BLUE WIRE, M/F No Model Compatibility List $2.90 / Each

4,5,6
112925 198084 # 6" RED WIRE, M/F No Model Compatibility List $3.07 / Each

4,5,6
6 111230 198087 # 6" BLACK WIRE, M/F Yes Model Compatibility List $3.28 / Each

4,5,6
BELT GUIDE 100040 198640 41 BELT GUIDE Yes Model Compatibility List $18.62 / Each

15,40,3
117342 206318 21 M6 X 45MM BOLT No Model Compatibility List $1.64 / Each

2
106029 206586 5 M10 X 96MM BUTTON BOLT No Model Compatibility List $10.71 / Each

2
M10 STAR WASHER 100026 207213 8 M10 STAR WASHER No Model Compatibility List $1.06 / Each

2
KEY/CLIP 100072 208603 93 KEY/CLIP Yes Model Compatibility List $17.99 / Each

2,9,1,3
MOTOR BOLT 111182 215360 24 MOTOR BOLT Yes Model Compatibility List $3.28 / Each

2
STOP BRACKET 102900 216123 108 STOP BRACKET Yes Model Compatibility List $6.60 / Each

3
1 TUBE LUBE KIT 100095 219168 # 1 TUBE LUBE KIT No Model Compatibility List $8.84 / Each

1,3,15,53
3 TUBE LUBE KIT 100096 219170 # 3 TUBE LUBE KIT No Model Compatibility List $28.18 / Each

1,3,15,53
M10 X 50MM BOLT 100591 223086 27 M10 X 50MM BOLT Yes Model Compatibility List $8.33 / Each

2
WHEEL 117367 234223 86 WHEEL Yes Model Compatibility List $2.21 / Each

8
M4.2 X 19MM SCREW 100002 234226 1 M4.2 X 19MM SCREW No Model Compatibility List $0.24 / Each

2
101865 234235 12 M4.2 X 18MM SCREW No Model Compatibility List $0.74 / Each

2
100012 234284 28 M4.2 X 13MM INDENTED SCRW No Model Compatibility List $0.26 / Each

1,2
M6 X 70MM SCREW 100013 234285 17 M6 X 70MM SCREW No Model Compatibility List $9.90 / Each

2
105900 236808 10 M8 STAR WASHER No Model Compatibility List $0.53 / Each

2
100009 237529 3 M4.2 X 13MM BRIGHT SCREW No Model Compatibility List $0.26 / Each

2,1
100185 240351 62 ANCHORED CABLE TIE No Model Compatibility List $0.74 / Each

1,2,3,4,5,6
MOTOR BRACKET 113290 241040 61 MOTOR BRACKET Yes Model Compatibility List $10.52 / Each
2,3,4,5,6
100004 241305 11 M4.2 X 13MM WSHR HD SCREW No Model Compatibility List $0.48 / Each

2,12,13,14,1
113402 241356 38 CAGE NUT No Model Compatibility List $2.07 / Each

2,3
M4.2 X 19MM WSHR HD SCREW 100008 241732 13 M4.2 X 19MM WSHR HD SCREW No Model Compatibility List $1.36 / Each

2,1
157186 247299 72 LATCH PIN ASSEMBLY No Model Compatibility List $9.05 / Each

12,13,14
117343 247450 23 M5.5 X 25MM SCREW No Model Compatibility List $0.73 / Each

2

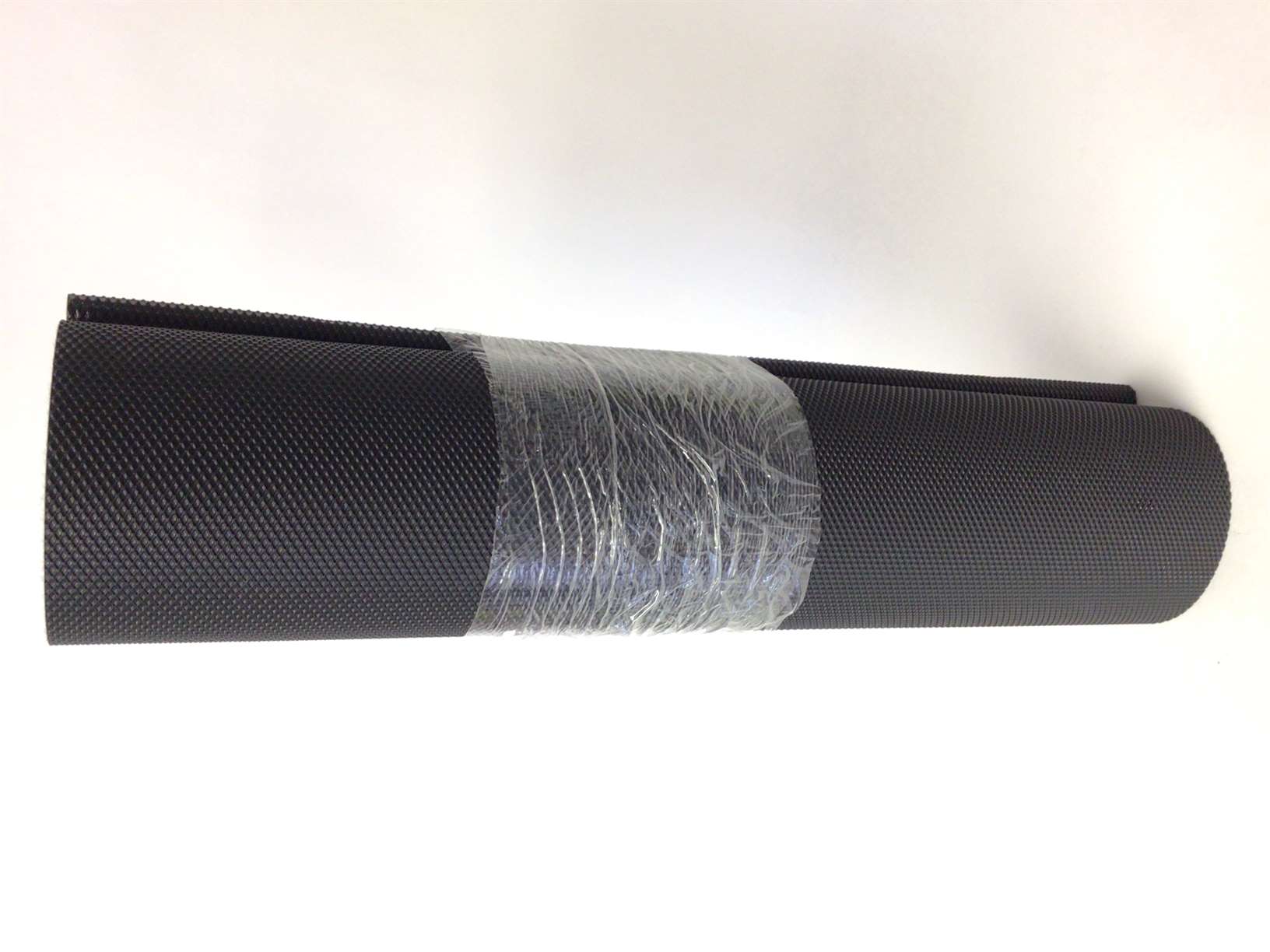

WALKING BELT 117388 249498 45 WALKING BELT Yes Model Compatibility List $114.71 / Each

15
INCLINE MOTOR 102810 249516 58 INCLINE MOTOR Yes Model Compatibility List $143.85 / Each

10
117350 252378 50 REAR ROLLER BRACKET PLATE No Model Compatibility List $0.82 / Each

2,8,3,4,5,6
100178 252433 84 WARNING DECAL No Model Compatibility List $0.47 / Each

1,3,7
156870 252698 # HARDWARE KIT NOTE: No Model Compatibility List $78.70 / Each

1
117340 252832 15 M8 X 90MM SCREW No Model Compatibility List $4.00 / Each

2
INCLINE MOTOR SPACER 102811 252990 99 INCLINE MOTOR SPACER No Model Compatibility List $1.79 / Each

2,3,4,5,6,10
117363 254499 79 BOLT SPACER No Model Compatibility List $1.69 / Each

2,3,4,5,6
102244 255367 43 MOTOR BELT No Model Compatibility List $29.23 / Each

15
100280 256836 49 LATCH WRNG DECAL, ENGLISH No Model Compatibility List $1.50 / Each

7,3
117338 257433 2 M4.2 X 25MM SCREW No Model Compatibility List $0.25 / Each

2
M8 X 35MM SCREW 117339 257735 14 M8 X 35MM SCREW No Model Compatibility List $2.20 / Each

2
117354 257835 56 FRAME SPACER No Model Compatibility List $2.58 / Each
Out Of Stock 		2,3,4,5,6
118109 258588 77 UPRIGHT WIRE No Model Compatibility List $67.18 / Each

3,4,5,6
110582 258703 64 5MM ALLEN WRENCH No Model Compatibility List $2.41 / Each

2,1
156850 259696 44 FRONT ROLLER/PULLEY No Model Compatibility List $117.36 / Each

8
IDLER ROLLER 142803 259697 100 IDLER ROLLER Yes Model Compatibility List $98.87 / Each
8
100213 263228 # 8" GRN WIRE F/R, CNTRLR No Model Compatibility List $3.60 / Each

7,4,5,6
CONTROLLER 113338 409595 66 CONTROLLER Yes Model Compatibility List $197.30 / Each

7,8
161254 266875 63 LIFT FRAME No Model Compatibility List $109.08 / Each

3,10
157059 266922 69 BELLY PAN No Model Compatibility List $73.34 / Each
Out Of Stock 		1
157065 268084 88 CONSOLE BACK No Model Compatibility List $55.56 / Each

7,4,5,6
157063 268097 83 LEFT UPRIGHT SPACER No Model Compatibility List $18.60 / Each

2,3,4,5,6
157062 268098 80 RIGHT UPRIGHT SPACER No Model Compatibility List $18.60 / Each

2,3,4,5,6
157054 268431 51 LEFT FOOT No Model Compatibility List $14.94 / Each

9
157055 268432 52 RIGHT FOOT No Model Compatibility List $14.94 / Each
Out Of Stock 		9
157066 268772 89 LEFT HANDRAIL No Model Compatibility List $64.16 / Each

9,3
157067 268774 90 RIGHT HANDRAIL No Model Compatibility List $56.53 / Each

9,3
157051 268783 40 PLATFORM CUSHION No Model Compatibility List $19.50 / Each

3
157064 268786 85 BASE No Model Compatibility List $288.87 / Each

3
157568 268832 91 HANDRAIL CAP, UPPER No Model Compatibility List $3.60 / Each
Out Of Stock 		9,3
161238 269967 39 LEFT FOOT RAIL No Model Compatibility List $105.25 / Each

9
161240 269968 47 RIGHT FOOT RAIL No Model Compatibility List $105.25 / Each

9
161250 274797 103 FRAME CAP No Model Compatibility List $0.28 / Each

9,3
161243 278966 73 LEFT UPRIGHT No Model Compatibility List $111.74 / Each

3
161246 278967 78 RIGHT UPRIGHT No Model Compatibility List $84.58 / Each

3
161245 278968 76 RIGHT CROSSWALK ARM No Model Compatibility List $45.44 / Each

3
161249 278971 97 HAND GRIP No Model Compatibility List $11.45 / Each

11
161244 278972 75 CROSSWALK ARM INSERT No Model Compatibility List $2.52 / Each
Out Of Stock 		3
161248 278976 96 RESISTANCE ASSEMBLY No Model Compatibility List $90.87 / Each
Out Of Stock 		10
161242 279035 70 LATCH INSERT No Model Compatibility List $5.29 / Each

1
161247 279036 82 BASE CAP No Model Compatibility List $2.52 / Each

9,3
161239 279068 46 WALKING PLATFORM No Model Compatibility List $162.17 / Each

15
INCLINE MOTOR SENSOR KIT 100162 286707 # INCLINE MOTOR SENSOR KIT No Model Compatibility List $50.13 / Each

1,4,10,47,3
161256 291771 # TECH SHEET No Model Compatibility List $0.00 / Each
Out Of Stock 		1
161258 291772 # LITPAC, NOTE: No Model Compatibility List $103.89 / Each

4,5,6
161257 291773 # USER'S MANUAL,ENG No Model Compatibility List $9.16 / Each

1
161255 291833 87 CONSOLE No Model Compatibility List $515.68 / Each
Out Of Stock 		7
100094 356520 # ACCESSORY KIT No Model Compatibility List $42.89 / Each

1,3,4,5,6
Fat Switch Version 000698 186726 128 1 Fat Switch Version Yes Model Compatibility List $16.42 / Each

6,4
Bolt 3/8-16-1.50 Inches (Used) 1026116 174320 3 1 Bolt 3/8-16-1.50 Inches (Used) Yes Model Compatibility List $2.29 / Each

2,41
Motor Drive 1003221 297197 0 1 Motor Drive Yes Model Compatibility List $238.99 / Each
Out Of Stock 		28
Incline Motor Sensor Kit 1003656 286707 # 1 Incline Motor Sensor Kit No Model Compatibility List $50.13 / Each

47,4,3
Spring Deck (Used) 1028688 268088 40 2 Spring Deck (Used) No Model Compatibility List $12.99 / Each

1
M10 Locknut 1005195 148710 53 1 M10 Locknut No Model Compatibility List $1.57 / Each

1,2
Magnet 1009452 113842 137 1 Magnet Yes Model Compatibility List $1.10 / Each

1,3,8
Nylock Nut 1010890 119425 38 1 Nylock Nut Yes Model Compatibility List $0.55 / Each

1,2
Screw 3/8 1010891 181980 2 1 Screw 3/8" X 1 3/4" Yes Model Compatibility List $2.39 / Each

1,2
Walking Belt Guide 1010892 198640 64 1 Walking Belt Guide Yes Model Compatibility List $18.62 / Each

15,3
Tinnerman Clip 1011229 133333 126 1 Tinnerman Clip Yes Model Compatibility List $0.65 / Each

2,3
Nylock Jam Nut 3/8 1011523 133945 0 1 Nylock Jam Nut 3/8" Yes Model Compatibility List $11.99 / Each

1
M8 Locknut 1011772 012042 102B 1 M8 Locknut Yes Model Compatibility List $11.99 / Each

1
Idler Washer M6 1011790 014033 0 1 Idler Washer M6 Yes Model Compatibility List $12.99 / Each

1
Reed Switch Cable Retainer Clamp 1011798 131090 114 1 Reed Switch Cable Retainer Clamp Yes Model Compatibility List $0.46 / Each

19,3
Leveler Foot Bumper 1011801 157600 23 1 Leveler Foot Bumper Yes Model Compatibility List $1.33 / Each

1,3
Incline Lift Elevation Motor 1001356 249516 or 231224 Incline Lift Elevation Motor Yes Model Compatibility List $74.99 / Each

28
View Drawing

general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

Hydra Fitness Exchange © 2024. All Rights Reserved.

Payment options
